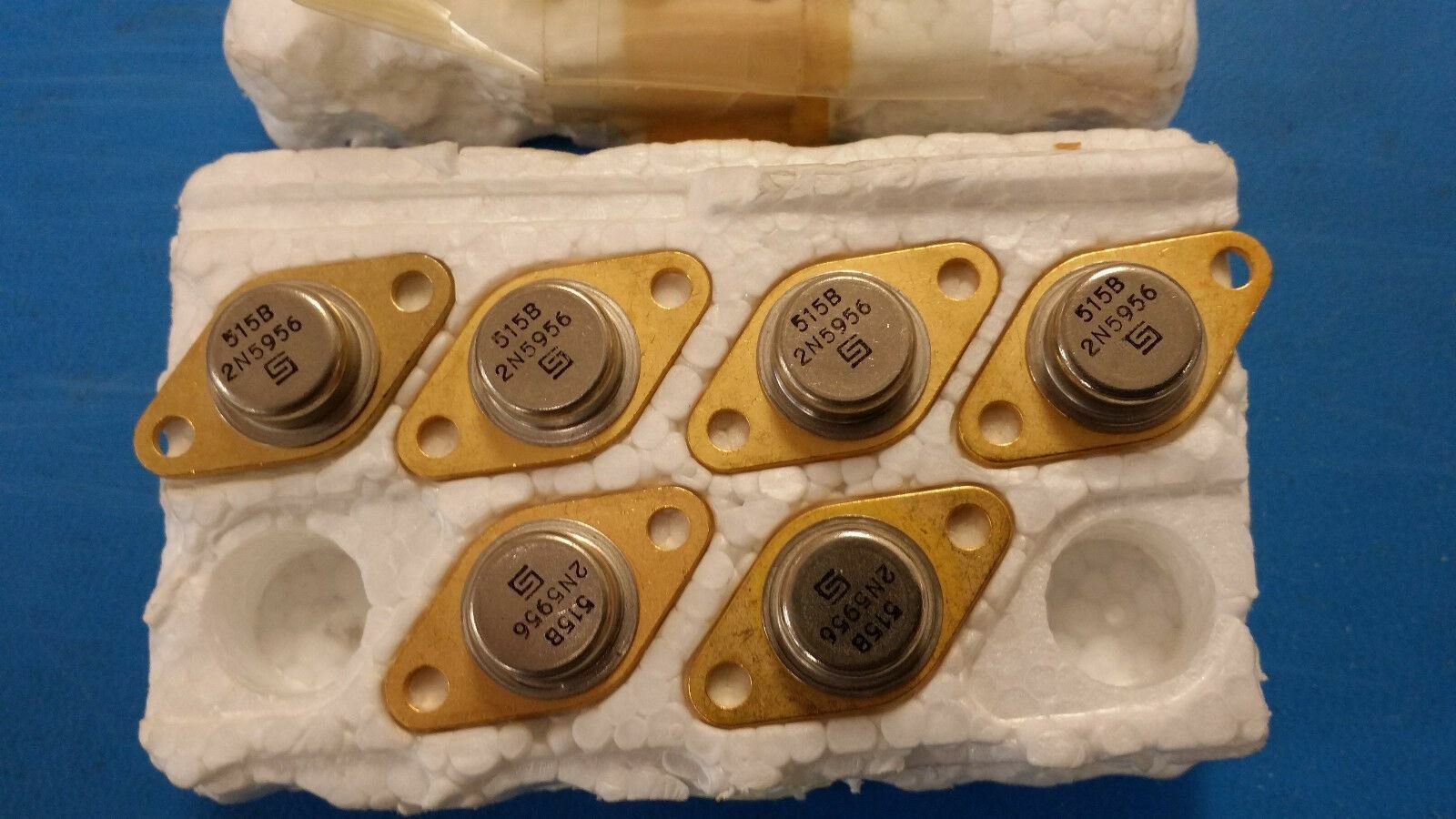

(1 PC) 2N5956 SOLID STATE 6 A, 40 V, PNP, Si, POWER TRANSISTOR, TO-66
Tax included.

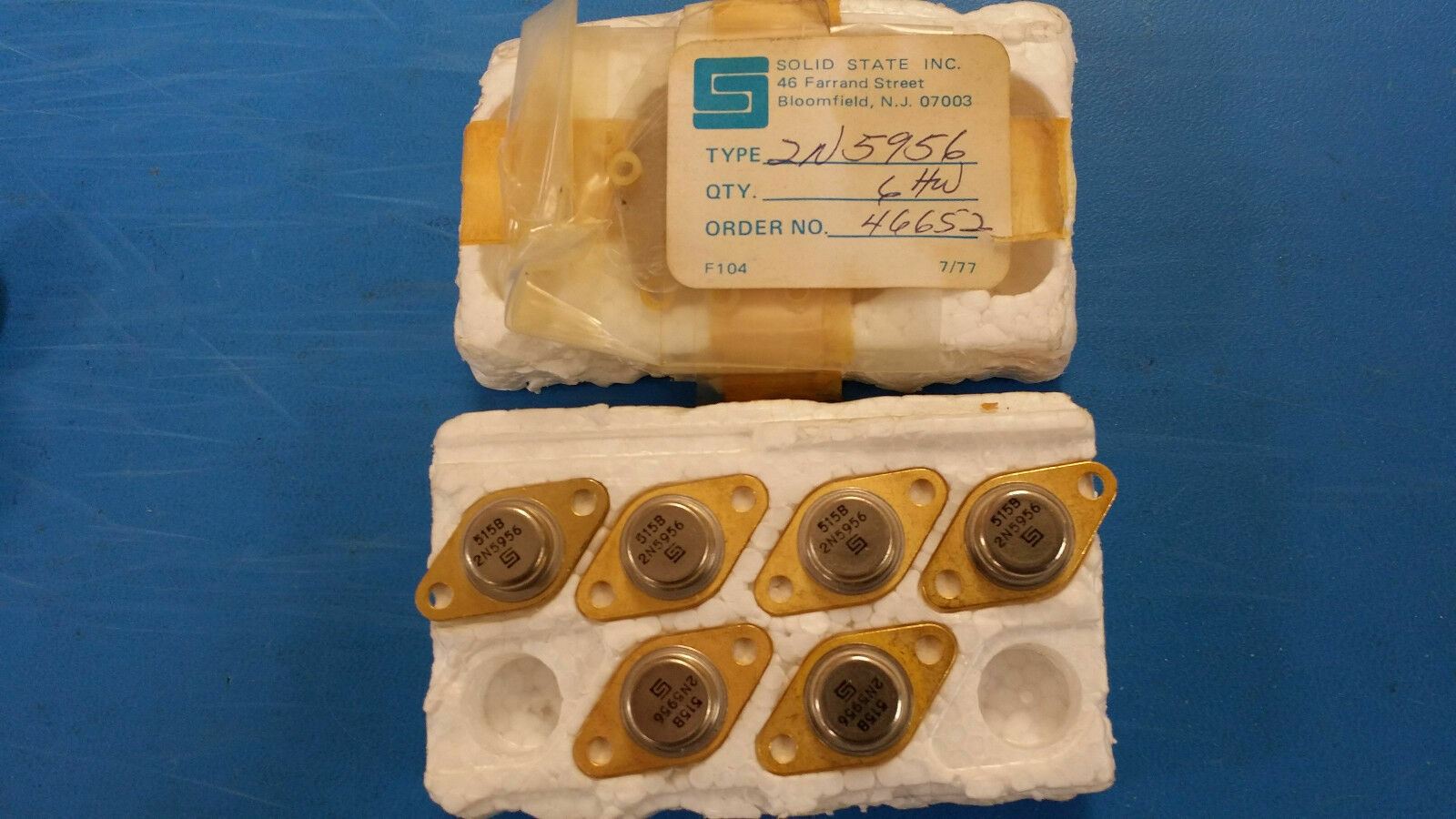

THIS LISTING IS FOR (1PC) OF 2N5956 BY SOLID STATE
6 A, 40 V, PNP, Si, POWER TRANSISTOR, TO-66
6 A, 40 V, PNP, Si, POWER TRANSISTOR, TO-66
SPECIFICATIONS
| Mfr Package Description | HERMETIC SEALED, METAL PACKAGE-2 |
| REACH Compliant | Yes |
| Status | Active |
| Case Connection | COLLECTOR |
| Collector Current-Max (IC) | 6 A |
| Collector-emitter Voltage-Max | 40 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 5 |
| JEDEC-95 Code | TO-66 |
| JESD-30 Code | O-MBFM-P2 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | NOT SPECIFIED |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 200 Cel |
| Package Body Material | METAL |
| Package Shape | ROUND |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | PNP |
| Power Dissipation-Max (Abs) | 40 W |
| Qualification Status | COMMERCIAL |
| Sub Category | Other Transistors |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | PIN/PEG |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
