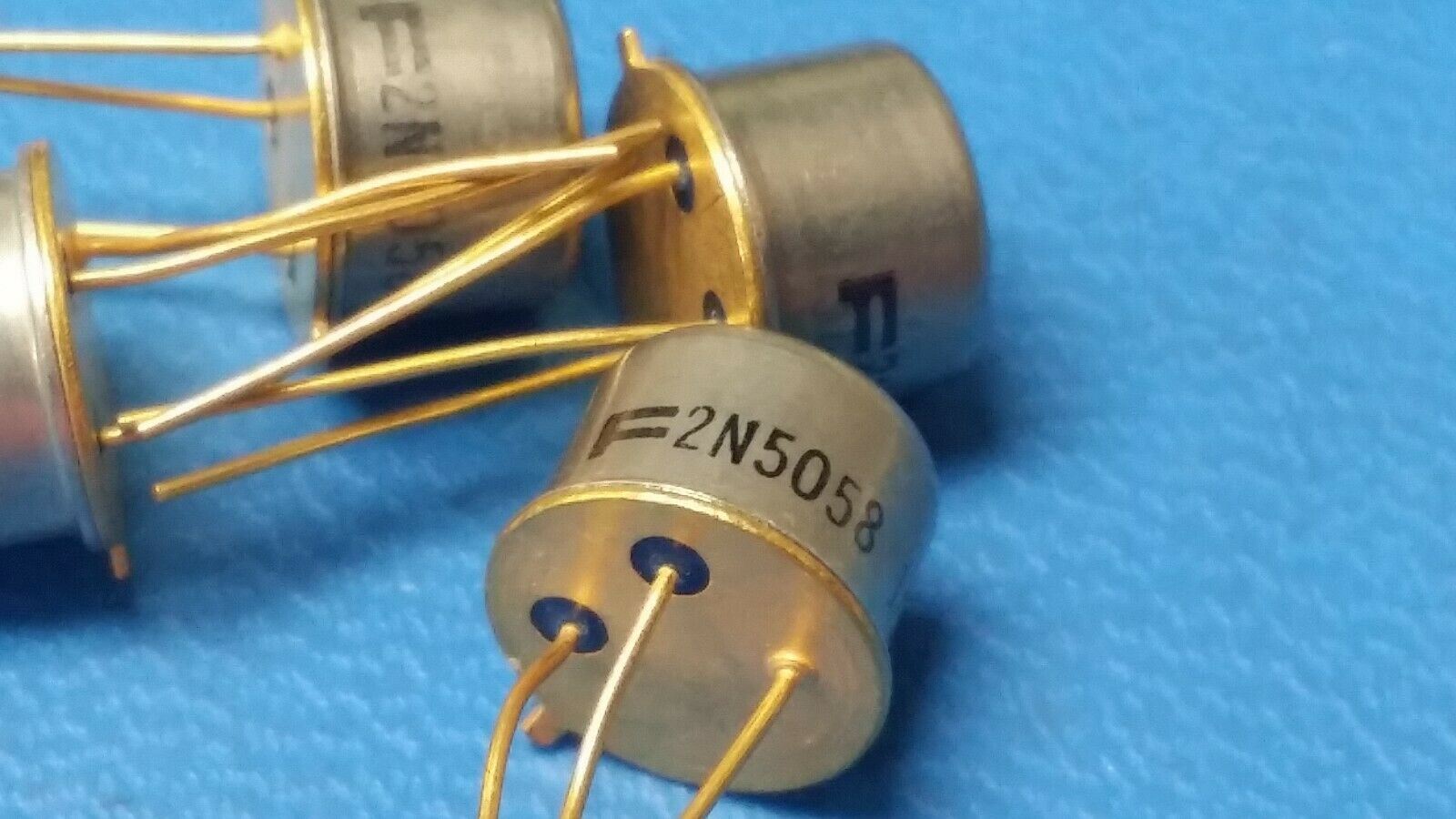

(1 PC) 2N5058 FSC Bipolar Transistor NPN High Voltage 300V 150mA 3-Pin TO-39
Tax included.

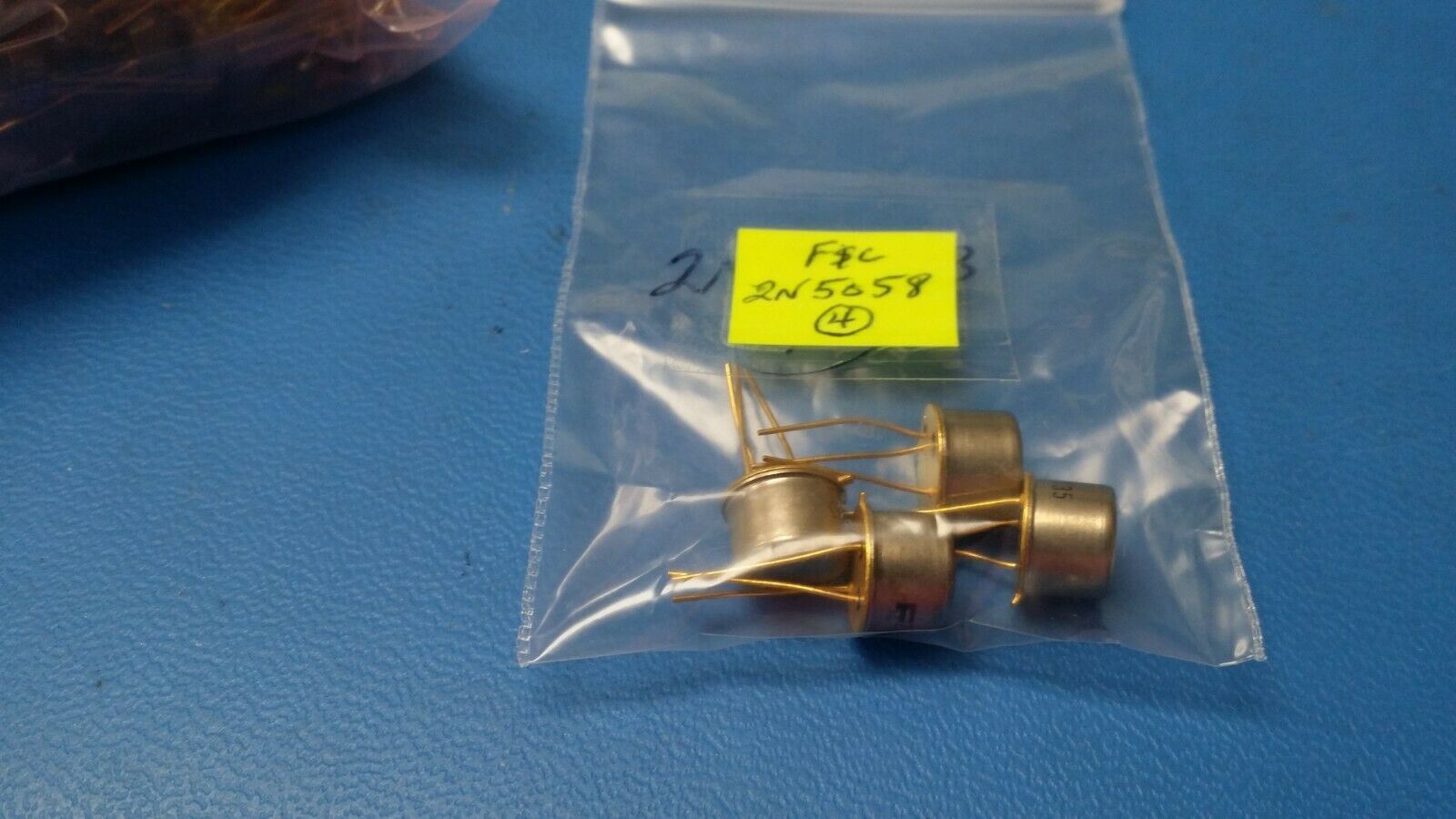

THIS IS FOR (1 PC) OF 2N5058 BY FSC
Bipolar Transistor NPN High Voltage 300V 150mA 3-Pin TO-39
Mfr Package Description METAL PACKAGE-3
Status Discontinued
Collector Current-Max (IC) 0.15 A
Collector-emitter Voltage-Max 300.0 V
Configuration SINGLE
DC Current Gain-Min (hFE) 35.0
JEDEC-95 Code TO-5
JESD-30 Code O-MBCY-W3
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 175.0 Cel
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 1.0 W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form WIRE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application AMPLIFIER
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 30.0 MHz
