(1 PC) 2N4104 TI RF Small Signal Bipolar Transistor, 0.05A, NPN, TO-18
Tax included.

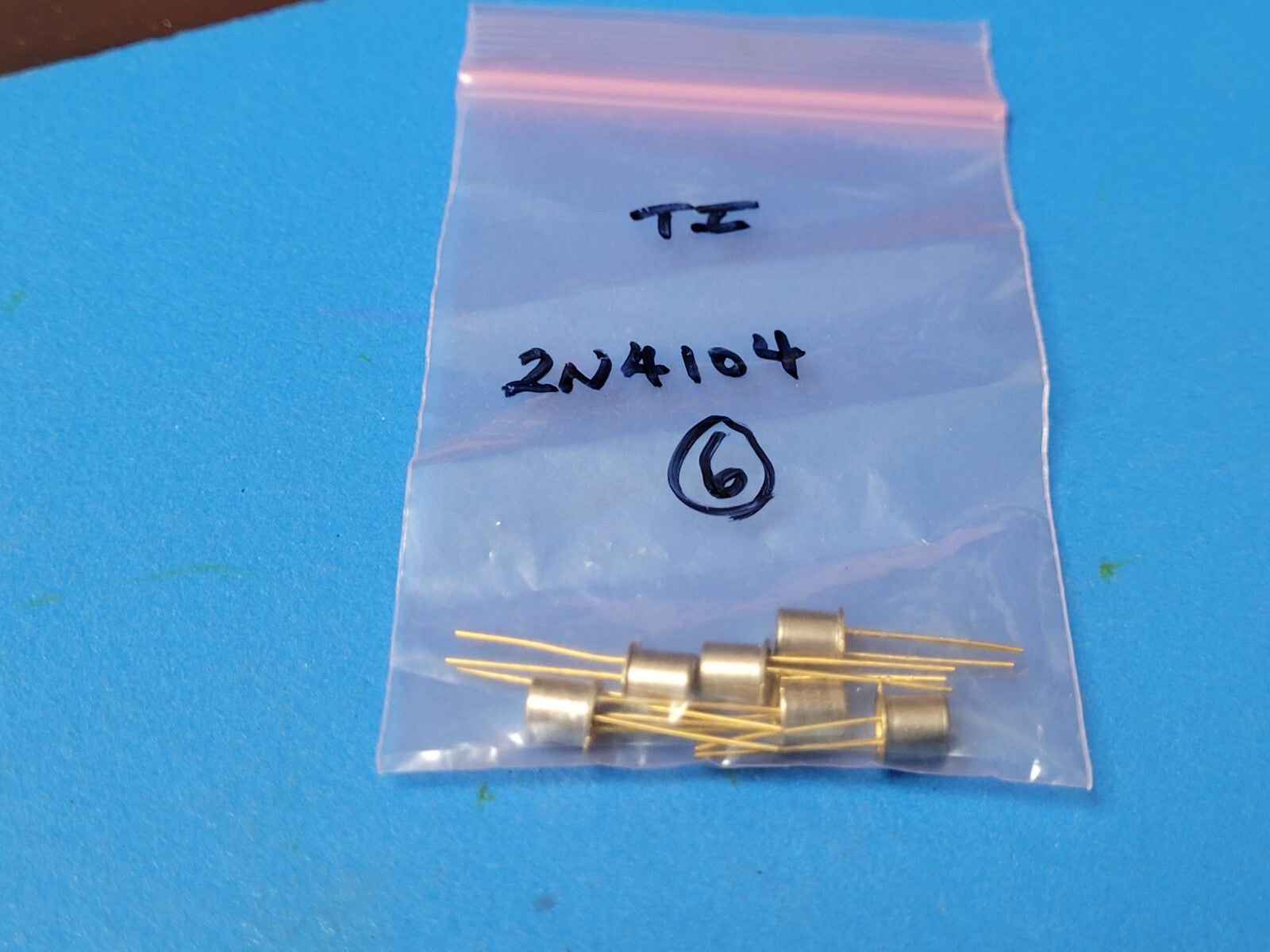

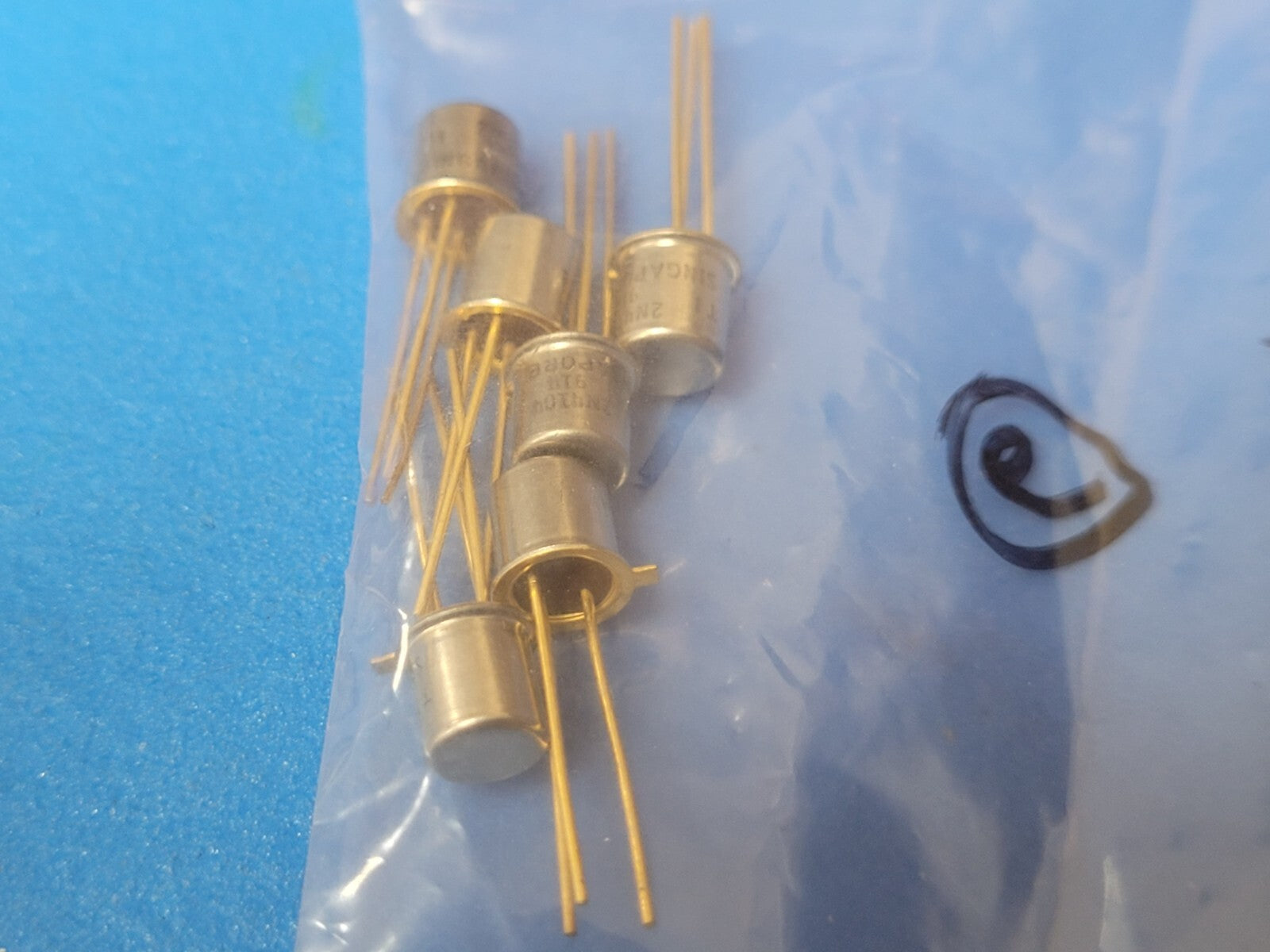

THIS IS FOR (1 PC) OF 2N4104 BY TI
RF Small Signal Bipolar Transistor, 0.05A, NPN, TO-18
Part #: 2N4104
Part Category: Transistors
Manufacturer: Texas Instruments High-Performance Analog
Description: RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Silicon, NPN, TO-18
Status Discontinued
Case Connection COLLECTOR
Collector Current-Max (IC) 0.05 A
Configuration SINGLE
DC Current Gain-Min (hFE) 400.0
JEDEC-95 Code TO-18
JESD-30 Code O-MBCY-W3
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 200.0 Cel
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 0.3 W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount NO
Terminal Form WIRE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application AMPLIFIER
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 90.0 MHz
Additional Feature LOW NOISE
