(1 PC) 2N3337 (5961-01-145-4221) TRANSISTOR TO-72
Tax included.

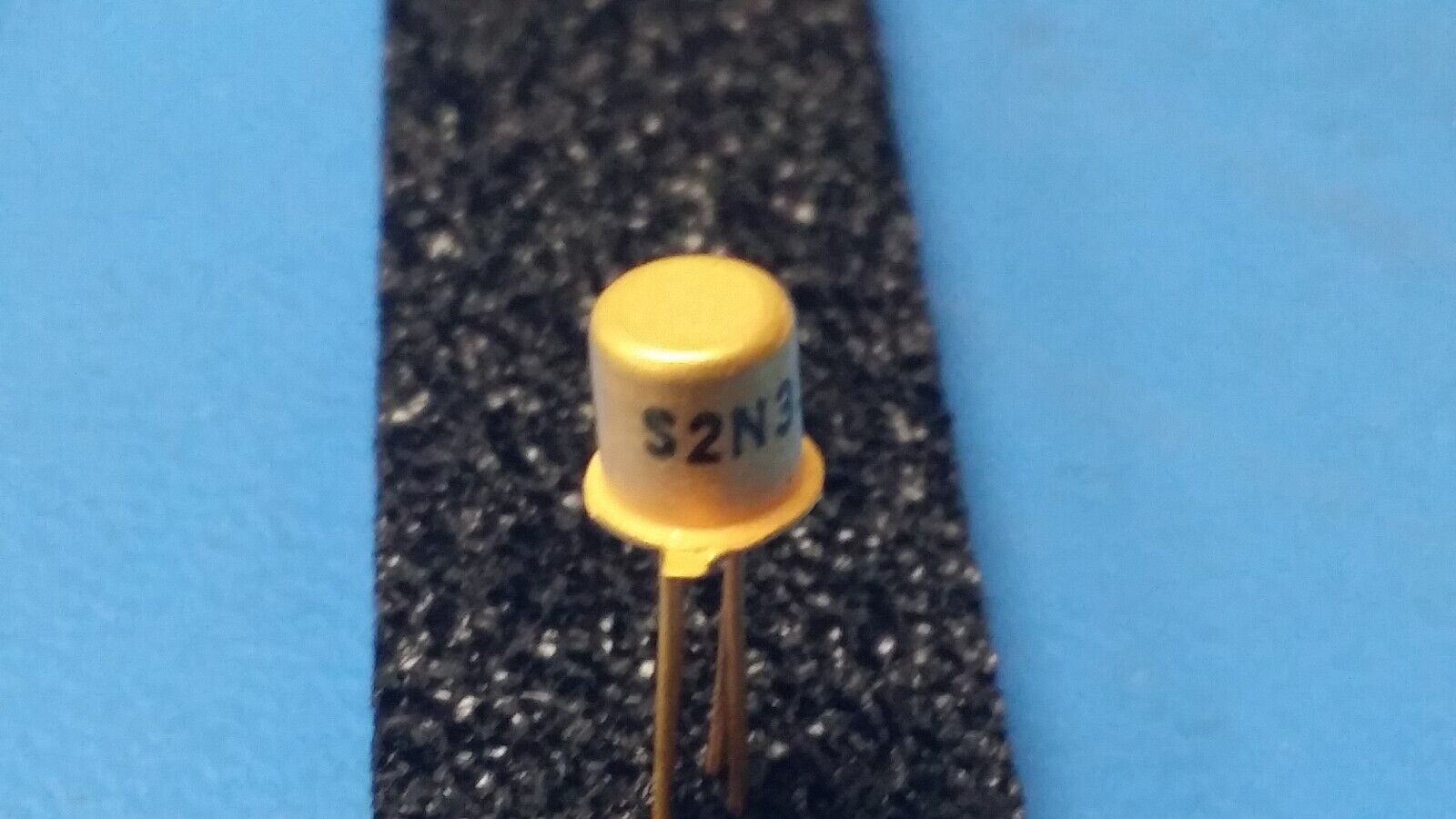

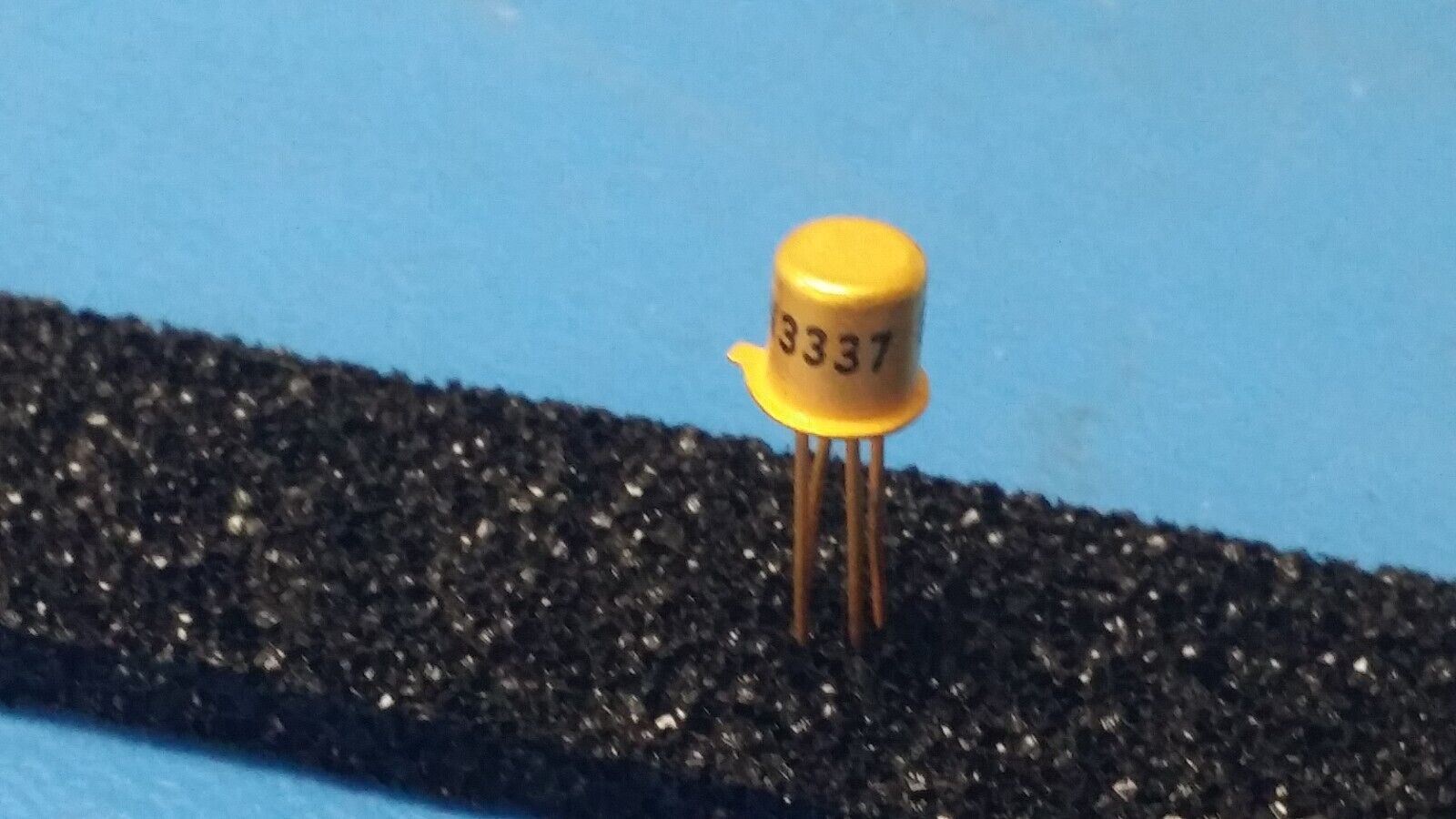

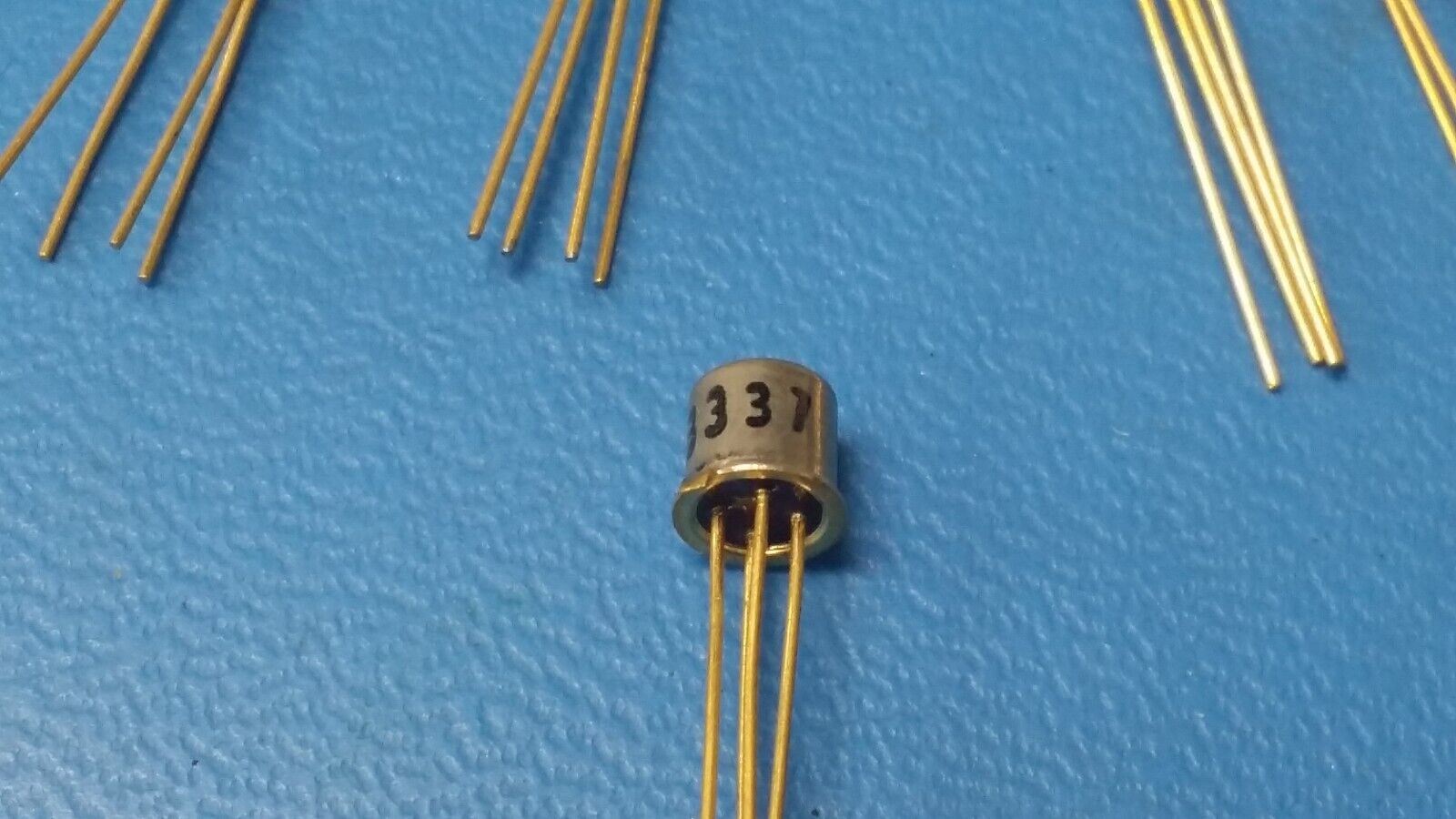

THIS IS FOR (1 PC) OF 2N3337 (5961-01-145-4221)
TRANSISTOR TO-72
Mfr Package Description TO-72, 4 PIN
Status Discontinued
Collector-base Capacitance-Max 1.6 pF
Collector Current-Max (IC) 0.05 A
Collector-emitter Voltage-Max 40.0 V
Configuration SINGLE
DC Current Gain-Min (hFE) 30.0
Highest Frequency Band VERY HIGH FREQUENCY BAND
JEDEC-95 Code TO-72
JESD-30 Code O-MBCY-W4
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 4
Operating Temperature-Max 200.0 Cel
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 0.3 W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form WIRE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application AMPLIFIER
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 400.0 MHz
