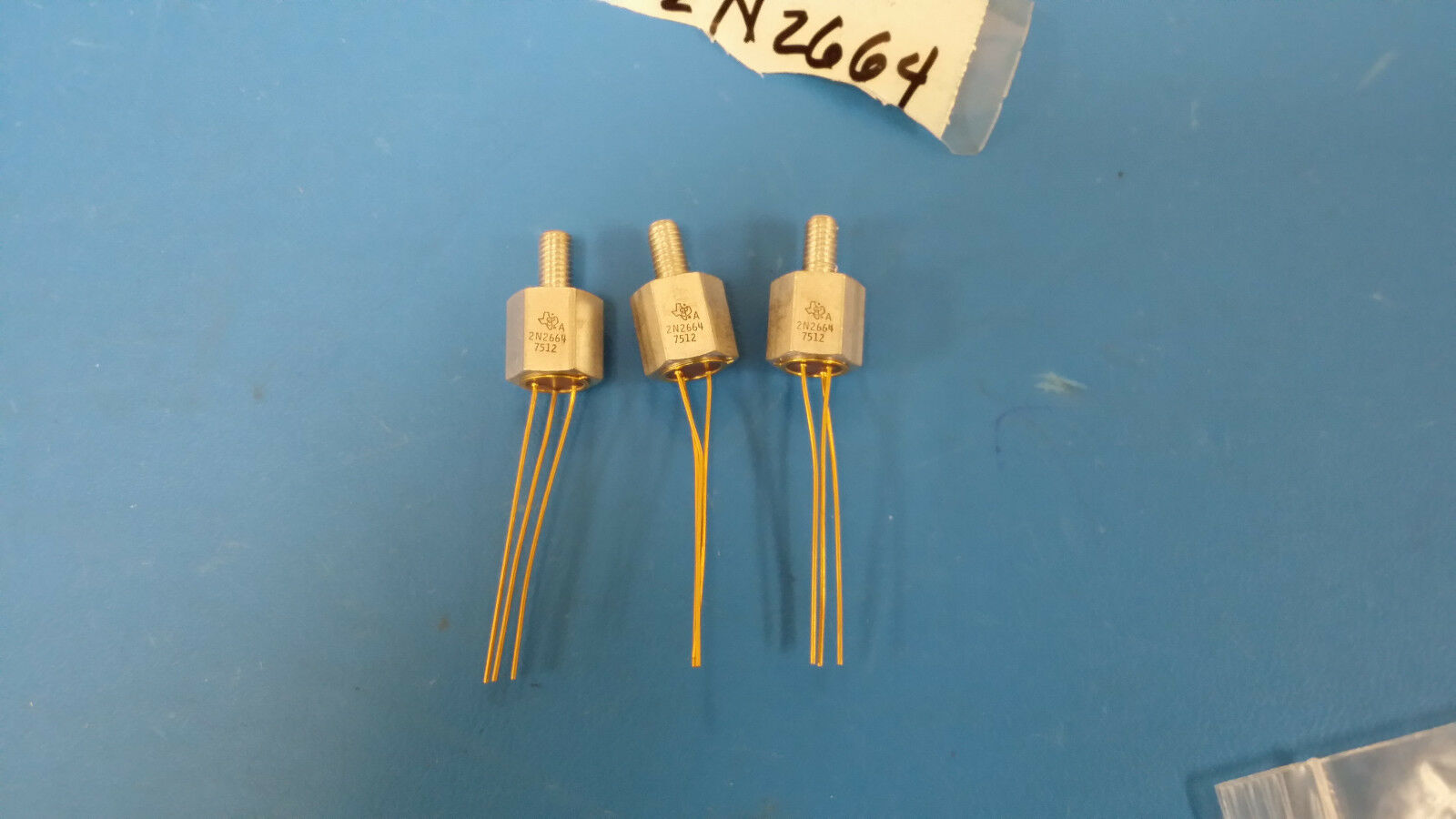

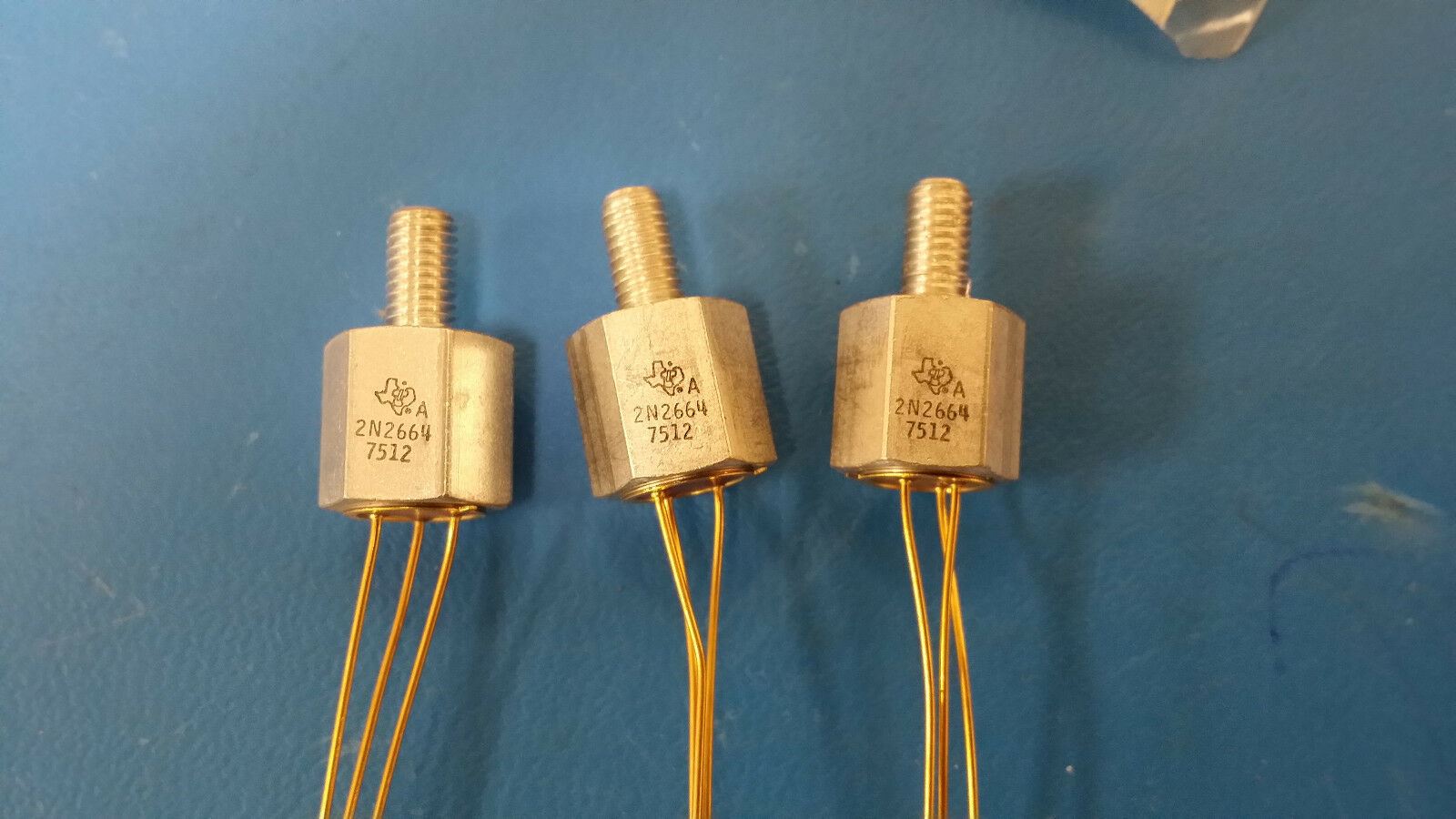

(1 PC) 2N2664 TEXAS INSTRUMENTS POWER TRANSISTOR

2N2664 Transistor Datasheet. Parameters and Characteristics.

Type Designator: 2N2664

Material of transistor: Ge

Polarity: PNP

Maximum collector power dissipation (Pc), W: 15

Maximum collector-base voltage |Ucb|, V: 50

Maximum collector-emitter voltage |Uce|, V: 50

Maximum emitter-base voltage |Ueb|, V: 20

Maximum collector current |Ic max|, A: 3

Maksimalna temperatura (Tj), °C: 100

Transition frequency (ft), MHz:

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 30

Noise Figure, dB: -

Package of 2N2664 transistor: MT27
