(1 PC) 2N2369A 5961-00-243-8698 Small Signal Bipolar Transistor 0.2A 15V NPN
Tax included.

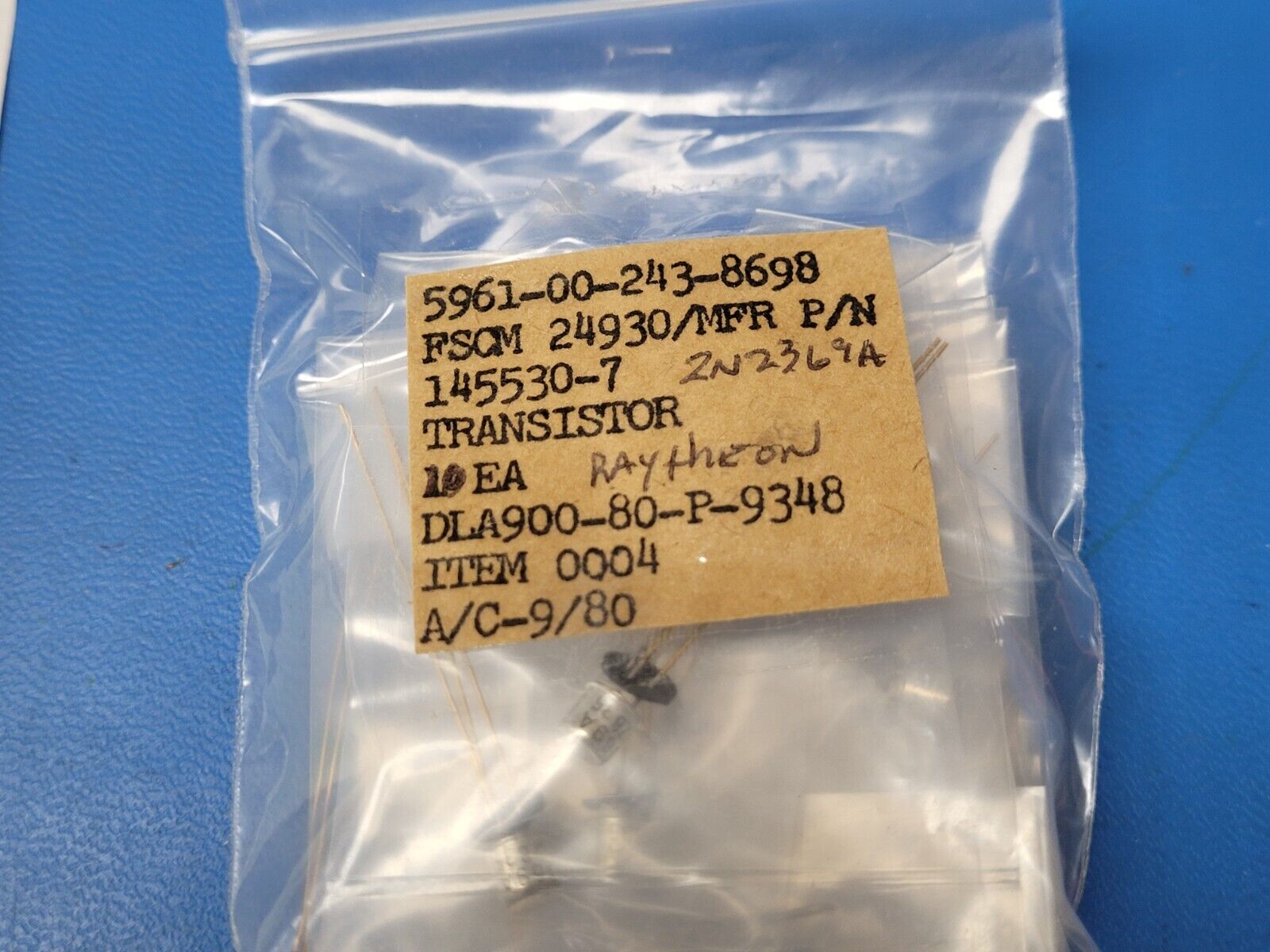

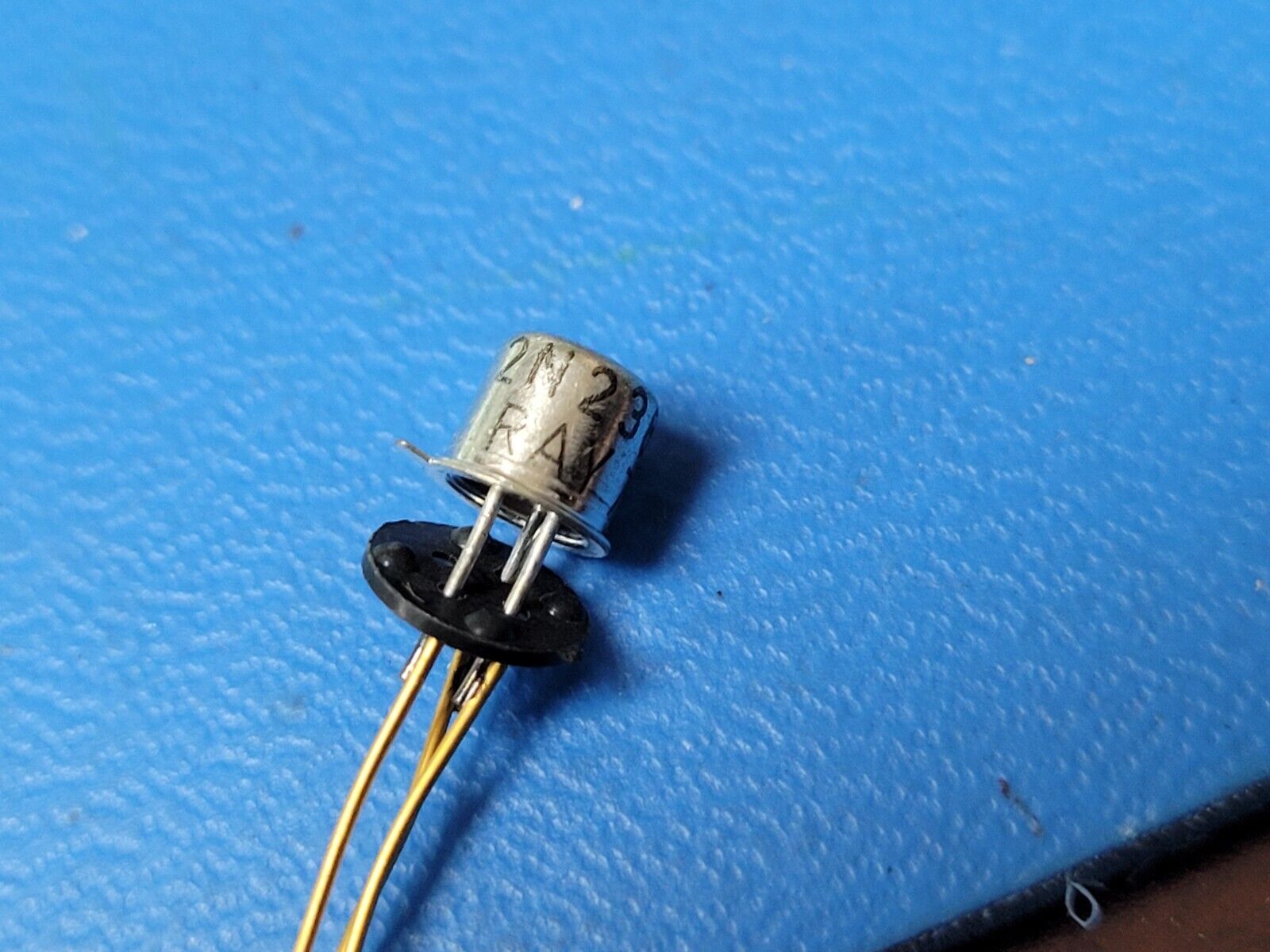

THIS IS FOR (1 PC) OF 2N2369A 5961-00-243-8698 BY RAYTHEON
Small Signal Bipolar Transistor 0.2A 15V NPN
Features and Characteristics
Inclosure MaterialMetalOverall Length0.210 inchesTerminal LengthBetween 1.500 inches and 1.800 inchesOverall Diameter0.230 inchesInternal ConfigurationJunction contactElectrode Internally-electrically Connected To CaseCollectorInternal Junction ConfigurationNpnMounting MethodTerminalTerminal Circle Diameter0.100 inchesFeatures ProvidedHermetically sealed case and mounting padSemiconductor MaterialSiliconVoltage Rating In Volts Per Characteristic40.0 breakdown voltage, collector-to-base, emitter open and 15.0 breakdown voltage, collector-to-emitter, base open and 4.5 breakdown voltage, emitter-to-base, collector openCurrent Rating Per Characteristic200.00 milliamperes source cutoff currentPower Rating Per Characteristic360.0 milliwatts small-signal input power, common-collectorMaximum Operating Tempurature Per Measurement Point200.0 degrees celsius junctionTerminal Type And Quantity3 uninsulated wire leadFSC5961 Semiconductor Devices And Associated HardwareNIIN002438698NSN5961002438698
