(1 PC) 2N2068 RCA GERMANIUM POWER TRANSISTOR 3.0A DC 20V 10W PNP (MM17)MS7 CASE
Tax included.

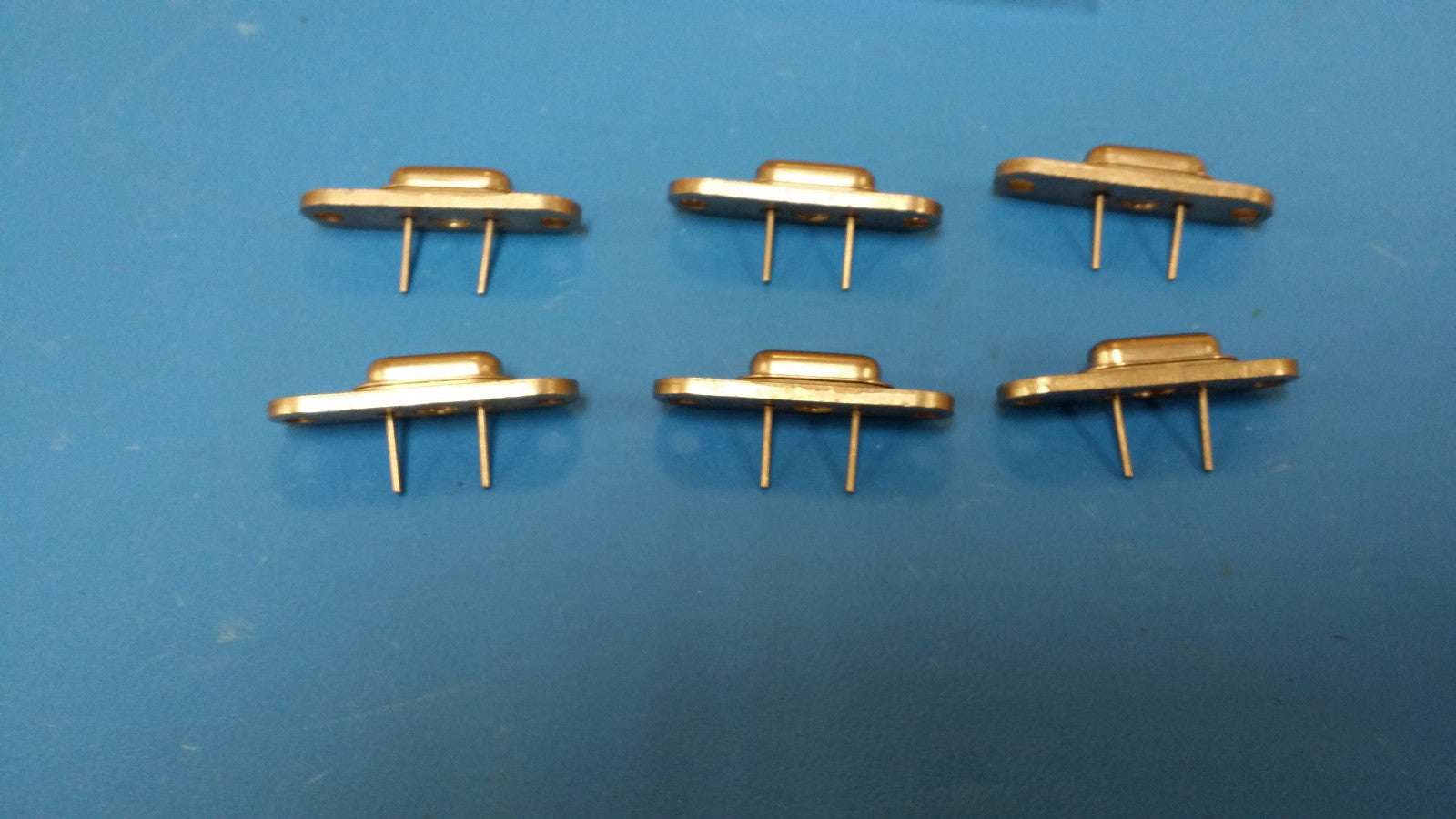

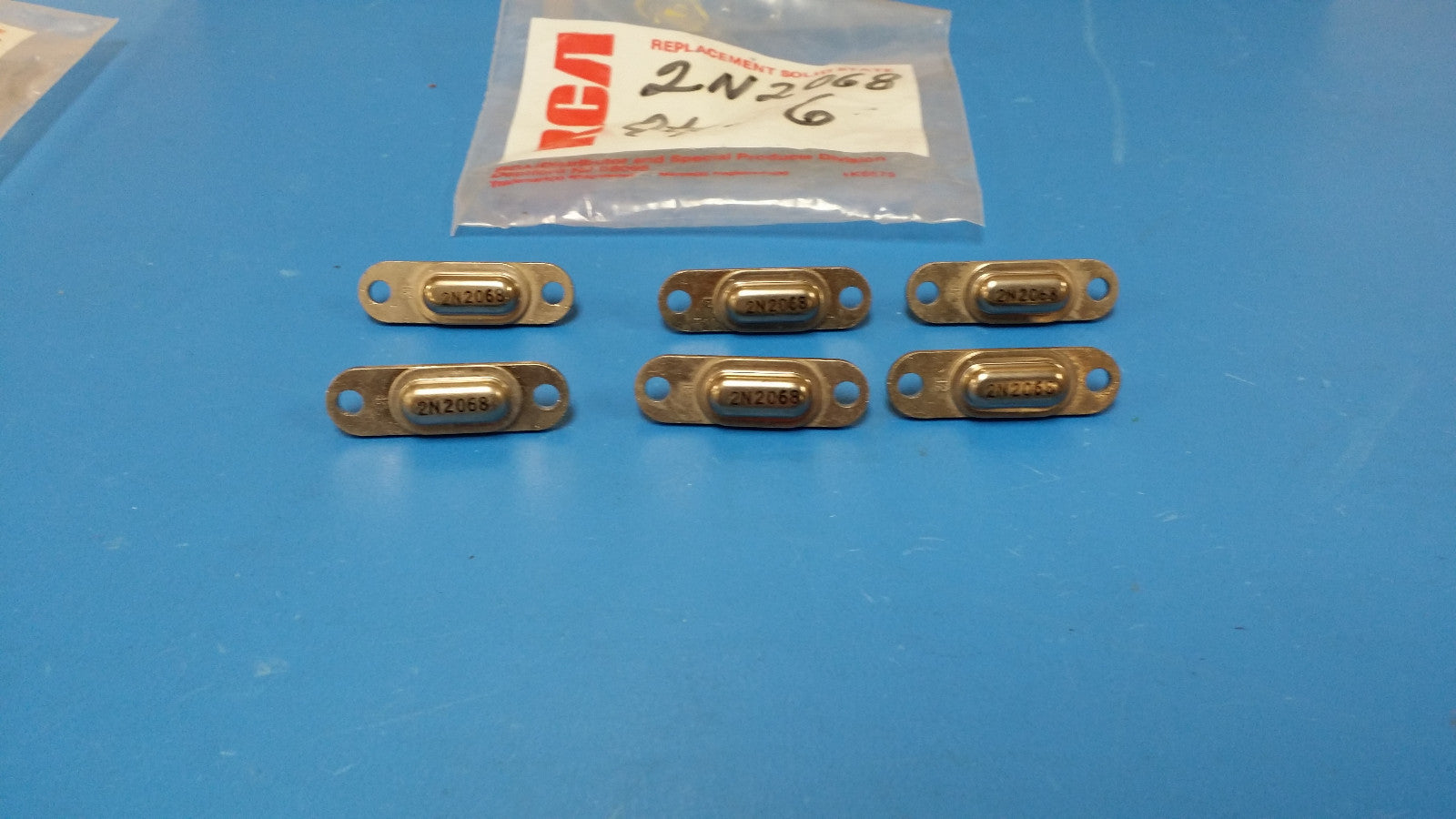

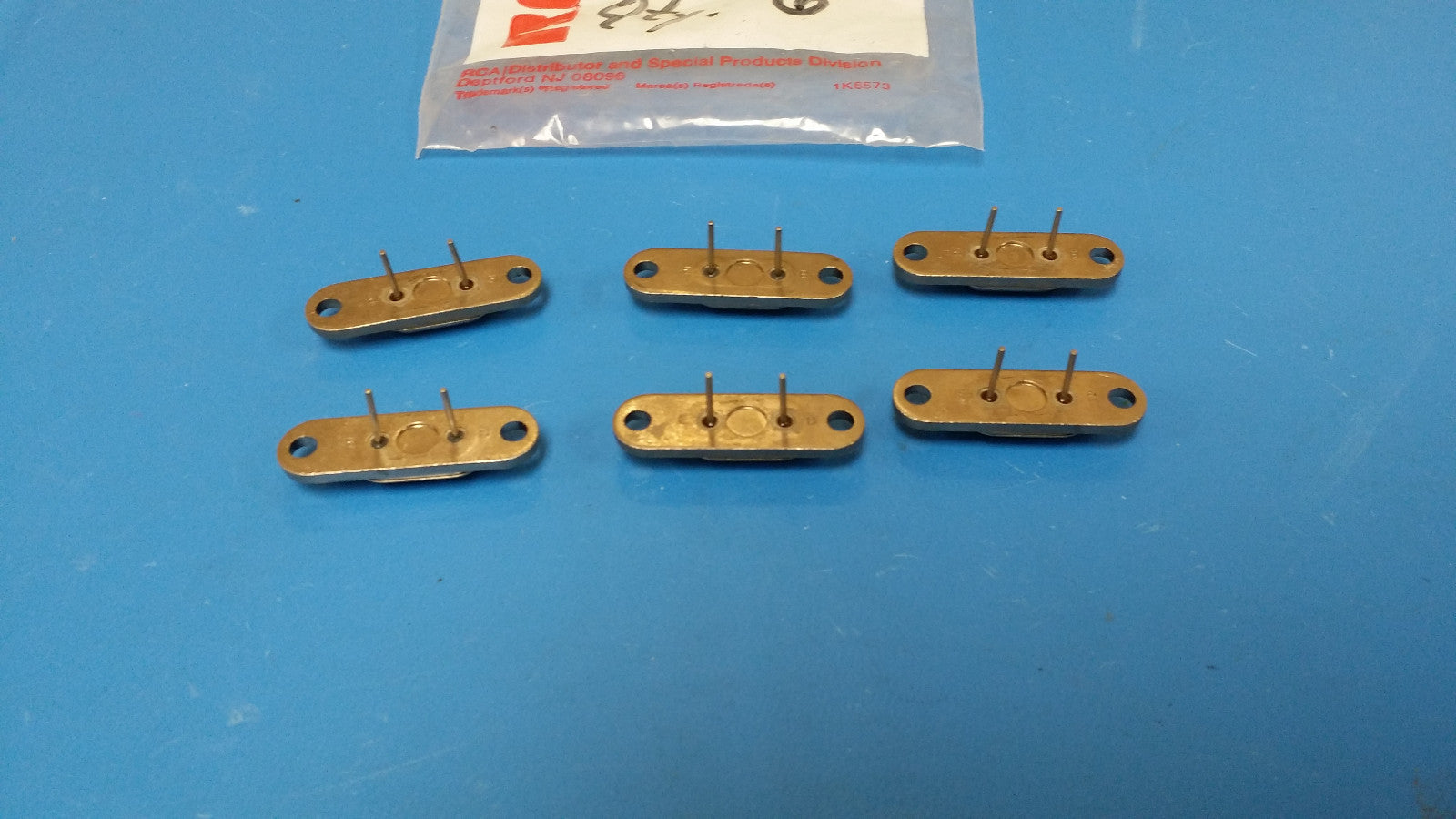

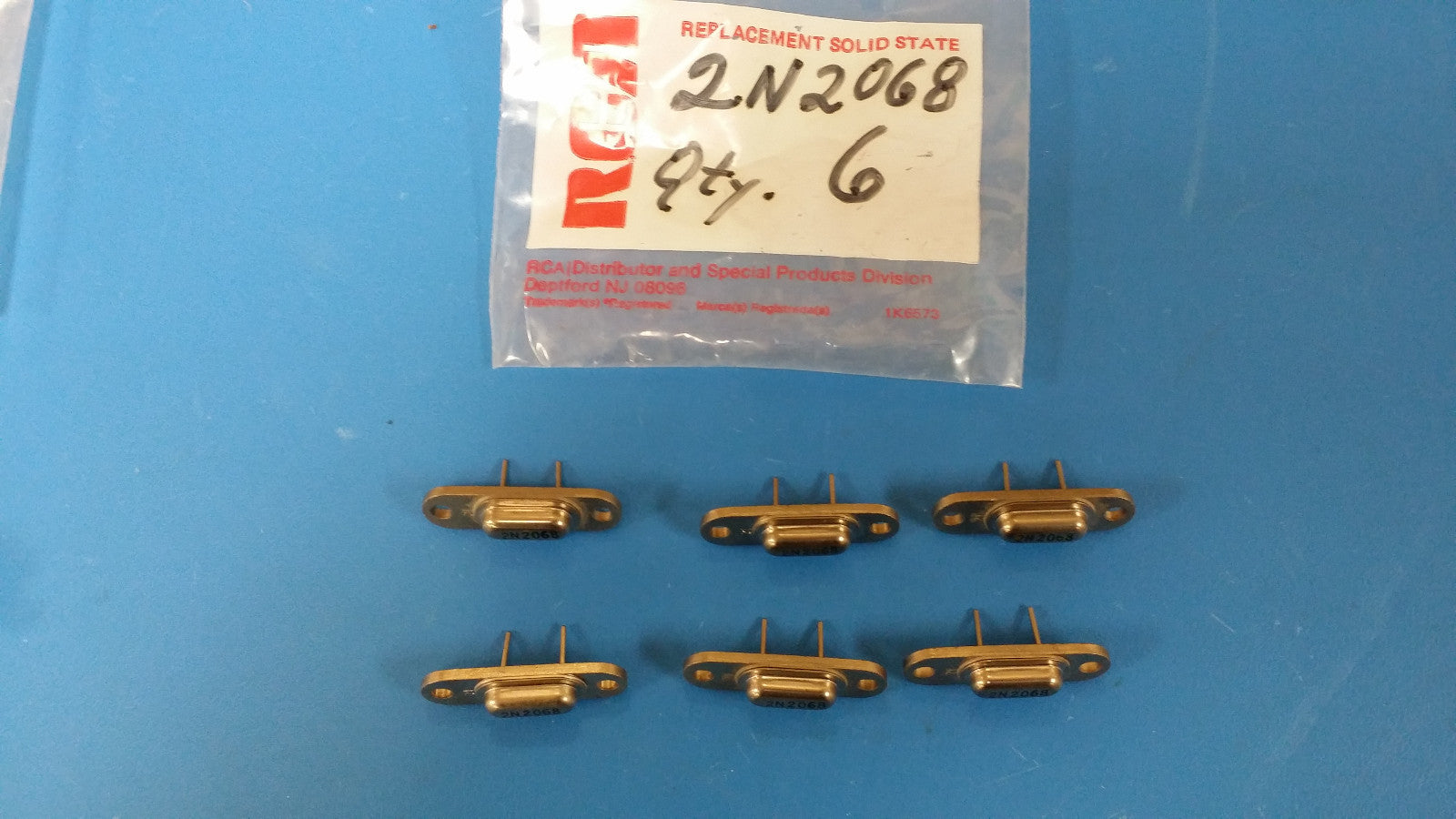

THIS LISTING IS FOR (1 PC) OF 2N2068 BY RCA
2N2068 Transistor Datasheet. Parameters and Characteristics.
Type Designator: 2N2068
Material of transistor: Ge
Polarity: PNP
Maximum collector power dissipation (Pc), W: 10
Maximum collector-base voltage |Ucb|, V: 80
Maximum collector-emitter voltage |Uce|, V: 55
Maximum emitter-base voltage |Ueb|, V: 20
Maximum collector current |Ic max|, A: 3
Maksimalna temperatura (Tj), °C: 90
Transition frequency (ft), MHz: 0.07
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 20
Noise Figure, dB: -
Package of 2N2068 transistor: MM17 (MS7)
