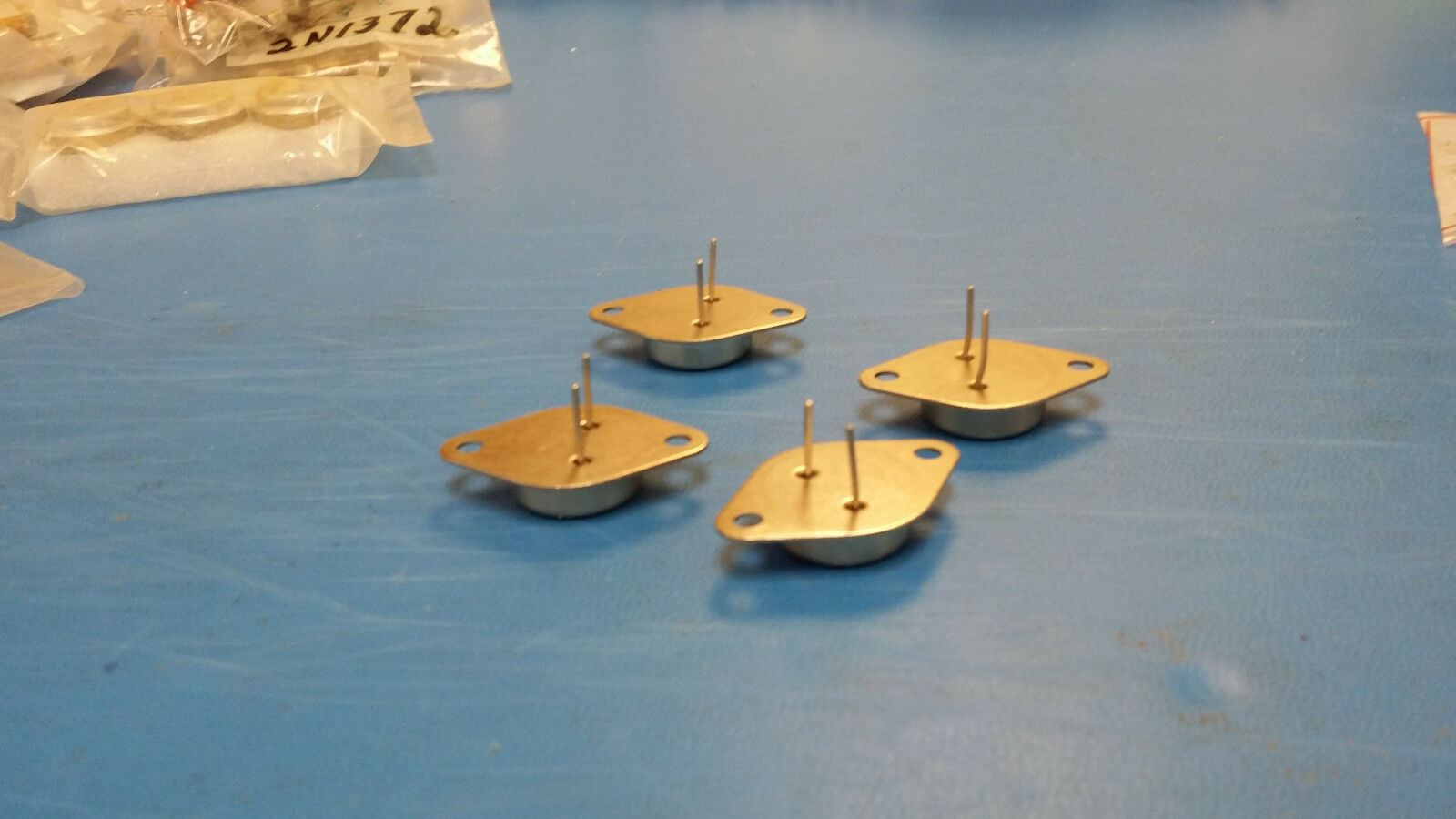

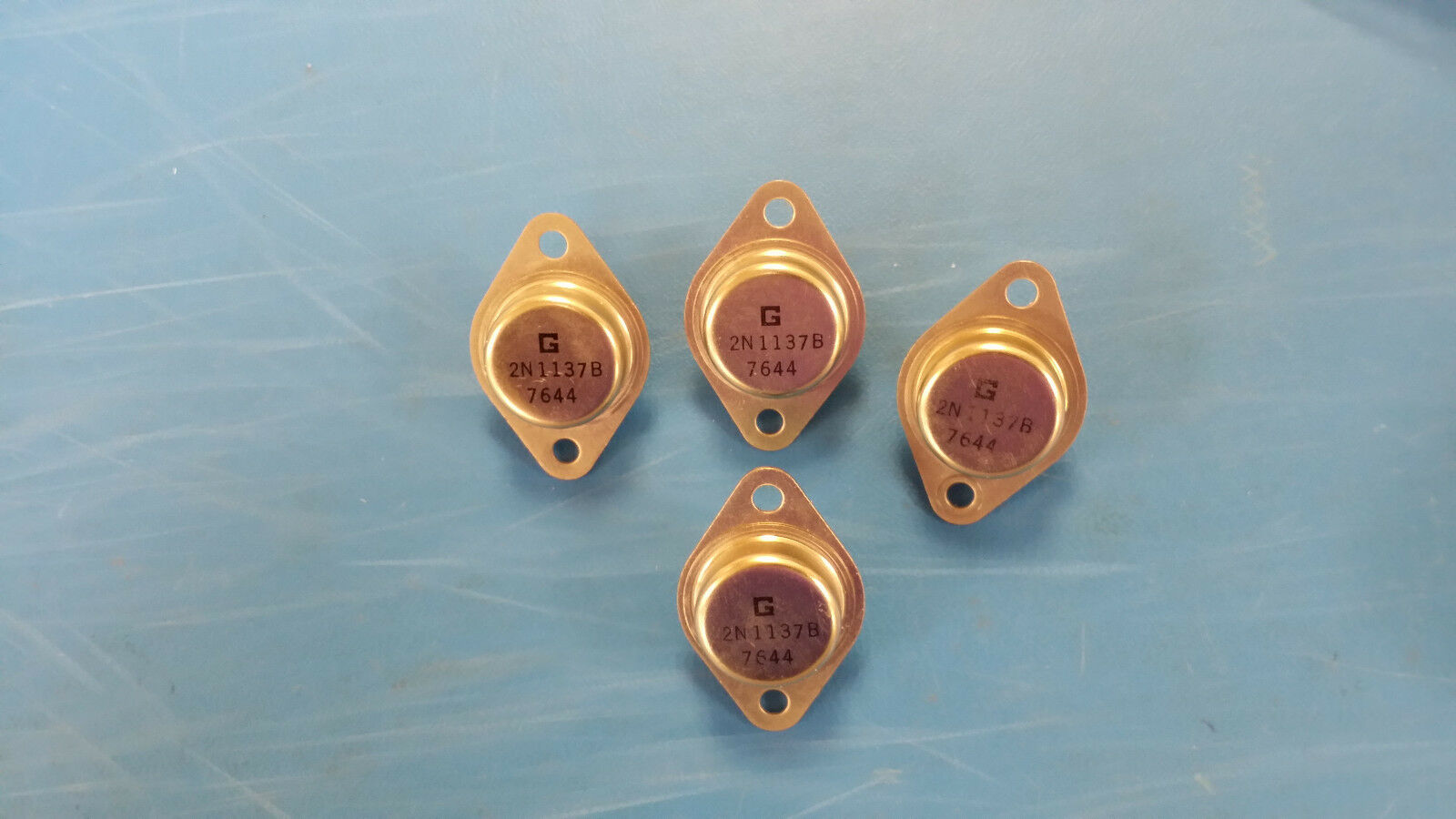

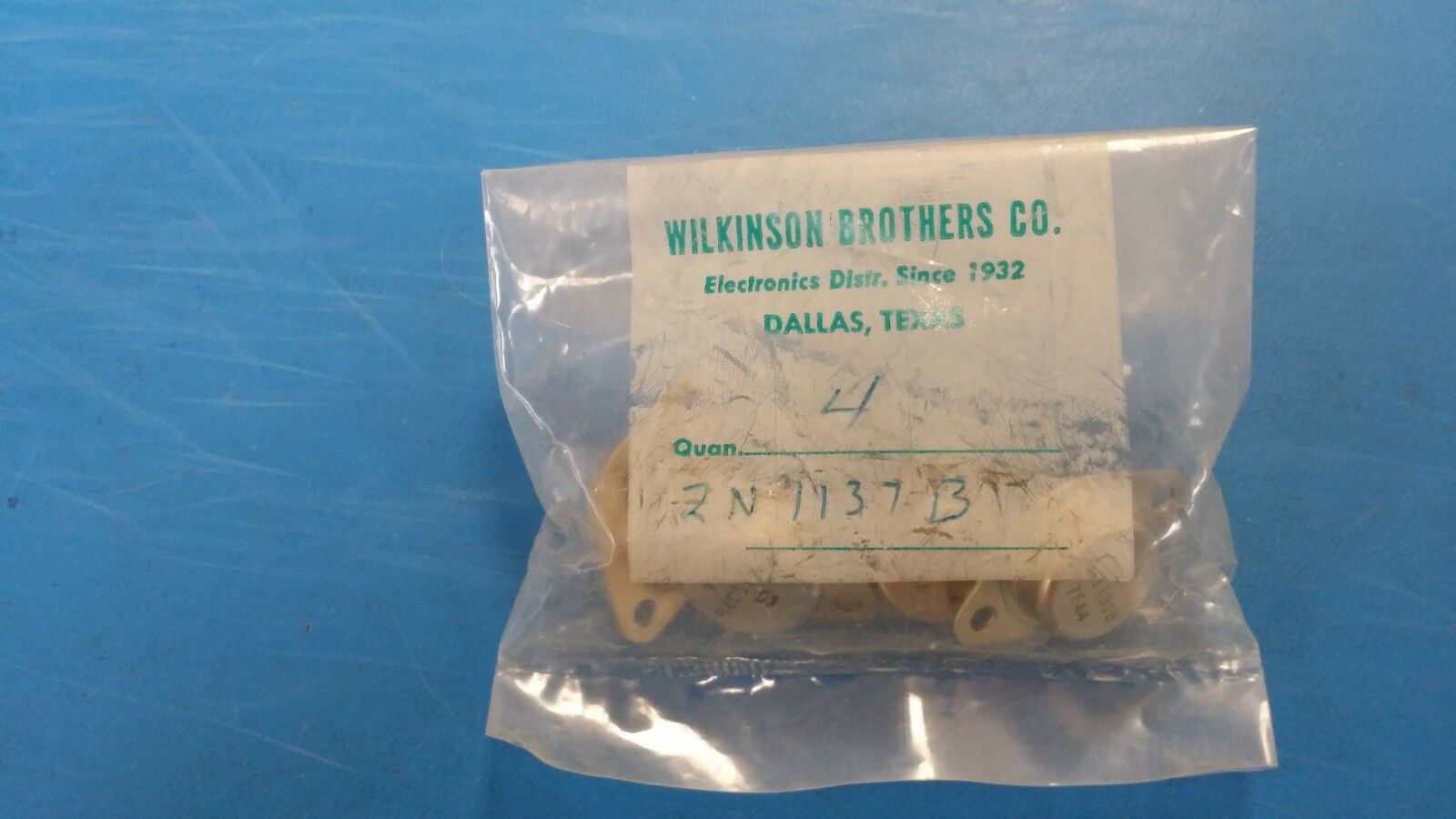

(1 PC) 2N1137B GENERAL INSTRUMENTS PNP POWER TRANSISTOR TO-3

2N1137B Transistor Datasheet. Parameters and Characteristics.

Type Designator: 2N1137B

Material of transistor: Ge

Polarity: PNP

Maximum collector power dissipation (Pc), W: 60

Maximum collector-base voltage |Ucb|, V: 100

Maximum collector-emitter voltage |Uce|, V: 65

Maximum emitter-base voltage |Ueb|, V: 5

Maximum collector current |Ic max|, A: 6

Maksimalna temperatura (Tj), °C: 100

Transition frequency (ft), MHz: 0.5

Collector capacitance (Cc), pF:

Forward current transfer ratio (hFE), min: 75

Noise Figure, dB: -

Package of 2N1137B transistor: TO3
