(1 PC) 1N5826 MOT Diode Schottky 20 V 15A Chassis, Stud Mount DO-4
Tax included.
THIS IS FOR (1 PC) OF 1N5826 BY MOT

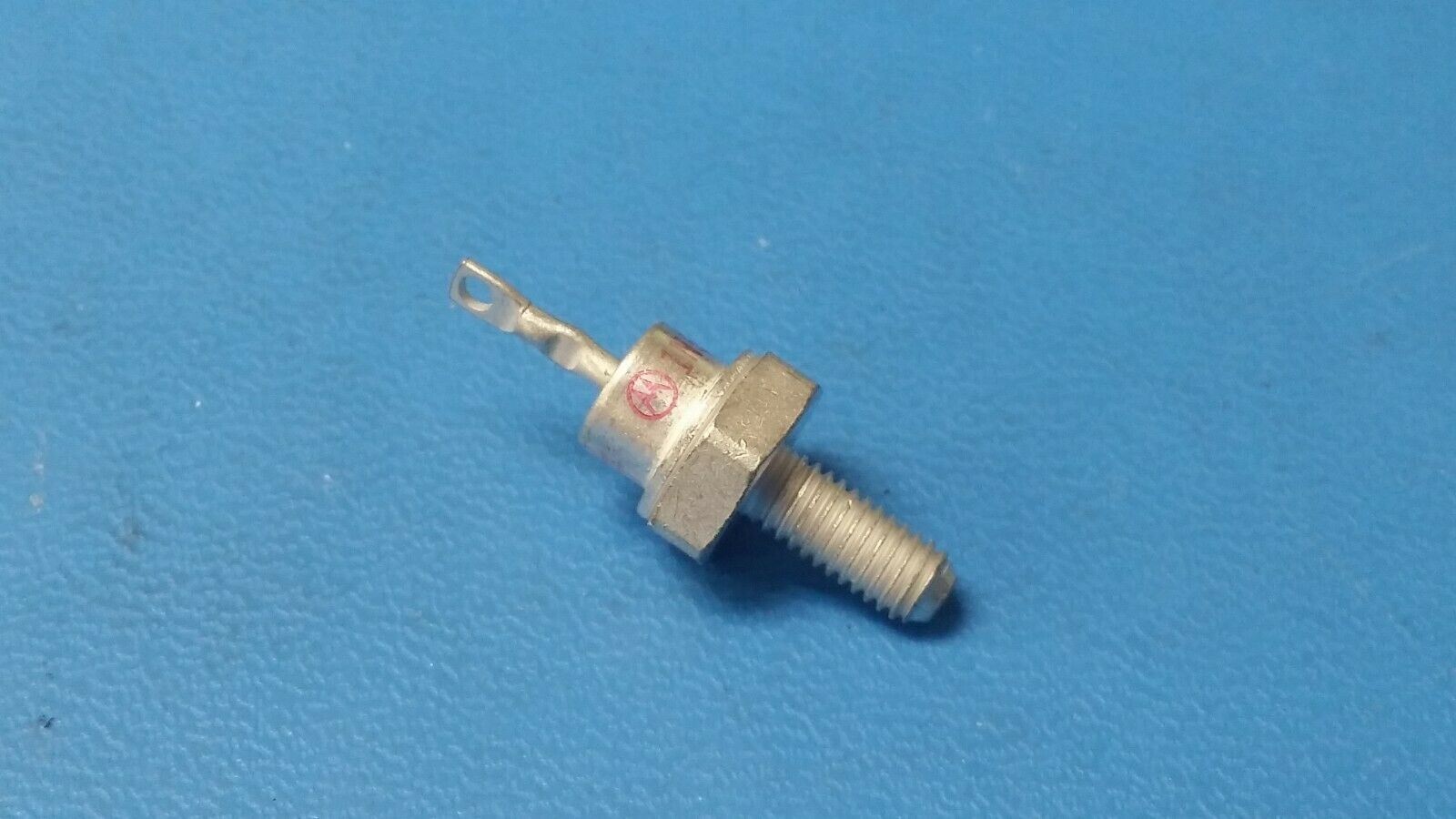

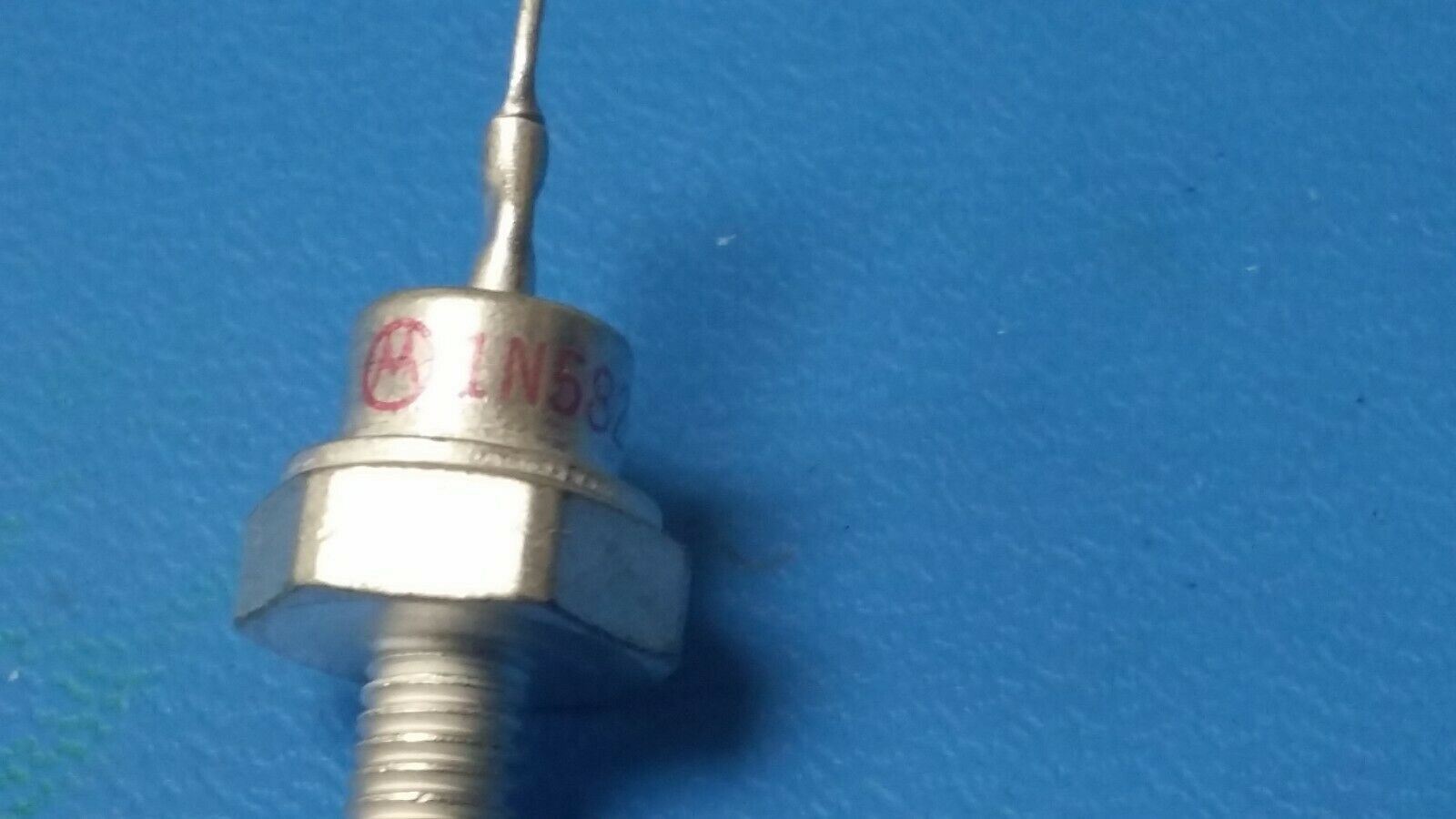

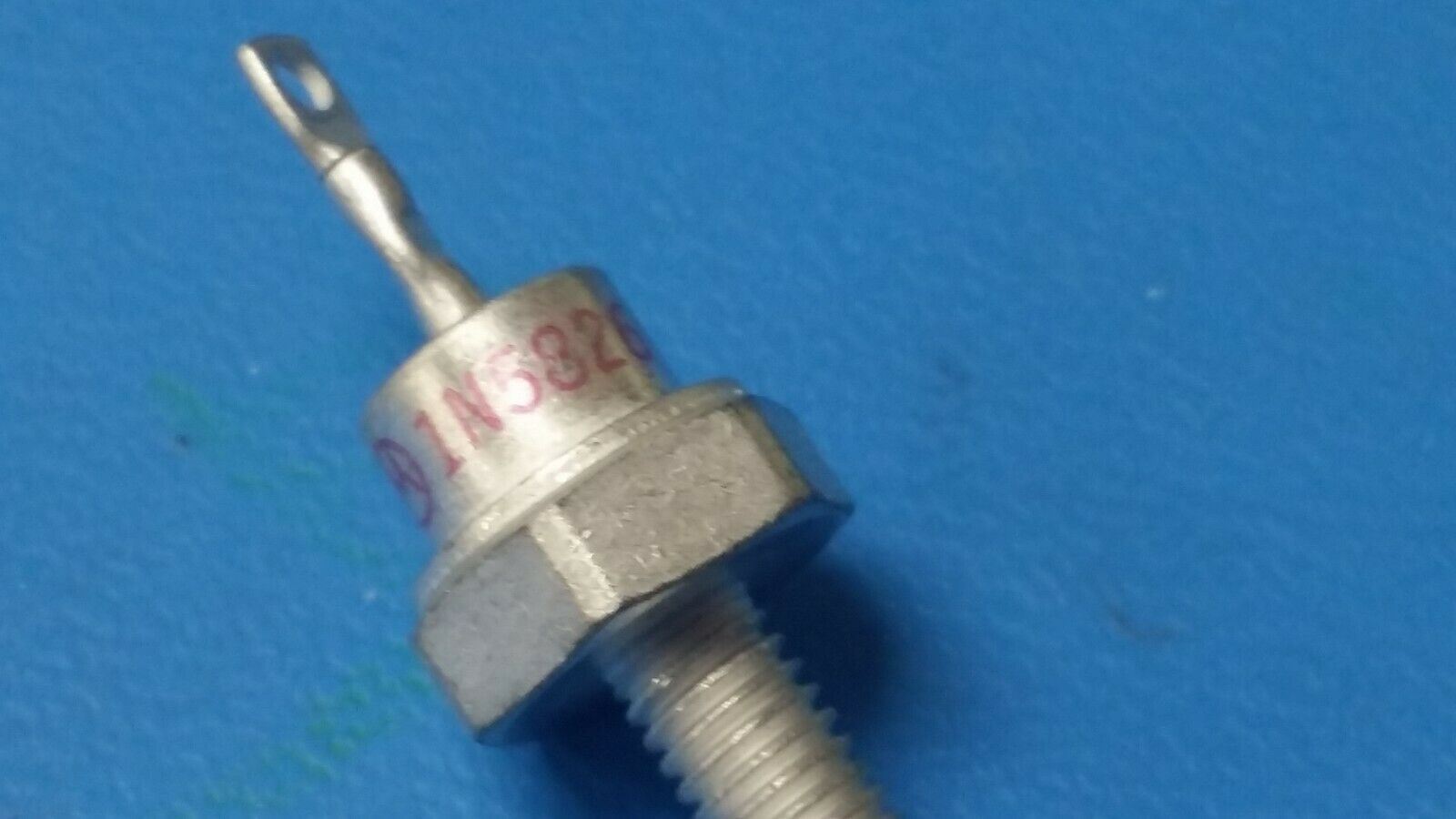

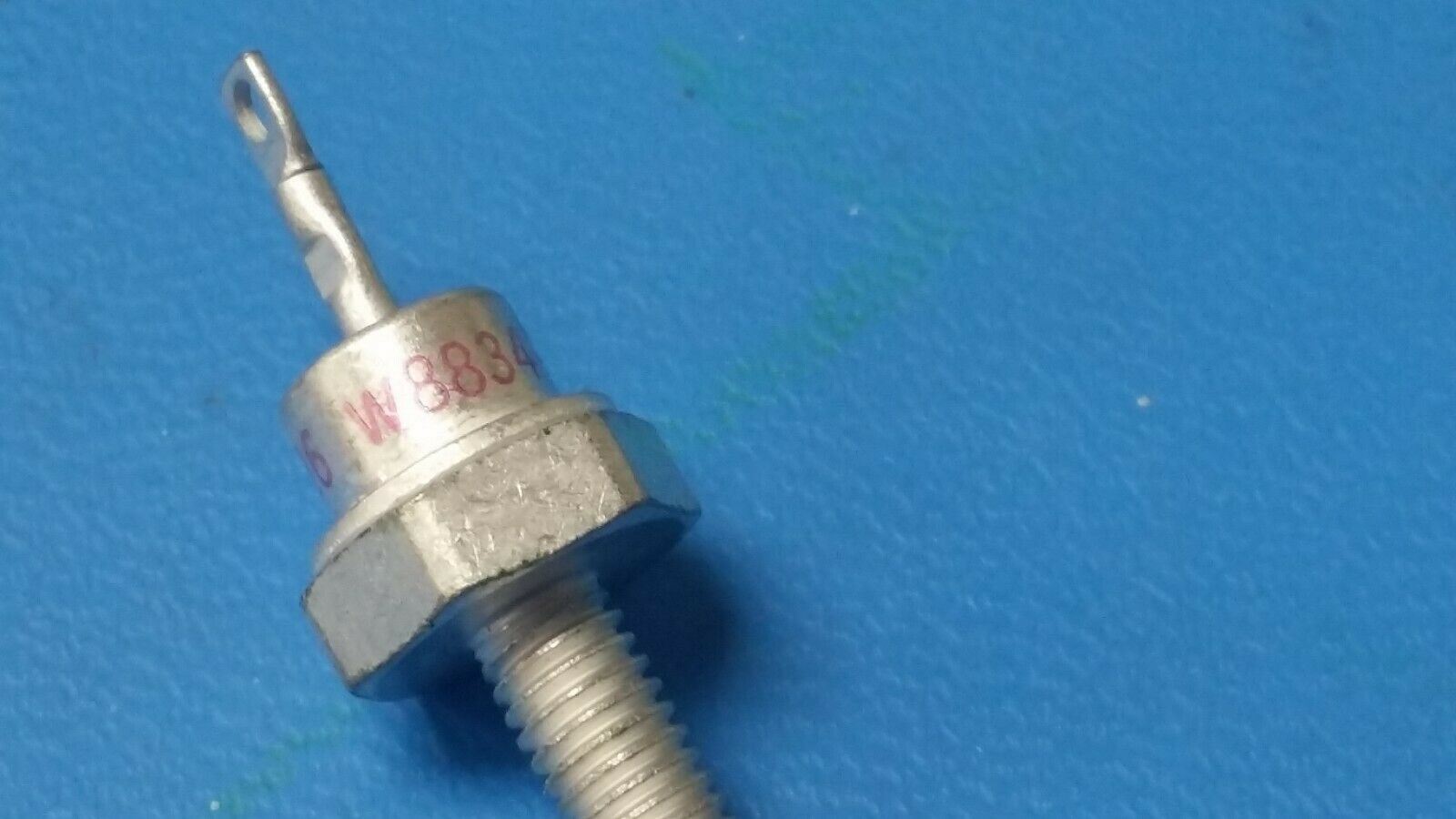

Diode Schottky 20 V 15A Chassis, Stud Mount DO-4
Part #: 1N5826
Part Category: Diodes
Manufacturer: Motorola Solutions, Inc.
Description: Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 20V V(RRM), Silicon, DO-4
Status Discontinued
Diode Type RECTIFIER DIODE
Application EFFICIENCY
Case Connection CATHODE
Configuration SINGLE
Diode Element Material SILICON
Forward Voltage-Max (VF) 0.67 V
JEDEC-95 Code DO-4
JESD-30 Code O-MUPM-D1
Non-rep Pk Forward Current-Max 500.0 A
Number of Elements 1.0
Number of Phases 1.0
Number of Terminals 1
Operating Temperature-Min -65.0 Cel
Operating Temperature-Max 150.0 Cel
Output Current-Max 15.0 A
Package Body Material METAL
Package Shape ROUND
Package Style POST/STUD MOUNT
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 20.0 V
Reverse Current-Max 10000.0 µA
Sub Category Rectifier Diodes
Surface Mount NO
Technology SCHOTTKY
Terminal Form SOLDER LUG
Terminal Position UPPER
Additional Feature FREE WHEELING DIODE
