(1 PC) 1N3210 MOT Diode 200 V 40A Stud Mount DO-5
Tax included.

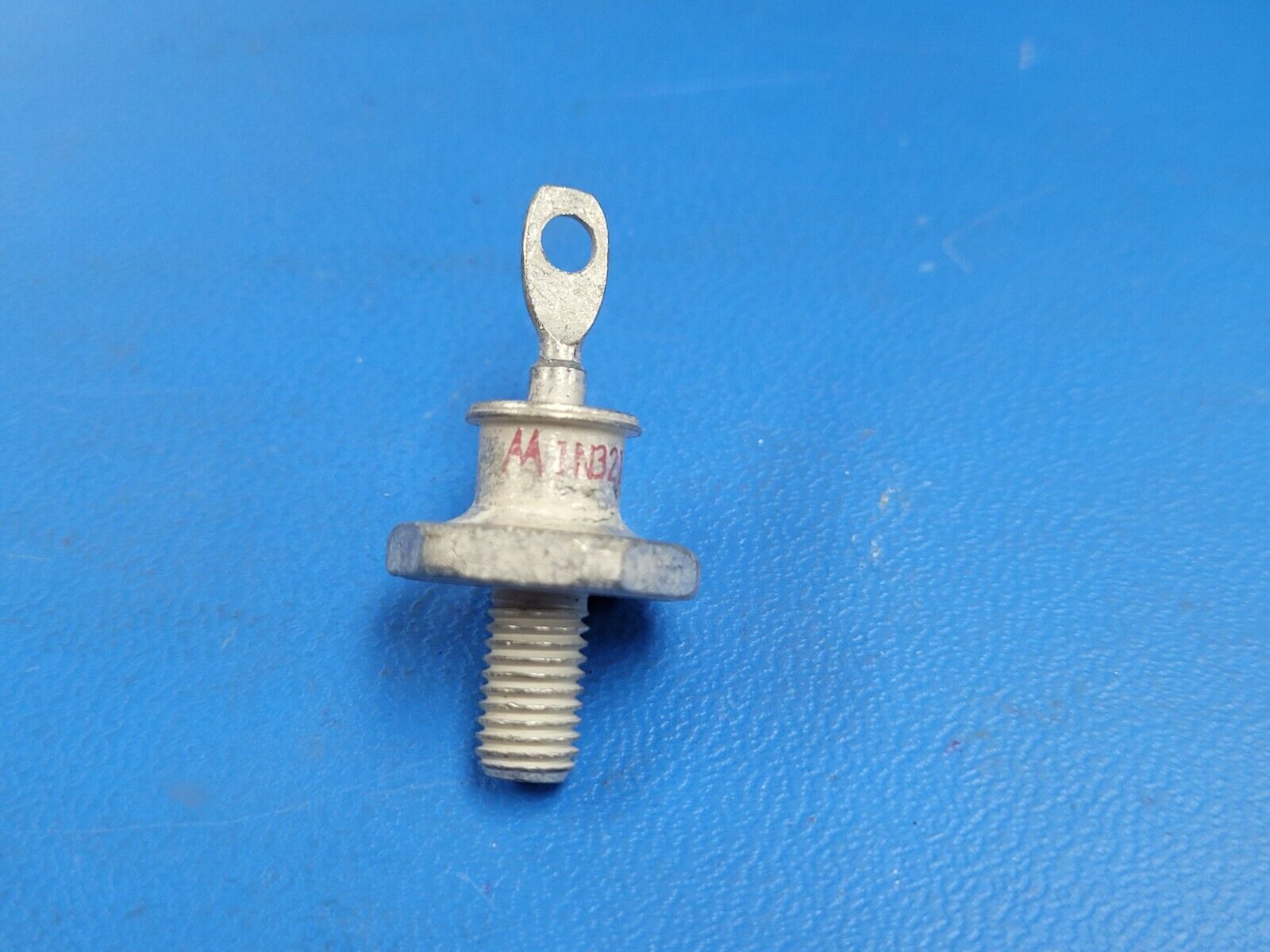

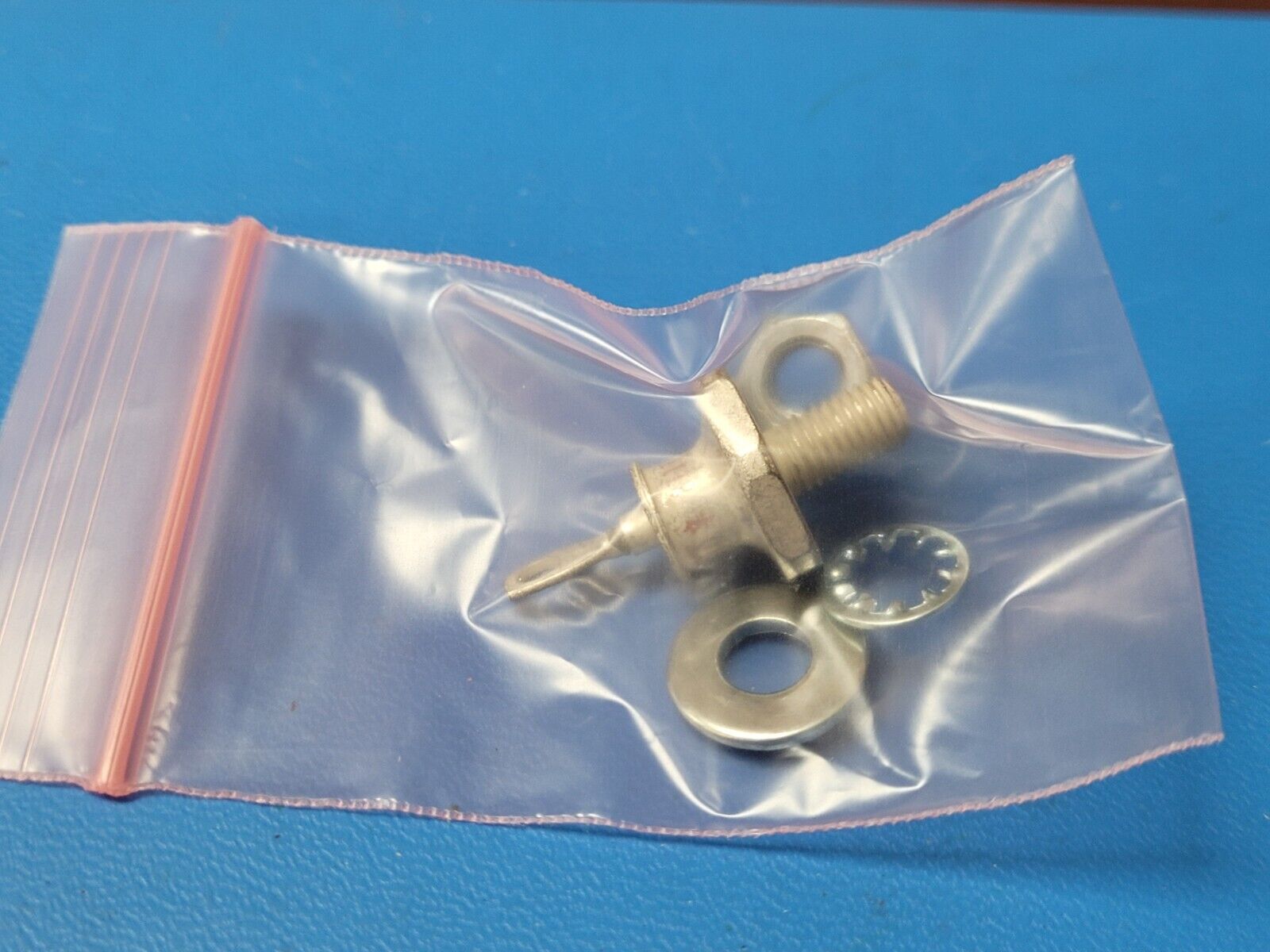

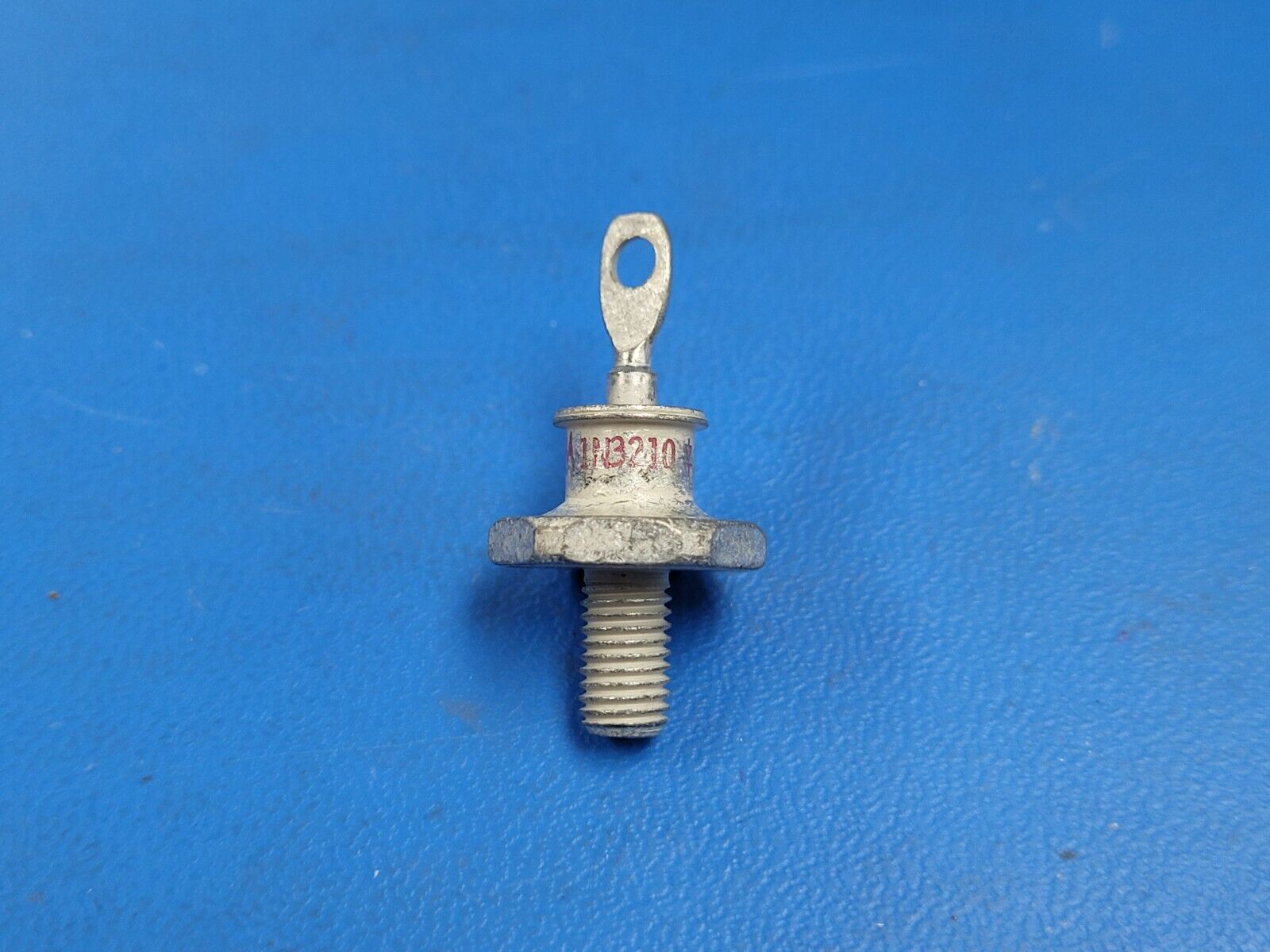

THIS IS FOR (1 PC) OF 1N3210 BY MOT
Diode 200 V 40A Stud Mount DO-5
Part #: 1N3210
Part Category: Diodes
Manufacturer: Motorola Solutions, Inc.
Description: Rectifier Diode, 1 Phase, 1 Element, 15A, 200V V(RRM), Silicon, DO-5
Status Discontinued
Diode Type RECTIFIER DIODE
Application GENERAL PURPOSE
Case Connection CATHODE
Configuration SINGLE
Diode Element Material SILICON
Forward Voltage-Max (VF) 1.5 V
JEDEC-95 Code DO-5
JESD-30 Code O-MUPM-D1
Non-rep Pk Forward Current-Max 250.0 A
Number of Elements 1.0
Number of Phases 1.0
Number of Terminals 1
Operating Temperature-Min -65.0 Cel
Operating Temperature-Max 175.0 Cel
Output Current-Max 15.0 A
Package Body Material METAL
Package Shape ROUND
Package Style POST/STUD MOUNT
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 200.0 V
Reverse Current-Max 1000.0 µA
Sub Category Rectifier Diodes
Surface Mount NO
Terminal Form SOLDER LUG
Terminal Position UPPER
