(1 PC) 1N1130 ASI 3.3A 1500V SILICON RECTIFIER DIODE DO-4
Tax included.

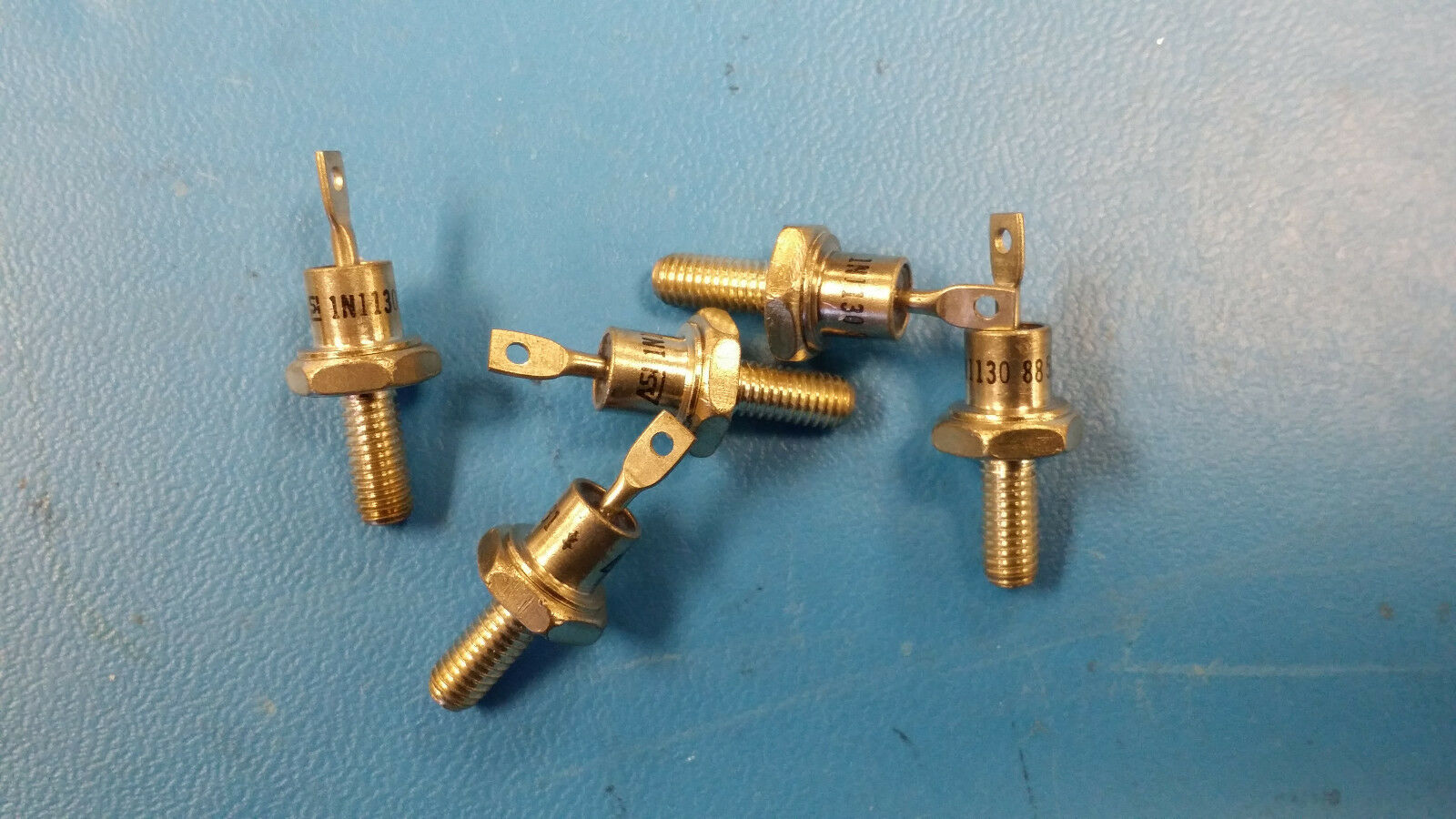

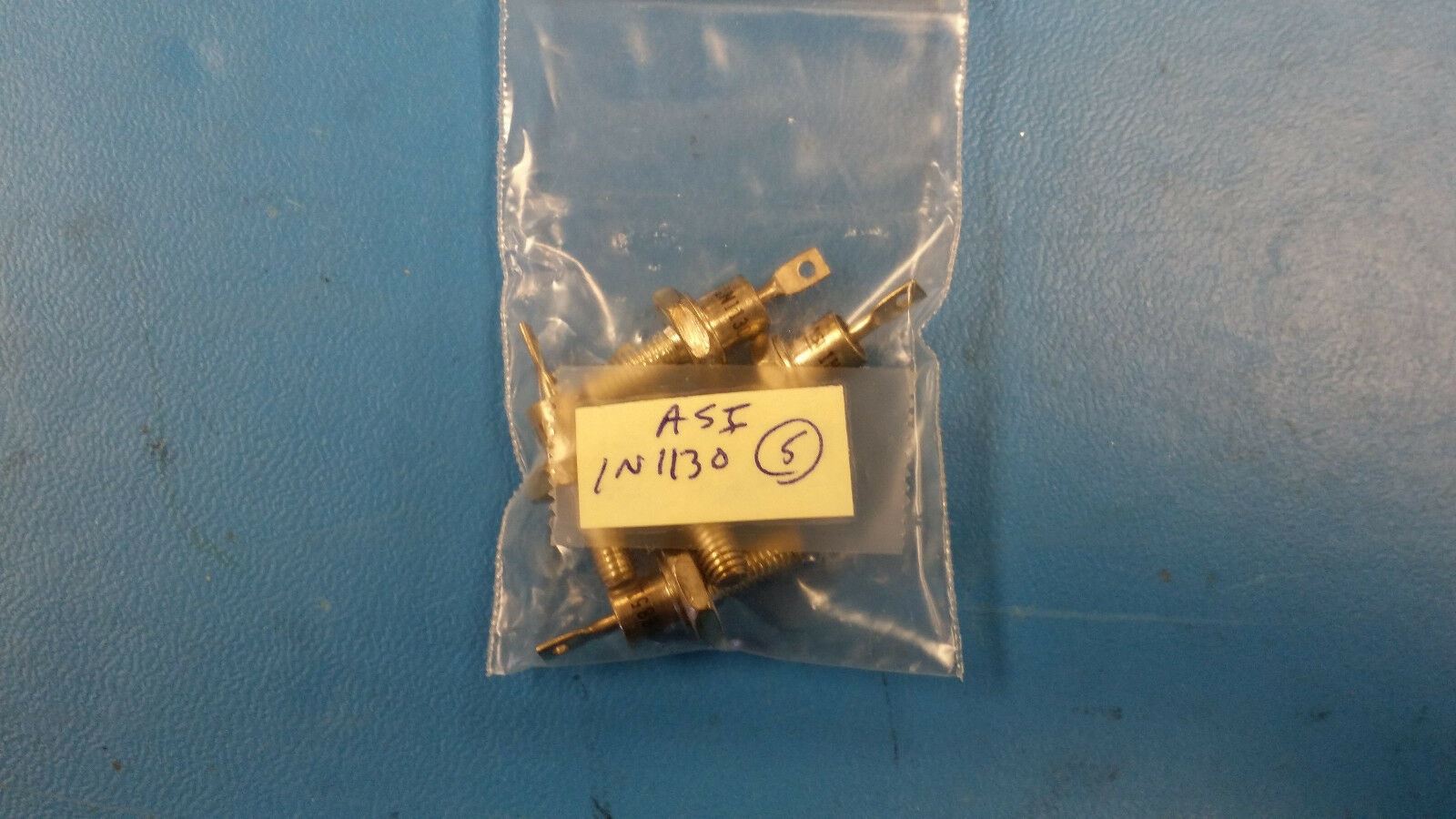

THIS LISTING IS FOR (1 PC) OF 1N1130 BY ASI
3.3A 1500V SILICON RECTIFIER DIODE DO-4
3.3A 1500V SILICON RECTIFIER DIODE DO-4
Status Discontinued
Diode Type RECTIFIER DIODE
Case Connection CATHODE
Configuration SINGLE
Diode Element Material SILICON
Forward Voltage-Max (VF) 15.0 V
JEDEC-95 Code DO-4
JESD-30 Code O-MUPM-D1
Number of Elements 1.0
Number of Phases 1.0
Number of Terminals 1
Operating Temperature-Max 150.0 Cel
Output Current-Max 0.3 A
Package Body Material METAL
Package Shape ROUND
Package Style POST/STUD MOUNT
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 1500.0 V
Sub Category Rectifier Diodes
Surface Mount NO
Terminal Form SOLDER LUG
Terminal Position UPPER
