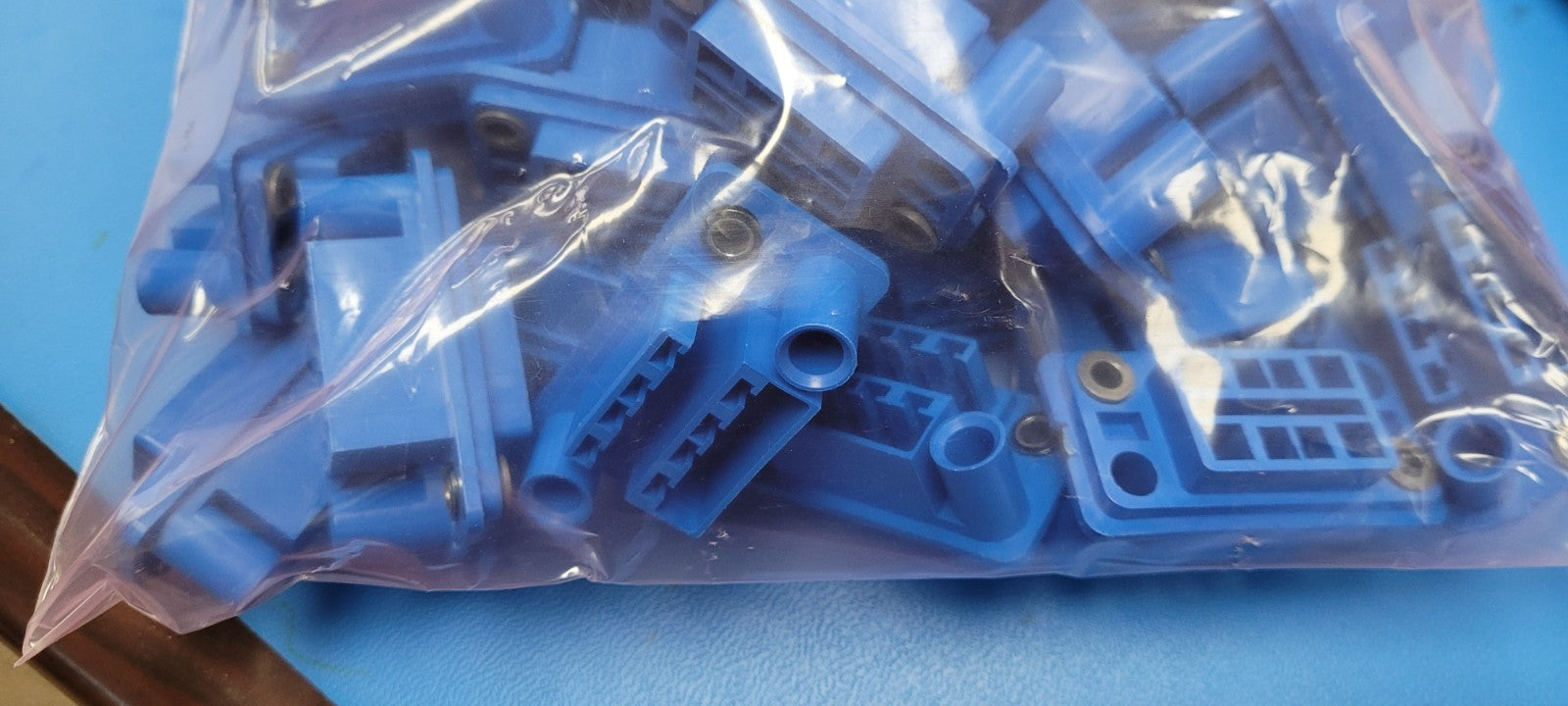

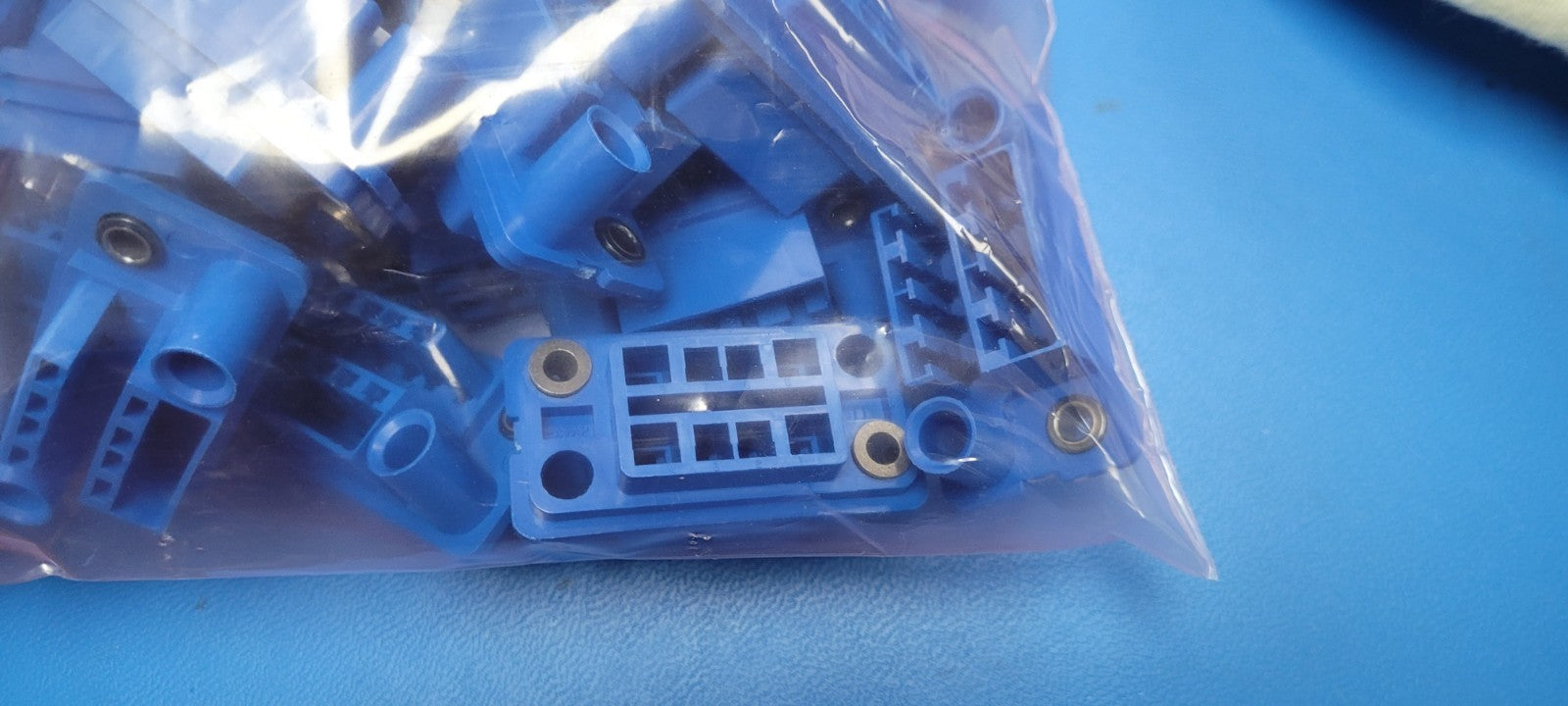

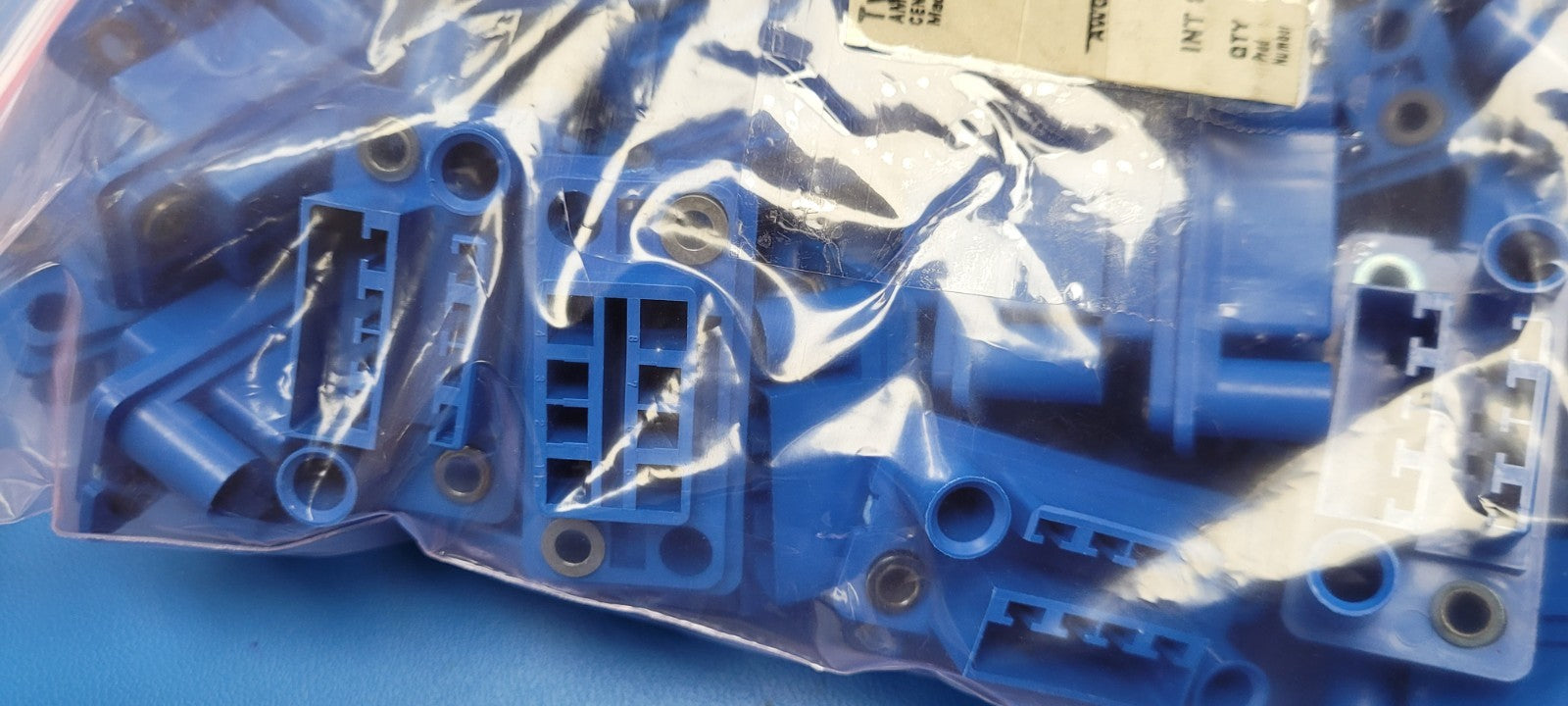

(1 PC) 172070-3 TE Connectivity Heavy Duty Power Connector 8 POSITION FEMALE
Tax included.

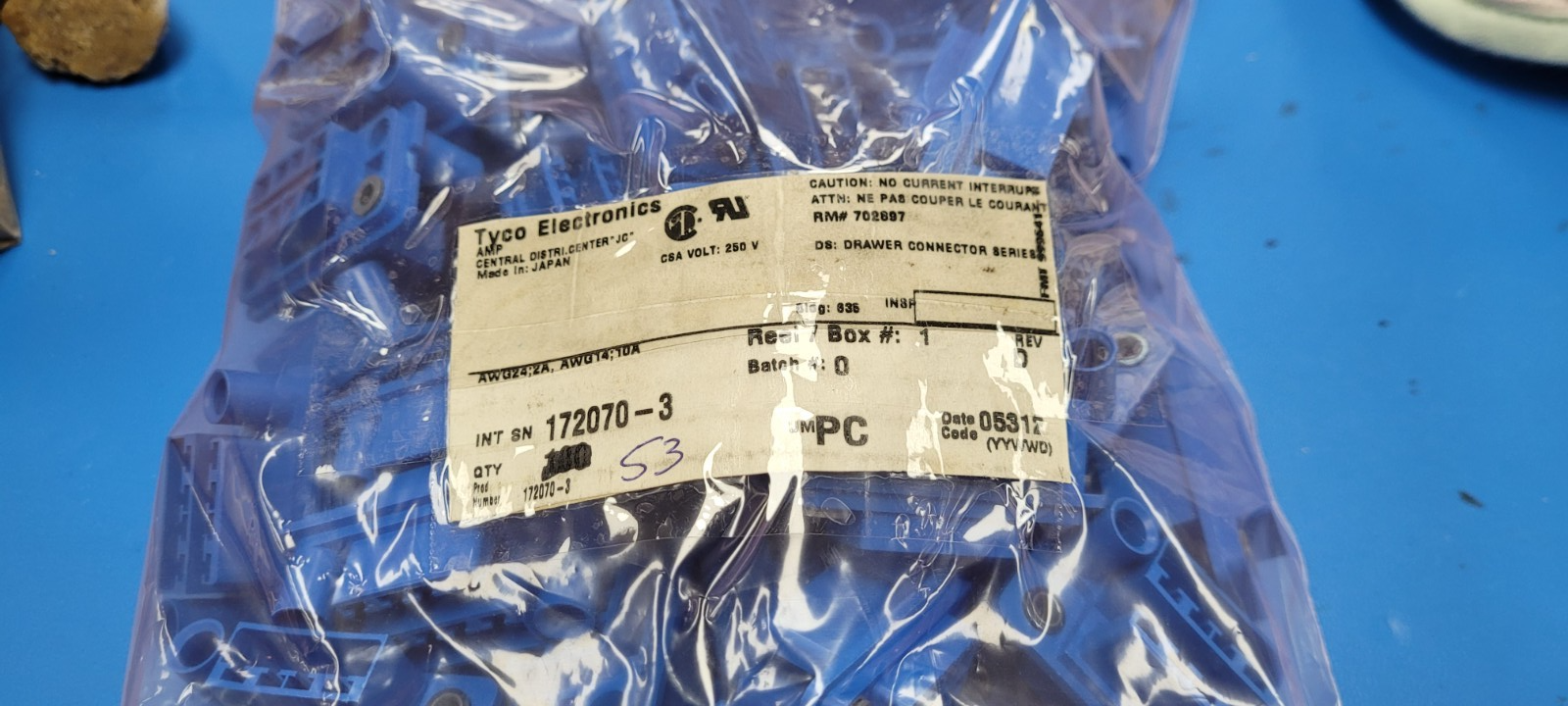

THIS IS FOR (1 PC) OF 172070-3 BY TE Connectivity
Heavy Duty Power Connector 8 POSITION FEMALE
Part Category: Headers and Edge Type Connectors
Manufacturer: TE CONNECTIVITY LTD
Description: Board Connector, 8 Contact(s), 2 Row(s), Male/Female, 0.26 inch Pitch, Hole .164-.189, Blue Insulator, Plug-receptacle
Status Discontinued
Additional Feature NONE
Body Breadth (inch) 1.035000
Body Depth (inch) 0.984000
Body Length (inch) 2.016000
Body/Shell Style PLUG-RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Gender MALE/FEMALE
Contact Pattern RECTANGULAR
Durability (Cycles) 1000
Filter Feature NO
Insertion Force-Max (N) LIF
Insulation Diameter-Min (inch) 0.059000
Insulation Resistance (ohm) 2000000000.000000000000000
Insulator Color BLUE
Insulator Material POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch (inch) 0.26
Mixed Contacts NO
Mounting Option 1 HOLE .164-.189
Mounting Option 2 FLOAT BUSHING
Number of Connectors ONE
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 120
Operating Temperature-Min (Cel) -20
Polarization Key POLARIZED HOUSING
Screening Level / Reference Standard UL
Number of Contacts 8
Wire Size-Max (AWG) 14
Wire Size-Min (AWG) 24
