(1 PC) 15KP45A MICROSEMI TVS Diode Single Uni-Dir 45V 15KW 2-Pin Case D-6

$5.95
Unit price per

Tax included.

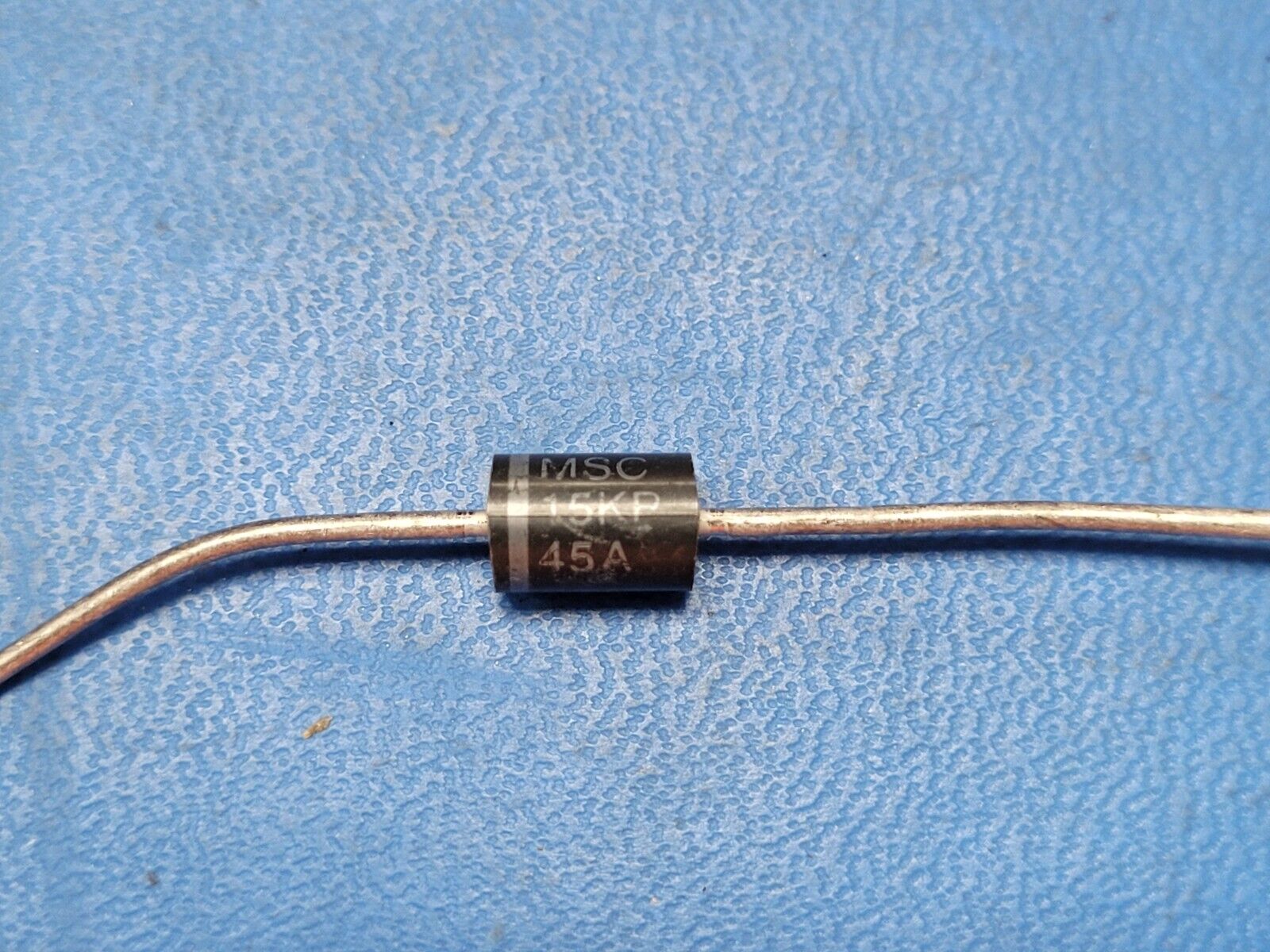

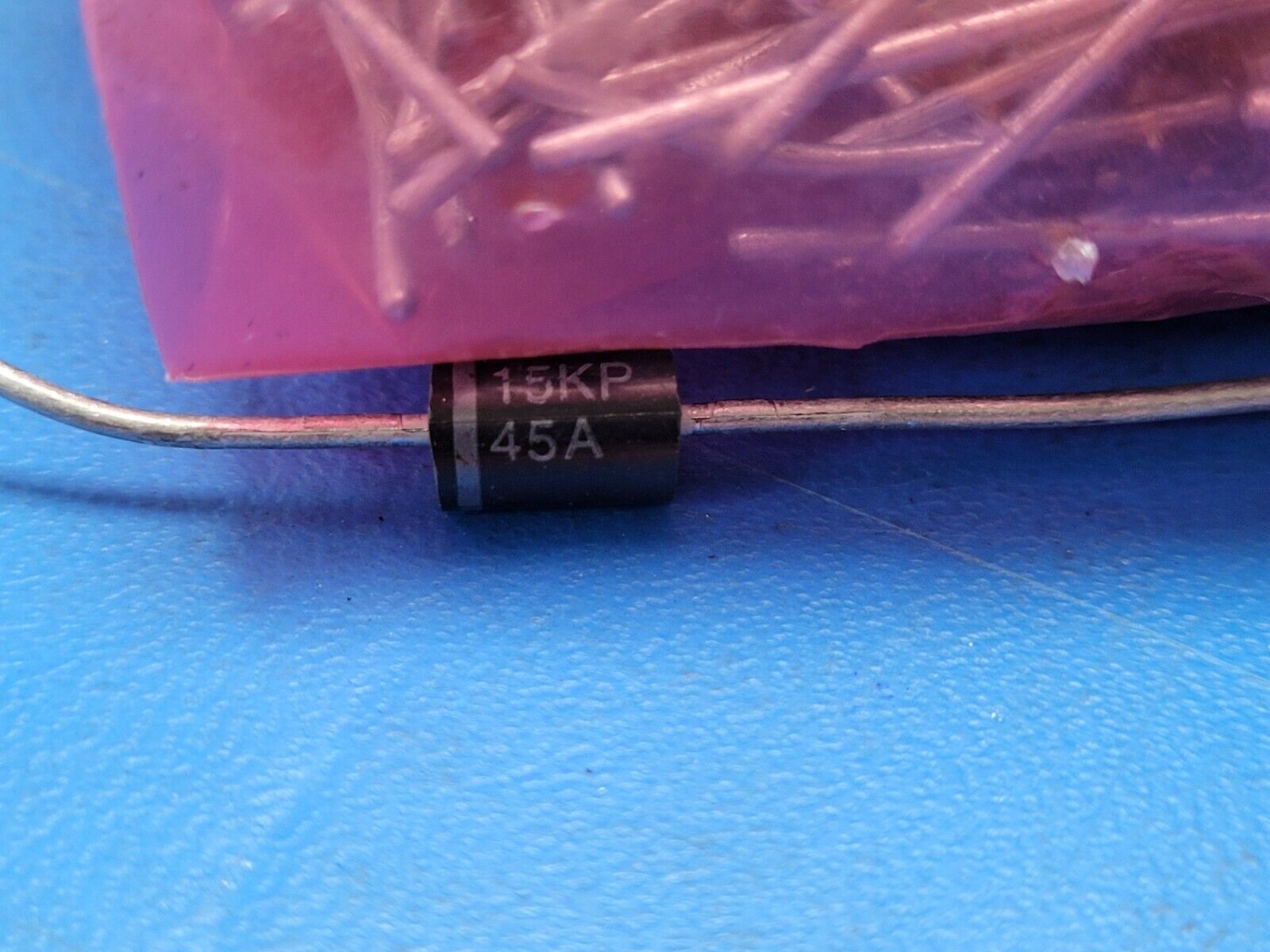

THIS IS FOR (1 PC) OF 15KP45A BY MICROSEMI

TVS Diode Single Uni-Dir 45V 15KW 2-Pin Case D-6

Part #: 15KP45A

Part Category: Diodes

Manufacturer: Microsemi Corp.

Description: Trans Voltage Suppressor Diode, 15000W, 45V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AR

Mfr Package Description PLASTIC, CASE 5A, 2 PIN

Status Discontinued

Diode Type TRANS VOLTAGE SUPPRESSOR DIODE

Breakdown Voltage-Nom 52.7 V

Breakdown Voltage-Min 50.0 V

Case Connection ISOLATED

Clamping Voltage-Max 73.0 V

Configuration SINGLE

Diode Element Material SILICON

JEDEC-95 Code DO-204AR

JESD-30 Code O-PALF-W2

JESD-609 Code e0

Moisture Sensitivity Level 1

Non-rep Peak Rev Power Dis-Max 15000.0 W

Number of Elements 1.0

Number of Terminals 2

Package Body Material PLASTIC/EPOXY

Package Shape ROUND

Package Style LONG FORM

Polarity UNIDIRECTIONAL

Power Dissipation-Max 1.56 W

Qualification Status Not Qualified

Rep Pk Reverse Voltage-Max 45.0 V

Sub Category Transient Suppressors

Surface Mount NO

Technology AVALANCHE

Terminal Finish TIN LEAD

Terminal Form WIRE

Terminal Position AXIAL
