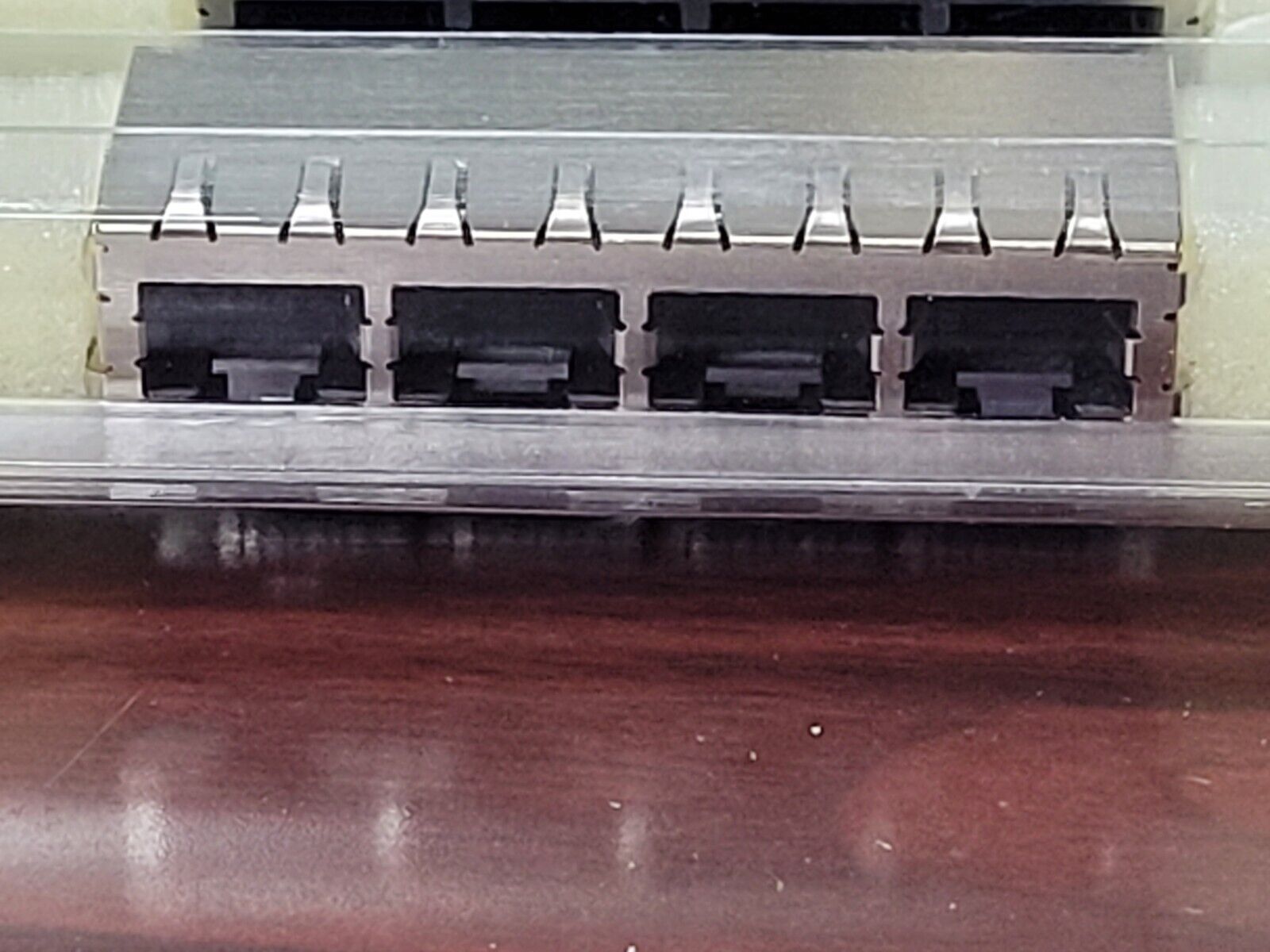

THIS IS FOR (1 PC) OF 1339167-4 BY TE Conn
RJ-45 F 32 POS Solder RA Thru-Hole 32 Terminal 4 Port

Part #: 1339167-4
Part Category: Connectors
Manufacturer: TE Connectivity
Description: Telecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

Connector Type TELECOM AND DATACOM CONNECTOR
Board Mounting Option COMPLIANT BOARDLOCK & PEGS
Body Breadth 0.54  inch
Body Depth 0.836  inch
Body Length 2.326  inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating AU ON NI
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Resistance 30.0  mohm
Contact Style TELCOM, MODULAR
Durability 750.0  Cycles
Insulation Resistance 5.0E8  ohm
Insulator Color BLACK
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Ports 4
Operating Temperature-Min -40.0  Cel
PCB Contact Pattern STAGGERED
Rated Current (Signal) 1.5  A
Reference Standard CSA, UL
Reliability COMMERCIAL
Shell Finish TIN LEAD
Shell Material COPPER ALLOY
Sub Category Telecom and Datacom Connectors
Terminal Length 0.14  inch
Terminal Pitch 2.54  mm
Total Number of Contacts 32
Additional Feature NUMBER OF PCB GROUND TABS=3
