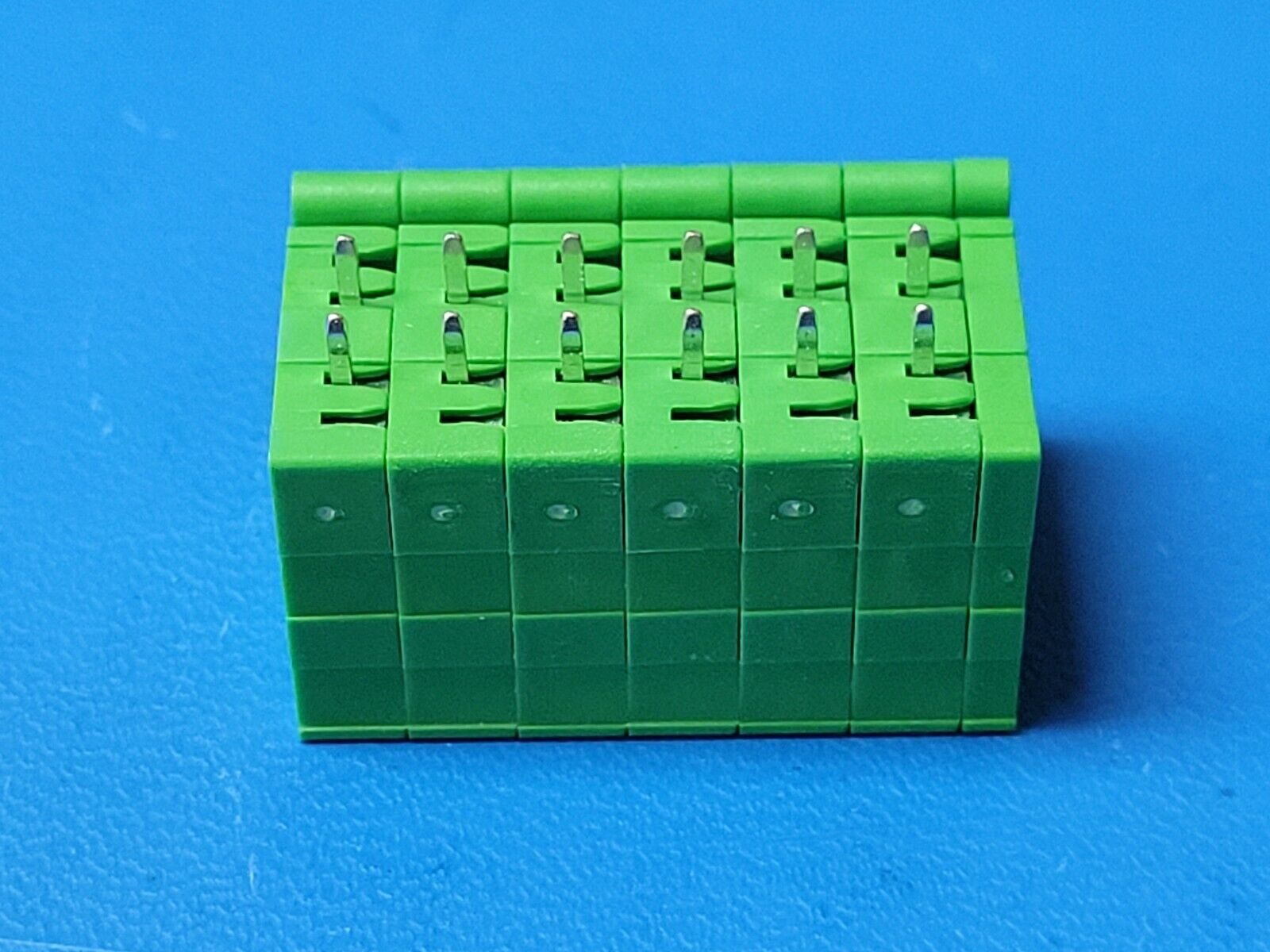

(1 PC) 10574.1 Conta-Clip PCB terminalEccentric6 Poles 32.5 mm Green
Tax included.
THIS IS FOR (1 PC) OF 10574.1 BY Conta-Clip
PCB terminalEccentric6 Poles 32.5 mm Green
Category Connectors, InterconnectsTerminal BlocksWire to Board
Mfr Conta-Clip, Inc.
Series -
Package Box
Product Status Active
Number of Levels 1
Positions Per Level 6
Pitch 0.197" (5.00mm)
Mating Orientation Horizontal with Board
Current 20 A
Voltage 300 V
Wire Gauge 12-30 AWG
Mounting Type Through Hole
Wire Termination Screw - Pressure Clip
Features -
Color Green
Operating Temperature -30°C ~ 105°C
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Steel
Clamp Material - Plating Steel
Screw Material - Plating Steel
Torque - Screw 0.5 Nm (4.4 Lb-In)
Screw Thread M2.5
