(1 PC) 100107Y SIGNETICS XOR/XNOR Gate 100K 5-Func 2-Input ECL CQFP24
Tax included.

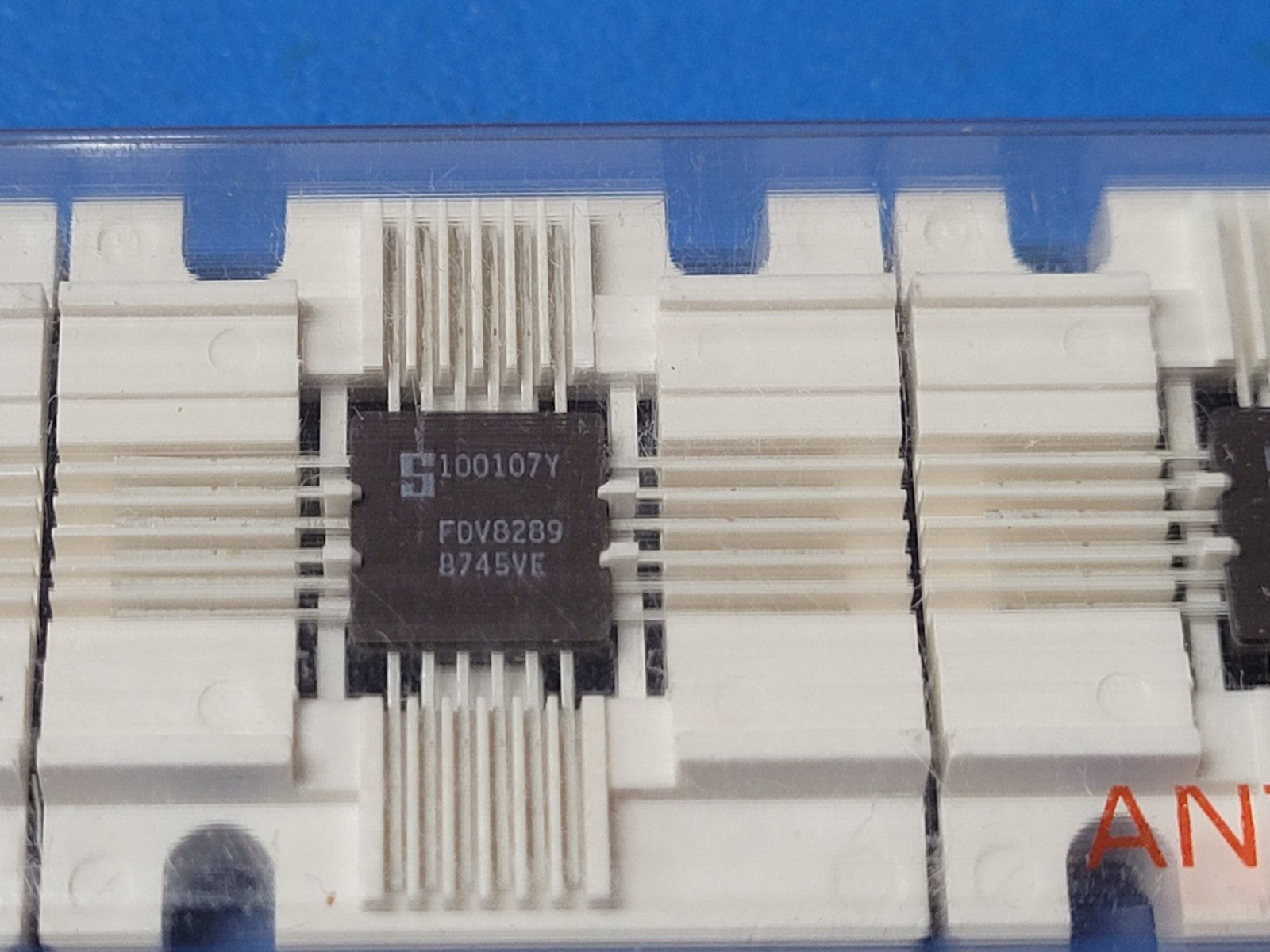

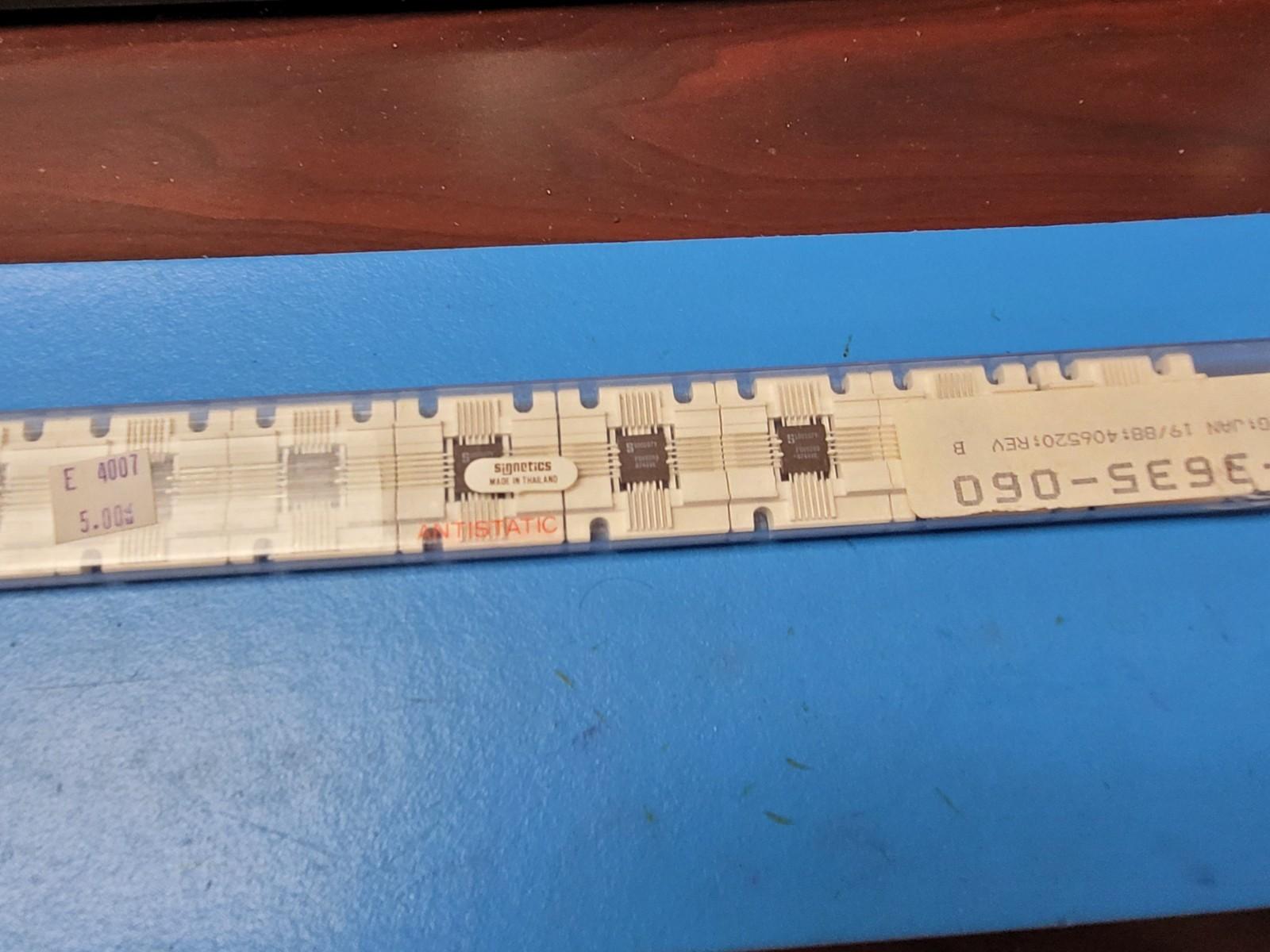

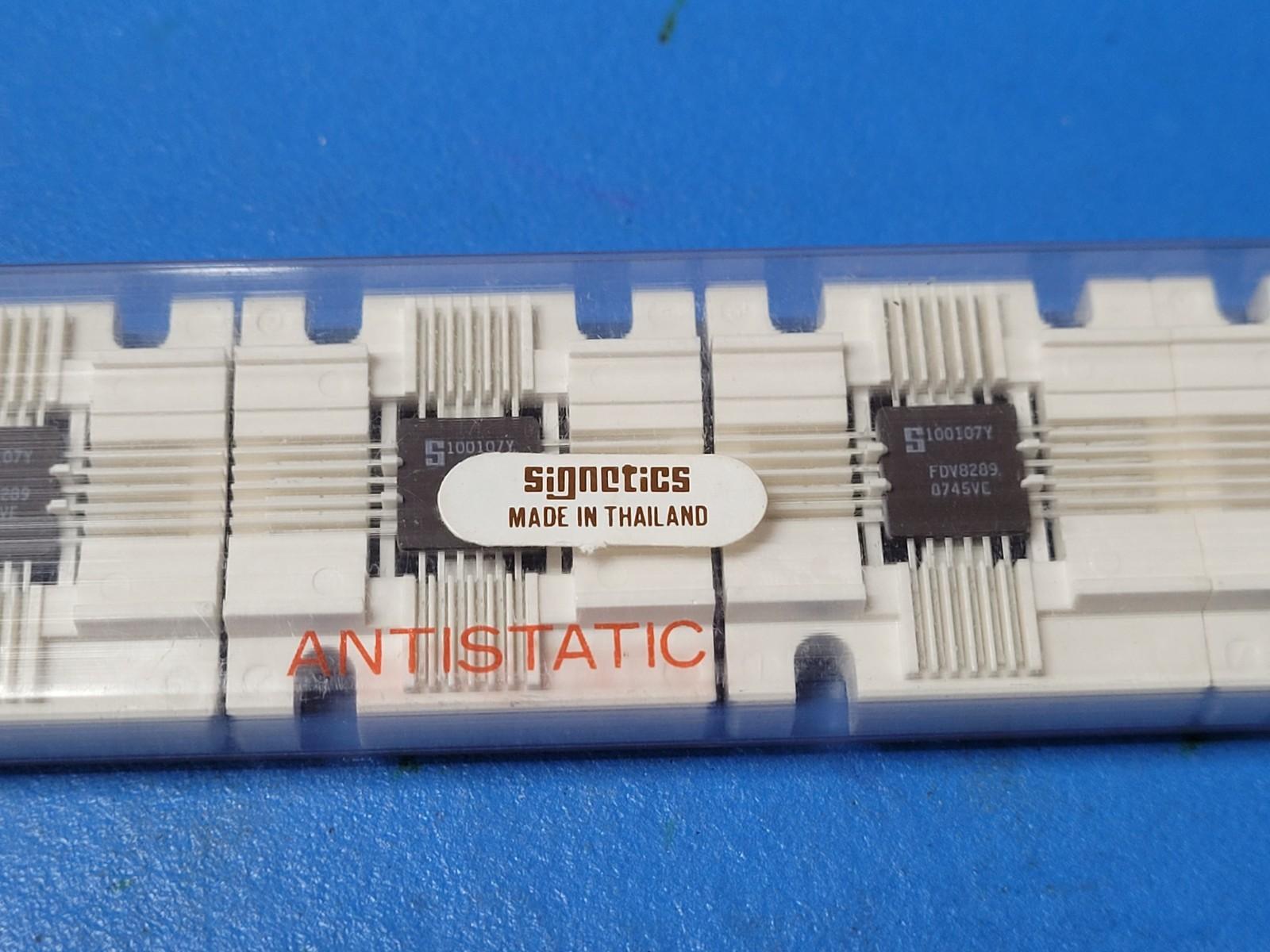

THIS IS FOR (1 PC) OF 100107Y BY SIGNETICS
XOR/XNOR Gate 100K 5-Func 2-Input ECL CQFP24
Status Discontinued
Family 100K
JESD-30 Code S-XQFP-F24
J-STD-609 Code e0
Logic IC Type XOR/XNOR GATE
Number of Functions 5
Number of Inputs 2
Number of Terminals 24
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) 0
Package Body Material CERAMIC
Package Code QFF
Package Equivalence Code QFL24,.4SQ
Package Shape SQUARE
Package Style FLATPACK
Supply Current-Max (mA) 96.00000000
Propagation Delay-Max@Nom-Sup (ns) 1.700000000000000000
Propagation Delay (ns) 1.9000
DLA Qualification Not Qualified
Schmitt Trigger NO
Supply Voltage-Max (V) -4.8000
Supply Voltage-Min (V) -4.2000
Supply Voltage-Nom (V) -4.5
Surface Mount YES
Technology ECL
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form FLAT
Terminal Pitch (mm) 1.270
Terminal Position QUAD
