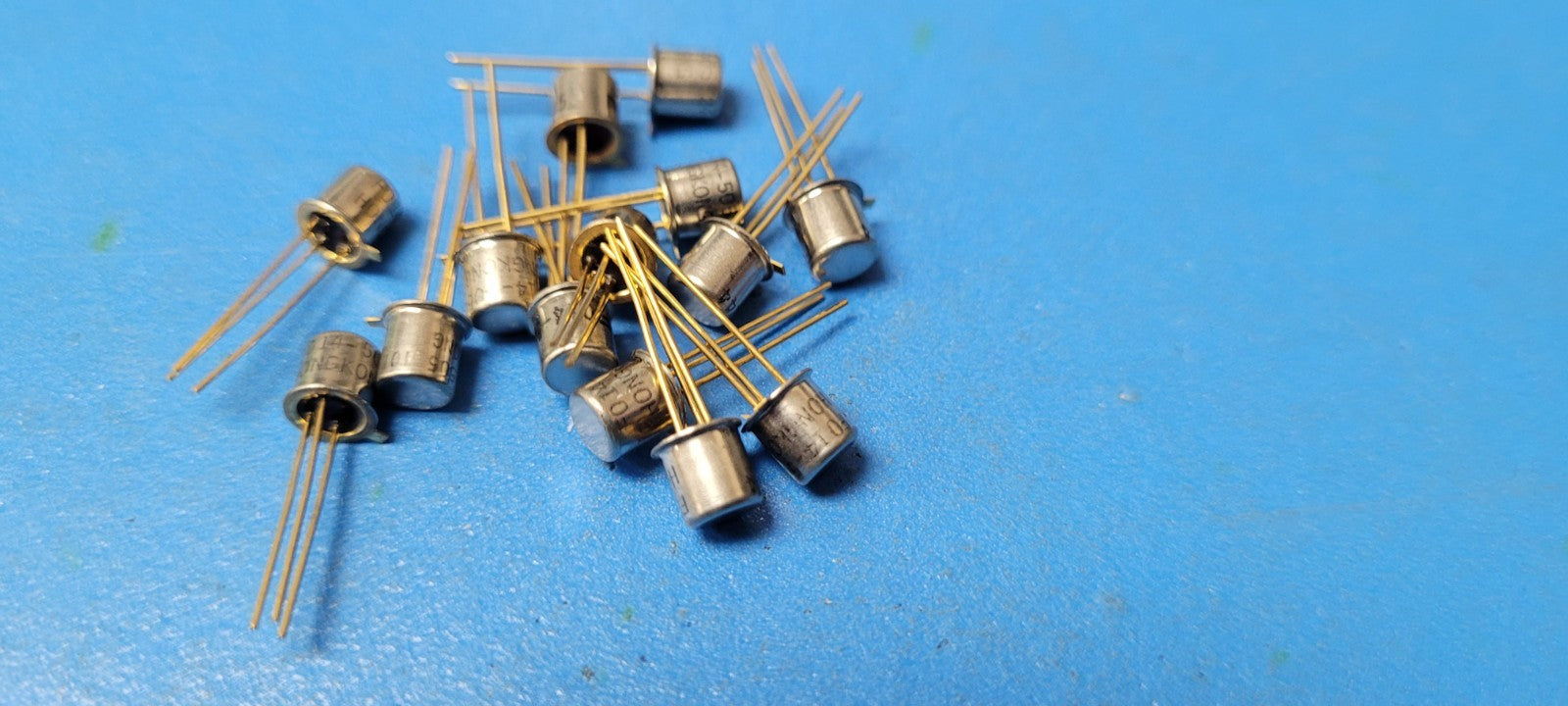

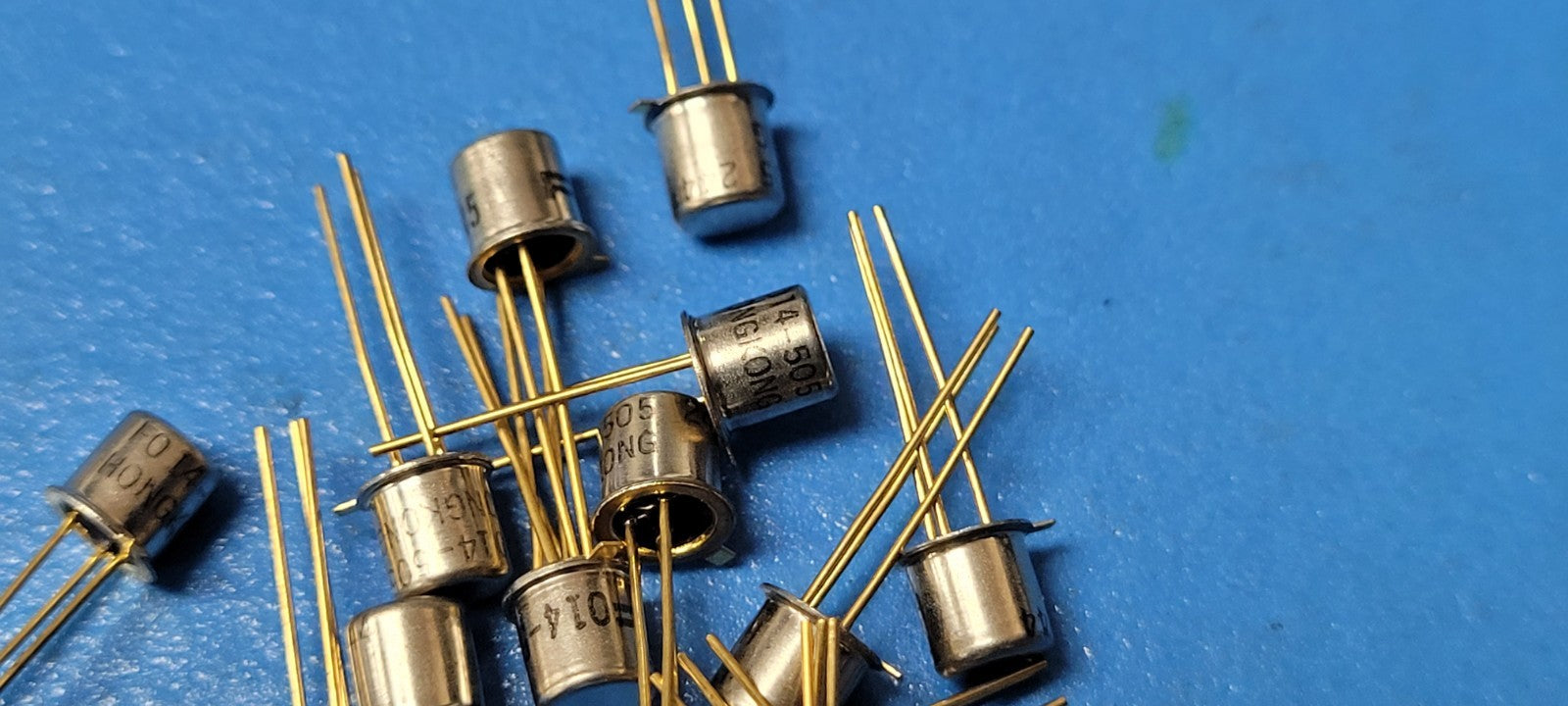

(1 PC) 014-505, 5961-00-765-6071 AMPEX TRANSISTOR 3 PIN

ABBH Inclosure Material Metal

ABHP Overall Length 0.210 inches maximum

ABJT Terminal Length 0.500 inches minimum

ADAV Overall Diameter 0.230 inches maximum

ALAS Internal Configuration Junction contact

ALBA Electrode Internally-Electrically Connected to Case Collector

AXGY Mounting Method Terminal

AYQS Terminal Circle Diameter 0.100 inches nominal

CBBL Features Provided Hermetically sealed case

CTMZ Semiconductor Material Silicon

CTQN Voltage Rating in Volts per Characteristic 50.0 maximum breakdown voltage, collector-to-base, emitter open and 40.0 maximum breakdown voltage, collector-to-emitter, base open and 5.0 maximum breakdown voltage, emitter-to-base, collector open

CTQX Current Rating per Characteristic 200.00 milliamperes source cutoff current maximum

CTRD Power Rating per Characteristic 360.0 milliwatts small-signal input power, common-collector minimum

CTSG Maximum Operating Temp per Measurement Point 200.0 deg celsius junction

FEAT Special Features Junction pattern arrangement: pnp

TTQY Terminal Type and Quantity 3 uninsulated wire lead
