(1) MH1M09B0J-8 Fast Page DRAM Module, 1MX9, 80ns, CMOS M5M41000BJ-8
(1) MH1M09B0J-8 Fast Page DRAM Module, 1MX9, 80ns, CMOS M5M41000BJ-8
(1) MH1M09B0J-8 Fast Page DRAM Module, 1MX9, 80ns, CMOS M5M41000BJ-8
(1) MH1M09B0J-8 Fast Page DRAM Module, 1MX9, 80ns, CMOS M5M41000BJ-8

(1) MH1M09B0J-8 Fast Page DRAM Module, 1MX9, 80ns, CMOS M5M41000BJ-8

Tax included.
Only 12 left!

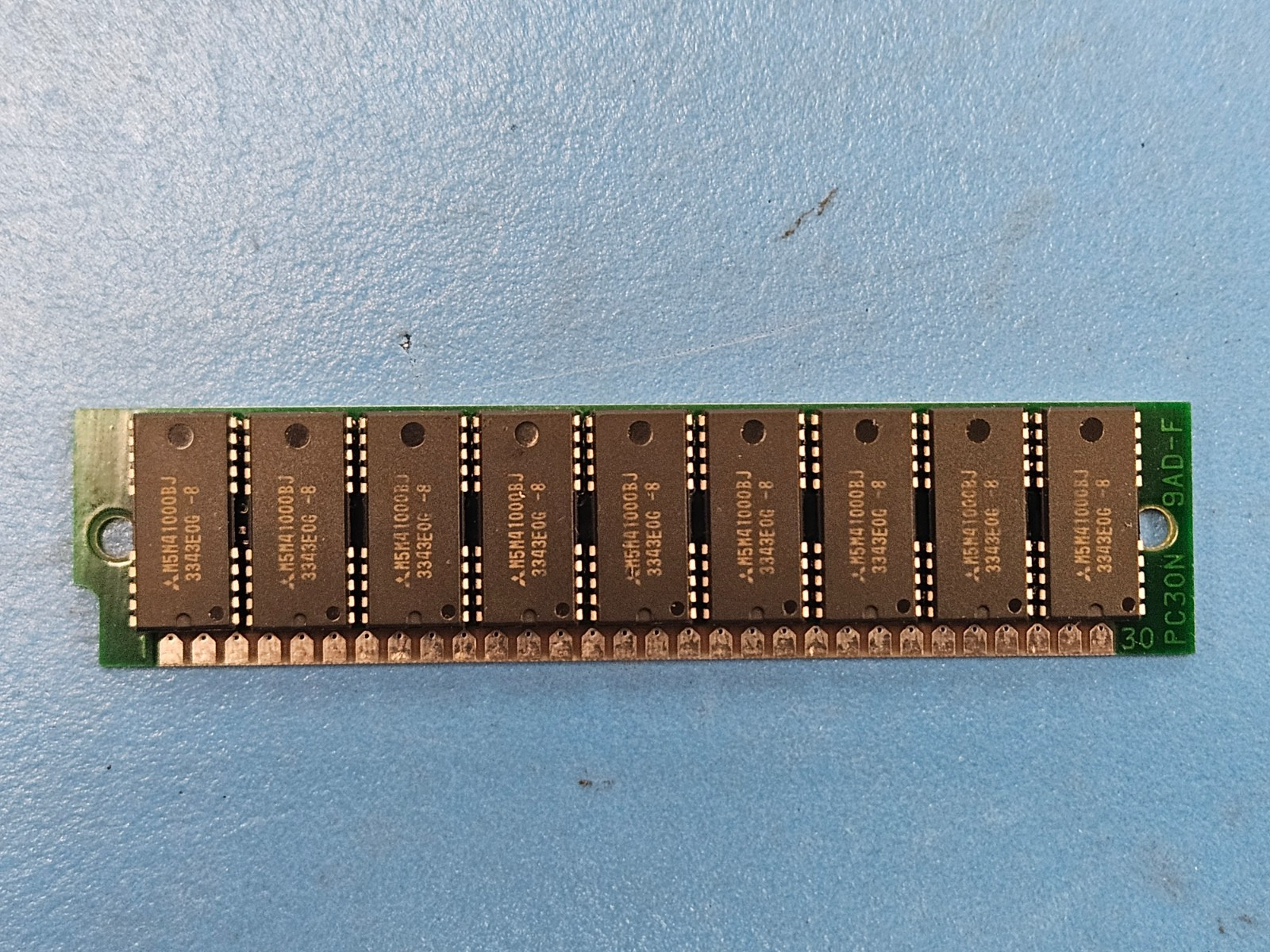

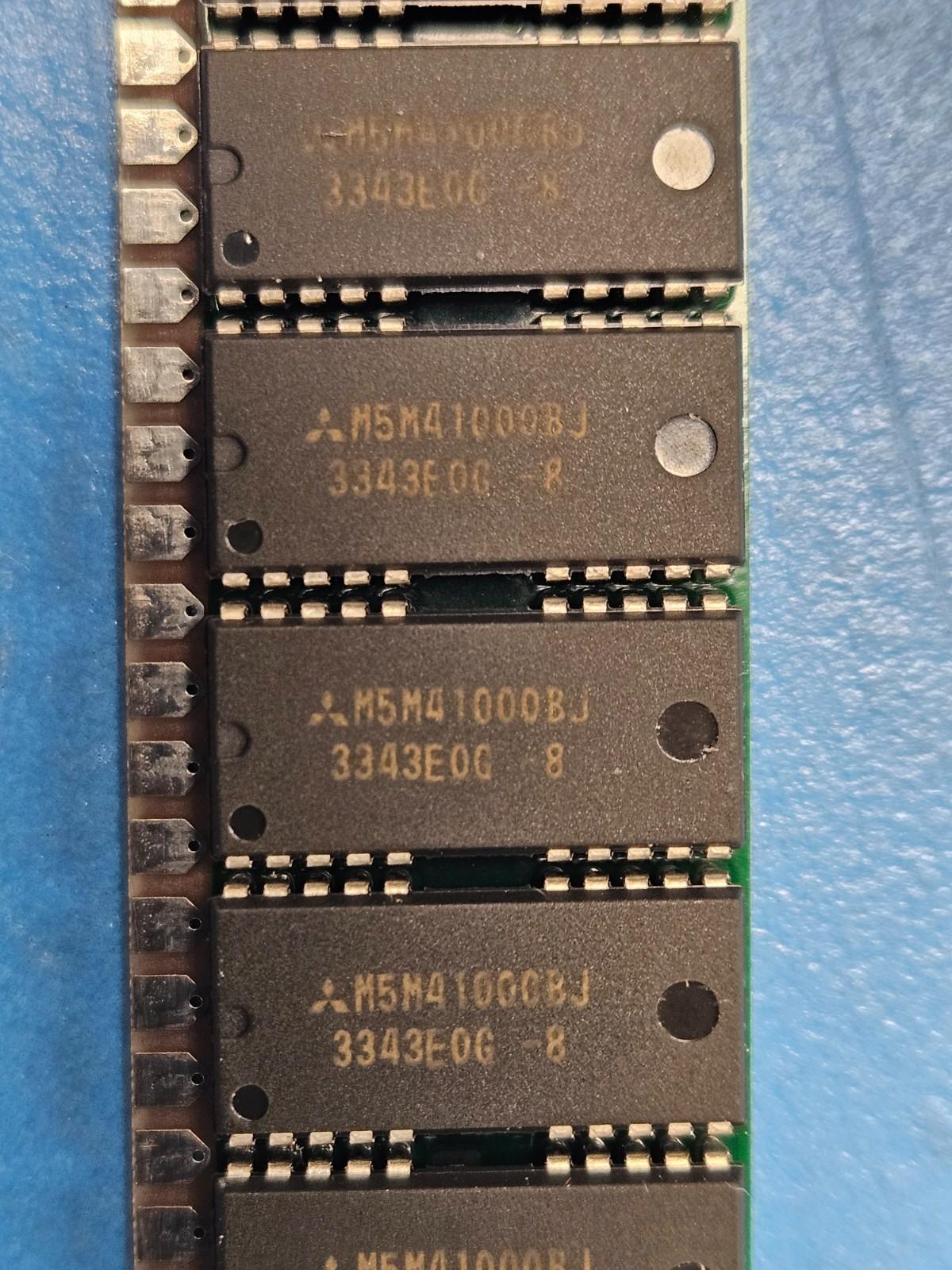

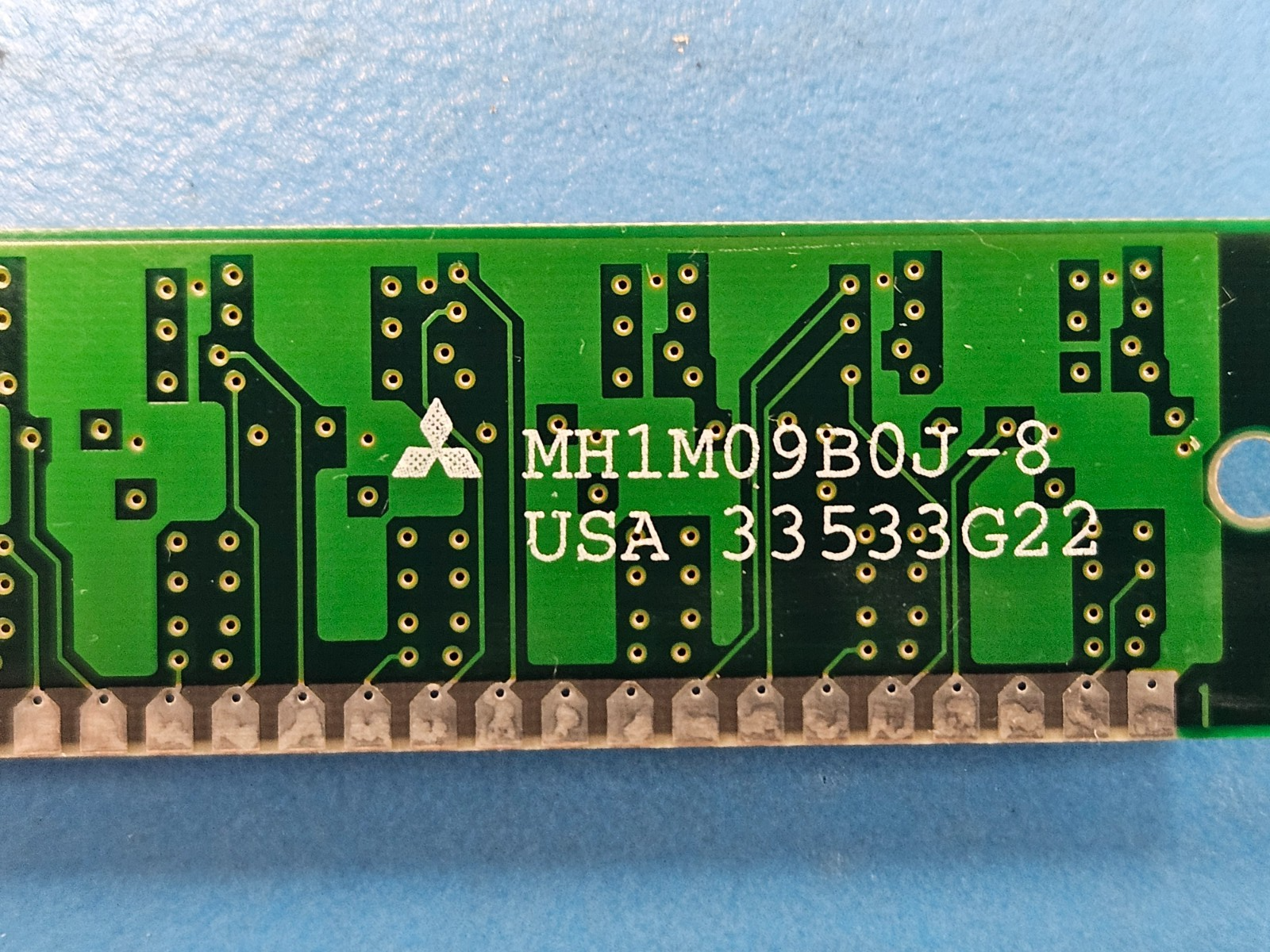

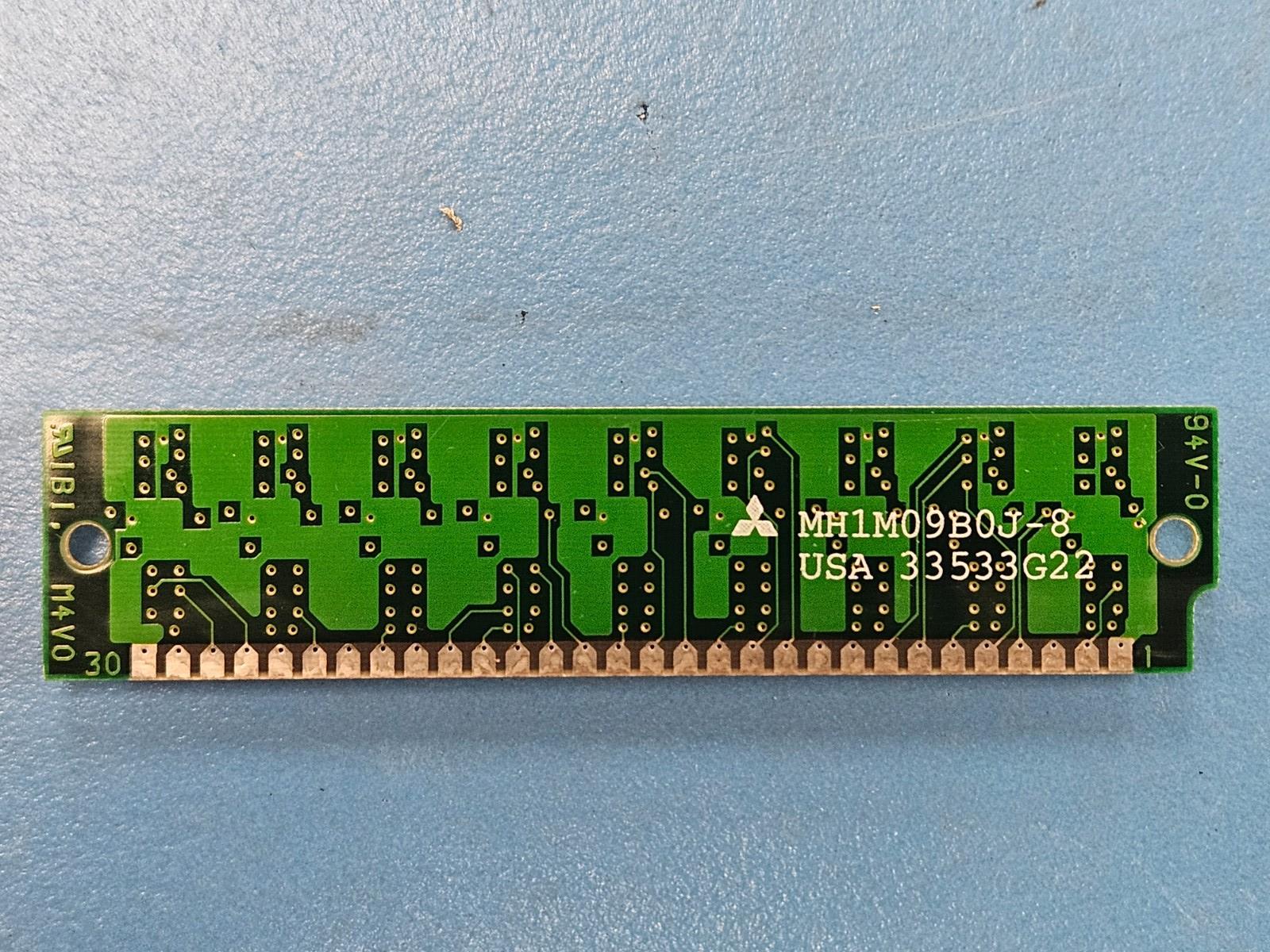

This listing is for (1) MH1M09B0J-8 Module by Mitsubishi

Status Discontinued
Access Mode FAST PAGE
Access Time-Max (ns) 80.0000000000000000
Additional Feature RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O Type COMMON
JESD-30 Code R-XSMA-N30
Memory Density (bits) 9437184.0000000000000000
Memory IC Type FAST PAGE DRAM MODULE
Memory Width 9
Number of Functions 1
Number of Ports 1
Number of Terminals 30
Number of Words (words) 1048576.0000000000000000
Number of Words Code 1M
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 1MX9
Output Characteristics 3-STATE
Package Body Material UNSPECIFIED
Package Code SIMM
Package Equivalence Code SIM30
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
DLA Qualification Not Qualified
Refresh Cycles 512
Seated Height-Max (mm) 20.3200
Standby Current-Max (A) 0.004500000000000
Supply Current-Max (mA) 630.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form NO LEAD
Terminal Pitch (mm) 2.540
Terminal Position SINGLE
