(1) MD85C220-66/B INTEL Programmable Logic Device, 12ns, PAL-Type, CMOS, CDIP20
Tax included.

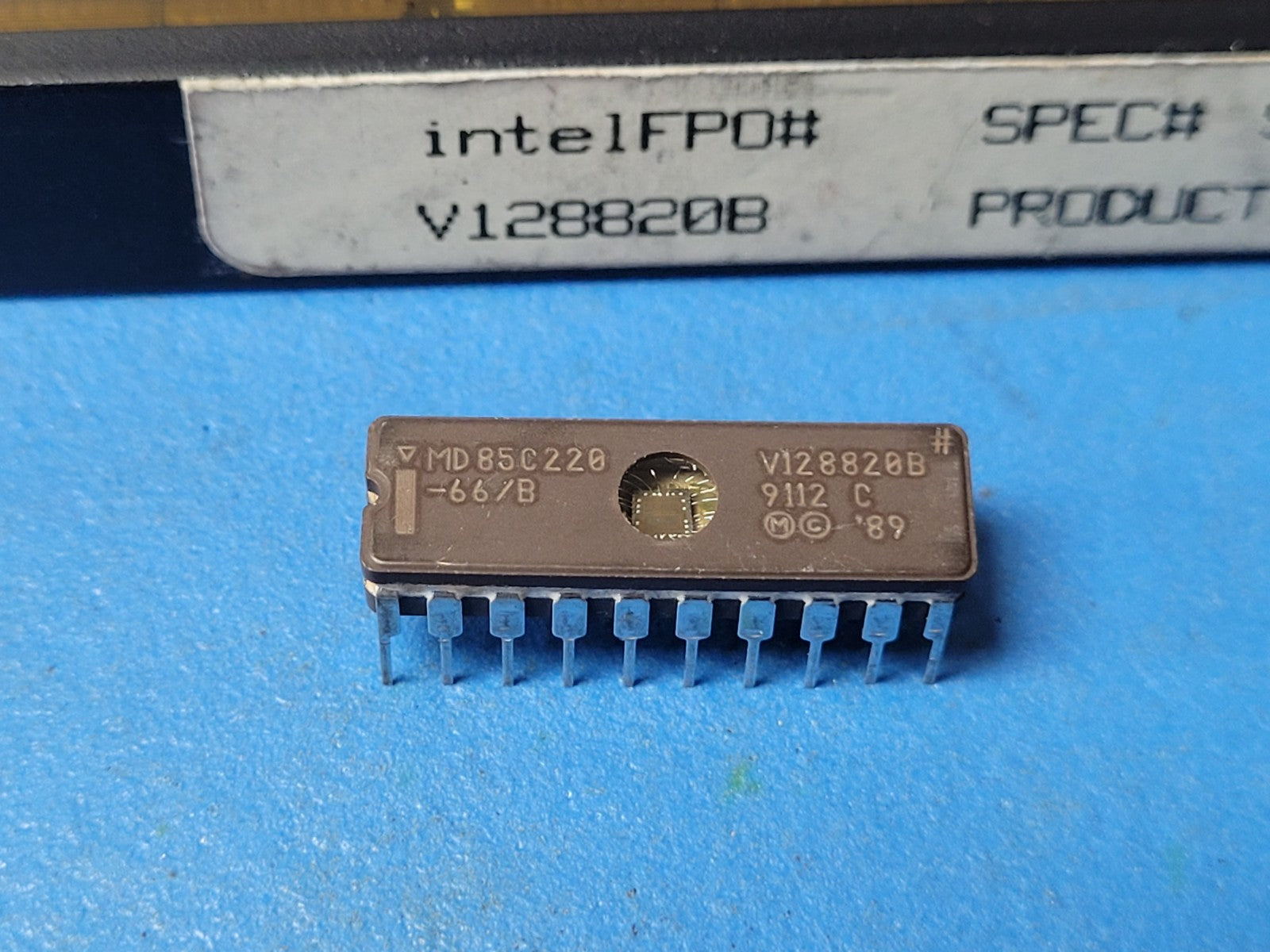

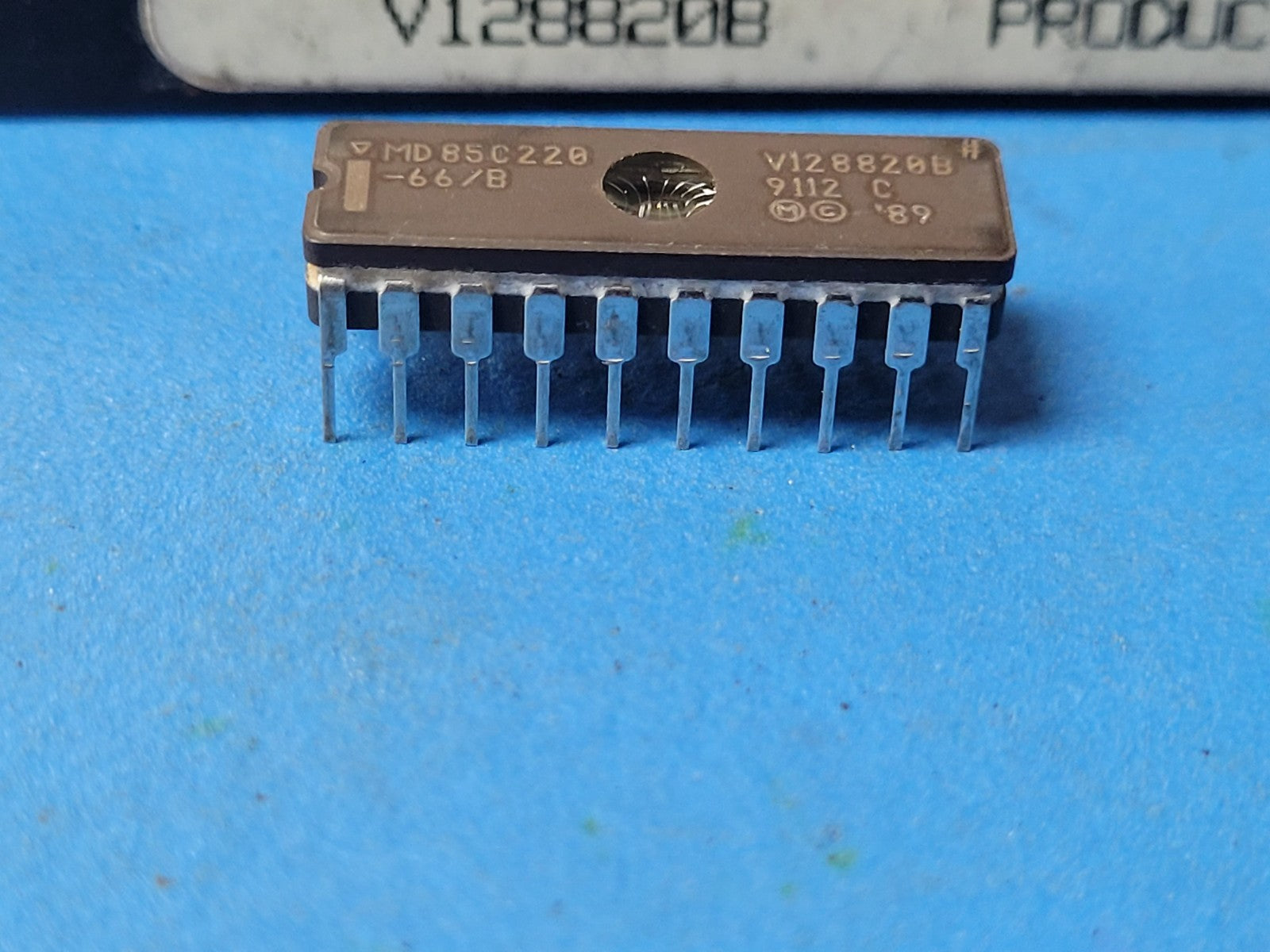

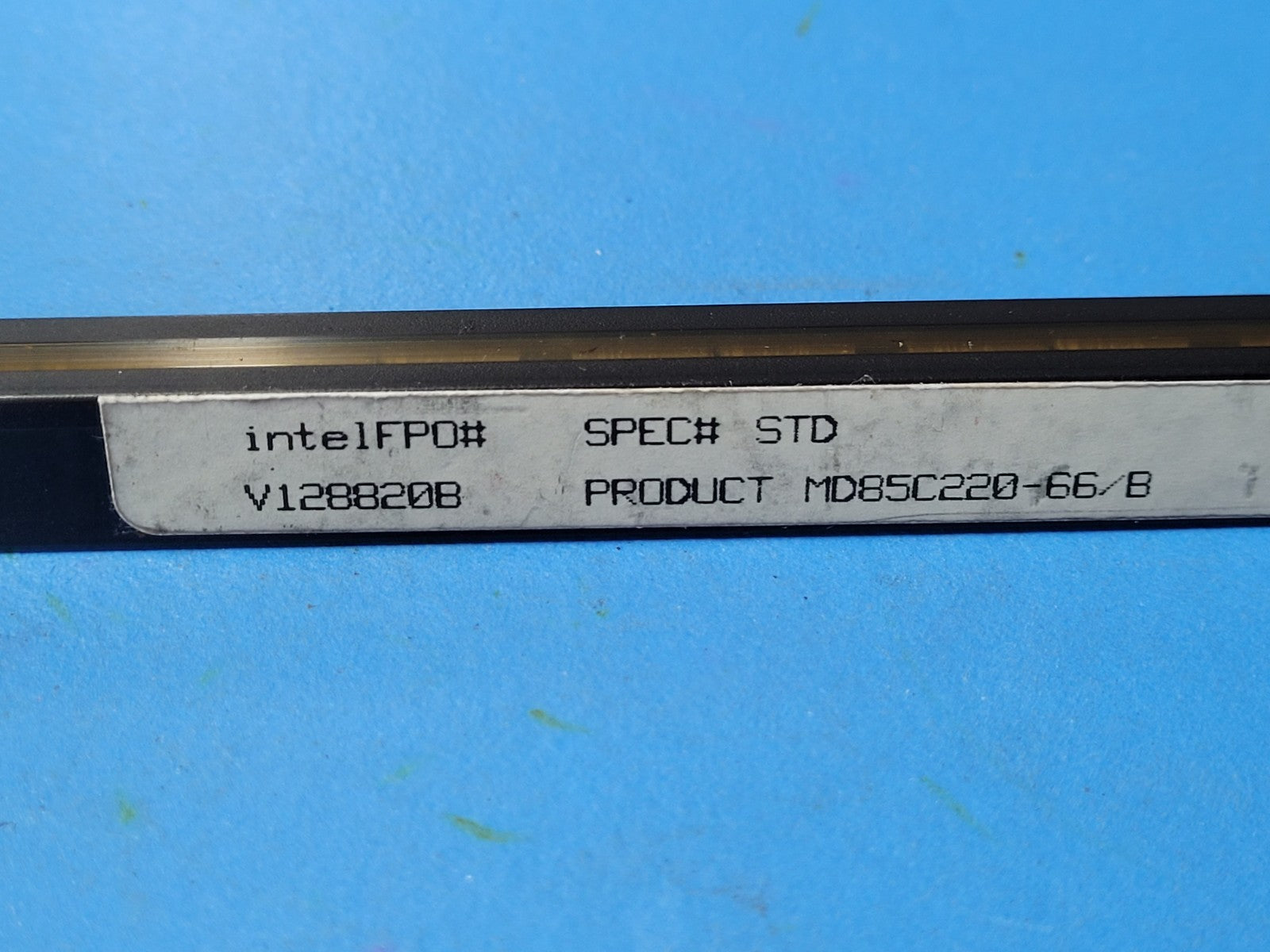

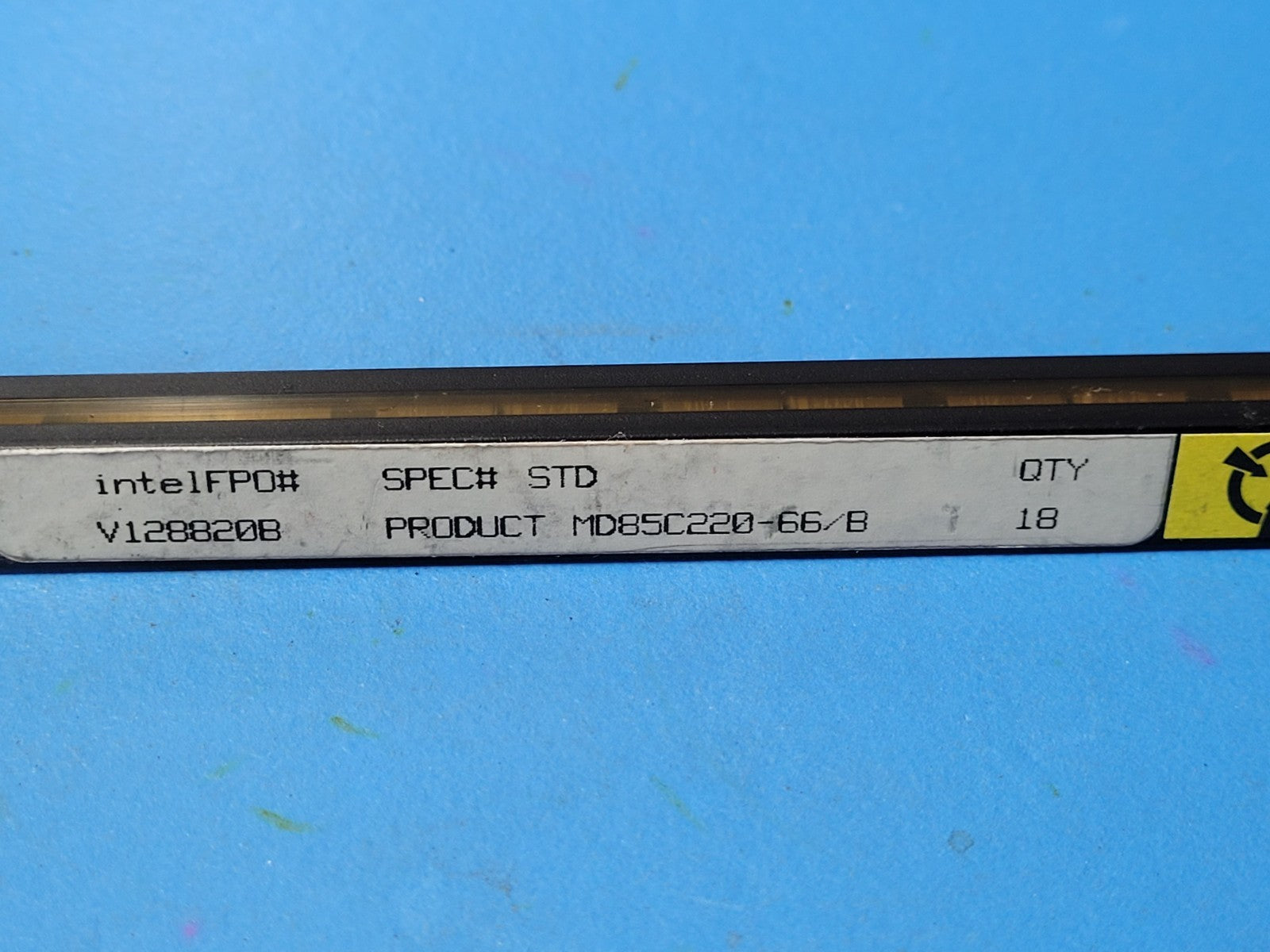

THIS IS FOR (1 PC) OF MD85C220-66/B BY INTEL
Programmable Logic Device, 12ns, PAL-Type, CMOS, CDIP20
Part #: MD85C220-66
Obsolete
Part Category: Programmable Logic Devices
Manufacturer: INTEL CORP
Description: Programmable Logic Device, 12ns, PAL-Type, CMOS, CDIP20
Status Discontinued
Architecture PAL-TYPE
Clock Frequency-Max (MHz) 66.00000
JESD-30 Code R-XDIP-T20
J-STD-609 Code e0
Number of Inputs 18
Number of Outputs 8
Number of Product Terms 72
Number of Terminals 20
Operating Temperature-Max (Cel) 125.0
Operating Temperature-Min (Cel) -55.0
Output Function MACROCELL
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Propagation Delay (ns) 12.000
DLA Qualification Not Qualified
Supply Voltage-Nom (V) 5
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch (mm) 2.540
Terminal Position DUAL
