(1) MC68020RC20E MOTOROLA, MPU, 32-BIT, 20MHZ, HCMOS
Tax included.

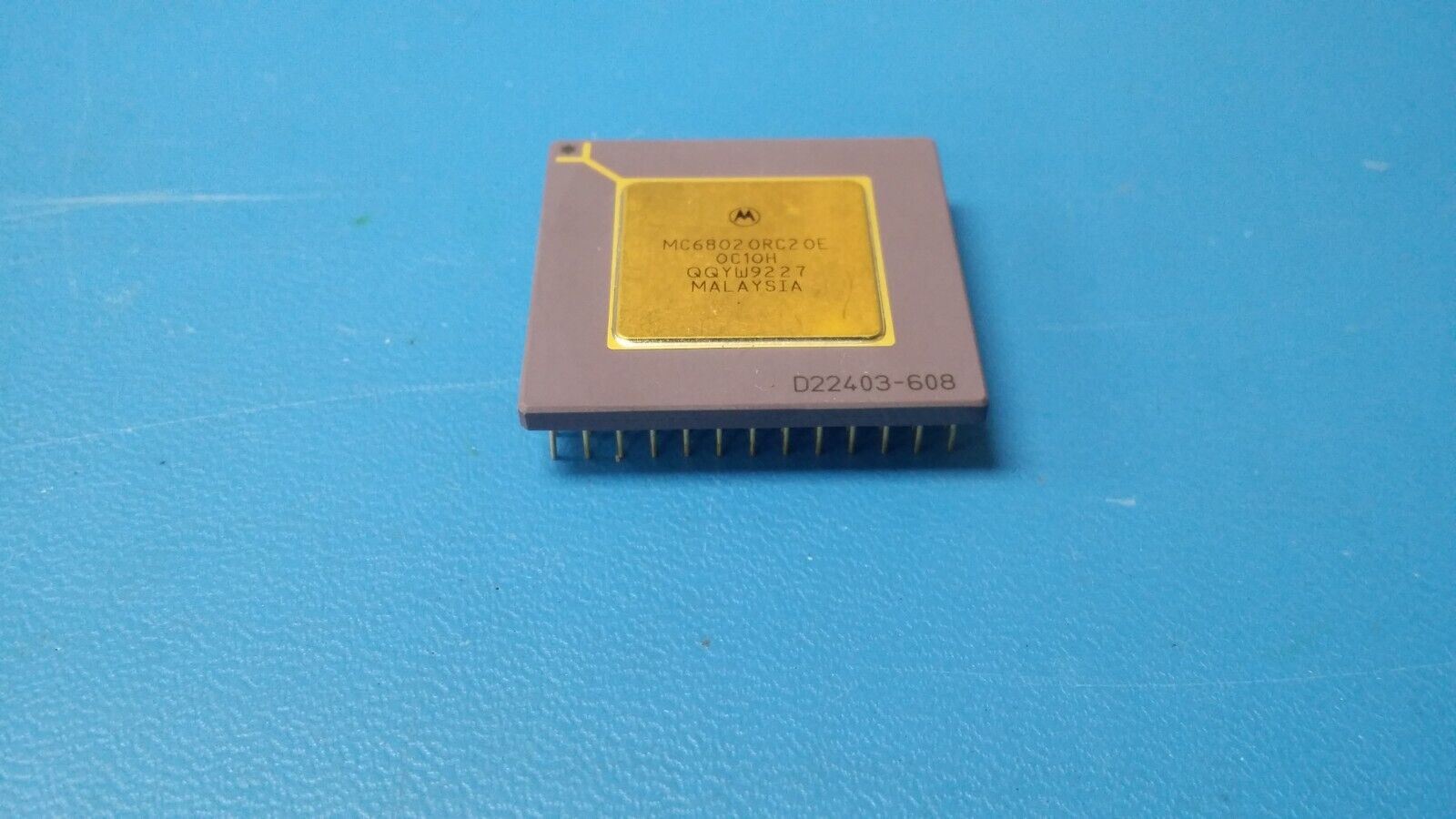

THIS IS FOR (1) MC68020RC20E BY MOTOROLA
MPU, 32-BIT, 20MHZ, HCMOS
Part #: MC68020RC20E
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Motorola Solutions, Inc.
Description: Microprocessor, 32-Bit, 20MHz, HCMOS, CPGA114
Mfr Package Description PGA-114
Status Transferred
Address Bus Width 32.0
Bit Size 32
Boundary Scan NO
Clock Frequency-Max 20.0 MHz
External Data Bus Width 32.0
Format FIXED POINT
Integrated Cache YES
JESD-30 Code S-CPGA-P114
JESD-609 Code e0
Low Power Mode NO
Number of DMA Channels 0.0
Number of External Interrupts 7.0
Number of Serial I/Os 0.0
Number of Terminals 114
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code PGA
Package Shape SQUARE
Package Style GRID ARRAY
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 3.81 mm
Speed 20.0 MHz
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology HCMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD

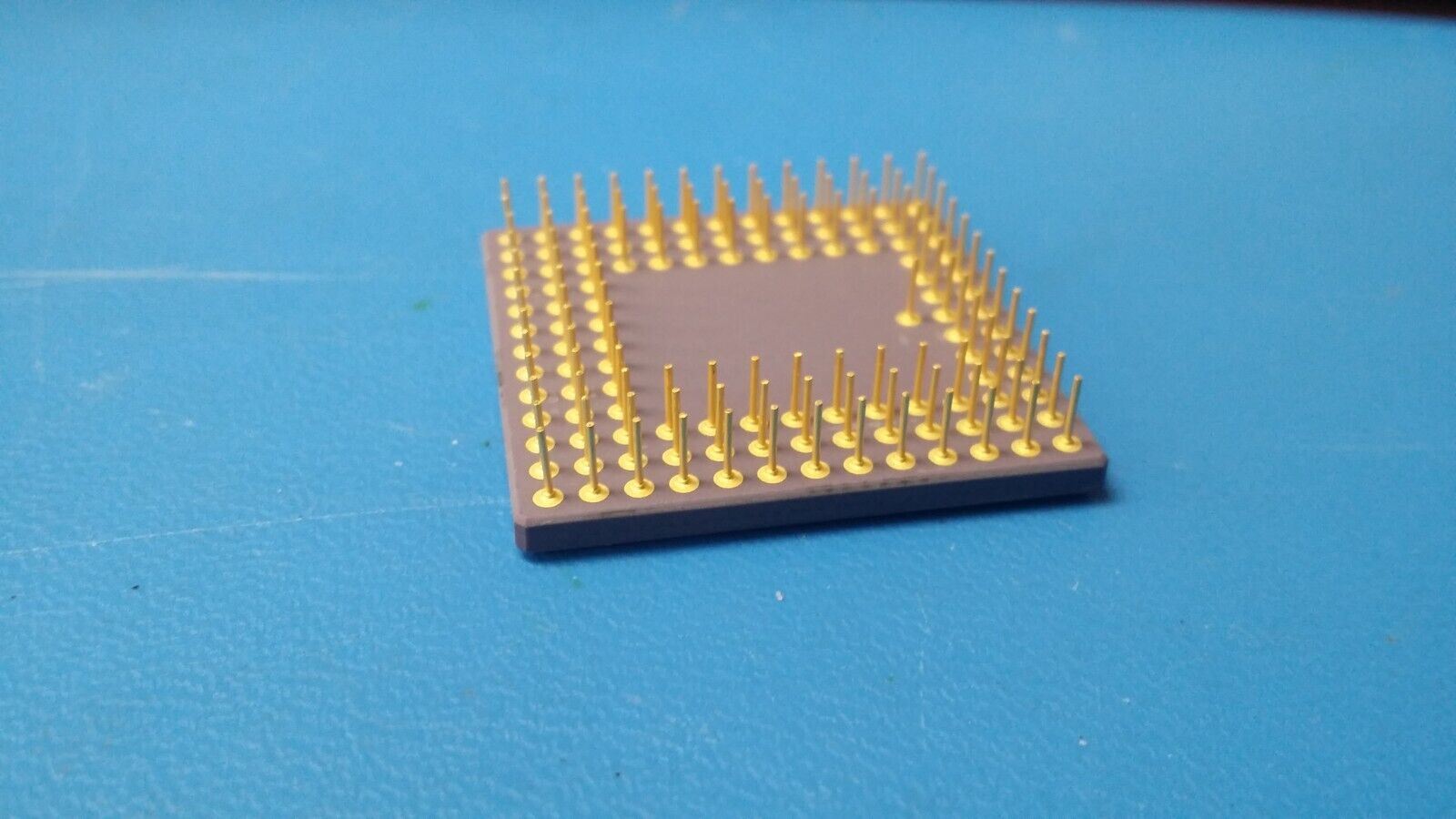

Terminal Form PIN/PEG
Terminal Pitch 2.54 mm
Terminal Position PERPENDICULAR
Length 34.545 mm
Width 34.545 mm
