(1) LSR3K Micro Switch Heavy Duty Limit Switch, 240VDC 600VAC
Tax included.

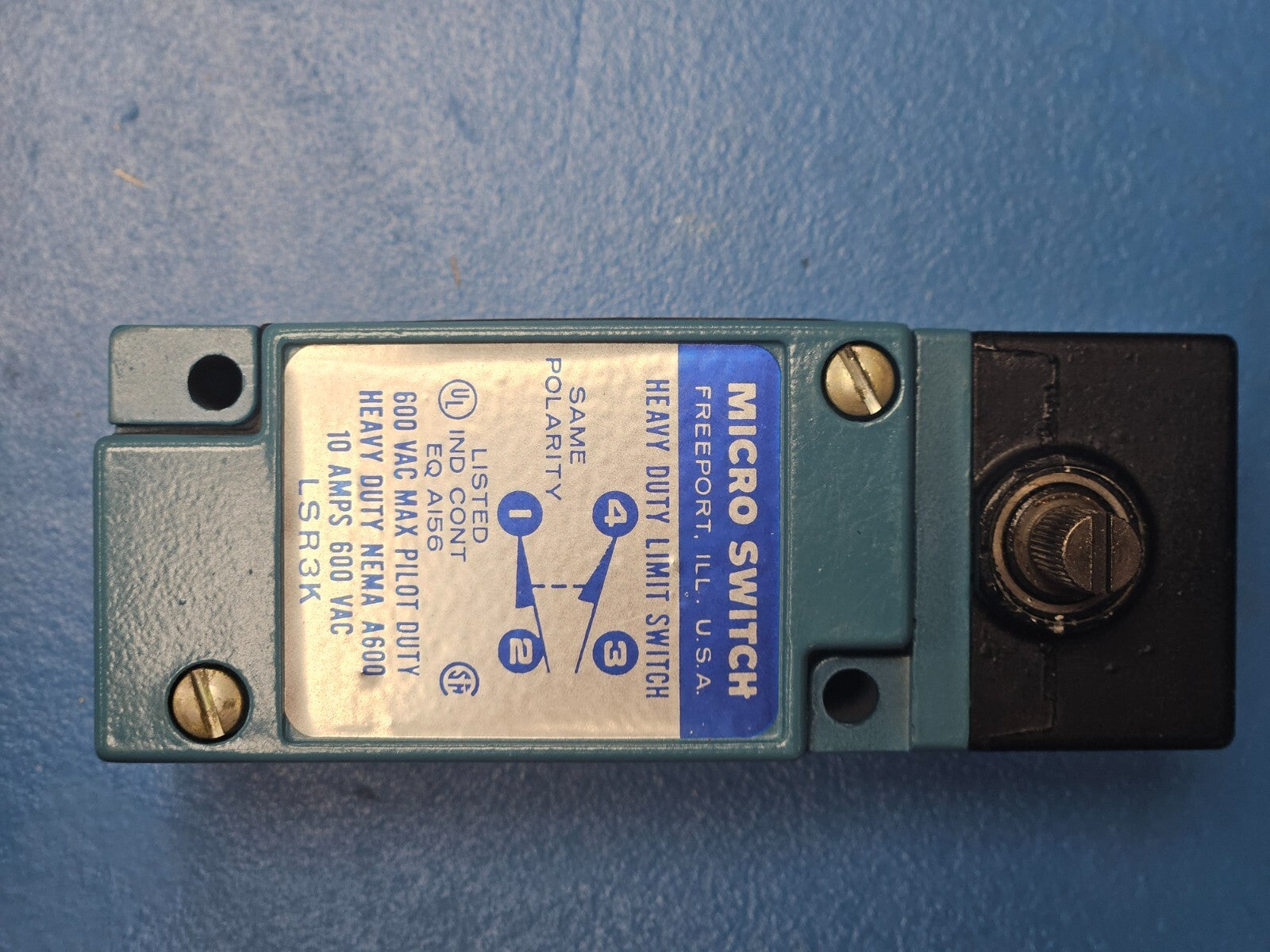

This listing is for (1) LSR3K by Micro Switch
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Switch Type SNAP ACTING/LIMIT SWITCH
Actuator Type SIDE ROTARY
Contact AC Max Rating R Load 10A@600VAC
Contact Current(AC)-Max 10.0 A
Contact Voltage(AC)-Max 600.0 V
Contact Voltage(DC)-Max 240.0 V
Mounting Feature PANEL MOUNT
Operating Temperature-Min -1.0 Cel
Operating Temperature-Max 121.0 Cel
Sealing EPOXY TERMINAL SEALED; IP65; IP66; IP67
Switch Action MOMENTARY
Switch Function SPDT
Termination Type SCREW
