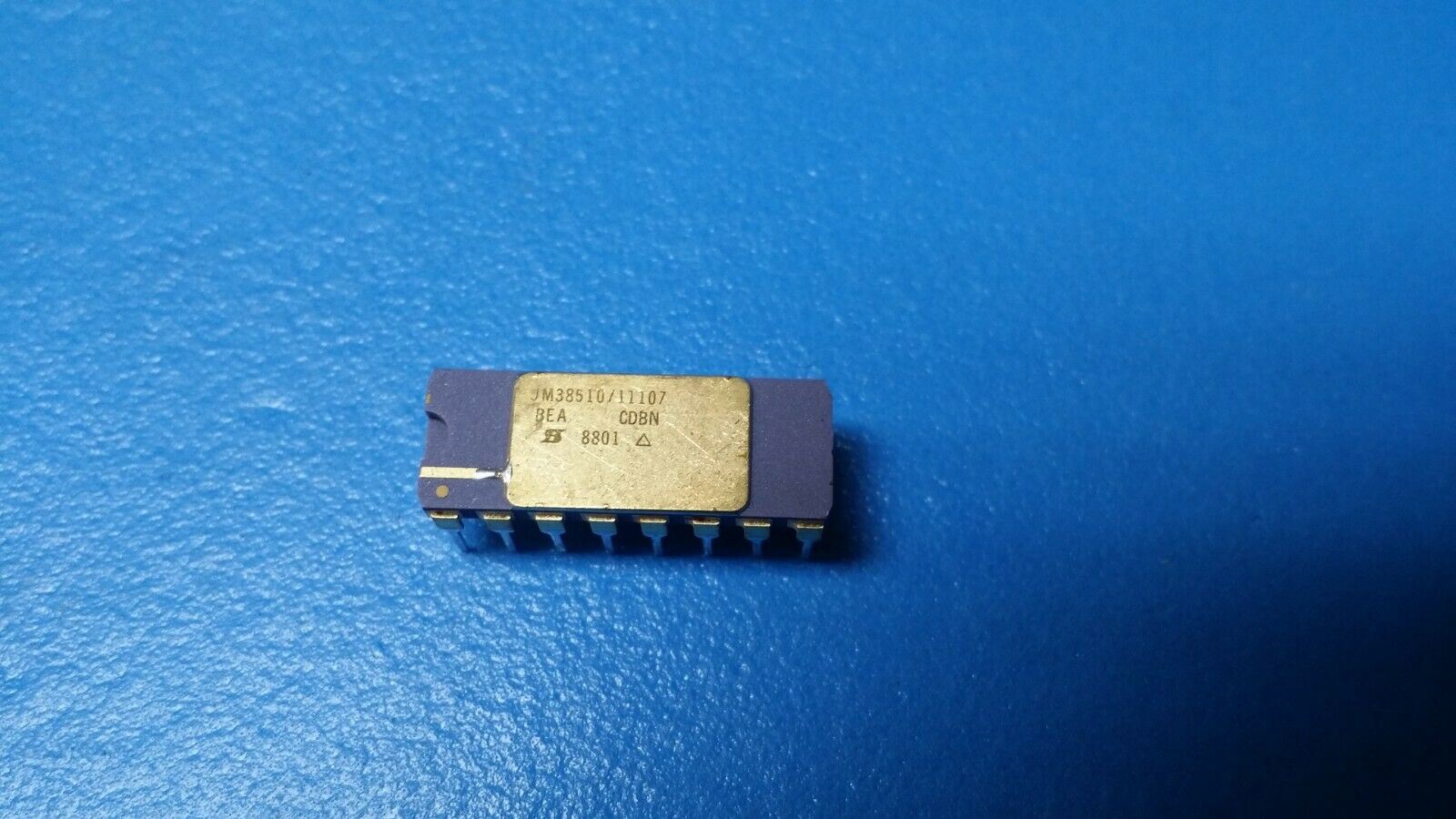

(1) JM38510/11107BEA (DG190AP DG190AP/883) Analog Switch Dual SPDT 16-Pin SBCDIP
Tax included.
THIS LISTING IS FOR (1 PC) OF JM38510/11107BEA (DG190AP DG190AP/883) BY SILICONIX
Analog Switch Dual SPDT 16-Pin SBCDIP
Part #: JM38510/11107BEA
Part Category: Other Semiconductors
Manufacturer: Vishay Intertechnology, Inc.
Description: SPDT, 2 Func, 1 Channel, BIPolar
Mfr Package Description SIDE BRAZED, DIP-16
Status Discontinued
Analog IC - Other Type SPDT
JESD-30 Code R-XDIP-T16
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Channels 1
Number of Functions 2
Number of Terminals 16
Off-state Isolation-Nom 50.0 dB
On-state Resistance-Max (Ron) 30.0 ohm
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material UNSPECIFIED
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Screening Level MIL-M-38510 Class B
Seated Height-Max 4.44 mm
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Switch-off Time-Max 130.0 ns
Switch-on Time-Max 150.0 ns
Technology BIPOLAR
Temperature Grade MILITARY
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 20.32 mm
Width 7.62 mm
Additional Feature FAULT PROTECTED
