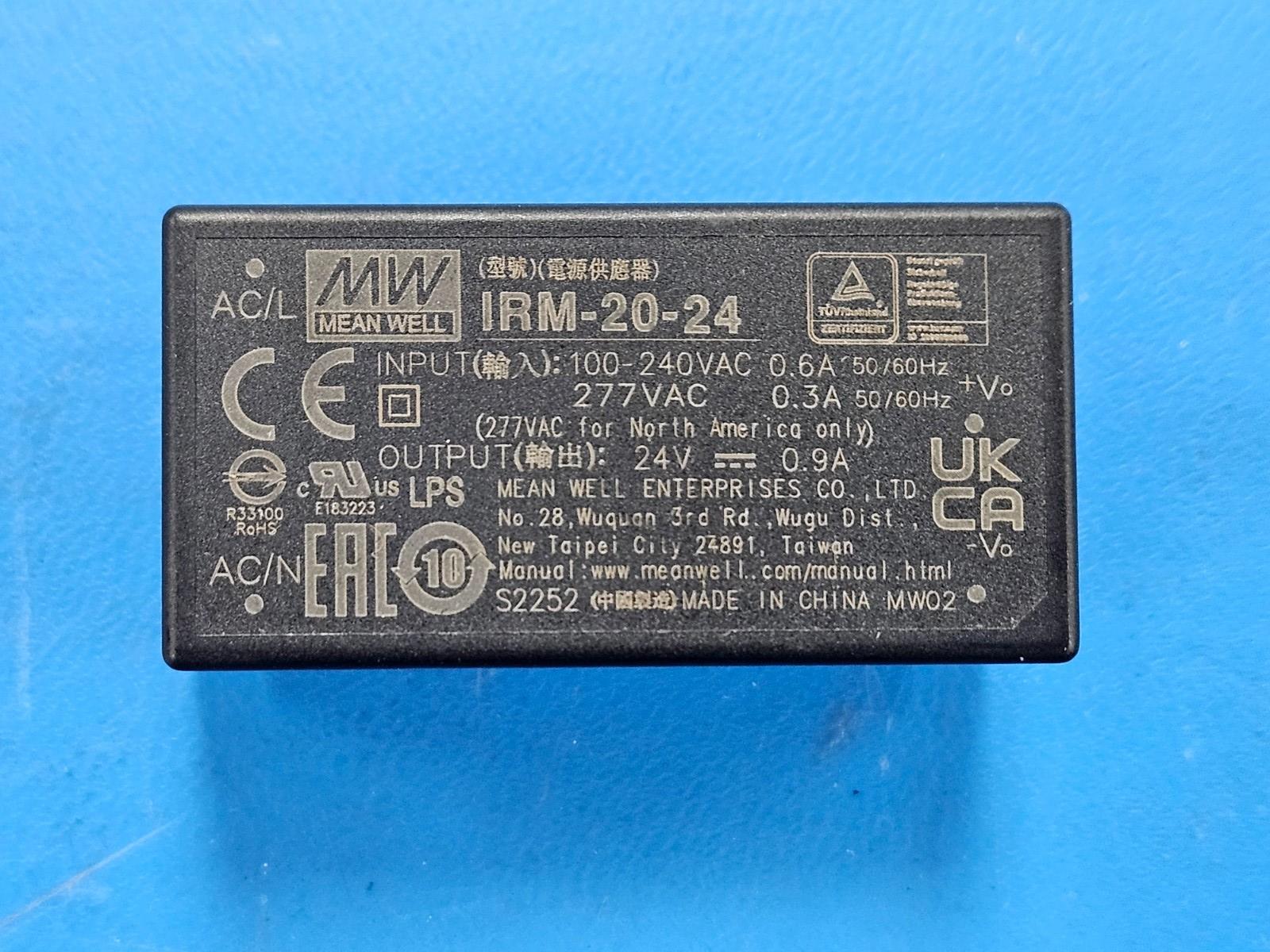

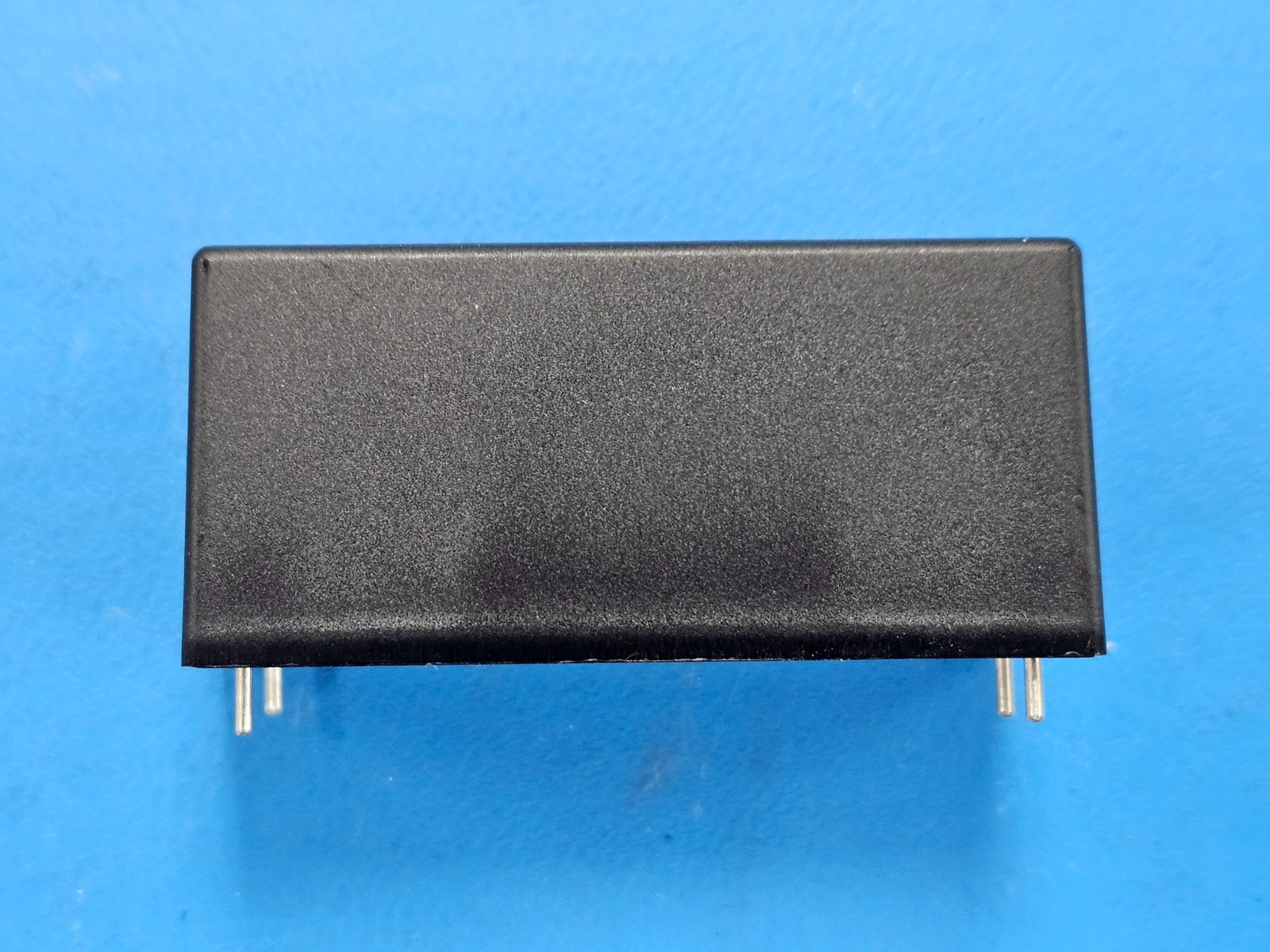

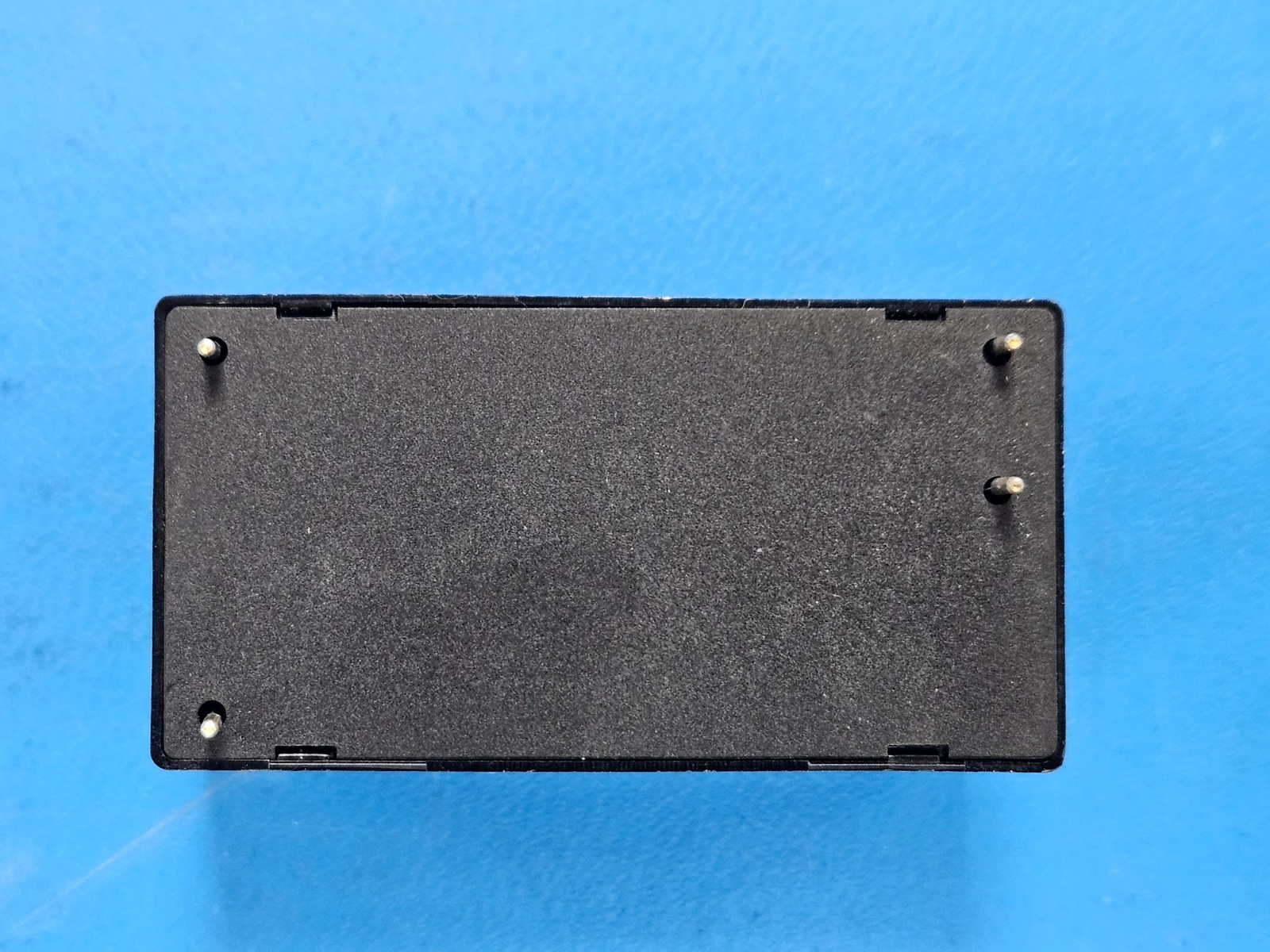

(1) IRM-20-24 AC-DC Regulated Power Supply Module, 1 Output, 21.6W, Hybrid
Tax included.
This listing is for (1) IRM-20-24 by Meanwell
Status Active
Additional Feature ALSO OPERATE WITH 120-430VDC
Analog IC - Other Type AC-DC REGULATED POWER SUPPLY MODULE
Approvals CB, CE, EAC, EN, IEC, UL
Control Mode VOLTAGE-MODE
Efficiency (Main Output) (%) 85.000000
Input Voltage-Max (V) 305.0000000000000000
Input Voltage-Min (V) 85.0000000000000000
Input Voltage-Nom (V) 115
JESD-30 Code R-XDMA-P4
Length (mm) 52.4000
Number of Functions 1
Number of Outputs 1
Number of Terminals 4
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) -30
Output Current-Max (A) 0.9000000000000000
Output Voltage-Max (V) 24.6000000000000000
Output Voltage-Min (V) 23.4000000000000000
Output Voltage-Nom (V) 24.0000000000000000
Package Body Material UNSPECIFIED
Package Code DMA
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Protections OUTPUT OVER VOLTAGE; OVER LOAD
Ripple Voltage (Main Out) (Vrms) 0.070700000000000
Seated Height-Max (mm) 24.0000
Surface Mount NO
Technology HYBRID
Temperature Grade OTHER
Terminal Form PIN/PEG
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max (W) 21.6000000000000000
Trim/Adjustable Output NO
Width (mm) 27.2000
