(1) ER431DD-26A Teledyne Electromechanical Relay SPDT, Latched, 45VDC, 1A, 28VDC
Tax included.

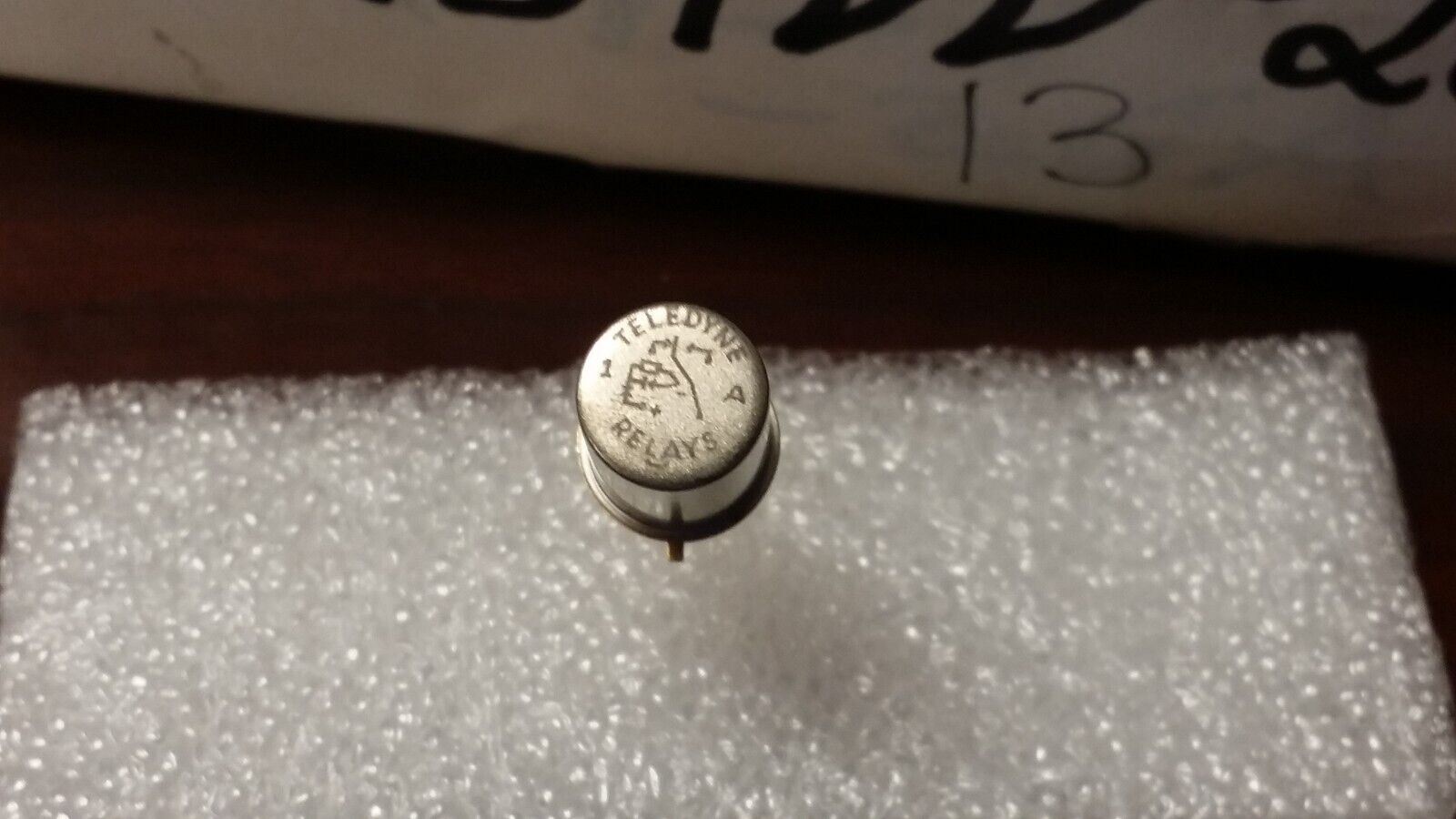

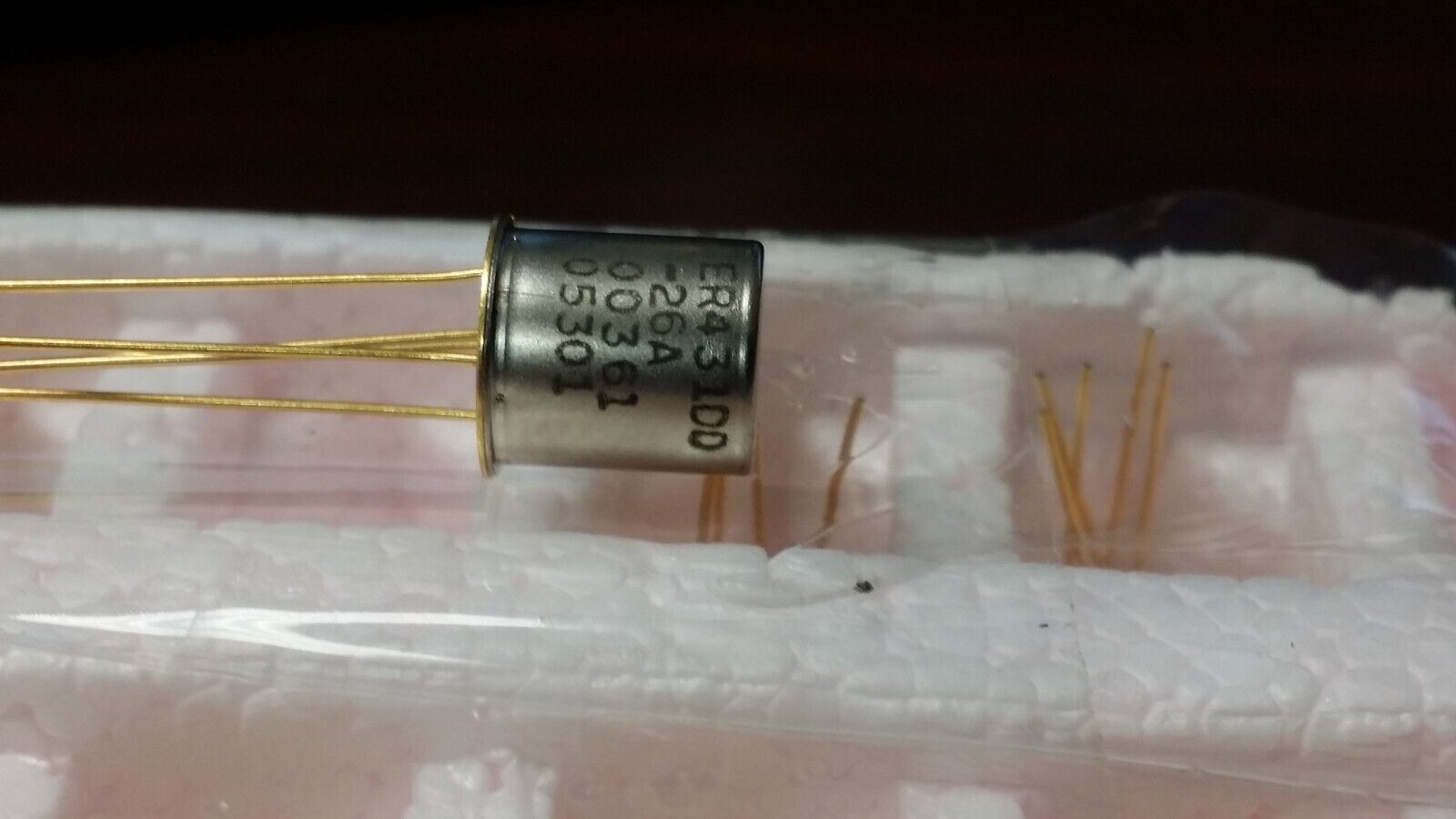

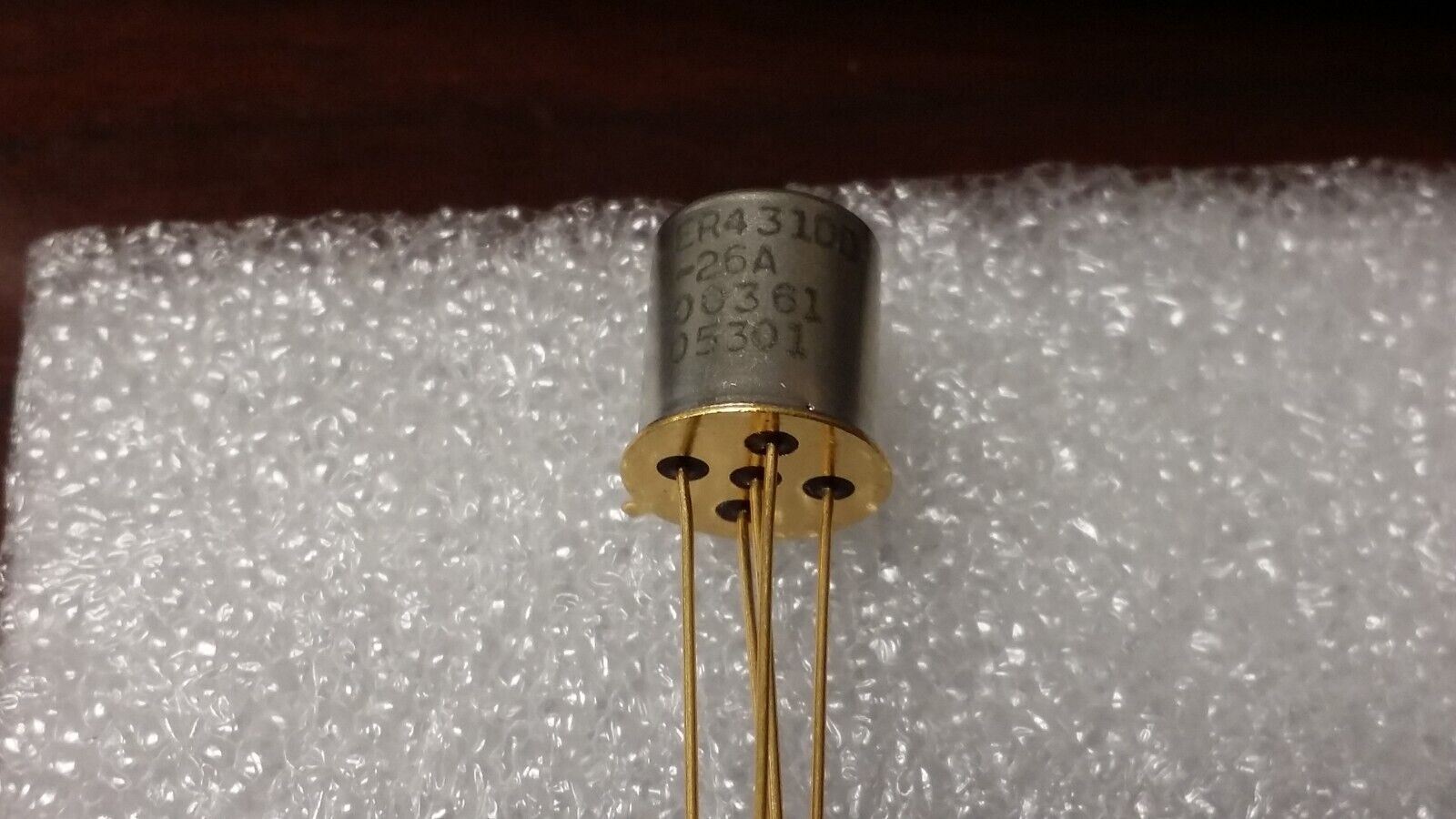

THIS IS FOR (1PC) OF ER431DD-26A BY TELEDYNE RELAYS
Electromechanical Relay, SPDT, Latched, 45VDC (Coil), 1A (Contact), 28VDC (Contact), Random, AC/DC Output
Part #: ER431DD-26A
Part Category: Relays
Manufacturer: Teledyne Technologies Incorporated
Description: Electromechanical Relay, SPDT, Latched, 45VDC (Coil), 1A (Contact), 28VDC (Contact), Random, AC/DC Output
REACH Compliant Yes
Status Active
Body Height 9.52 mm
Body Length or Diameter 9.4 mm
Coil/Input Supply Type DC
Coil Operate Voltage(DC) 19.0 V
Coil Release Voltage(DC) 10.4 V
Coil Resistance 4000.0 ohm
Coil Voltage-Nom 26.5 V
Coil Voltage(DC)-Max 45.0 V
Contact AC Max Rating R Load 0.25A@115VAC
Contact Current(AC)-Max 0.25 A
Contact Current(DC)-Max 1.0 A
Contact DC Max Rating R Load 1A@28VDC
Contact/Output Supply Type AC/DC
Contact Resistance 200.0 mohm
Contact Voltage(AC)-Max 115.0 V
Contact Voltage(DC)-Max 28.0 V
Electrical Life 1.0E9 Cycle(s)
Input Switching Control Type Random
Insulation Resistance 1000000.0 ohm
Number of Terminals 5
Operate Time 4.0 ms
PCB Hole Count 5.0
Physical Dimension 9.4mm x 9.52mm
Relay Action LATCHED
Relay Form 1 FORM C
Relay Function SPDT
Release Time 7.5 ms
Sealing HERMETICAL
Terminal Length 0.0047 Meter
Termination Type SOLDER
Weight 3.09 g
