(1) EPF10K100ARC240-3 FPGA - Flex 10K 624 LABs 189 IOs, 240-QFP
Tax included.

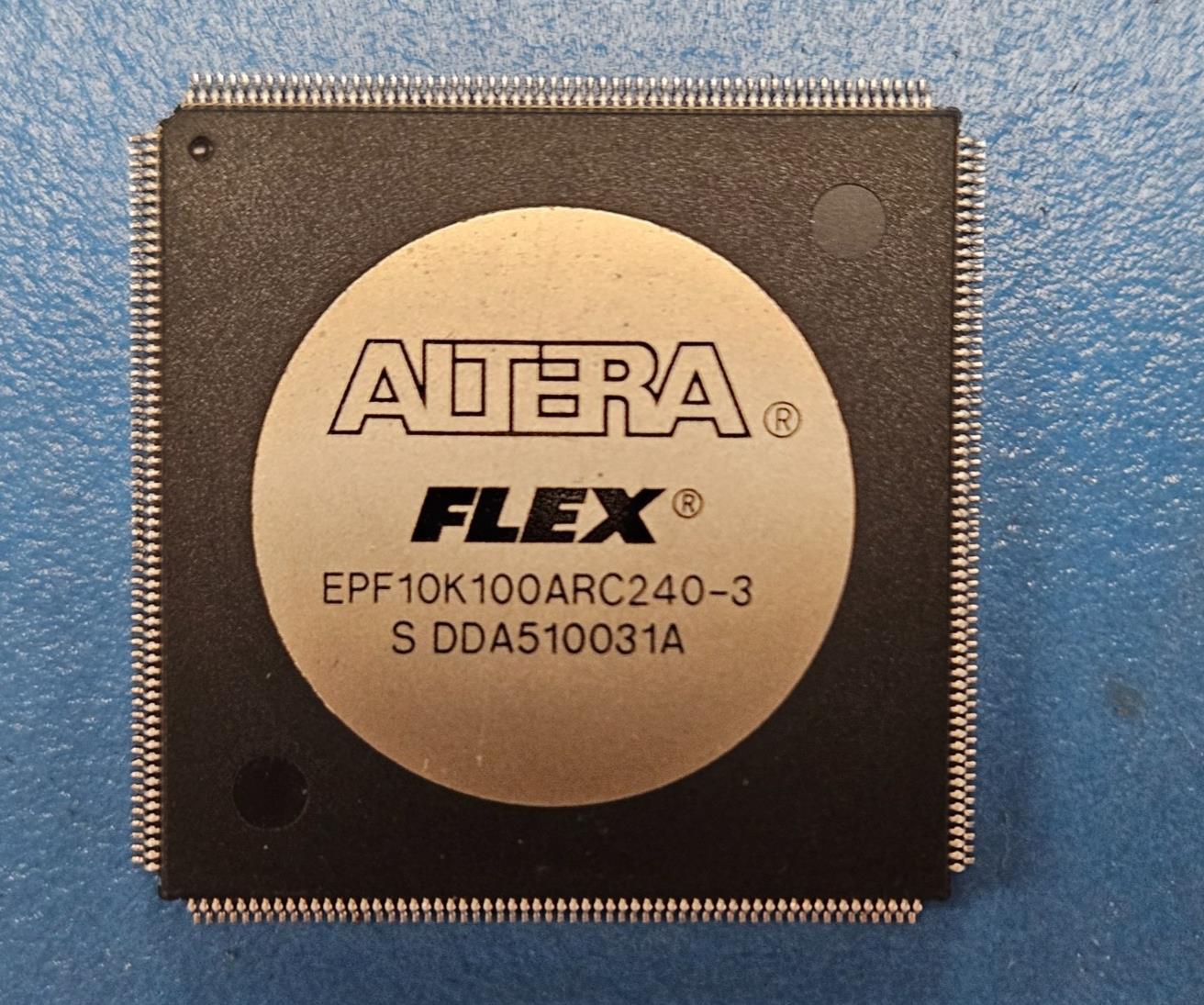

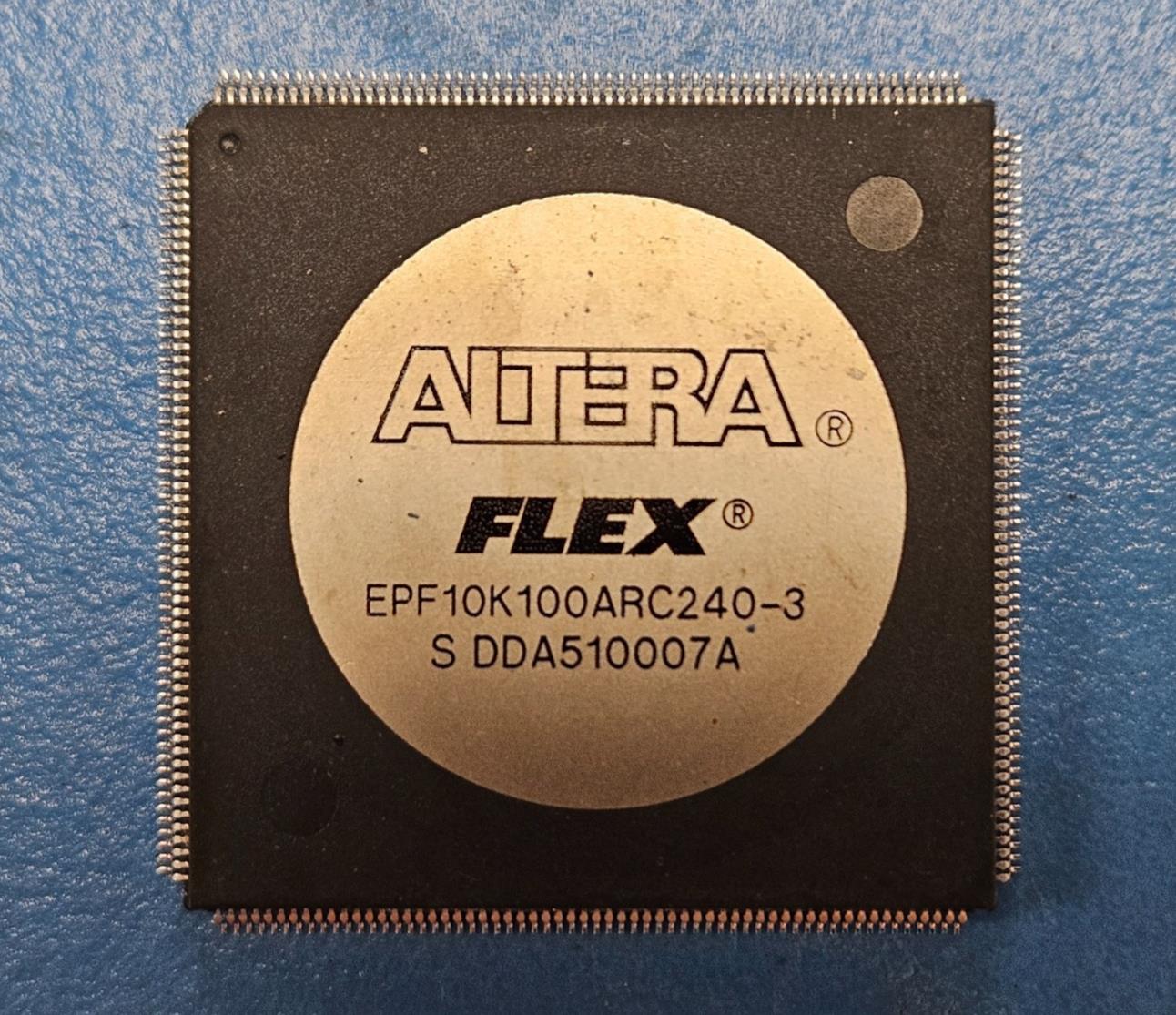

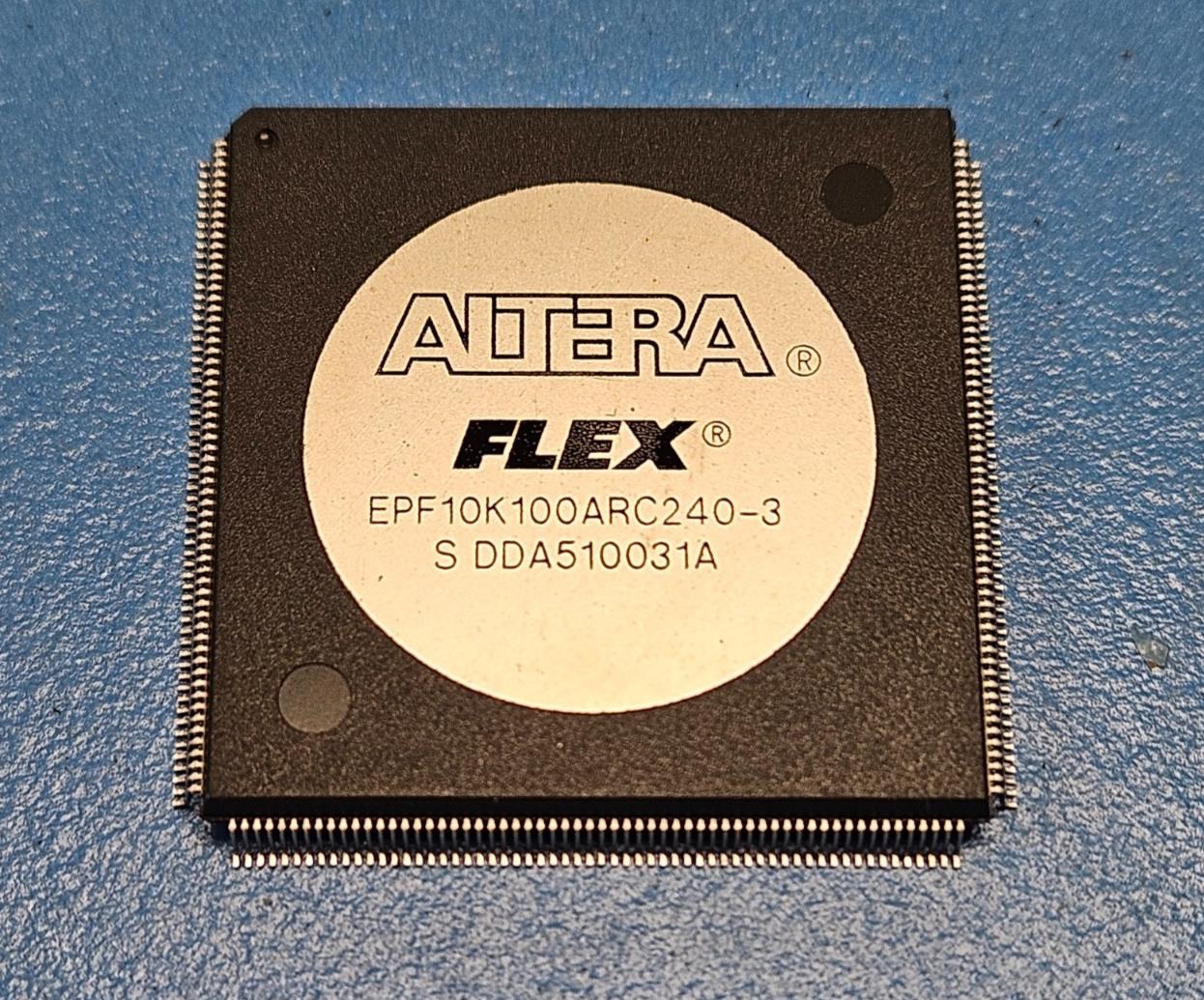

This listing is for (1) EPF10K100ARC240-3 by Altera
Mfr Package Description RQFP-240
Status Transferred
Programmable Logic Type LOADABLE PLD
JESD-30 Code S-PQFP-G240
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4.0
Number of I/O Lines 189.0
Number of Inputs 189.0
Number of Logic Cells 4992.0
Number of Outputs 189.0
Number of Terminals 240
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 4 DEDICATED INPUTS, 189 I/O
Output Function REGISTERED
Package Body Material PLASTIC/EPOXY
Package Code HFQFP
Package Equivalence Code HQFP240,1.37SQ,20
Package Shape SQUARE
Package Style FLATPACK, HEAT SINK/SLUG, FINE PITCH
Peak Reflow Temperature (Cel) 220
Power Supplies 2.5/3.3,3.3
Propagation Delay 0.8 ns
Qualification Status Not Qualified
Seated Height-Max 4.1 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
