(1) COP87L42CJM-1N NSC Microcontroller 8-Bit OTPROM COP800 CPU 10MHz CMOS SOIC16
Tax included.

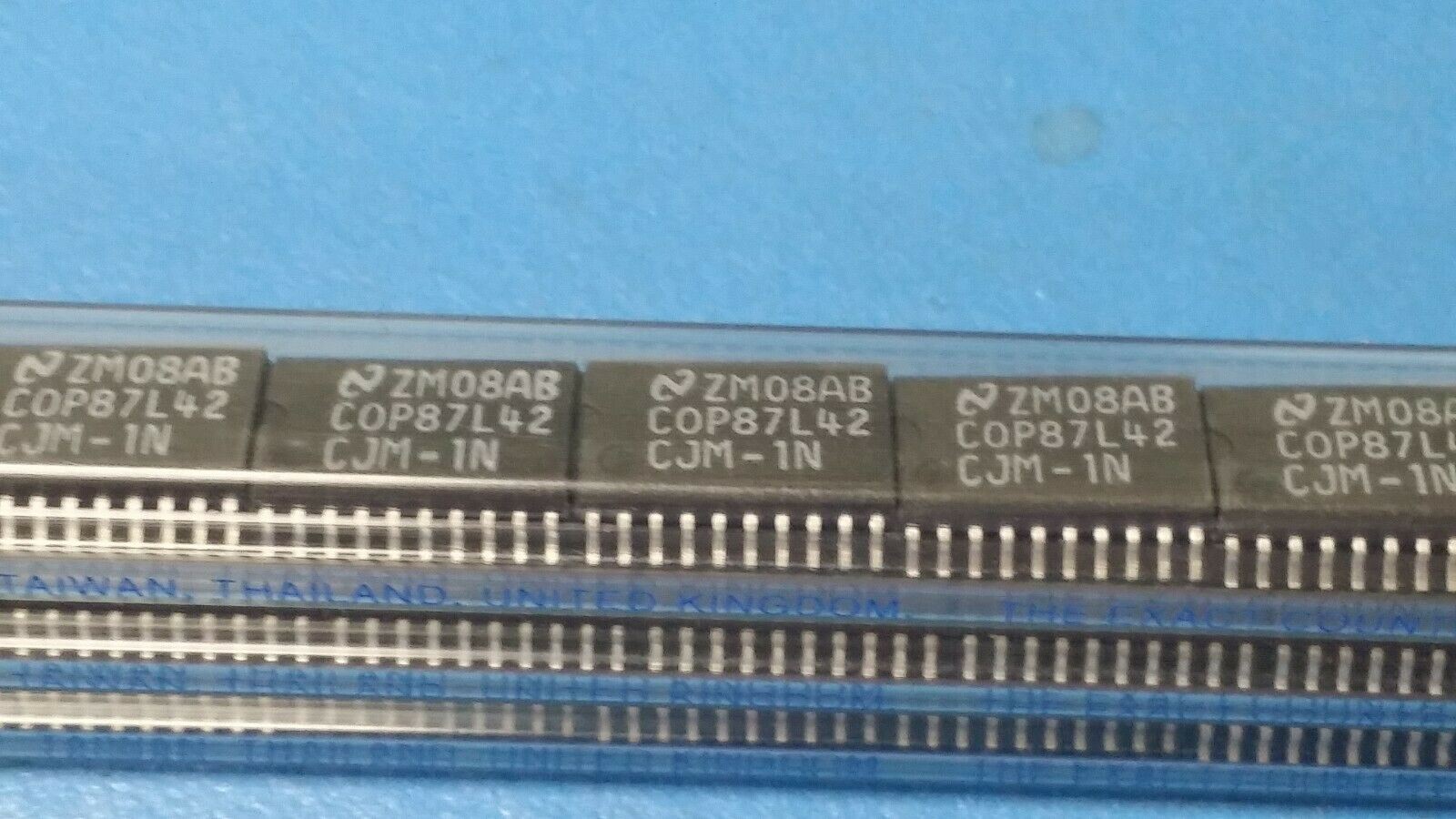

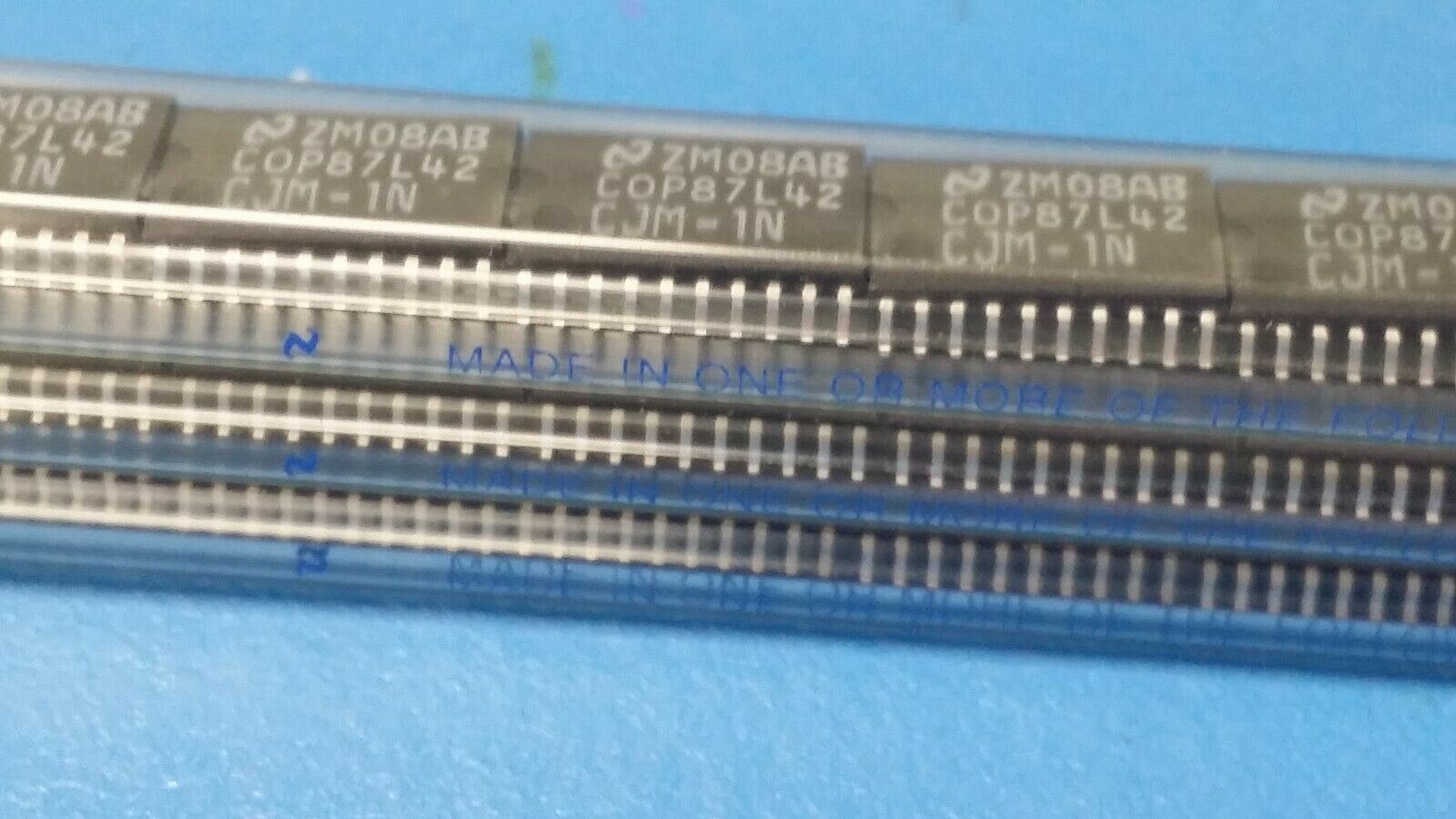

THIS IS FOR (1 PC) OF COP87L42CJM-1N BY NSC
Microcontroller, 8-Bit, OTPROM, COP800 CPU, 10MHz, CMOS, SOIC20
Part #: COP87L42CJM-1N
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: Microcontroller, 8-Bit, OTPROM, COP800 CPU, 10MHz, CMOS, PDSO20
Mfr Package Description SOIC-20
Status Discontinued
ADC Channels NO
Address Bus Width 0.0
Bit Size 8
Clock Frequency-Max 10.0 MHz
CPU Family COP800
DAC Channels NO
DMA Channels NO
External Data Bus Width 0.0
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Number of I/O Lines 16.0
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 3/5
PWM Channels YES
Qualification Status Not Qualified
RAM (bytes) 128.0
ROM Programmability OTPROM
ROM (words) 2048
Seated Height-Max 2.642 mm
Speed 10.0 MHz
Sub Category Microcontrollers
Supply Current-Max 12.0 mA
Supply Voltage-Nom 4.0 V
Supply Voltage-Min 2.7 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 12.8015 mm
Width 7.493 mm
