(1) C143R064M11A004 AMPH Board Euro Connector, 64 Pin Male, Straight, 0.1" Ptich
Tax included.

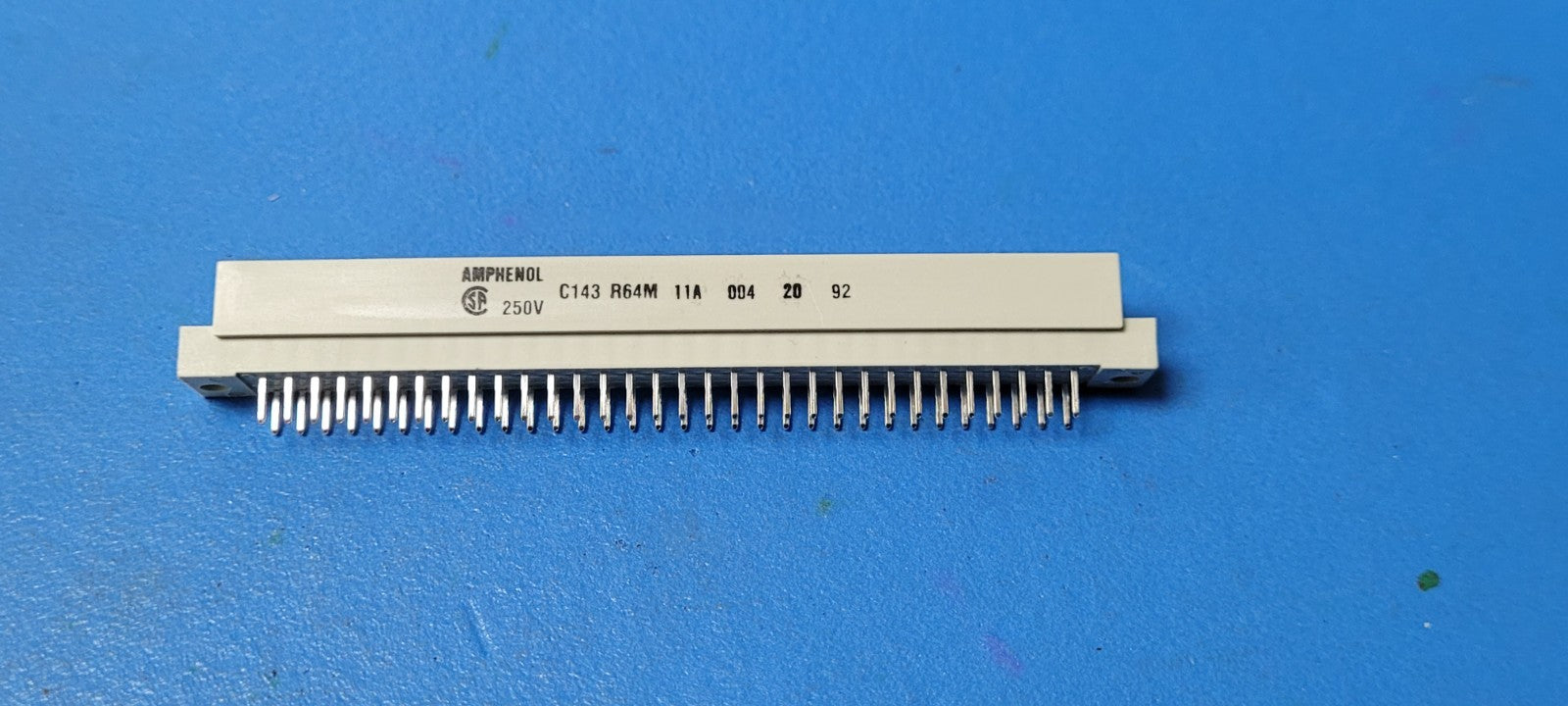

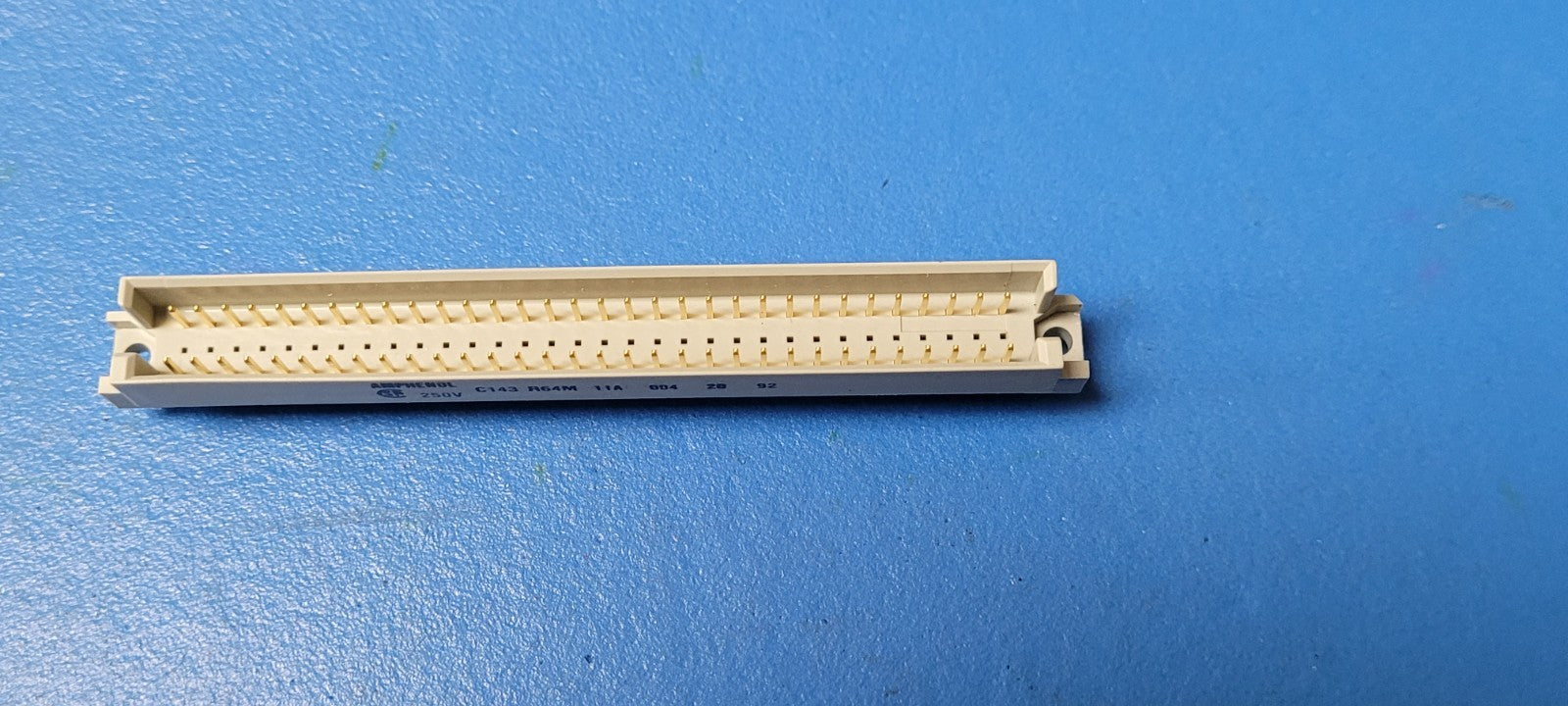

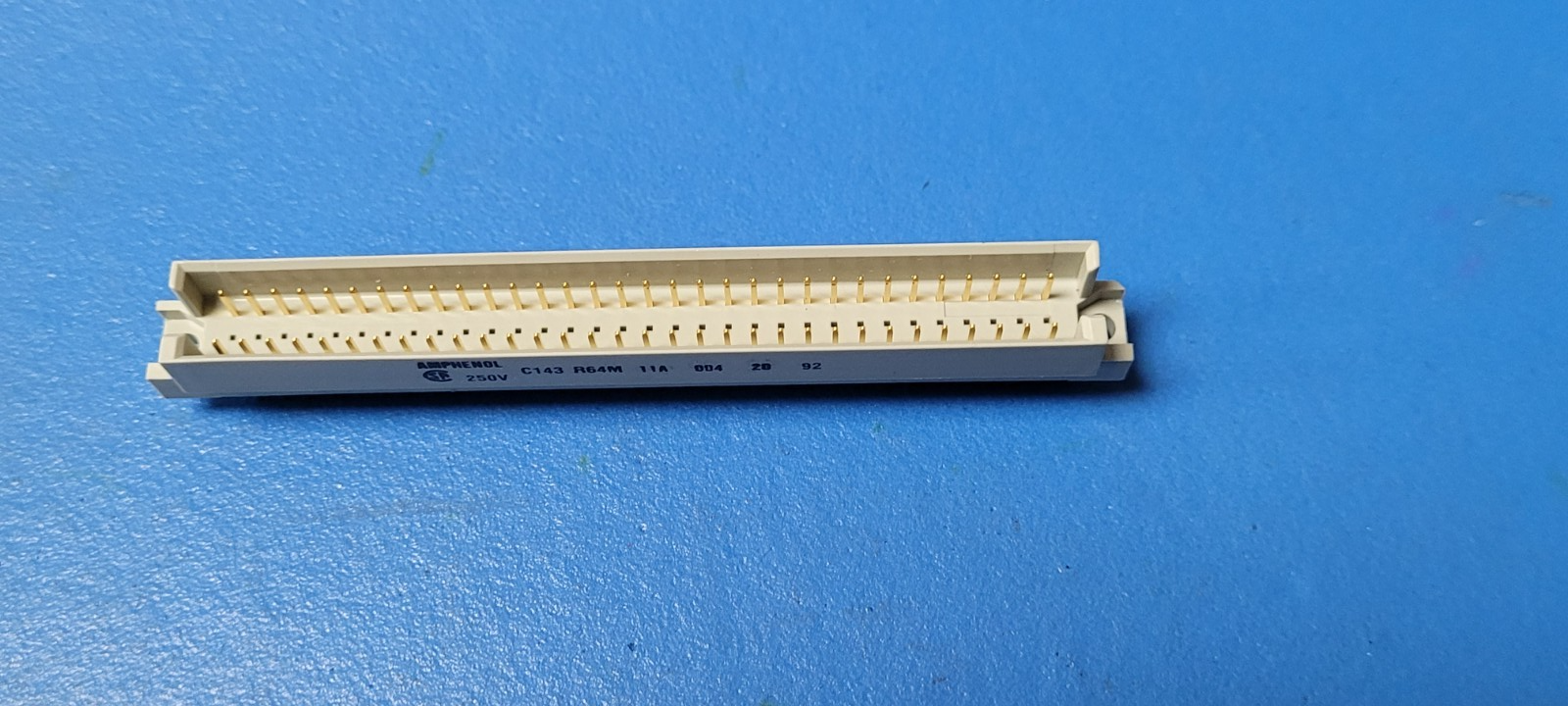

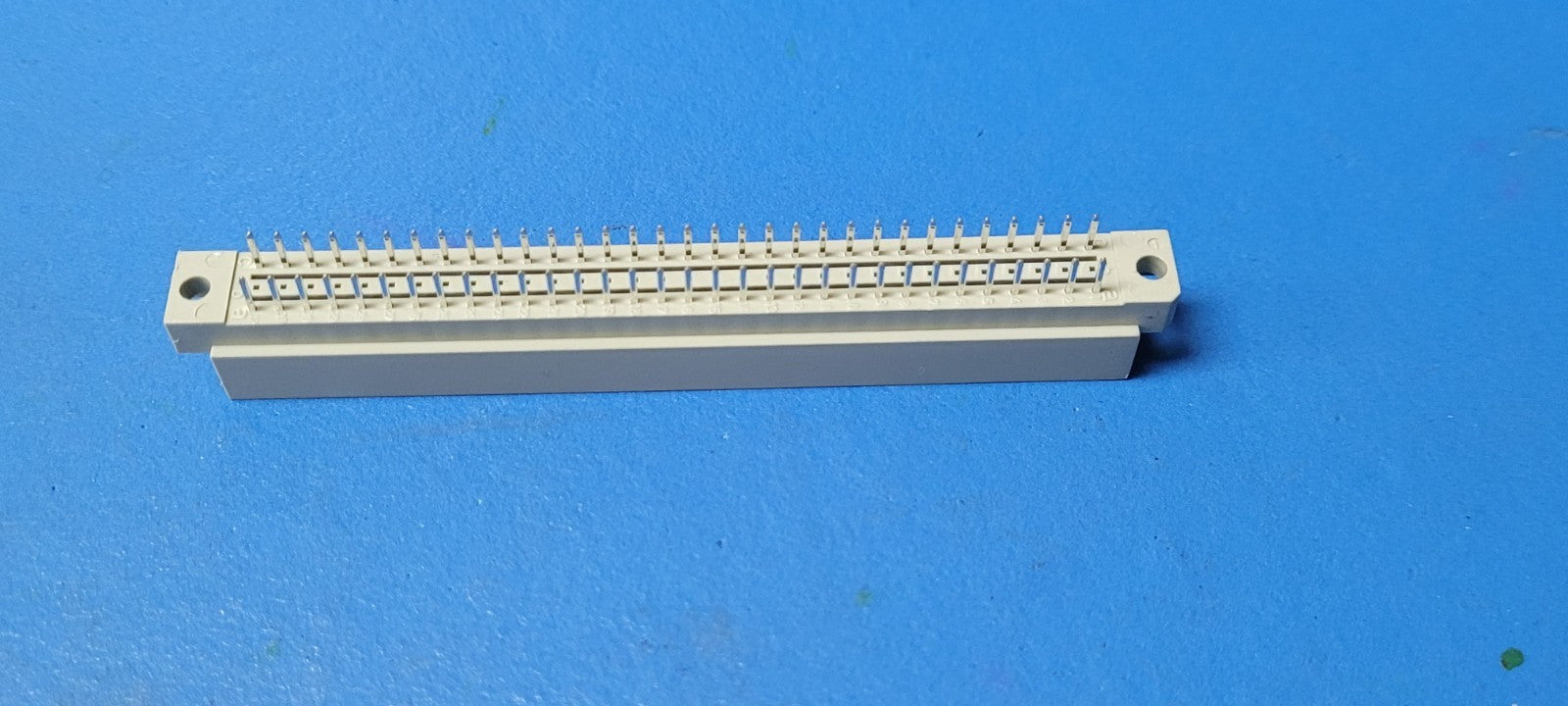

THIS IS FOR (1 PC) OF C143R064M11A004 BY AMPHENOL
Board Euro Connector, 64 Pin Male, Straight, 0.1" Ptich
Status Active
Body Breadth (inch) 0.437000
Body Depth (inch) 0.457000
Body Length (inch) 3.740000
Body/Shell Style RECEPTACLE
Connector Type BOARD EURO CONNECTOR
Contact Finish - Mating SN
Contact Finish - Termination GOLD
Contact Gender MALE
Contact Material BRASS
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 20.000000000000000
Contact Style SQ PIN-SKT
DIN Conformance YES
Dielectric Withstanding Voltage (V) 1414VAC
Durability (Cycles) 200
Filter Feature NO
Insertion Force-Max (N) .9174
Insulation Resistance (ohm) 1000000000000.000000000000000
Insulator Color GREY
Insulator Material POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Name of Rows Loaded A,C
Number of Connectors ONE
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -65
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Polarization Key SHRD ENDS
Rated Current (Signal) (A) 1.0000000000000000
Screening Level / Reference Standard CSA
Terminal Length (inch) 0.157000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 64
UL Flammability Code 94V-0/94V-1
Withdrawl Force-Min (N) .9174
