(1) AD669BN DAC 1 Func, Parallel, Word Input Loading, 10us Settling Time, PDIP28
Tax included.

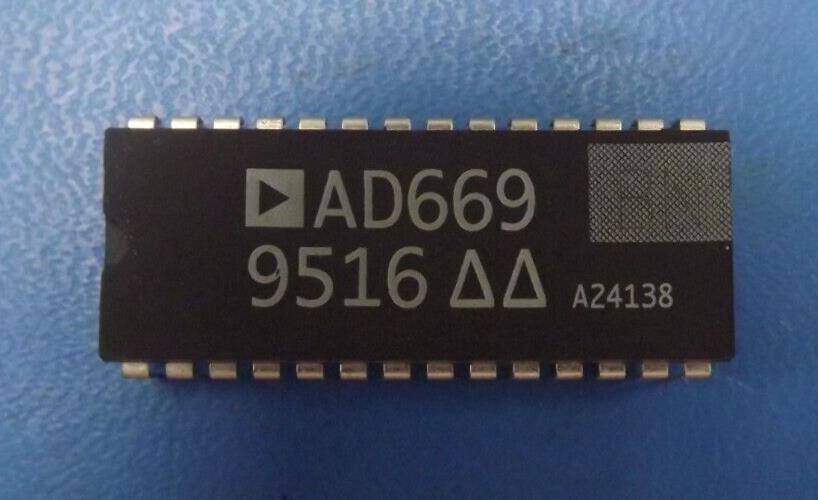

THIS LISTING IS FOR (1PC) OF AD669BN BY ANALOG DEVICES
Mfr Package Description PLASTIC, DIP-28
REACH Compliant Yes
Status Discontinued
Converter Type D/A CONVERTER
Analog Output Voltage-Min -10.0 V
Analog Output Voltage-Max 10.0 V
Input Bit Code BINARY
Input Format PARALLEL, WORD
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Linearity Error-Max (EL) 0.0031 %
Negative Supply Voltage-Nom -15.0 V
Number of Bits 16
Number of Functions 1
Number of Terminals 28
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 6.35 mm
Settling Time-Max 13.0 µs
Settling Time-Nom (tstl) 10.0 µs
Sub Category Other Converters
Supply Current-Max 18.0 mA
Supply Voltage-Nom 15.0 V
Surface Mount NO
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 37.4 mm
Width 15.24 mm
