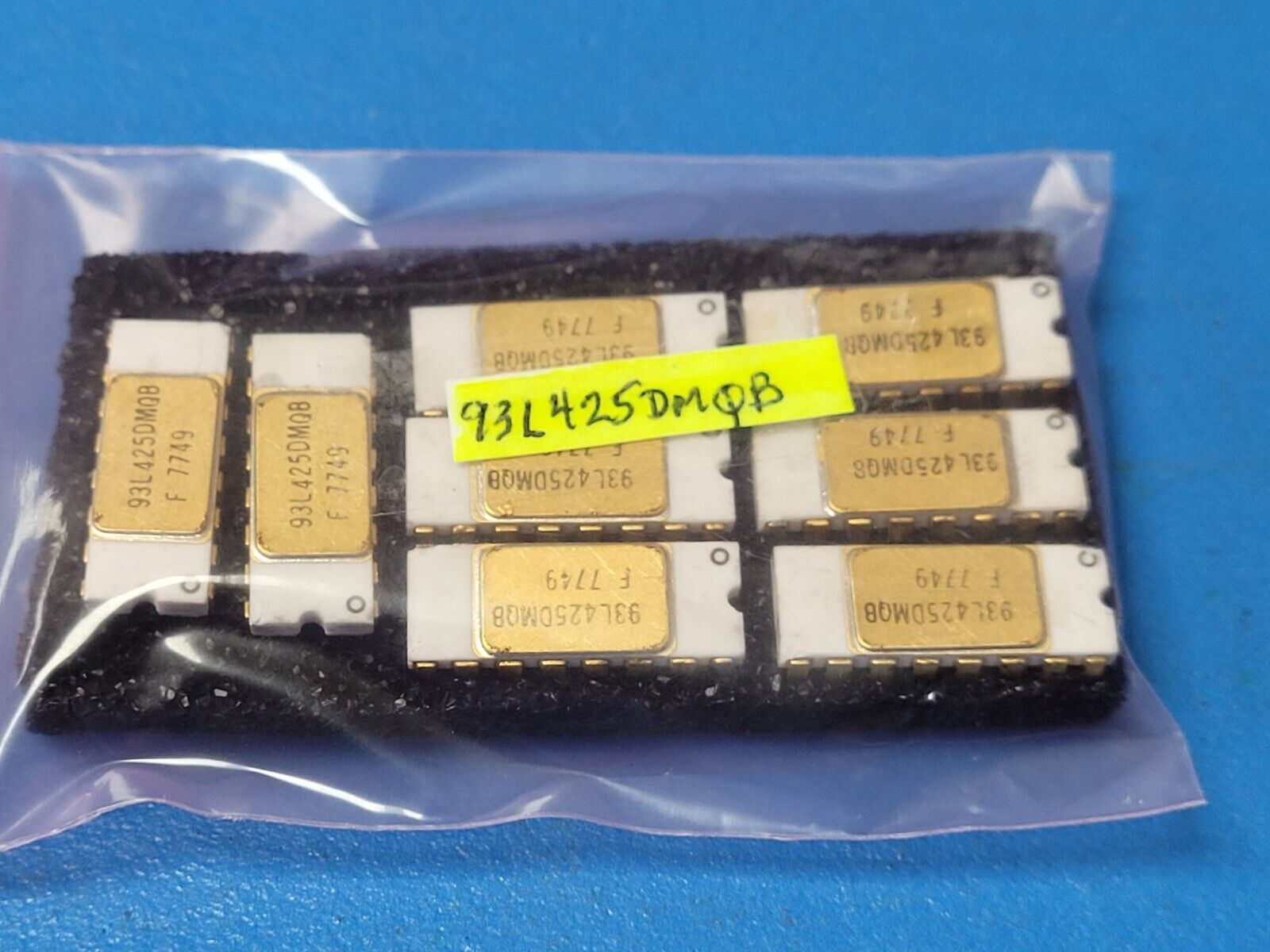

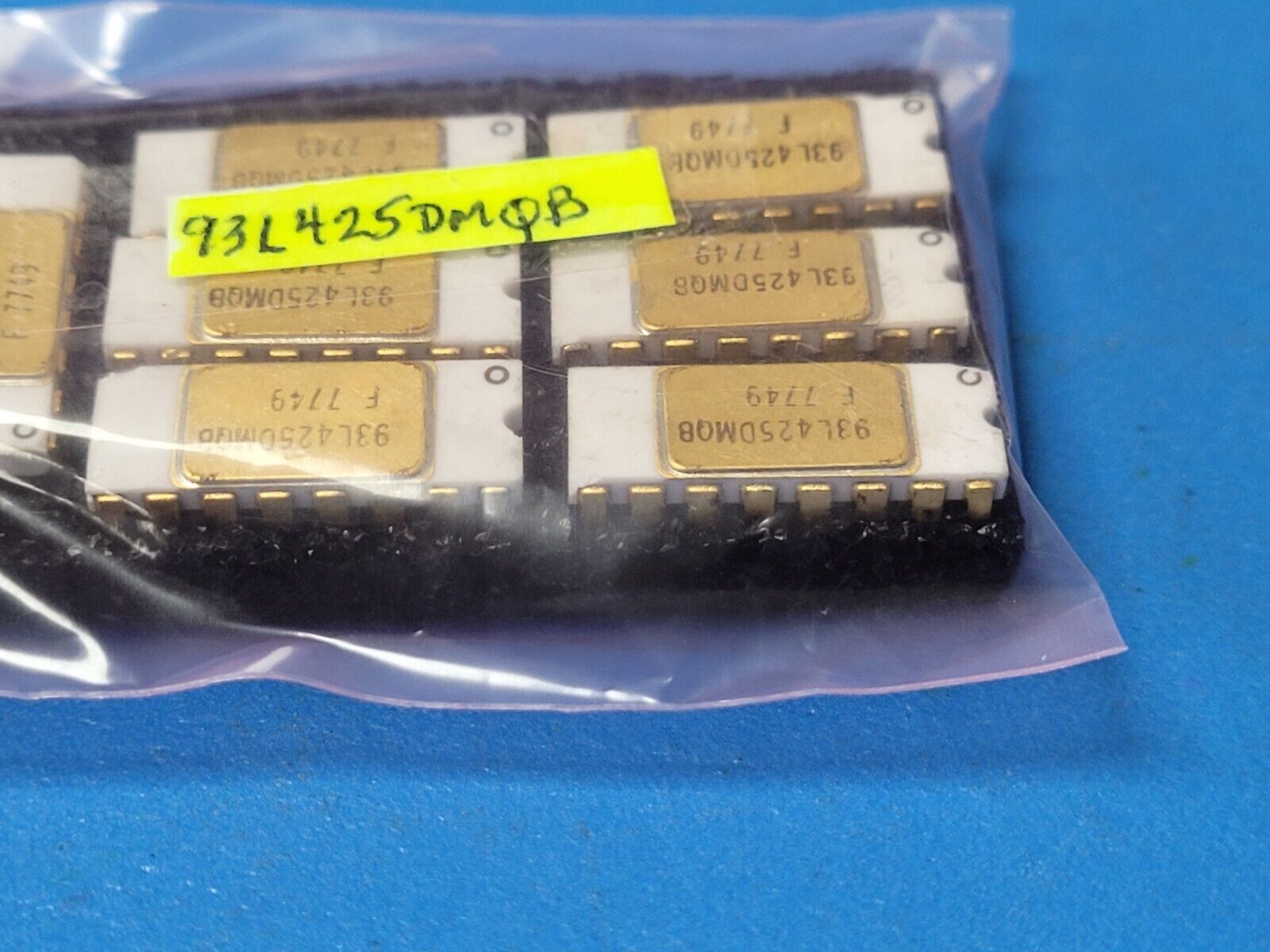

THIS IS FOR (1 PC) OF 93L425DMQB BY FSC
VINTAGE Standard SRAM, 1KX1, 70ns, TTL, GOLD CDIP16 VERY RARE

Part #: 93L425DMQB
Part Category: Memory ICs
Manufacturer: Fairchild Semiconductor
Description: Cache SRAM, 1KX1, 70ns, CMOS, CDIP16

REACH Compliant Yes
Status Discontinued
Sub Category SRAMs
Access Time-Max 70.0  ns
JESD-30 Code R-XDIP-T16
JESD-609 Code e0
Memory Density 1024.0  bit
Memory IC Type STANDARD SRAM
Memory Width 1
Number of Terminals 16
Number of Words 1024.0  words
Number of Words Code 1K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 125.0  Cel
Organization 1KX1
Output Characteristics 3-STATE
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Supply Current-Max 0.075  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Surface Mount NO
Technology TTL
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
