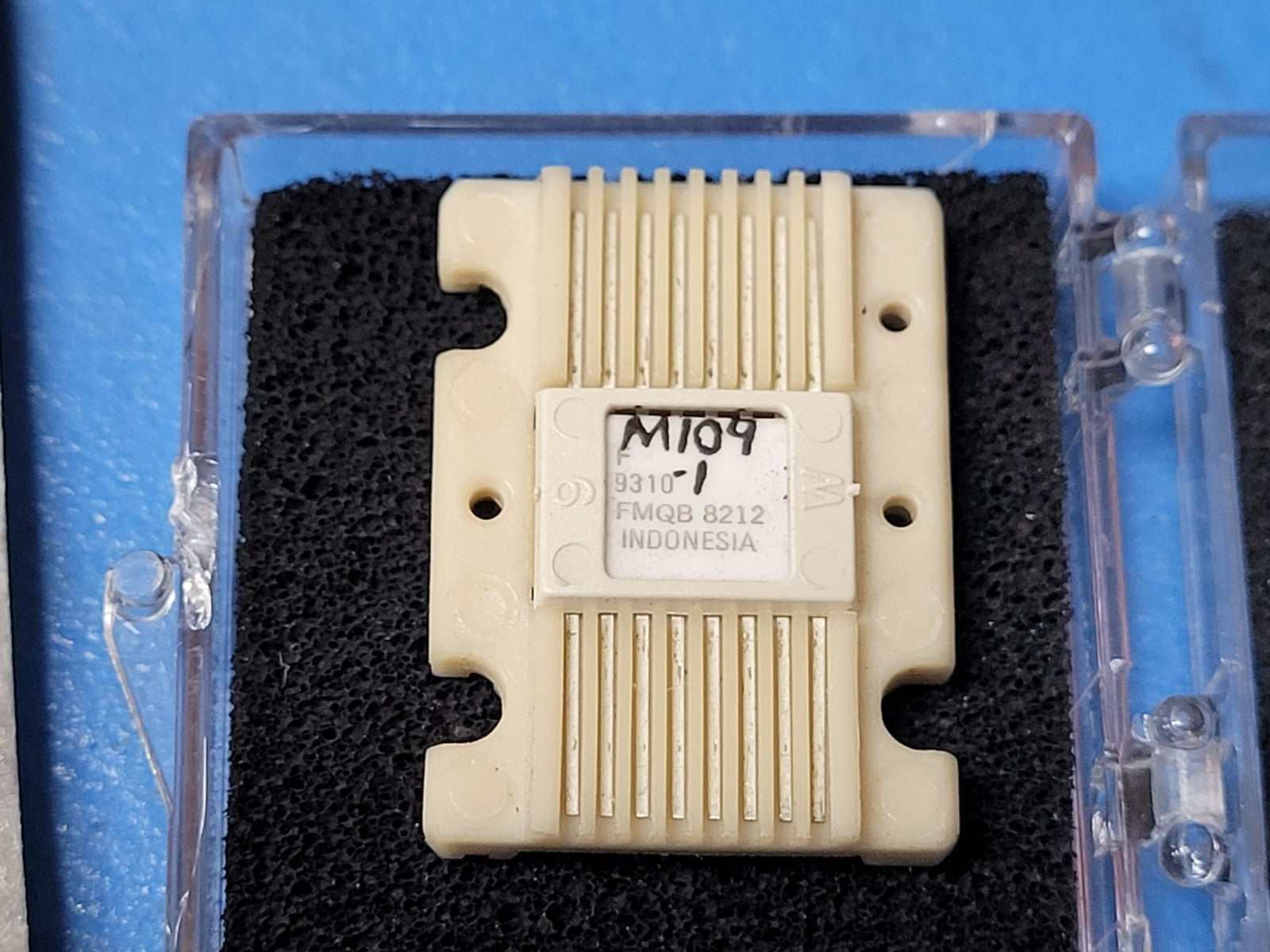

(1) 9310FMQB FSC Decade Counter Synchronous Positive Edge Triggered 4-Bit CDFP16
Tax included.
THIS IS FOR (1 PC) OF 9310FMQB BY FSC
Decade Counter Synchronous Positive Edge Triggered 4-Bit CDFP16
Part #: 9310FMQB
Obsolete
Part Category: Counters
Manufacturer: FAIRCHILD SEMICONDUCTOR CORP
Description: Decade Counter, 93 Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, CDFP16
Status Discontinued
Direction UP
Family 93
JESD-30 Code R-XDFP-F16
J-STD-609 Code e0
Length (mm) 11.8100
Load/Preset Input YES
Logic IC Type DECADE COUNTER
Mode of Operation SYNCHRONOUS
Moisture Sensitivity Level 2A
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Package Body Material CERAMIC
Package Code DFP
Package Equivalence Code FL16,.3
Package Shape RECTANGULAR
Package Style FLATPACK
Propagation Delay (ns) 23.0000
DLA Qualification Not Qualified
Screening Level / Reference Standard 38535Q/M;38534H;883B
Seated Height-Max (mm) 2.1590
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology TTL
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form FLAT
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Width (mm) 6.7310
