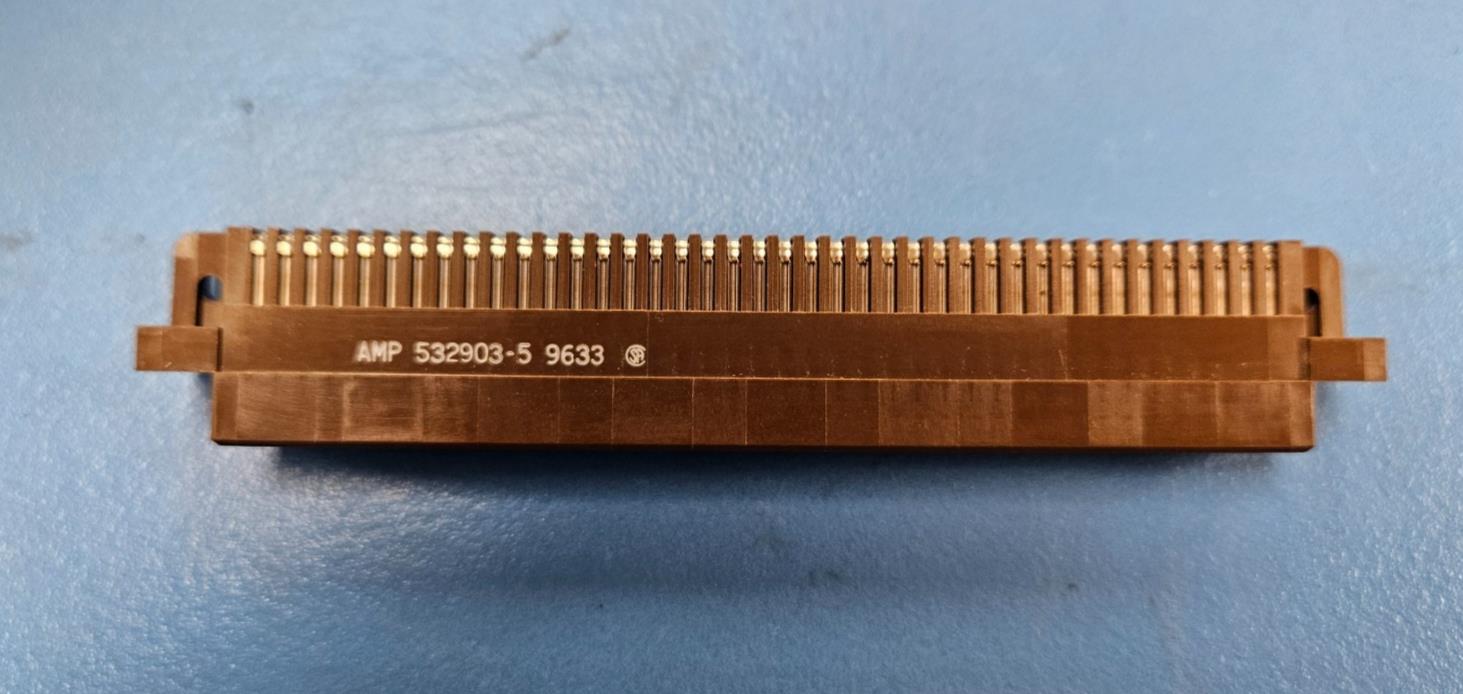

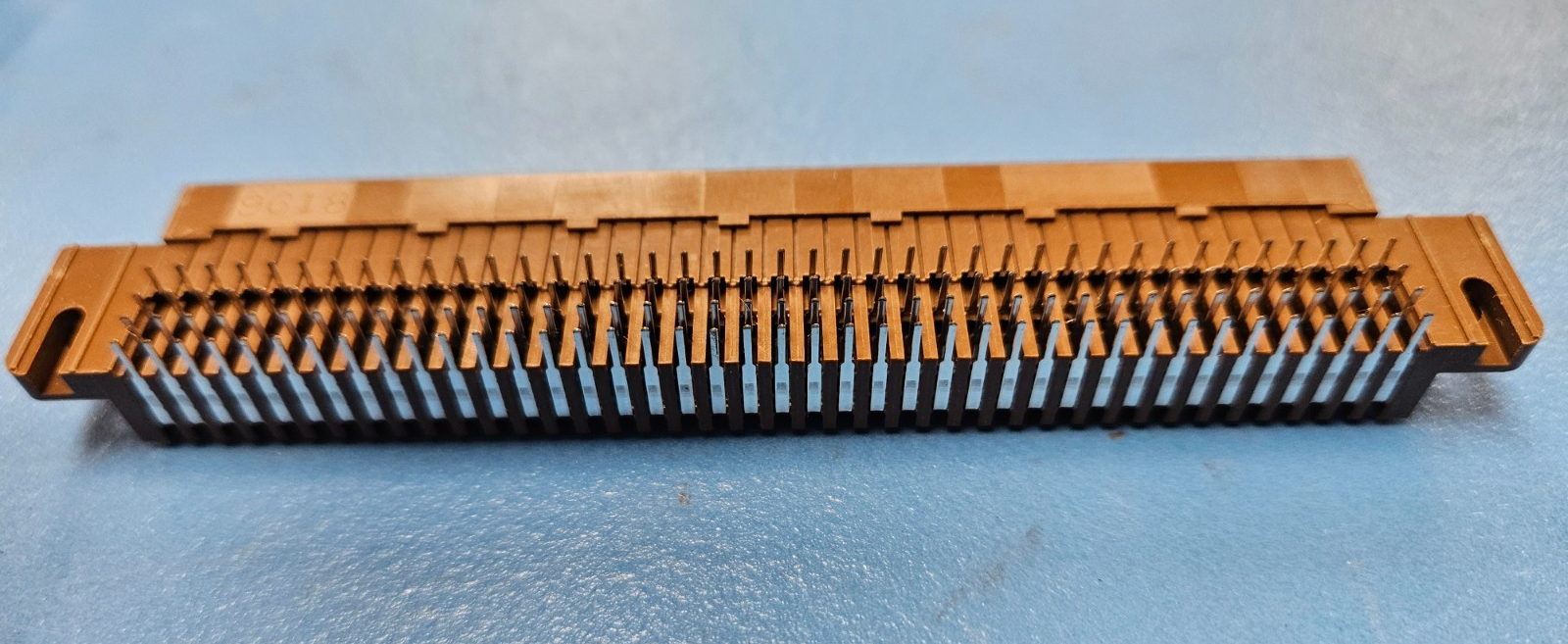

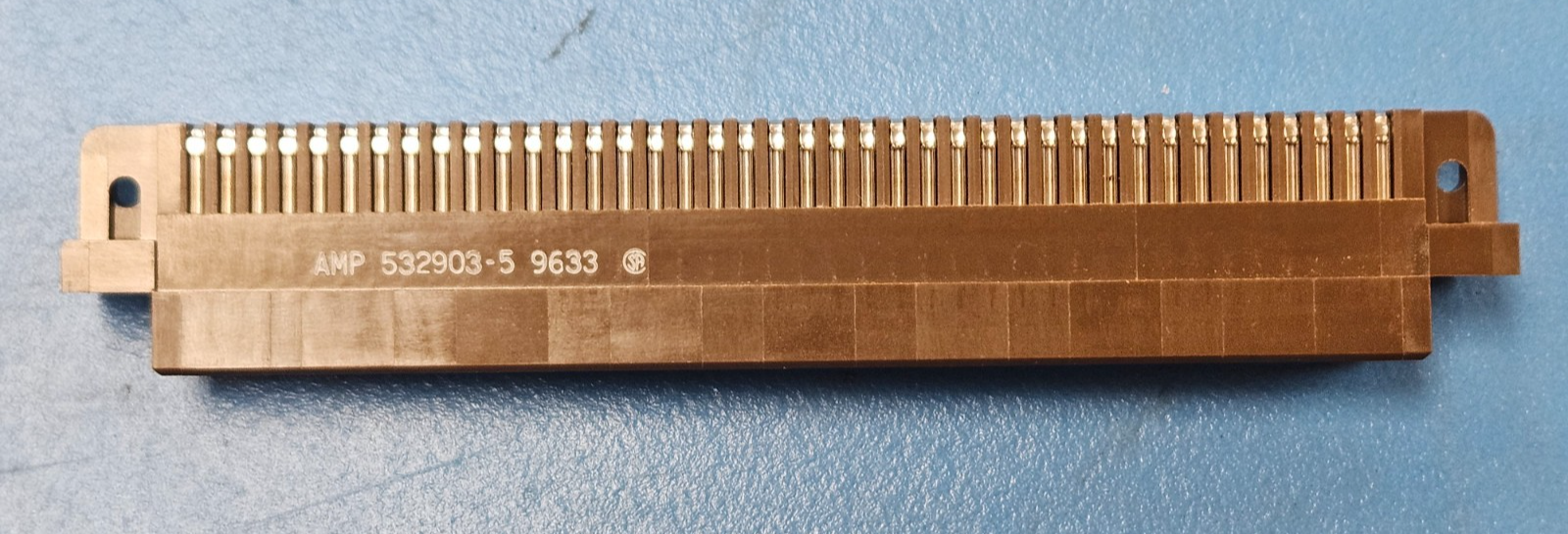

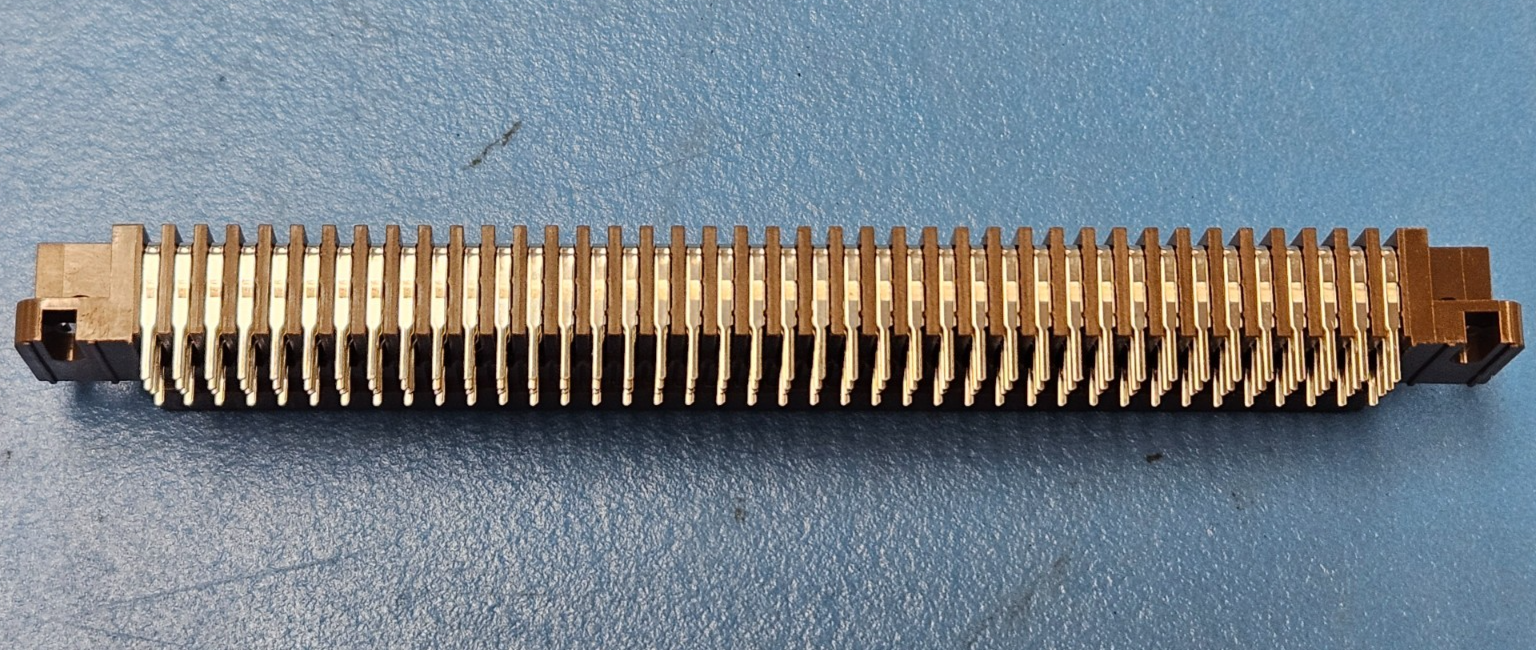

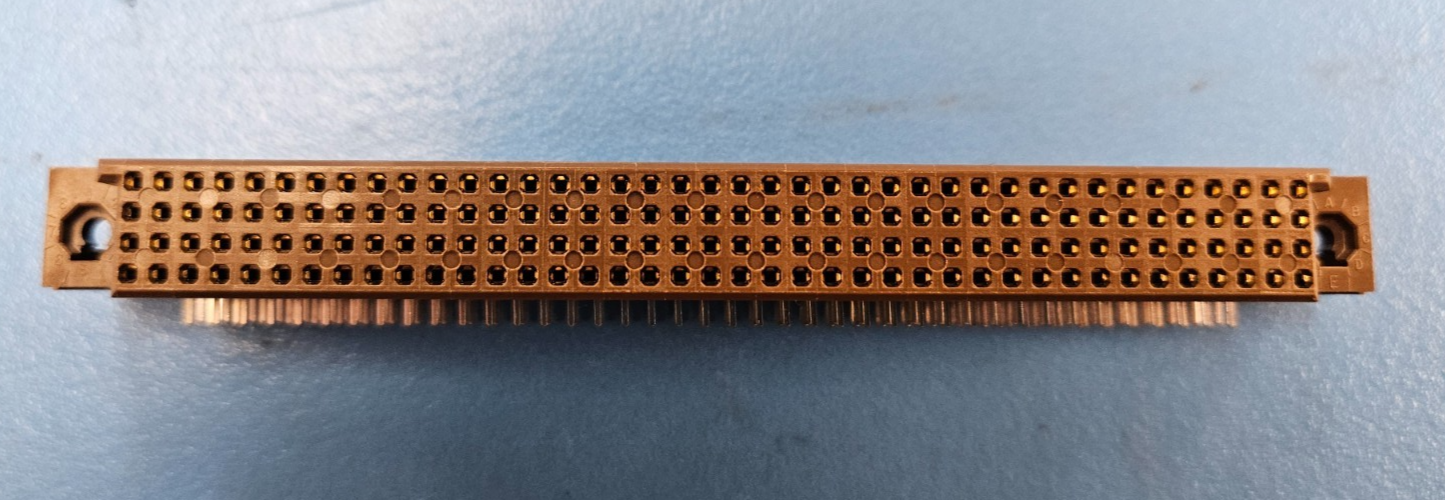

(1) 532903-5 Connector HDI F 160 POS 2.54mm Solder RA Thru-Hole
Tax included.
This listing is for (1PC) of 532903-5 by AMP
Status Discontinued
Additional Feature AMP-HDI
Board Mounting Option HOLE .12- .126
Body Breadth (inch) 0.460000
Body Depth (inch) 0.460000
Body Length (inch) 4.750000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT APPLICABLE
Contact Finish - Termination Tin (Sn)
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 20.000000000000000
DIN Conformance NO
Durability (Cycles) 250
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) .556
Insulation Resistance (ohm) 4000000.000000000000000
Insulator Color BLACK
Insulator Material POLYETHYLENE
J-STD-609 Code e3
MIL Conformance NO
Mains Connector Rating 3A
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 4
Number of Ports 1
Number of Rows Loaded 4
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -65
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2.54
Panel Mount NO
Plating Thickness (inch) 30u
Polarization Key POLARIZED
Rated Current (Signal) (A) 3.0000000000000000
Screening Level / Reference Standard UL
Terminal Length (inch) 0.120000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 160
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .1112
