(1,500) NPI54C220MTRF General Purpose Inductor 22uH 20% 1 Element SMD 2320 ROHS

$599.95
Unit price per

Tax included.

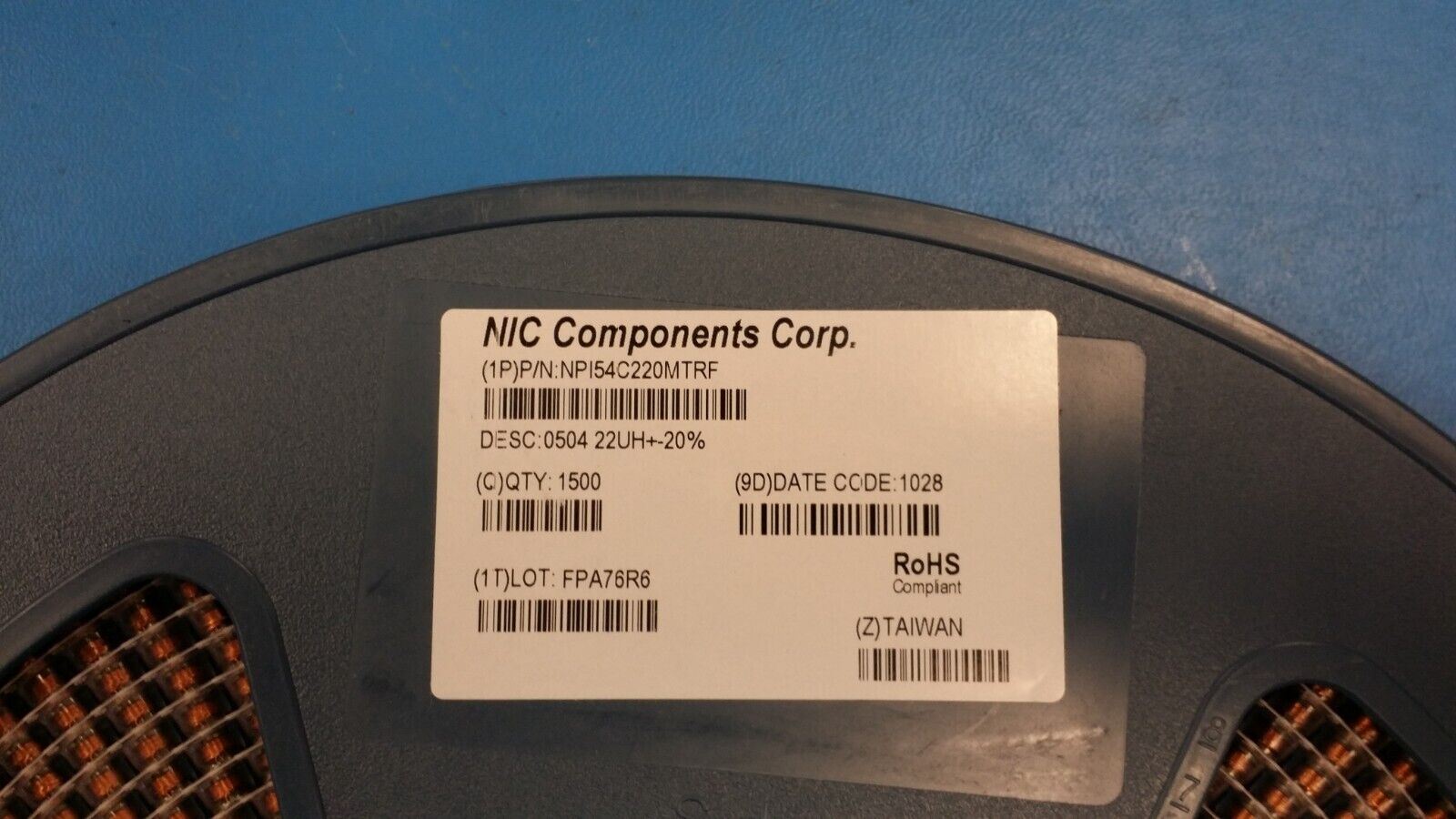

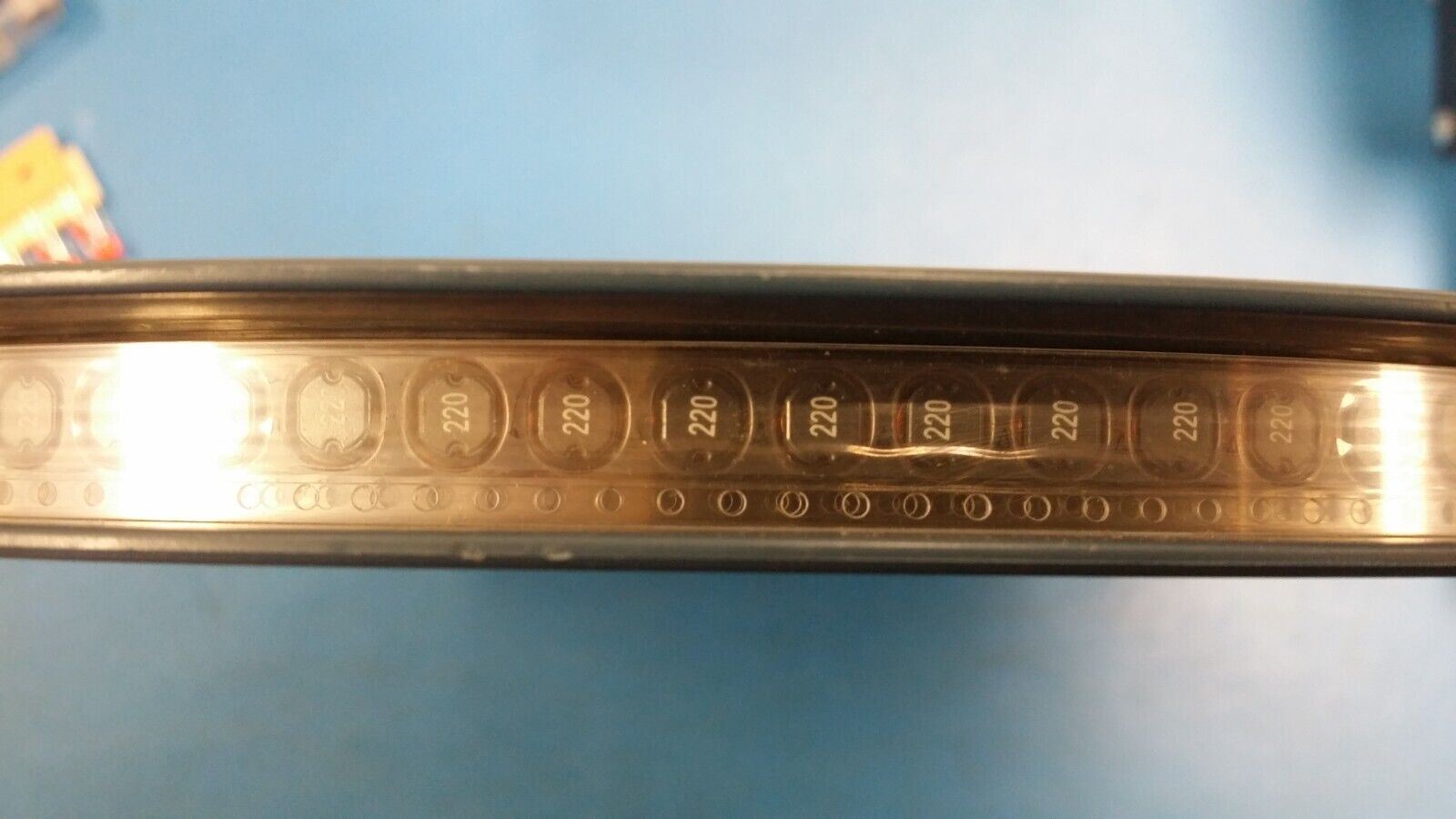

THIS IS FOR (1500 PCS) OF NPI54C220MTRF BY NIC

General Purpose Inductor 22uH 20% 1 Element SMD 2320 ROHS

Part #: NPI54C220MTRF

Part Category: Inductors

Manufacturer: NIC Components Corp.

Description: General Purpose Inductor, 22uH, 20%, 1 Element, SMD, 2320

Mfr Package Description CHIP

REACH Compliant Yes

EU RoHS Compliant Yes

China RoHS Compliant Yes

Status Active

Inductor Type GENERAL PURPOSE INDUCTOR

Case/Size Code 2320

Construction Rectangular

DC Resistance 0.18 ohm

Inductance-Nom (L) 22.0 µH

Inductor Application POWER INDUCTOR

JESD-609 Code e3

Number of Functions 1

Number of Terminals 2

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 125.0 Cel

Package Height 4.5 mm

Package Length 5.8 mm

Package Width 5.2 mm

Packing Method TR, 13 Inch

Rated Current-Max 1.3 A

Shape/Size Description RECTANGULAR PACKAGE

Shielded NO

Surface Mount YES

Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier

Terminal Placement DUAL ENDED

Terminal Shape ONE SURFACE

Test Frequency 0.001 MHz

Tolerance 20.0 %
