(1) 311SX2-T Micro Switch Snap Action Switches 5A
Tax included.

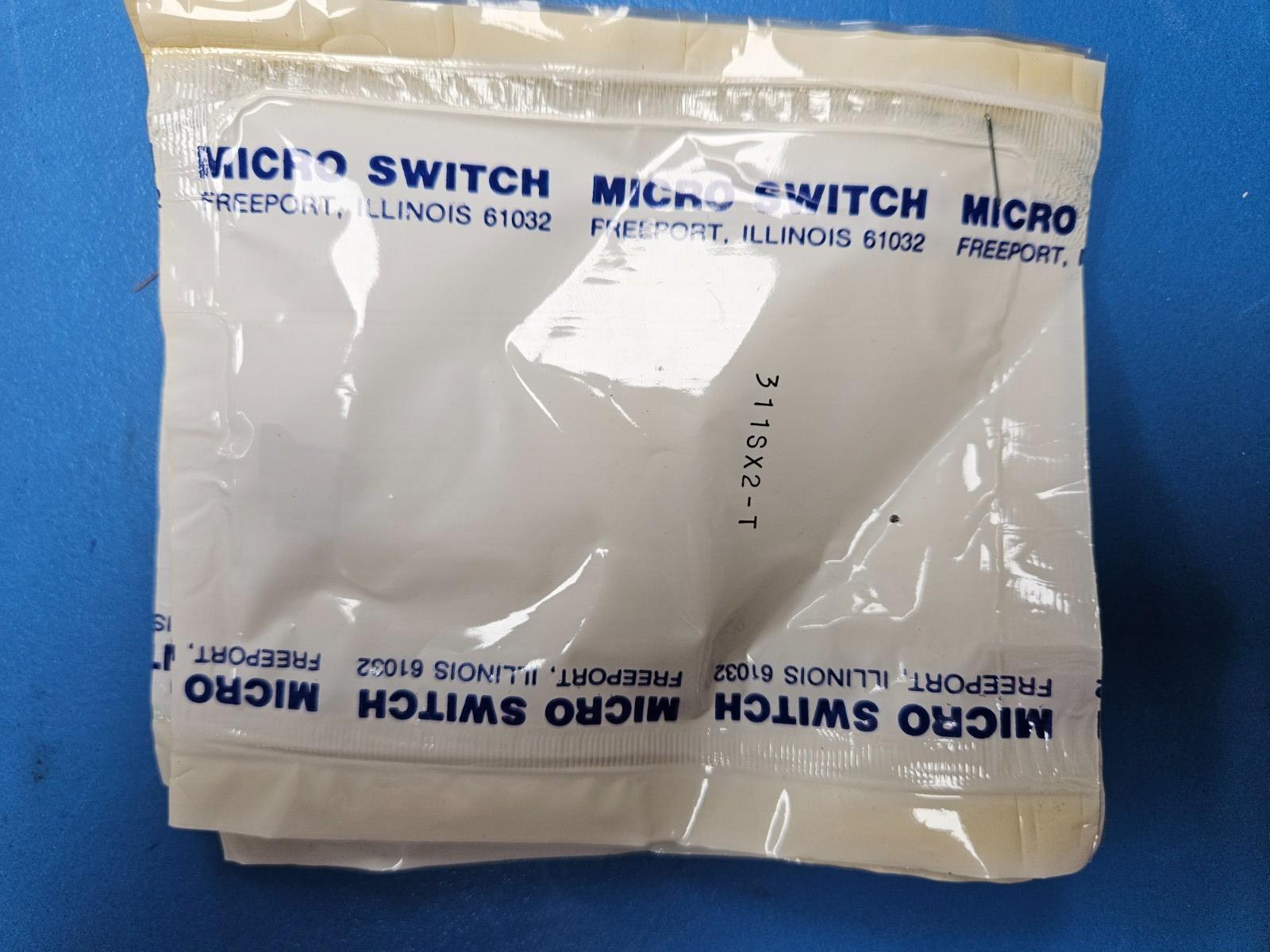

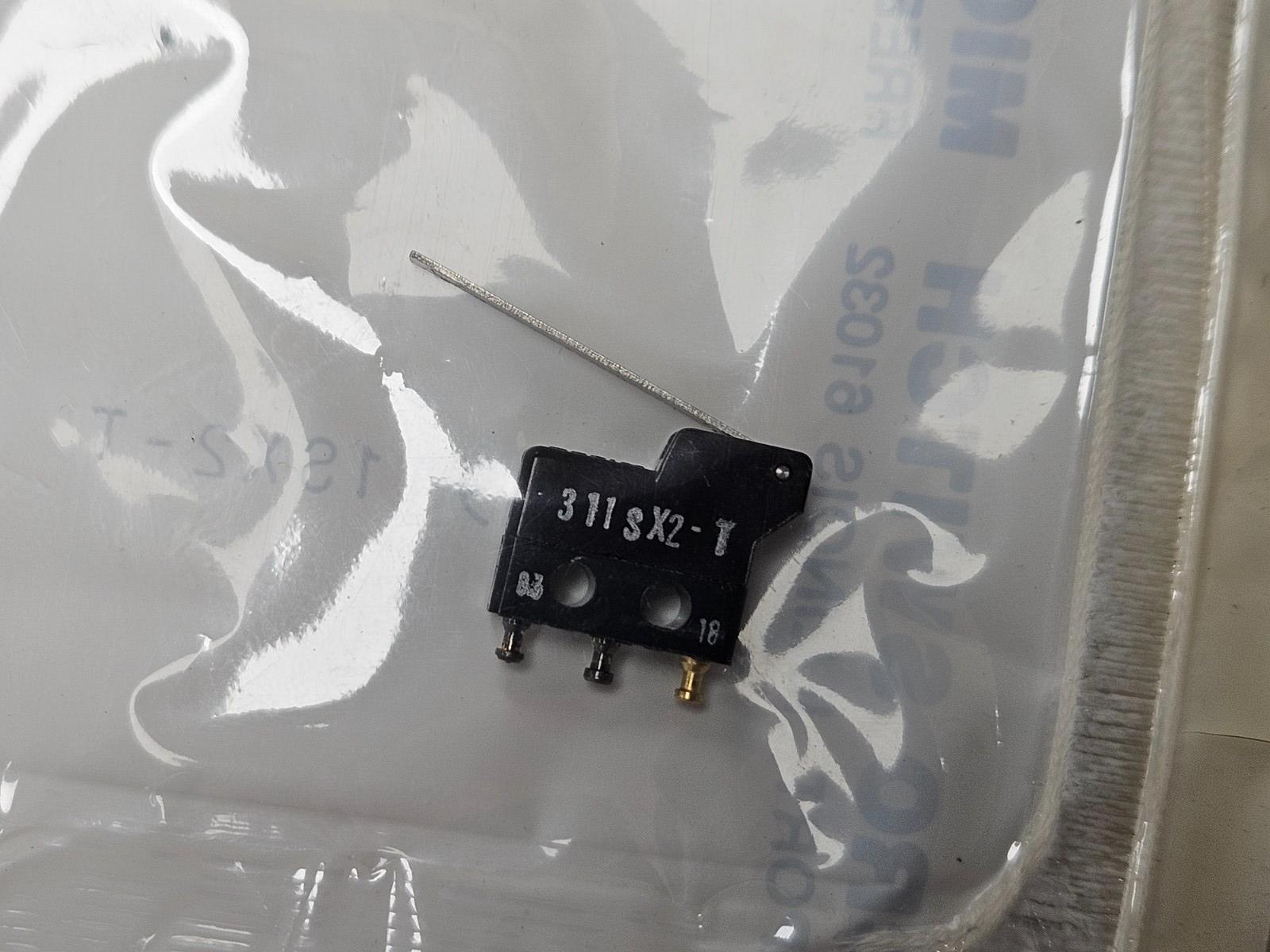

This listing is for (1) 311SX2-T by Microswitch
Status Active
Switch Type SNAP ACTING/LIMIT SWITCH
Body Breadth 5.08 mm
Body Height 8.89 mm
Body Length or Diameter 12.7 mm
Contact AC Max Rating R Load 5A@115VAC
Contact Current(AC)-Max 5.0 A
Contact Current(DC)-Max 5.0 A
Contact DC Max Rating R Load 5A@28VDC
Contact Voltage(AC)-Max 115.0 V
Contact Voltage(DC)-Max 28.0 V
Manufacturer Series 311SX2-T
Mounting Feature PANEL MOUNT
Operating Force-Max 0.29 N
Operating Temperature-Max 121.0 Cel
Pre-Travel-Max 2.92 mm
Switch Action MOMENTARY
Switch Function SPDT
Termination Type WIRE
