(1) 3101197 PHOENIX Terminal Block Connector 2 Position Disconnect Blue 12-28AWG
Tax included.

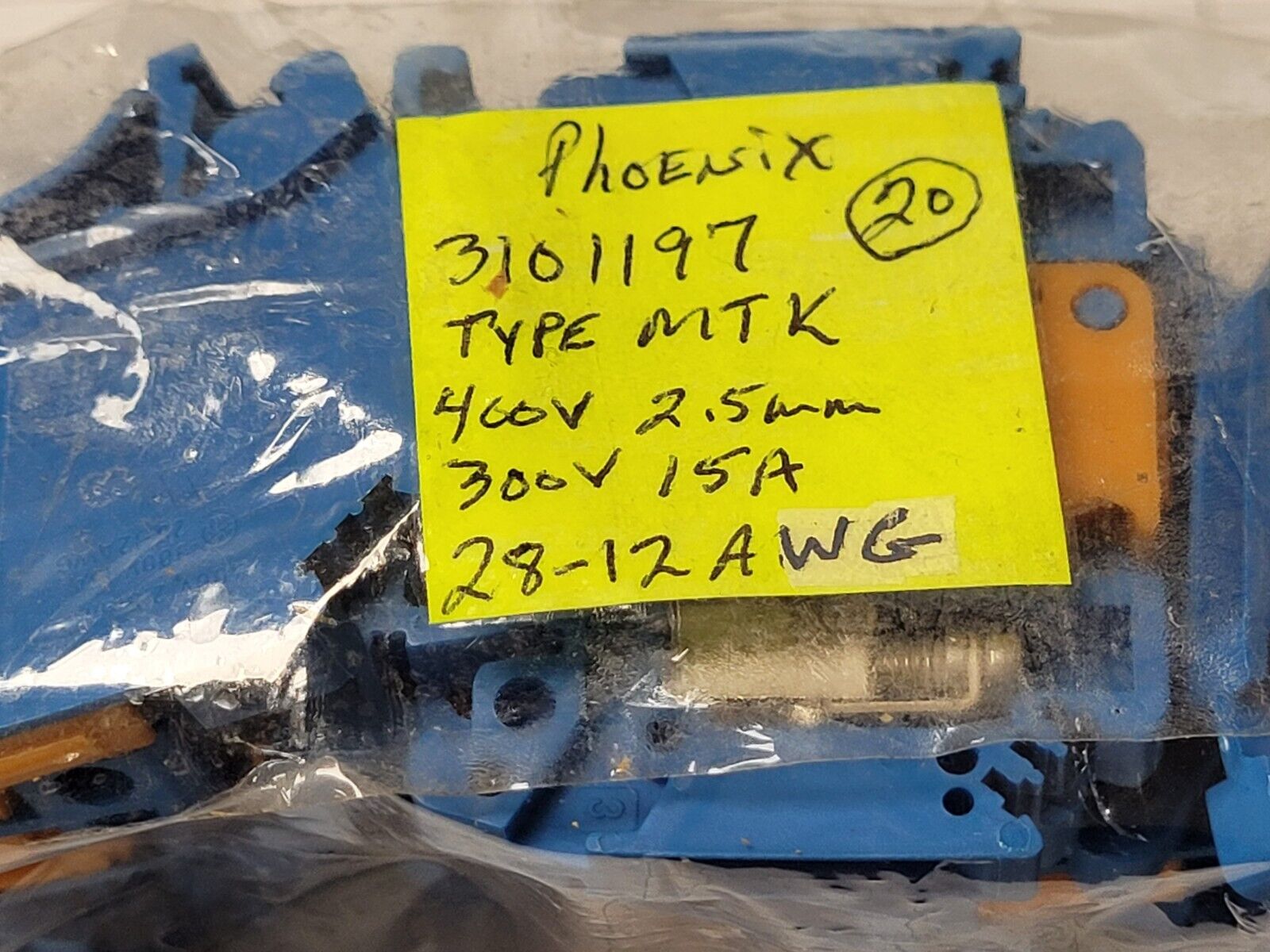

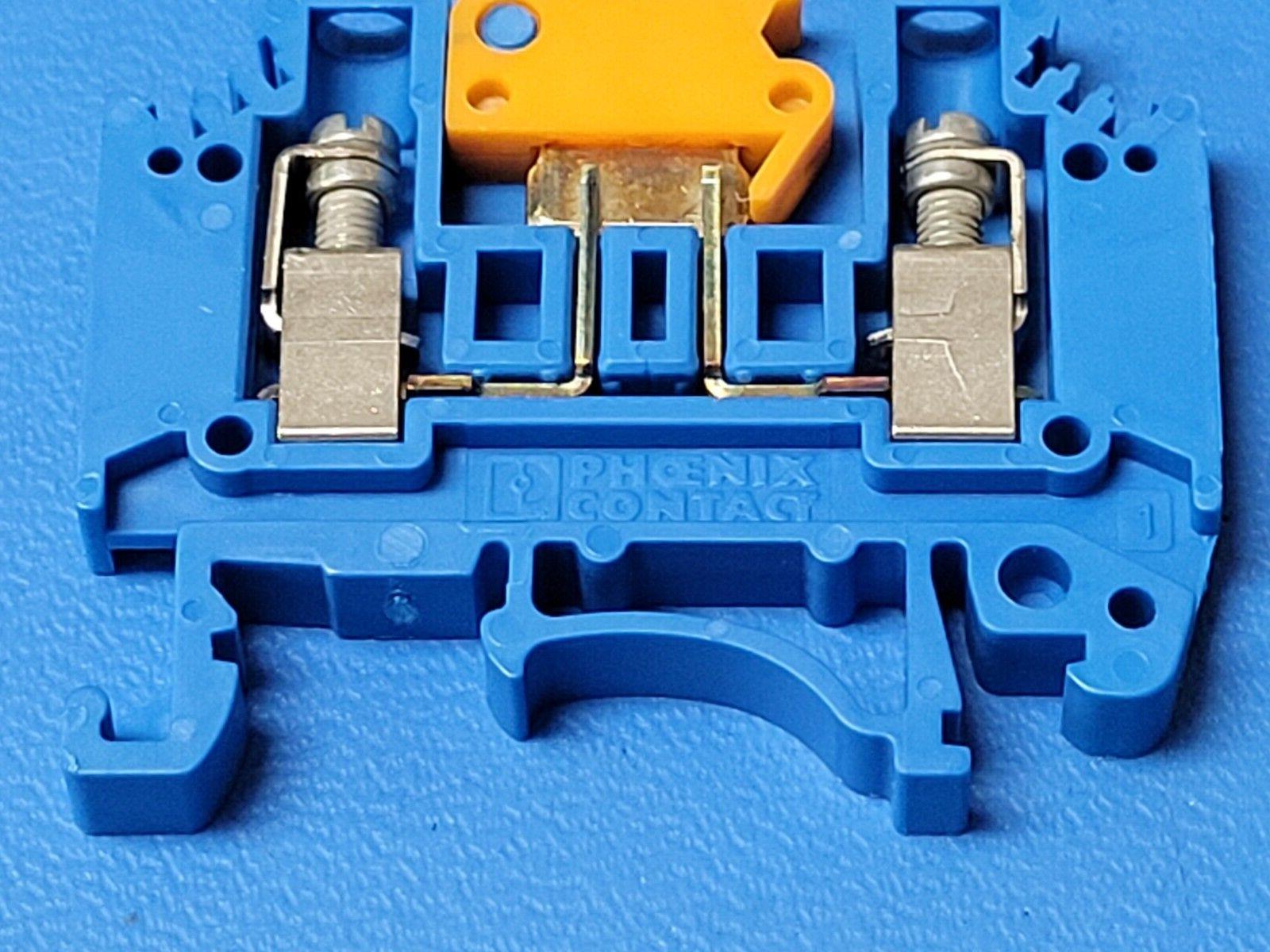

THIS IS FOR (1 PC) OF 3101197 BY PHOENIX CONTACT
Terminal Block Connector 2 Position Disconnect Blue 12-28AWG
Manufacturer: Phoenix Contact
Product Category: DIN Rail Terminal Blocks
RoHS: YES
Type: Wire to Wire
Number of Positions: 2 Position
Current Rating: 16 A
Voltage Rating: 400 V
Wire Gauge Min: 24 AWG
Wire Gauge Max: 12 AWG
Connection Method: Screw
Color: Blue
Flammability Rating: UL 94 V-0
Mounting Style: DIN Rail
Length: 46 mm
Width: 5.2 mm
Series: MTK
Brand: Phoenix Contact
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
Product Type: DIN Rail Terminal Blocks
50
Subcategory: Terminal Blocks
Tradename: CLIPLINE
Wire Gauge Range: 24 AWG to 12 AWG
Part # Aliases: MTK_BU MTKBU
Unit Weight: 0.318877 oz
