(1) 2N467 Small Signal Bipolar Transistor 0.05A 15V 1-Element PNP Germanium TO-5
Tax included.

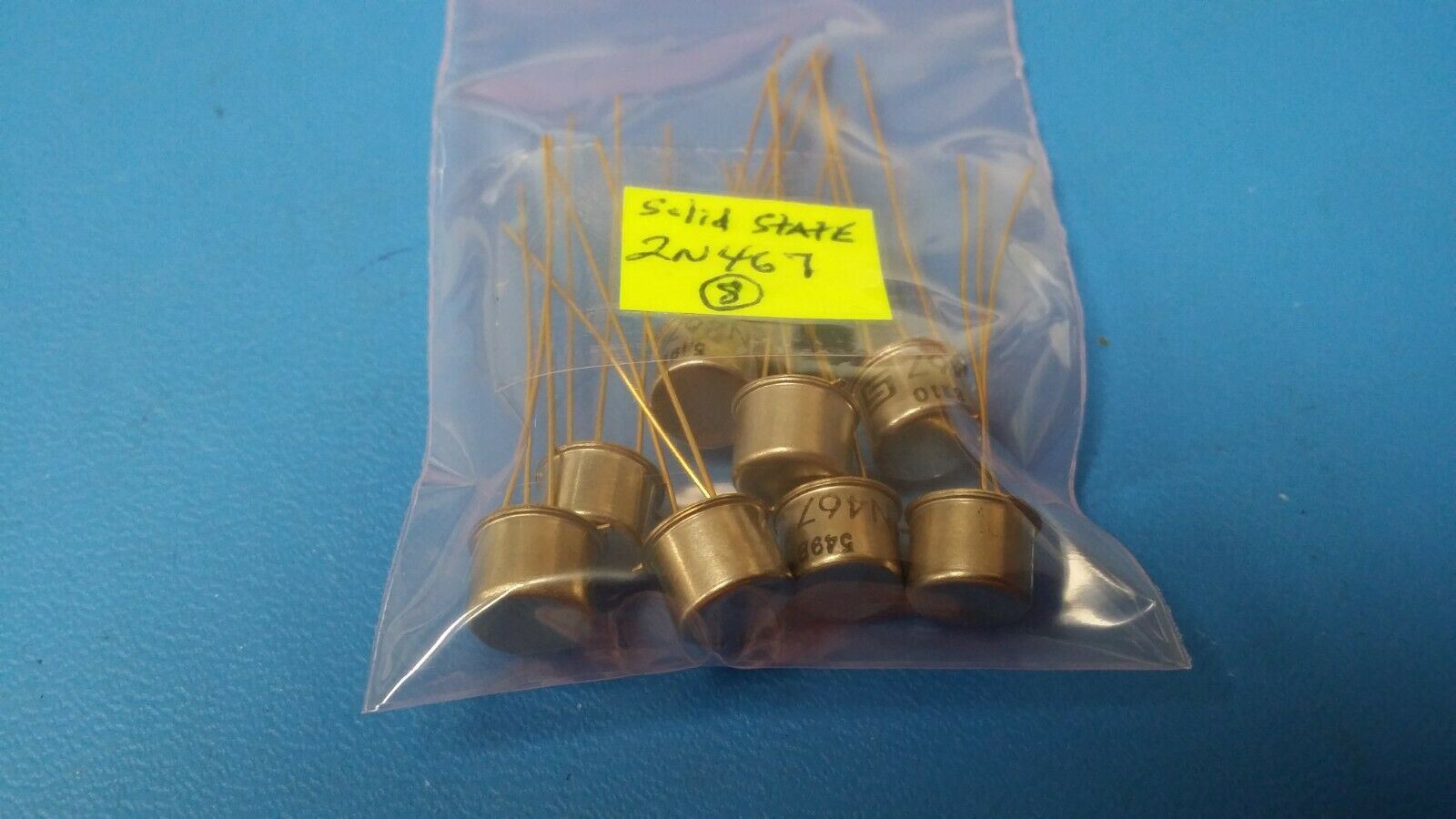

THIS IS FOR (1 PC) OF 2N467 BY SOLID STATE
Small Signal Bipolar Transistor 0.05A 15V 1-Element PNP Germanium TO-5
Mfr Package Description TO-5, 3 PIN
Status Discontinued
Case Connection ISOLATED
Collector Current-Max (IC) 0.05 A
Collector-emitter Voltage-Max 15.0 V
Configuration SINGLE
DC Current Gain-Min (hFE) 110.0
JEDEC-95 Code TO-5
JESD-30 Code O-MBCY-W3
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 85.0 Cel
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type PNP
Power Dissipation-Max (Abs) 0.15 W
Qualification Status Not Qualified
Reference Standard MIL-19500/49C
Sub Category Other Transistors
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form WIRE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application AMPLIFIER
Transistor Element Material GERMANIUM
Transition Frequency-Nom (fT) 1.2 MHz
