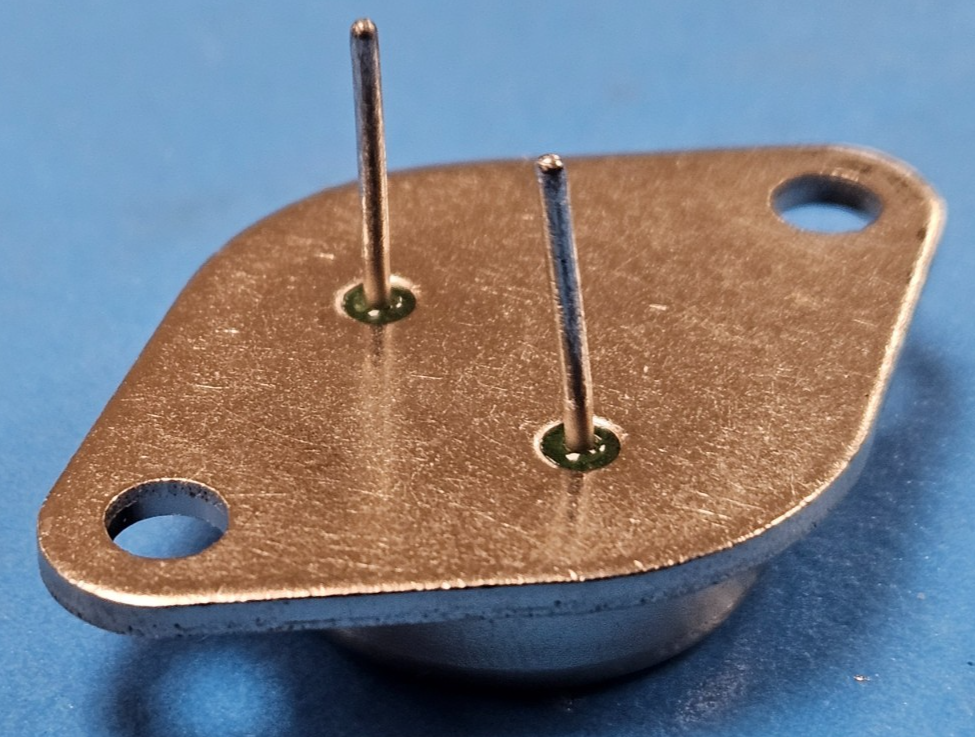

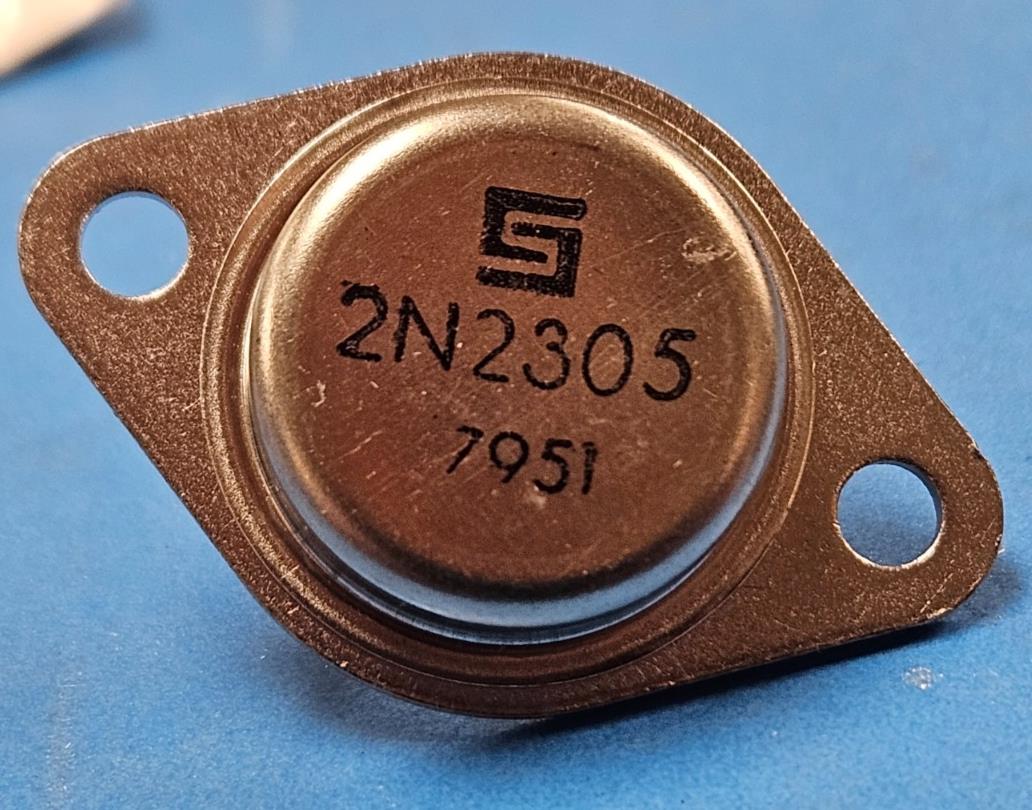

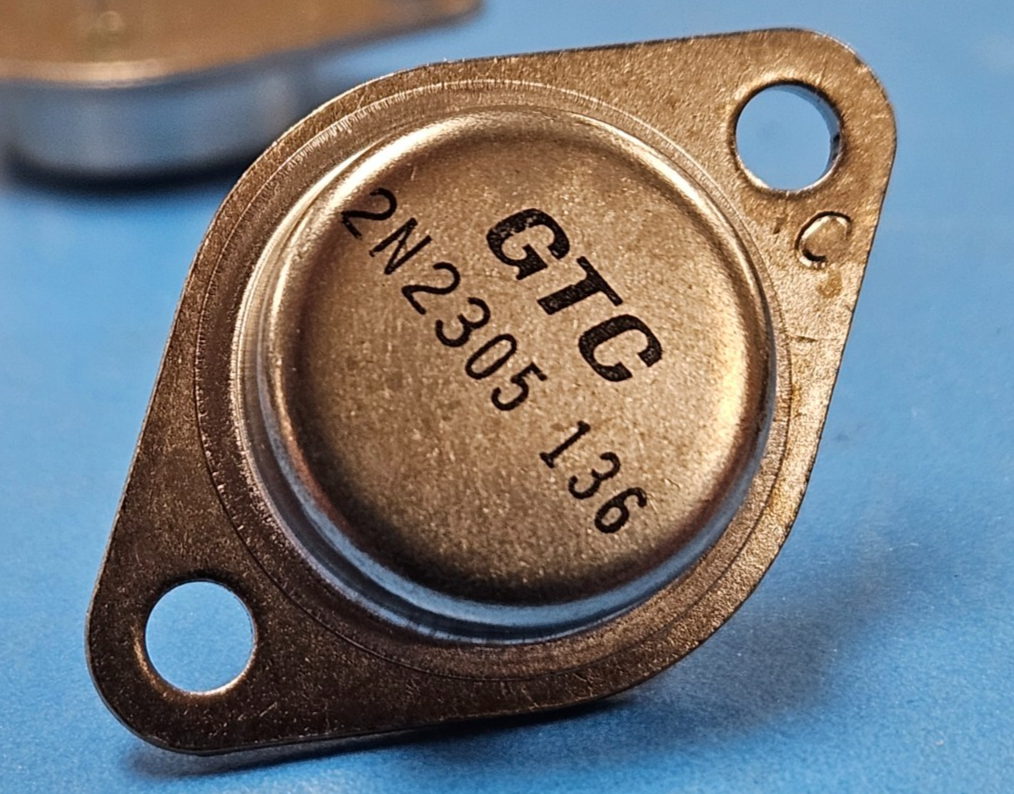

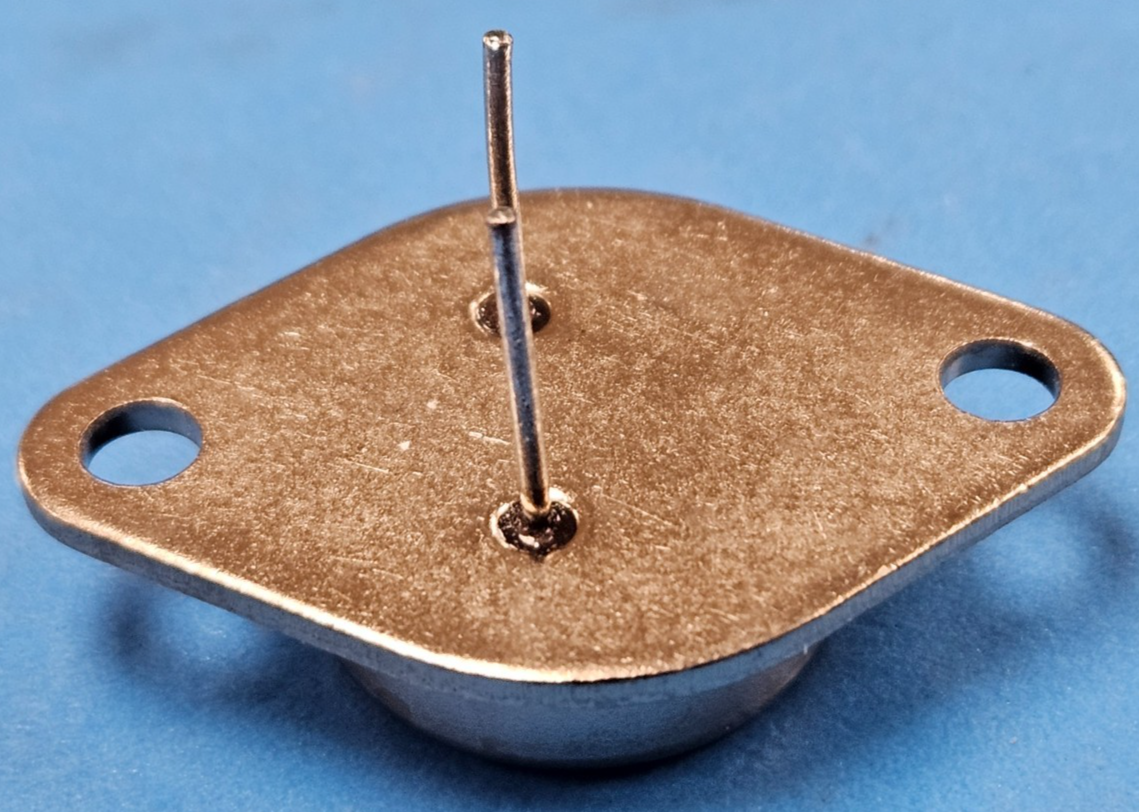

(1) 2N2305 Power Bipolar Transistor, 6A, 40V , 1-Element, NPN, Silicon, TO-3
(1) 2N2305 Power Bipolar Transistor, 6A, 40V , 1-Element, NPN, Silicon, TO-3
(1) 2N2305 Power Bipolar Transistor, 6A, 40V , 1-Element, NPN, Silicon, TO-3
(1) 2N2305 Power Bipolar Transistor, 6A, 40V , 1-Element, NPN, Silicon, TO-3

(1) 2N2305 Power Bipolar Transistor, 6A, 40V , 1-Element, NPN, Silicon, TO-3

Tax included.
Only 3 left!
This listing is for (1) 2N2305

Status Discontinued
Collector Current-Max (IC) (A) 6.0000000000000000
Collector-emitter Voltage-Max (V) 40.0000000000000000
Configuration SINGLE
DC Current Gain-Min (hFE) 15.0000000000000000
JEDEC-95 Code TO-3
JESD-30 Code O-MBFM-P2
J-STD-609 Code e0
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max (Cel) 200
Package Body Material METAL
Package Shape ROUND
Package Style FLANGE MOUNT
Polarity/Channel Type NPN
Power Dissipation-Max (W) 75.000000000000000
DLA Qualification Not Qualified
Surface Mount NO
Terminal Finish TIN LEAD
Terminal Form PIN/PEG
Terminal Position BOTTOM
