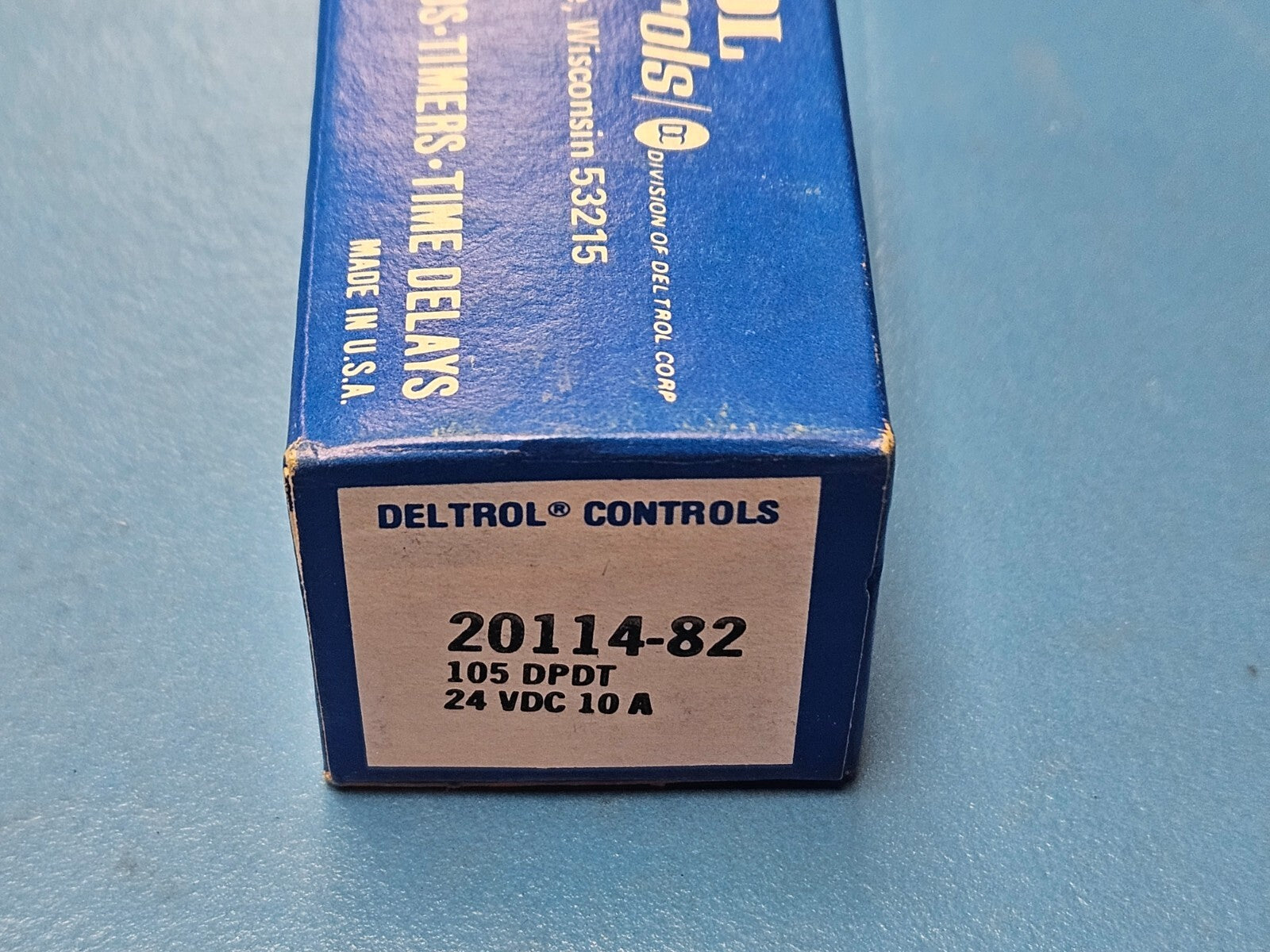

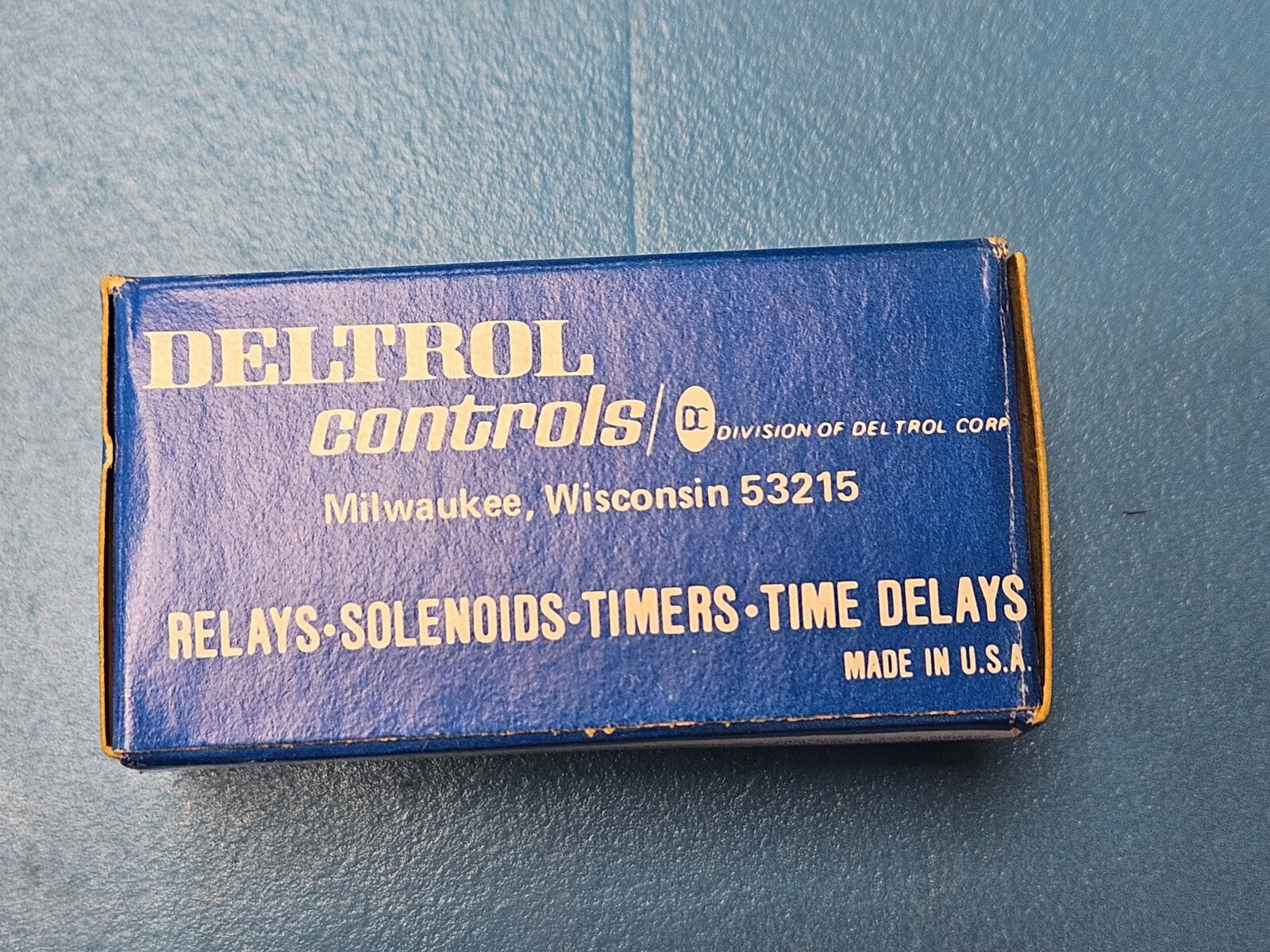

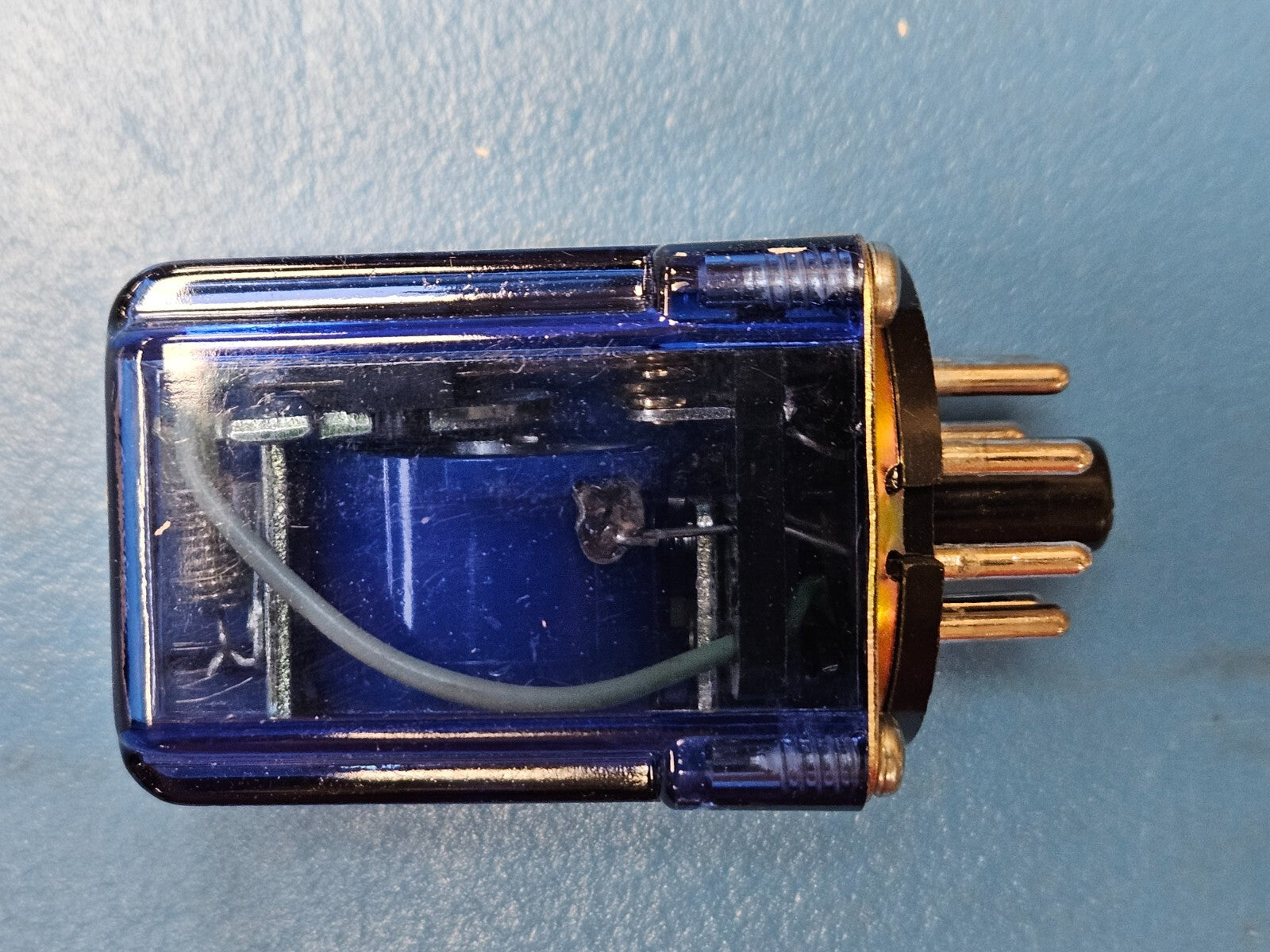

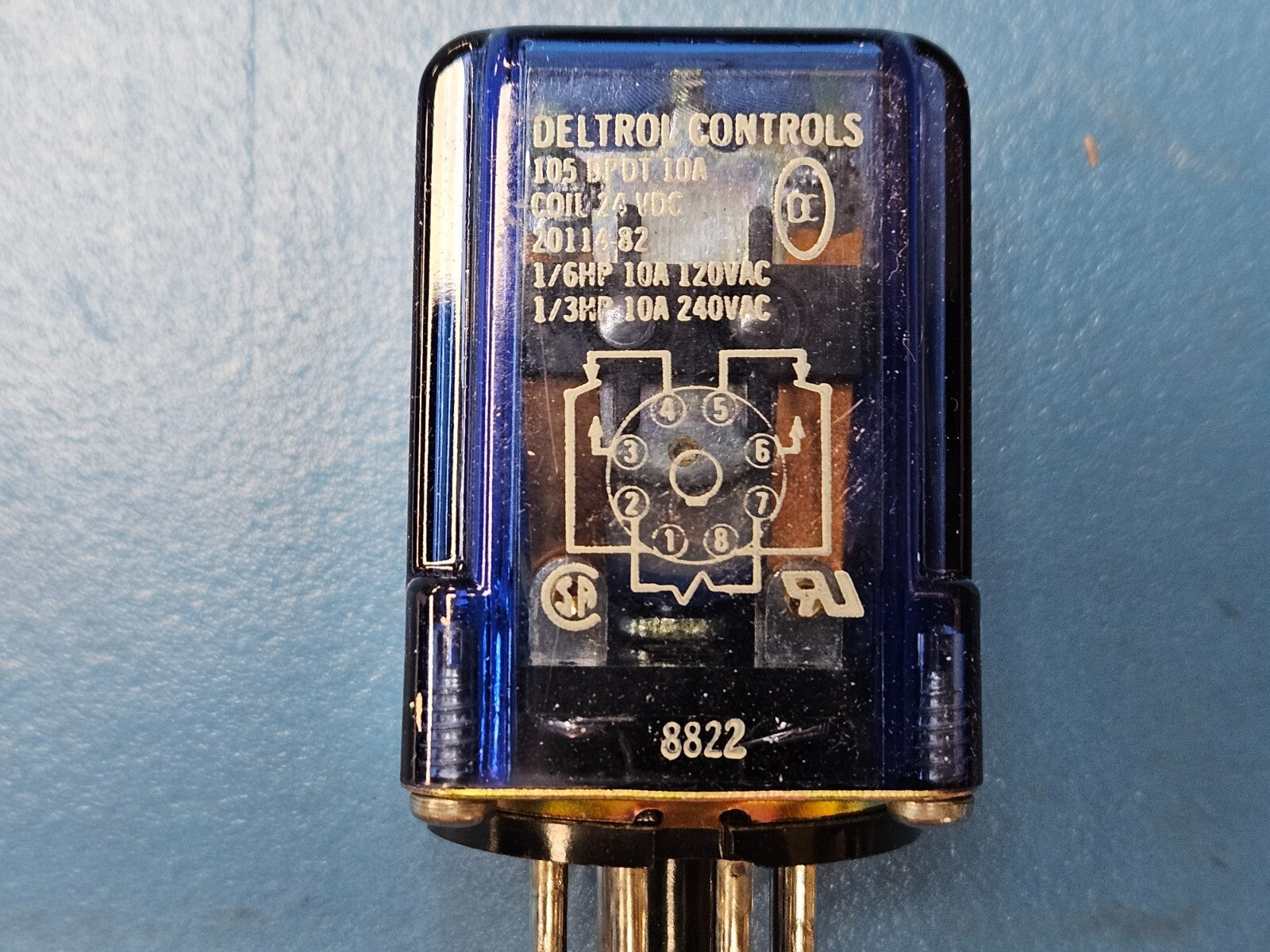

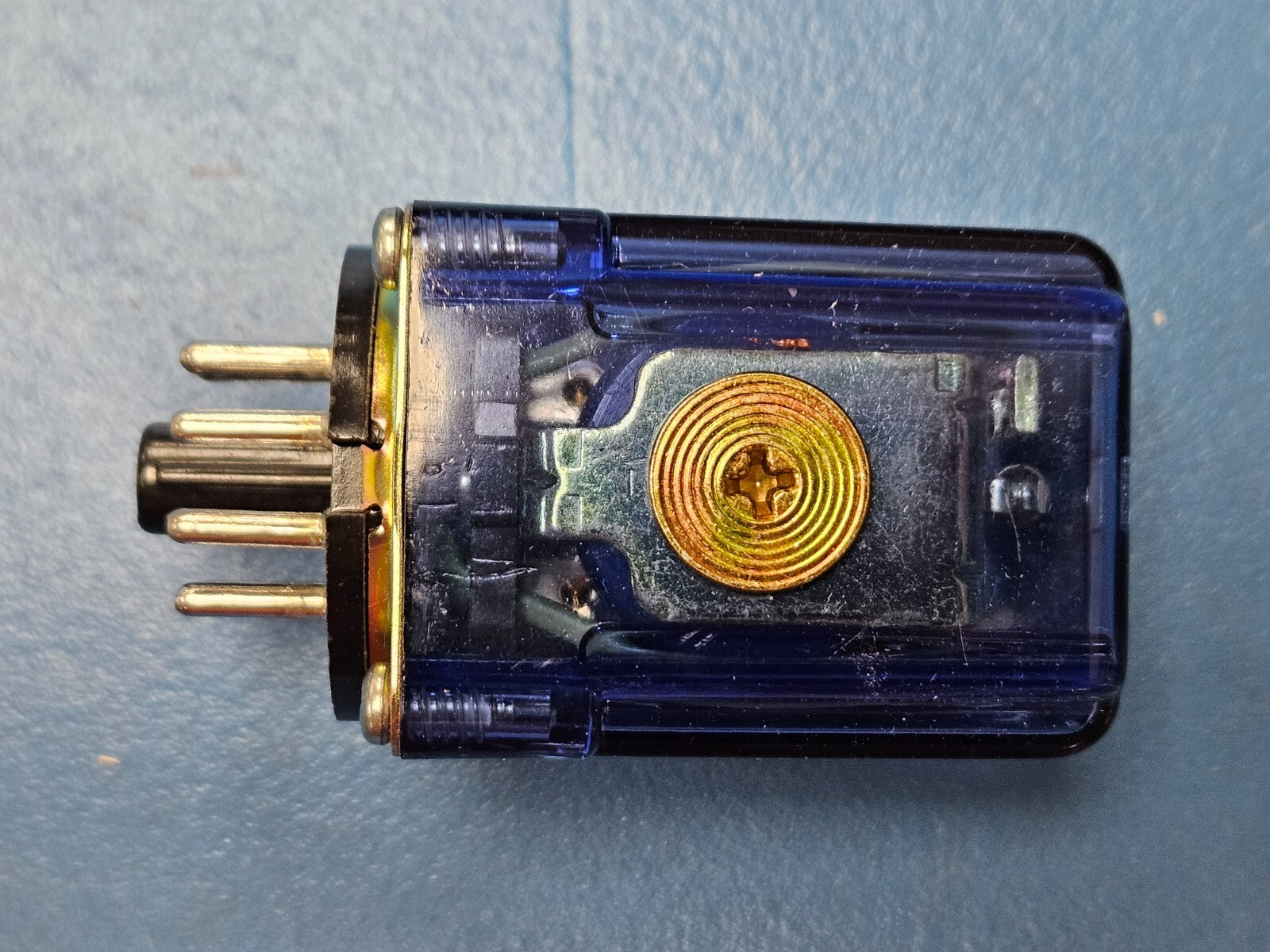

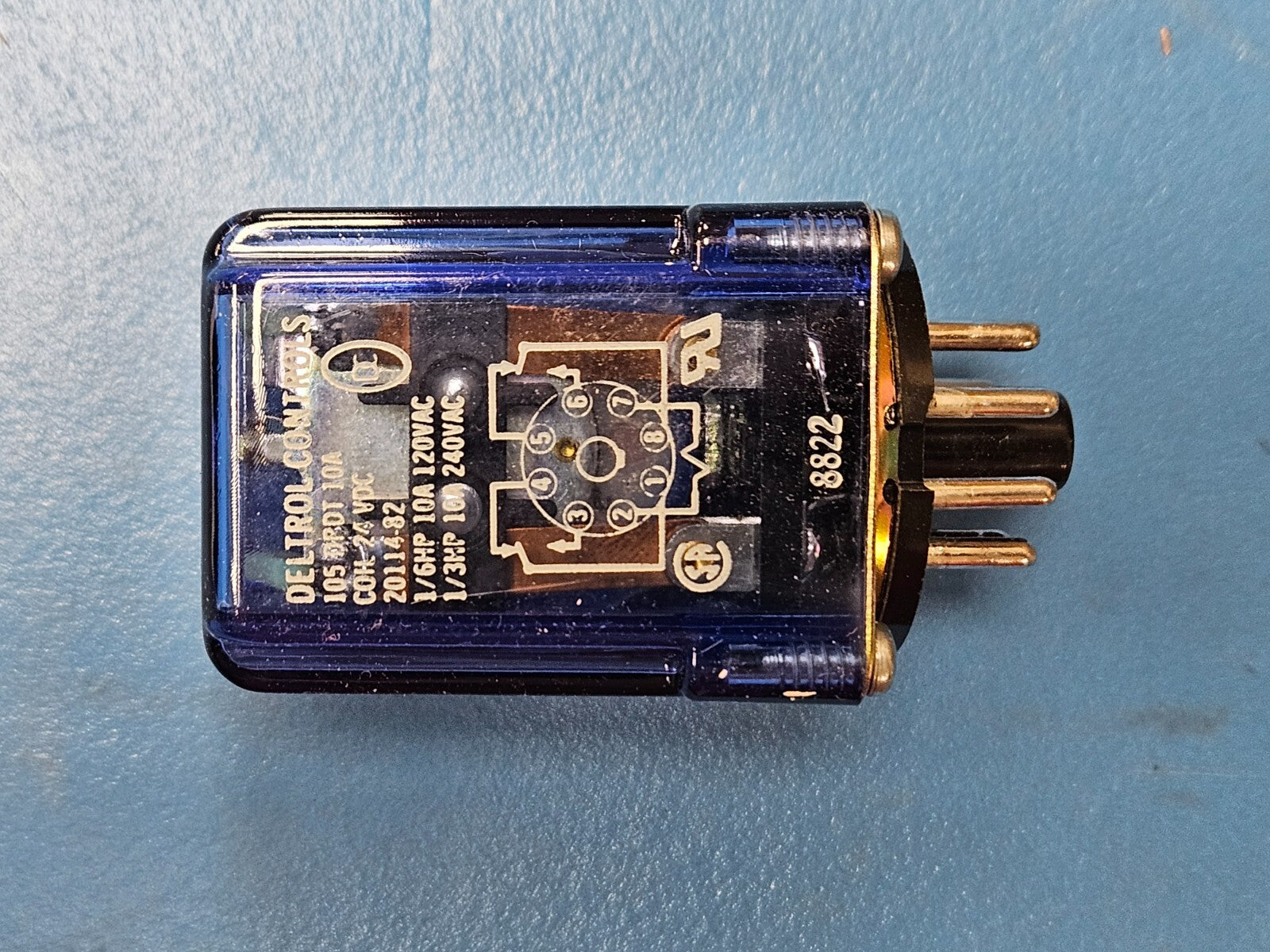

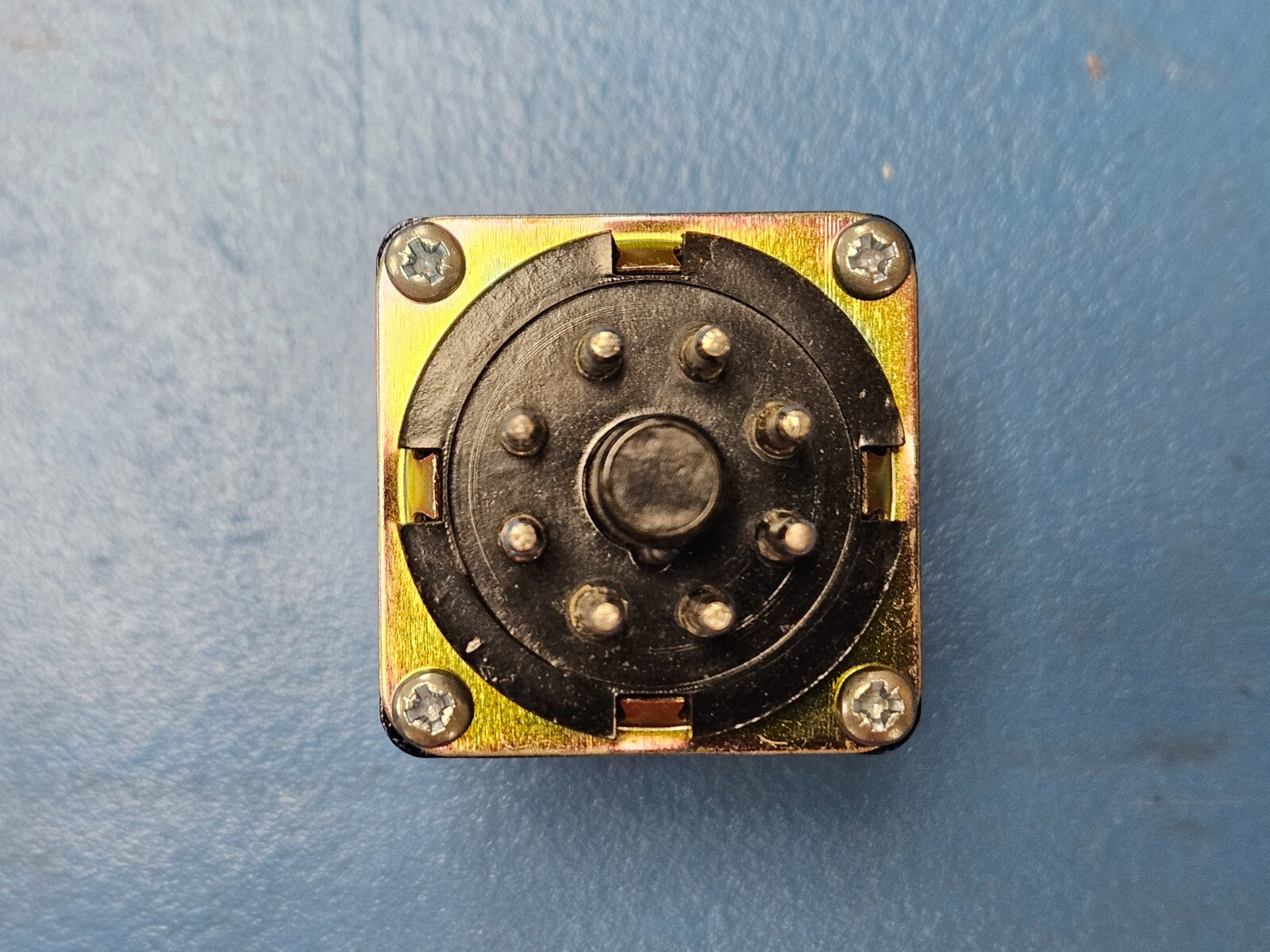

(1) 20114-82 Deltrol Controls Relay 24VDC, 10A Octal Plug 8 Contact
Tax included.
This listing is for (1) 20114-82 by Deltrol Controls
Status Contact Mfr
Body Breadth 35.05 mm
Body Height 50.8 mm
Body Length or Diameter 35.05 mm
Coil/Input Supply Type DC
Coil Operate Voltage(DC) 18.0 V
Coil Resistance 480.0 ohm
Coil Voltage-Nom 24.0 V
Contact AC Max Power Rating M Load 0.5HP@277VAC
Contact AC Max Rating R Load 10A@277VAC
Contact Current(AC)-Max 10.0 A
Contact Current(DC)-Max 10.0 A
Contact DC Max Rating R Load 10A@28VDC
Contact/Output Supply Type AC/DC
Contact Voltage(AC)-Max 277.0 V
Contact Voltage(DC)-Max 28.0 V
Dielectric Strength Between Coil and Contacts 1500.0 Vrms
Dielectric Strength Between Open Contacts 800.0 Vrms
Electrical Life 1.0E7 Cycle(s)
End Contact Material Silver Cadmium Oxide
End Contact Plating GOLD
Input Switching Control Type Random
Insulation Resistance 1.0E8 ohm
Number of Terminals 8
Operate Time 15.0 ms
Operating Temperature-Min -45.0 Cel
Operating Temperature-Max 70.0 Cel
PCB Hole Count 8.0
Physical Dimension 35.05mm x 35.05mm x 50.8mm
Reference Standard CSA; UL
Relay Form 2 FORM C
Relay Function DPDT
Release Time 15.0 ms
Terminal Length 0.001 Meter
Termination Type SOLDER
Weight 85.0 g
