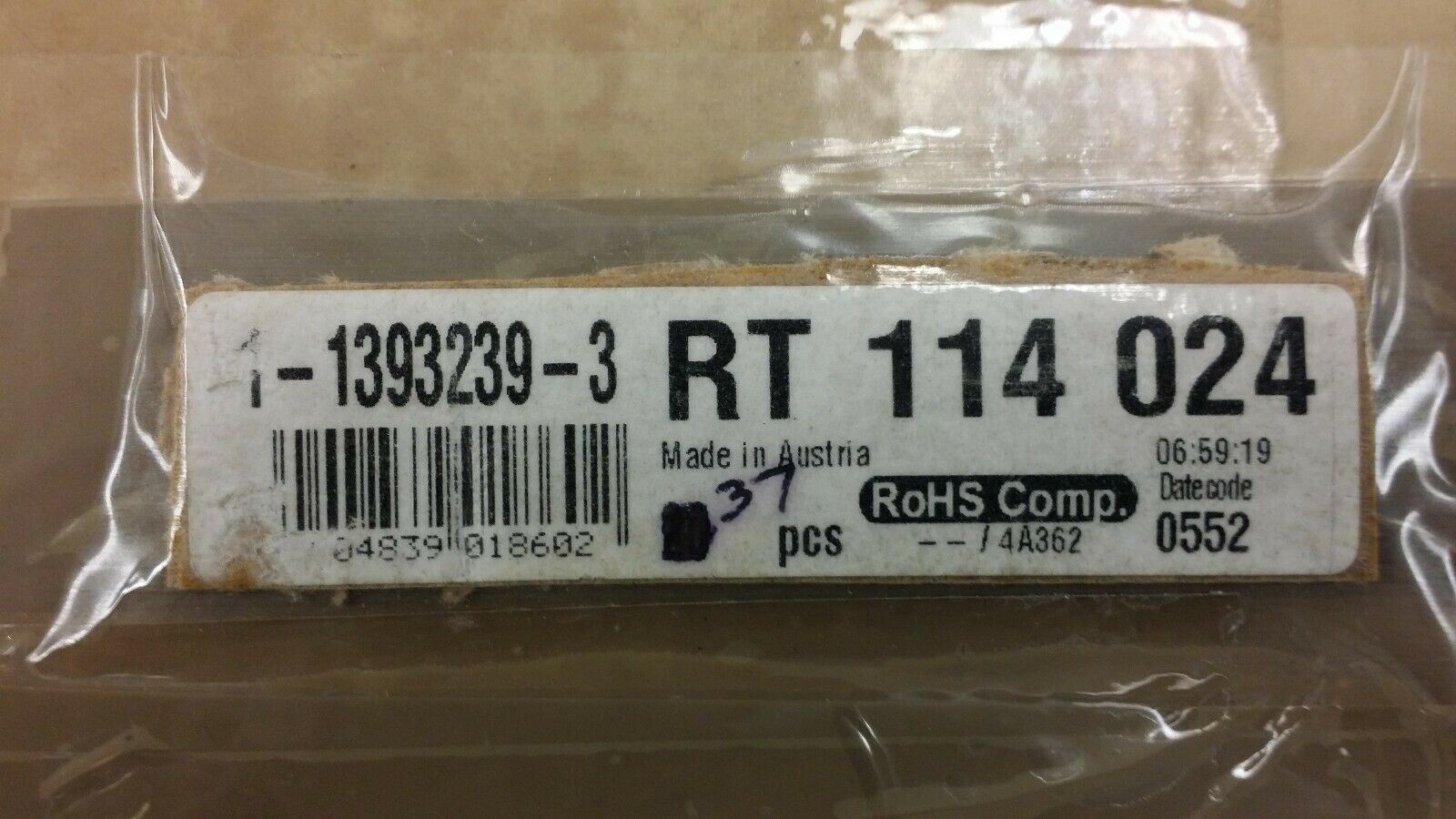

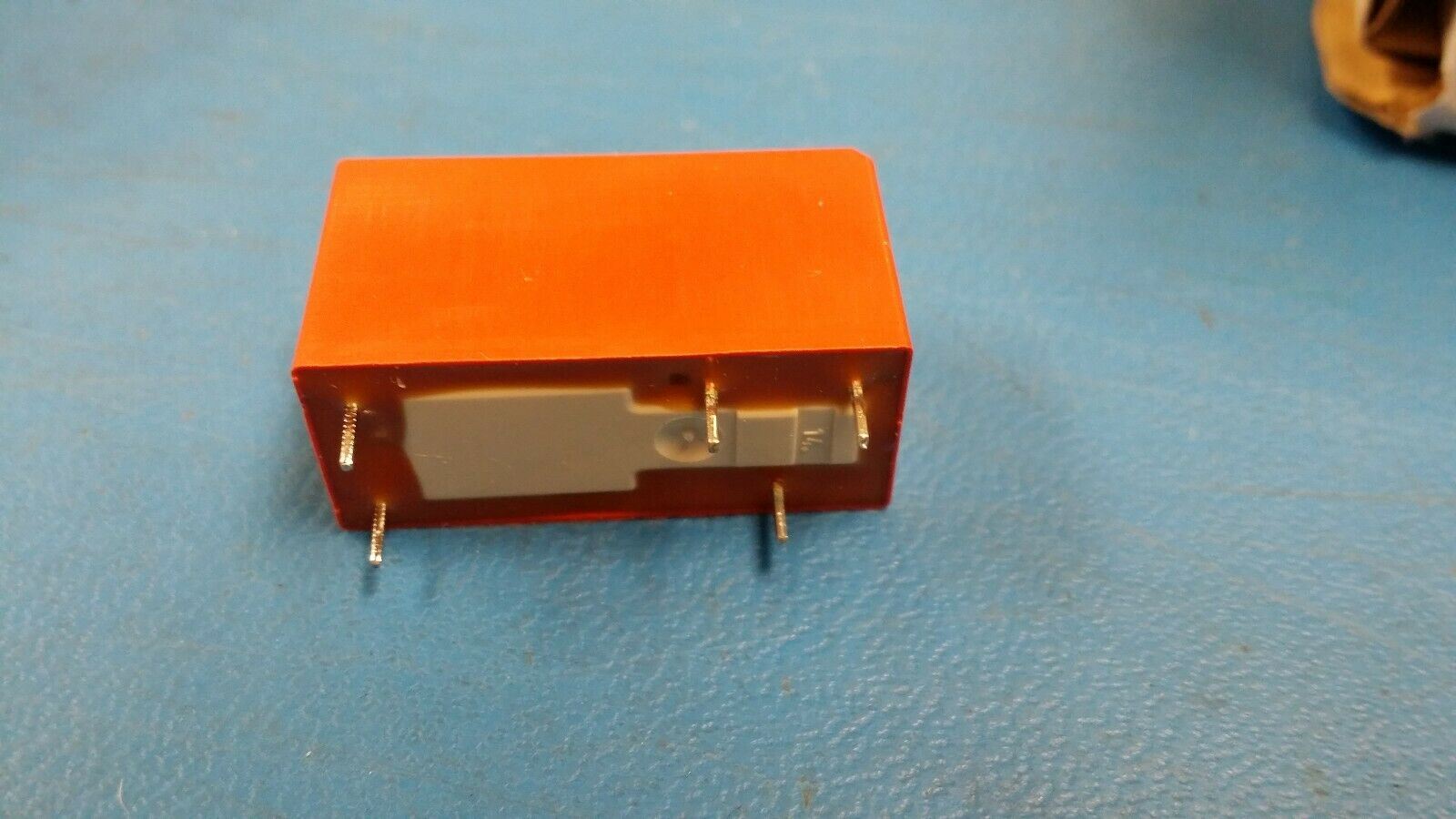

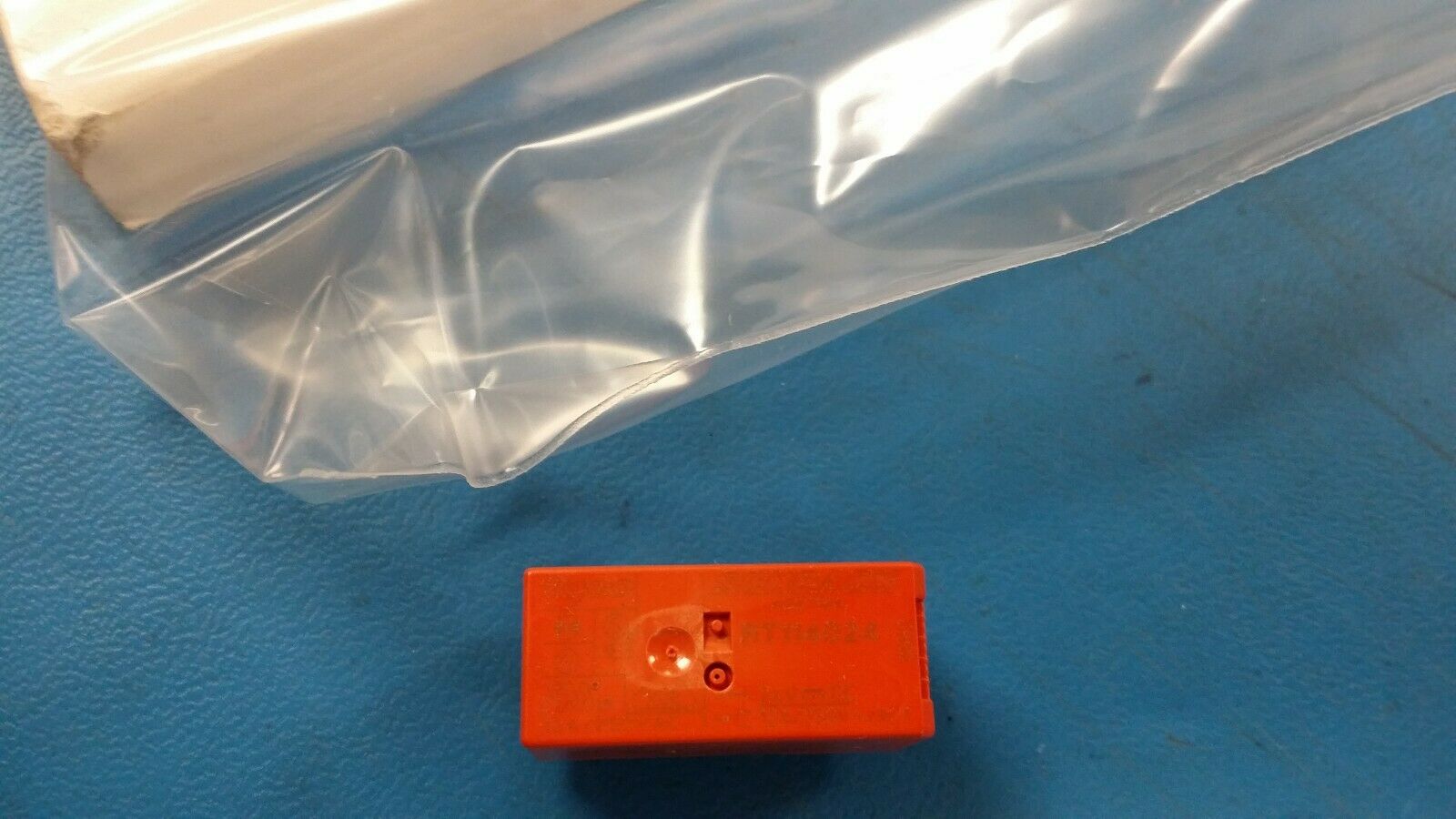

(1) 1-1393239-3 TYCO RT114024 Power Relay 24VDC 12A 1.44KOhm SPDT 29x12.7x15.7mm
Tax included.
THIS LISTING IS FOR (1 PC) OF 1-1393239-3 BY TYCO
Power Relay 24VDC 12A 1.44KOhm SPDT 29x12.7x15.7mm ROHS
| Mounting Type | Through Hole | |
|---|---|---|
| Coil Voltage | 24VDC | |
| Contact Form | SPDT (1 Form C) | |
| Contact Rating (Current) | 12A | |
| Switching Voltage | 400VAC - Max | |
| Coil Current | 16.7mA | |
| Coil Type | Non Latching | |
| Features | Insulation - Class F, Sealed - Flux Protection | |
| Termination Style | PC Pin | |
| Turn On Voltage (Max) | 16.8 VDC | |
| Turn Off Voltage (Min) | 2.4 VDC | |
| Operate Time | 8ms | |
| Release Time | 6ms | |
| Operating Temperature | -40°C ~ 85°C | |
| Contact Material | Silver Nickel (AgNi) | |
| Relay Type | General Purpose | |
| Coil Power | 400mW | |
| Coil Resistance | 1.44 kOhms |
