(25) NTP227M10TRD(40)F NIC Cap Tant Polymer 220uF 10VDC D CASE 20% 0.04Ohm 105°C
Tax included.

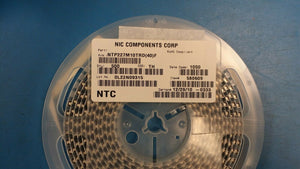

THIS LISTING IS FOR (25 PCS) OF NTP227M10TRD(40)F BY NIC
Cap Tant Polymer 220uF 10VDC D CASE 20% 0.04Ohm 105°C
Specifications
Category: Tantalum-Polymer
Manufacturer: NIC
Operating Temp Range: -55C to 105C
Rad Hardened: No
Failure Rate: Not Required
Case Code: D
Construction: SMT Chip
Voltage: 10VDC
Capacitance: 220000000(pF)
Tolerance (+ or -): 20%
DCL: 3(uA)
DF: 10%
ESR: 0.025(ohm)
Lead Spacing (nom): Not Required mm
Wire Form: Not Required
Mounting Style: Surface Mount
Packaging : Tape and Reel
Seal: Not Required
Polarity: Polar
Length W/Weld: Not Required(mm)
Insulation: Not Required
Package / Case: 7343
Product Length (mm): 7.3(mm)
Product Depth (mm): 4.3(mm)
Product Height (mm): 2.8(mm)
Case Style: Molded
Seated Plane Height: Not Required mm
Product Diameter (mm): Not Required(mm)
Operating Temperature Max Deg. C: 105C
Fail Safe with Built-In Fuse: NO
Operating Temperature Min Deg. C: -55C
Lead Diameter (nom): Not Required(mm)
Termination Style: Not Required
