(1 PC) SN74S409N MMI 1MX16, DRAM CONTROLLER, PDIP48
Tax included.

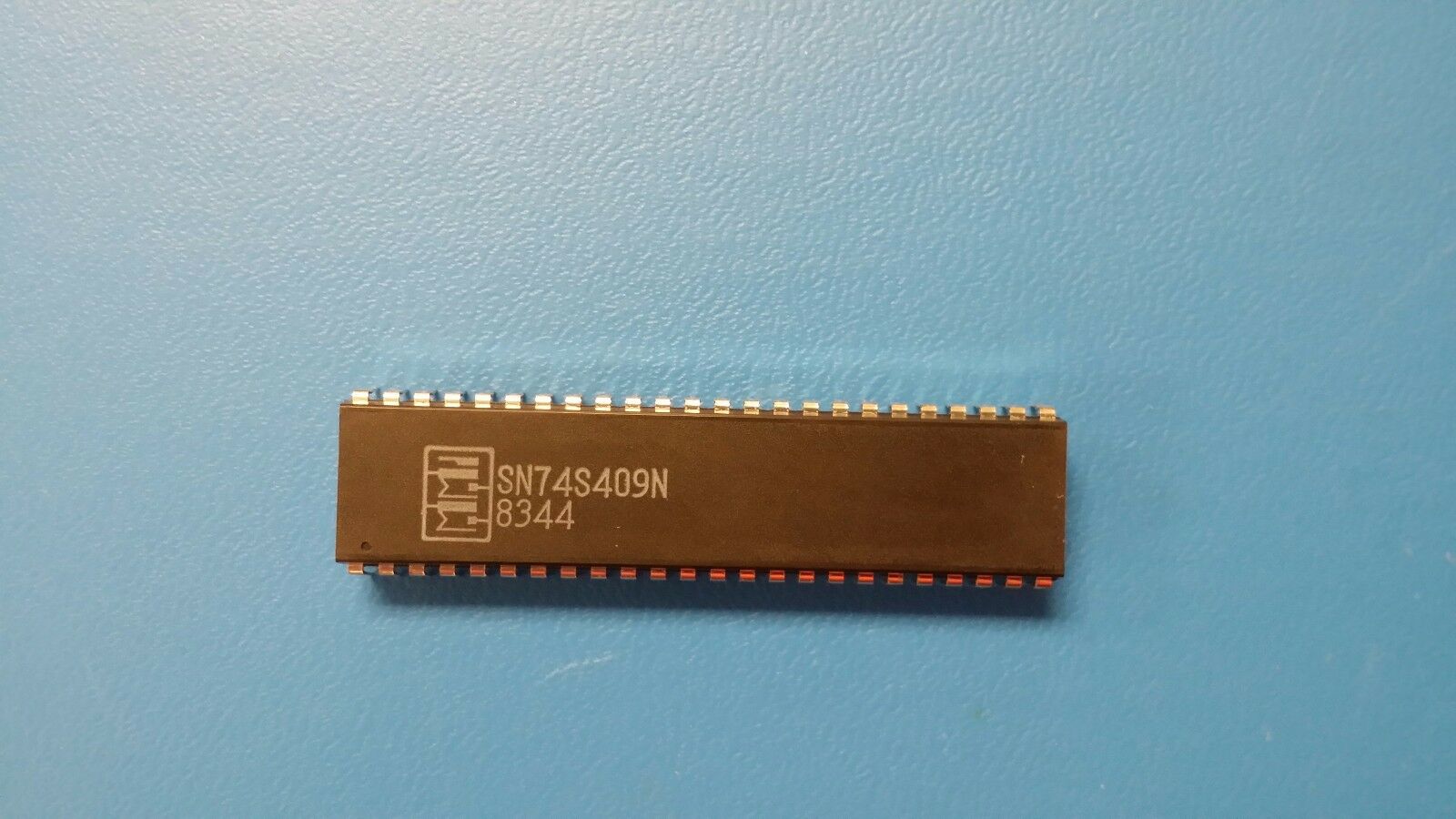

THIS LISTING IS FOR (1 PC) OF SN74S409N BY MMI
1MX16, DRAM CONTROLLER, PDIP48
Part #: SN74S409N
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Monolithic Memories Inc.
Description: 1MX16, DRAM CONTROLLER, PDIP48
Manufacturer: Monolithic Memories Inc.
Description: 1MX16, DRAM CONTROLLER, PDIP48
| Mfr Package Description | PLASTIC, DIP-48 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Microprocessor/Microcontroller/Peripheral IC Type | MEMORY CONTROLLER, DRAM |
| Address Bus Width | 18.0 |
| Boundary Scan | NO |
| External Data Bus Width | 0.0 |
| JESD-30 Code | R-PDIP-T48 |
| JESD-609 Code | e0 |
| Low Power Mode | NO |
| Memory Organization | 1M X 16 |
| Number of Banks | 4.0 |
| Number of Terminals | 48 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP48,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.715 mm |
| Sub Category | Memory Controllers |
| Supply Current-Max | 325.0 mA |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 61.849 mm |
| Width | 15.24 mm |
