MF-SM100-2 Resettable Fuses - PPTC 30Volts 80Amps Hold 1.1A Trip 2.2A
Tax included.

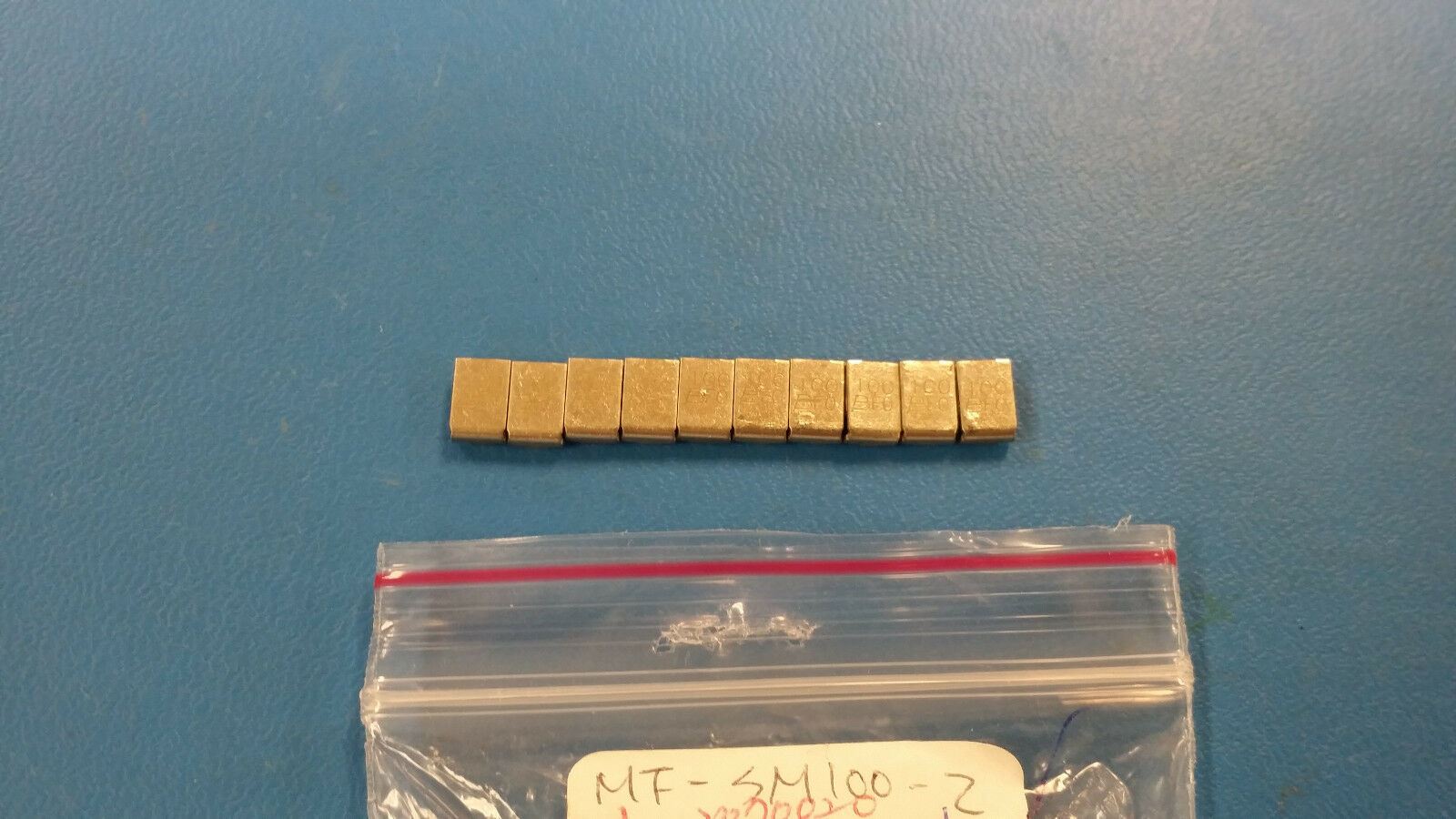

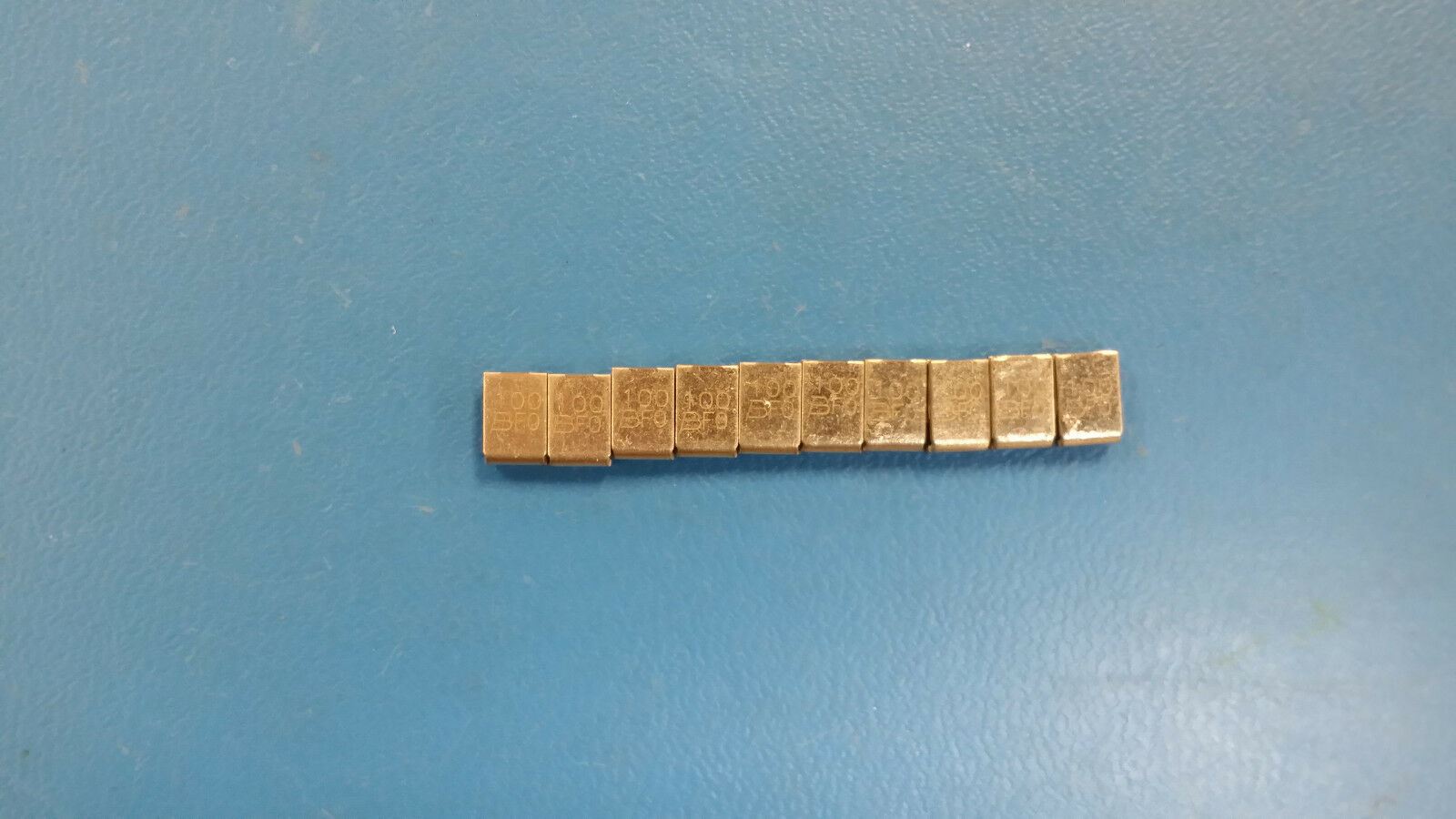

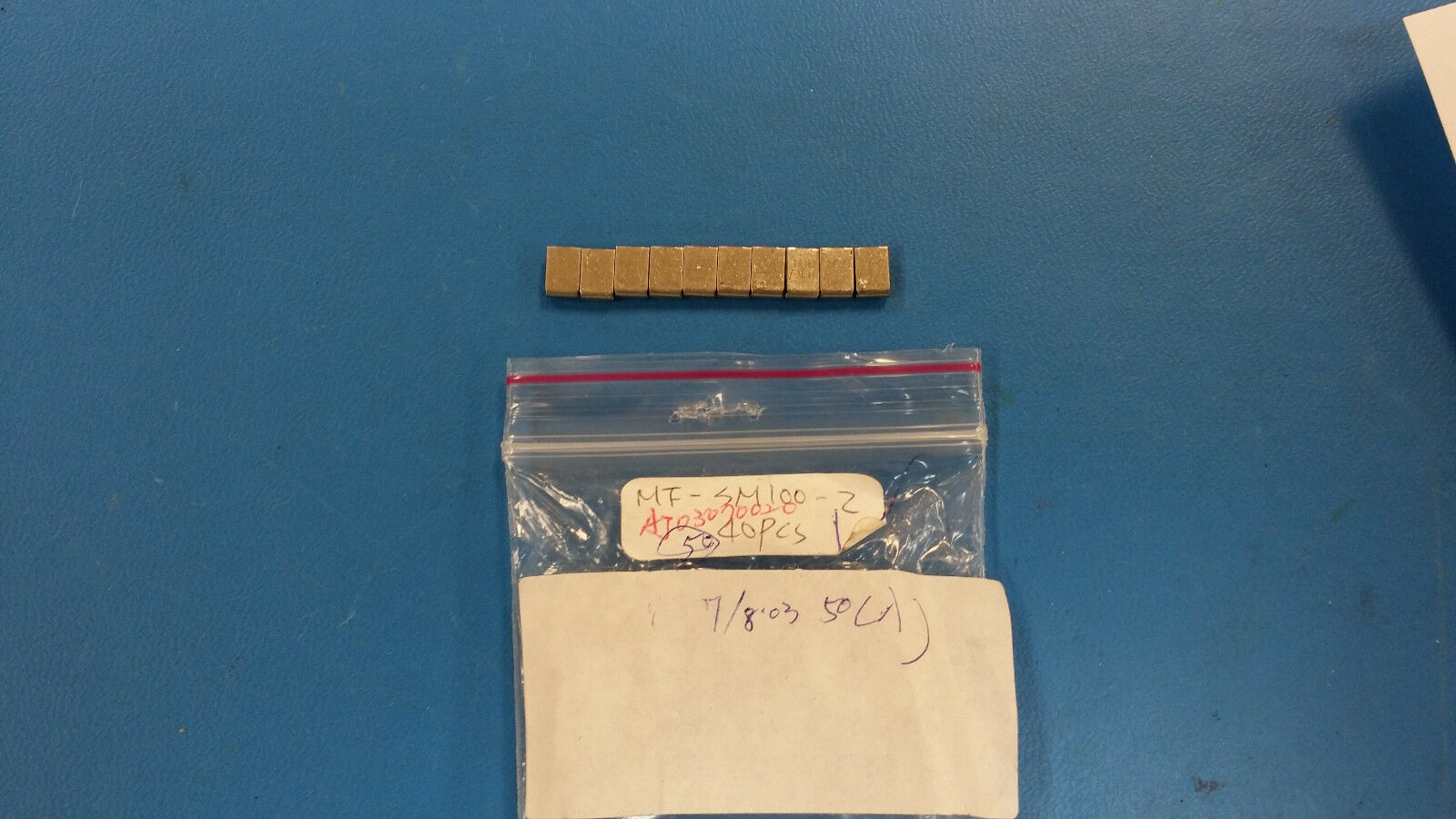

THIS LISTING IS FOR (10 PCS) OF MF-SM100-2 BY BOURNS
Resettable Fuses - PPTC 30Volts 80Amps Hold 1.1A Trip 2.2A
Resettable Fuses - PPTC 30Volts 80Amps Hold 1.1A Trip 2.2A
MF-SM100-2 Part Details & Parametric
| Maximum Voltage Rating | 30V |
| Typical Power Dissipation (W) | 1.7 |
| Hold Current (A) | 1.1 |
| Trip Current (A) | 2.2 |
| Maximum Post Trip Resistance (Ohm) | 0.48 |
| Maximum Current Rating (A) | 80 |
| Application | Automotive Applications|Computers and Peripherals|General Electronics |
| Mounting | Surface Mount |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Initial Resistance (Ohm) | 0.12 |
| Number of Terminals | 2 |
| Maximum Trip Time (s) | 0.5@8A |
| Product Depth (mm) | 5.44(Max) |
| Product Height (mm) | 3(Max) |
| Agency Approvals | CSA/TUV/UL |
| Packaging | Tape and Reel |
| Product Length (mm) | 7.98(Max) |
| Package/Case | SMD |
