(5 PC) MMA3204DR2 FREESCALE SPECIALTY ANALOG CIRCUIT, SOIC20 DISCONTINUED
Tax included.

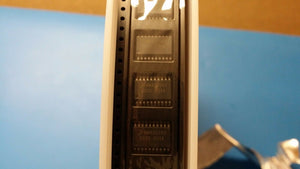

THIS LISTING IS FOR (1 PC) OF MMA3204DR2 BY FREESCALE
SPECIALTY ANALOG CIRCUIT, SOIC20 DISCONTINUED
Part #: MMA3204D
Part Category: Other Semiconductors
Manufacturer: Freescale Semiconductor, Inc.
Description: SPECIALTY ANALOG CIRCUIT, SOIC20
Mfr Package Description SOIC-20
REACH Compliant Yes
Status Discontinued
Analog IC - Other Type ANALOG CIRCUIT
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 245
Power Supplies (V) 5
Qualification Status Not Qualified
Seated Height-Max 3.56 mm
Sub Category Other Analog ICs
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 12.815 mm
Width 7.5 mm
