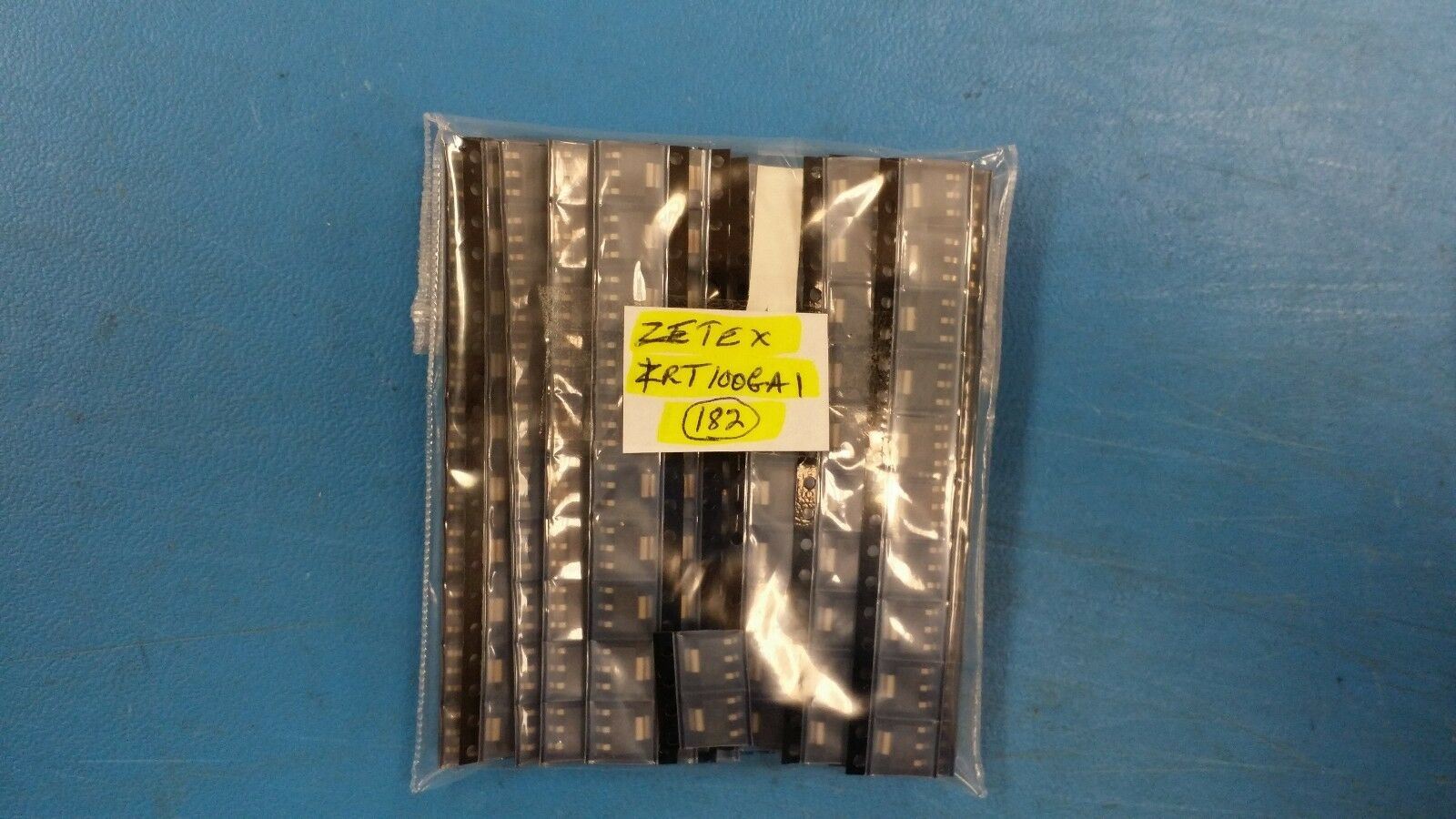

(10 PCS) ZRT100GA1 ZETEX V-Ref Precision 9.8V 30mA 4-Pin(3+Tab) SOT-223

DESCRIPTION The ZRT100 is a monolithic integrated circuit providing a precise stable reference voltage of 9.8V at 500µA. The circuit features a knee current of 150µA and operation over a wide range of temperatures and currents. The ZRT100 is available in a SOT223 package for surface mount applications. This device offers a trim facility whereby the output voltage can be adjusted as shown in Fig.1. This facility is used when compensating for system errors or setting the reference output to a particular value. When the trim facility is not used, the pin should be left open circuit.

FEATURES • Trimmable output • Excellent temperature stability • Low output noise figure • Available in two temperature ranges • 1 and 2% initial voltage tolerance versions available • No external stabilising capacitor required in most cases • Low slope resistance • SOT223 small outline package
