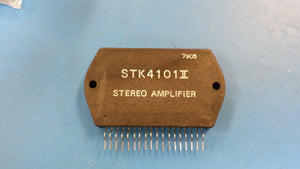

(1 PC) STK4101 SANYO Dual-Channel Audio Power-Output Amplifier(EQUAL NTE-1874)
Tax included.
THIS LISTING IS FOR (1 PC) OF SANYO STK4101 (EQUIVALENT TO NTE-1874)
Dual-Channel Audio Power-Output Amplifier
NTE1874
Integrated Circuit
Module, Dual AF PO, 30W/Ch
Dual Power Supply
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Supply Voltage, VCC max . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30.5V
Thermal Resistance, Junction−to−Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6°C/W
Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Operating Case Temperature, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −30° to +125°C
Available Time for Load Shorted (VCC = ±26V, RL = 8Ω, f = 50Hz, PO = 25W), ts . . . . . . . . . . . 2sec
Recommended Operating Conditions: (TA = +25°C unless otherwise specified)
Recommended Operating Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20V
Load Resistance, RL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Ω
Operating Characteristics: (TA = +25°C, Rg = 600Ω, VG = 40dB, RL: Non−Inductive Load)
Parameter Symbol Test Conditions Min Typ Max Unit
Output Current PO 15 − − W
Total Harmonic Distortion THD − − 0.3 %
Distortion Frequency Characteristic
fL, fH 20 to 50k Hz
Input Impedance ri − 55k − Ω
Output Noise Voltage VNO − − 1.2 mVrms
Quiescent Current ICCO − 100 − mA
Middle Point Voltage VN −70 to +70 mV
Muting Voltage VM − −5 − V
Dual-Channel Audio Power-Output Amplifier
NTE1874
Integrated Circuit
Module, Dual AF PO, 30W/Ch
Dual Power Supply
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Supply Voltage, VCC max . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30.5V
Thermal Resistance, Junction−to−Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6°C/W
Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Operating Case Temperature, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −30° to +125°C
Available Time for Load Shorted (VCC = ±26V, RL = 8Ω, f = 50Hz, PO = 25W), ts . . . . . . . . . . . 2sec
Recommended Operating Conditions: (TA = +25°C unless otherwise specified)
Recommended Operating Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20V
Load Resistance, RL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Ω
Operating Characteristics: (TA = +25°C, Rg = 600Ω, VG = 40dB, RL: Non−Inductive Load)
Parameter Symbol Test Conditions Min Typ Max Unit
Output Current PO 15 − − W
Total Harmonic Distortion THD − − 0.3 %
Distortion Frequency Characteristic
fL, fH 20 to 50k Hz
Input Impedance ri − 55k − Ω
Output Noise Voltage VNO − − 1.2 mVrms
Quiescent Current ICCO − 100 − mA
Middle Point Voltage VN −70 to +70 mV
Muting Voltage VM − −5 − V
