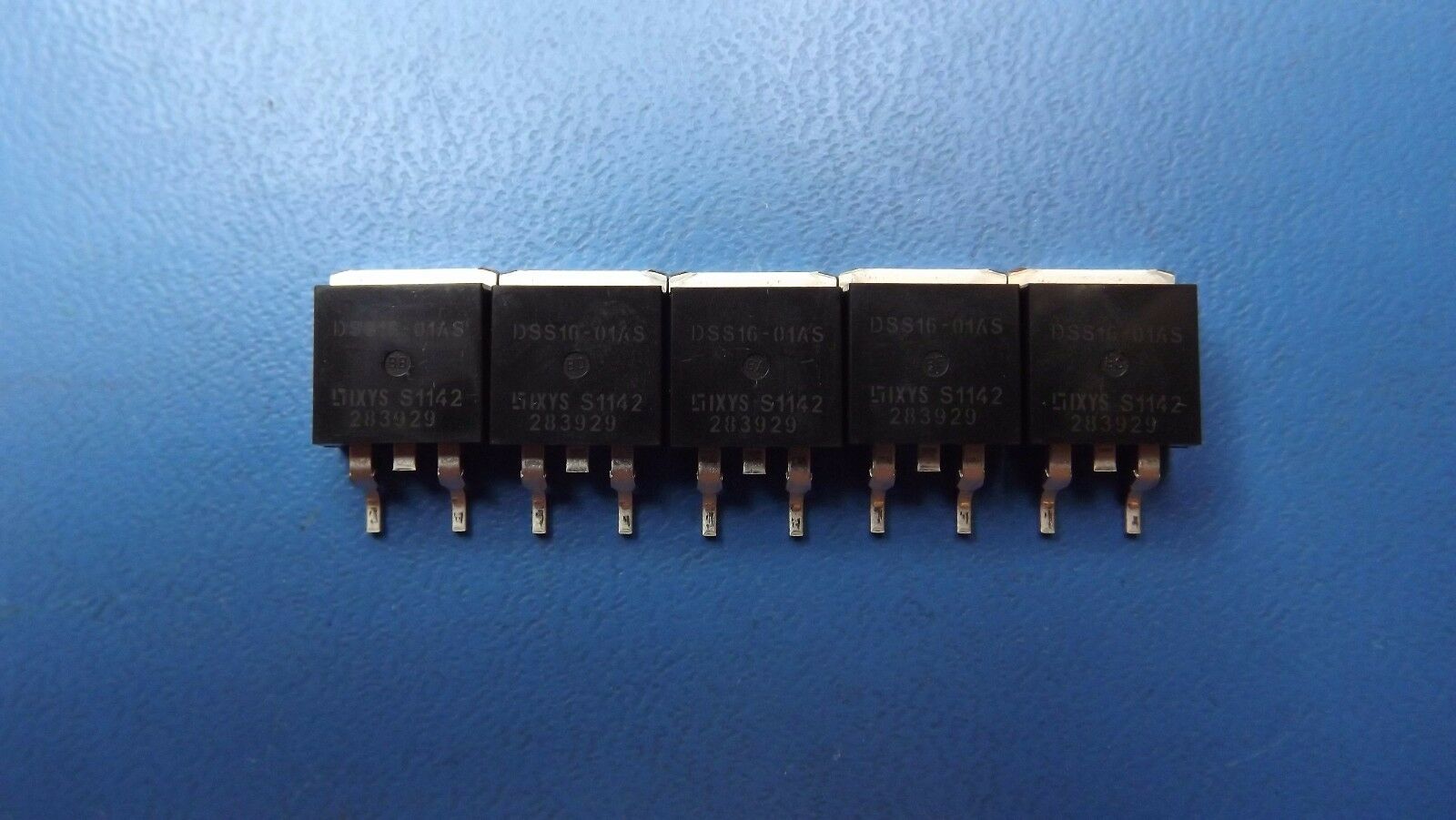

(5PCS) DSS16-01AS IXYS DIODE SCHOTTKY 100V 16A TO263AB
Tax included.
THIS LISTING IS FOR (5PCS) OF DSS16-01AS BY IXYS
SPECIFICATIONS
| Mfr Package Description | TO-263AB, 3 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | RECTIFIER DIODE |
| Application | GENERAL PURPOSE |
| Case Connection | CATHODE |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Forward Voltage-Max (VF) | 0.77 V |
| JEDEC-95 Code | TO-263AB |
| JESD-30 Code | R-PSSO-G2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | NOT SPECIFIED |
| Non-rep Pk Forward Current-Max | 230.0 A |
| Number of Elements | 1.0 |
| Number of Phases | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 175.0 Cel |
| Output Current-Max | 16.0 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Dissipation-Max | 75.0 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 100.0 V |
| Sub Category | Rectifier Diodes |
| Surface Mount | YES |
| Technology | SCHOTTKY |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Additional Feature | HIGH RELIABILITY, LOW NOISE, FREE WHEELING DIODE |
