(1PC) ADS774KP BB1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC PARALLEL ACCESS PDIP28
Tax included.

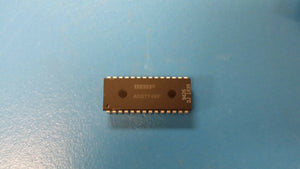

THIS LISTING IS FOR (1PC) OF ADS774KP BY BURR BROWN
1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC PARALLEL ACCESS PDIP28
(ADS774KP 50PCS, ADS774KP-2 2PCS, ADS774KP-3 4PCS)
| Mfr Package Description | 0.600 INCH, PLASTIC, DIP-28 |
| Status | Transferred |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION |
| Analog Input Voltage-Min | -10.0 V |
| Analog Input Voltage-Max | 10.0 V |
| Conversion Time-Max | 8.5 µs |
| JESD-30 Code | R-PDIP-T28 |
| JESD-609 Code | e0 |
| Linearity Error-Max (EL) | 0.0122 % |
| Negative Supply Voltage-Nom | -15.0 V |
| Number of Analog In Channels | 1.0 |
| Number of Bits | 12 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Bit Code | BINARY, OFFSET BINARY |
| Output Format | PARALLEL, WORD |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP28,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supplies (V) | 5,5/-15 |
| Qualification Status | Not Qualified |
| Sample-and-Hold/Track-and-Hold | SAMPLE |
| Sample Rate | 0.117 MHz |
| Sub Category | Analog to Digital Converters |
| Supply Current-Max | 24.0 mA |
| Supply Voltage-Nom | 5.0 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
