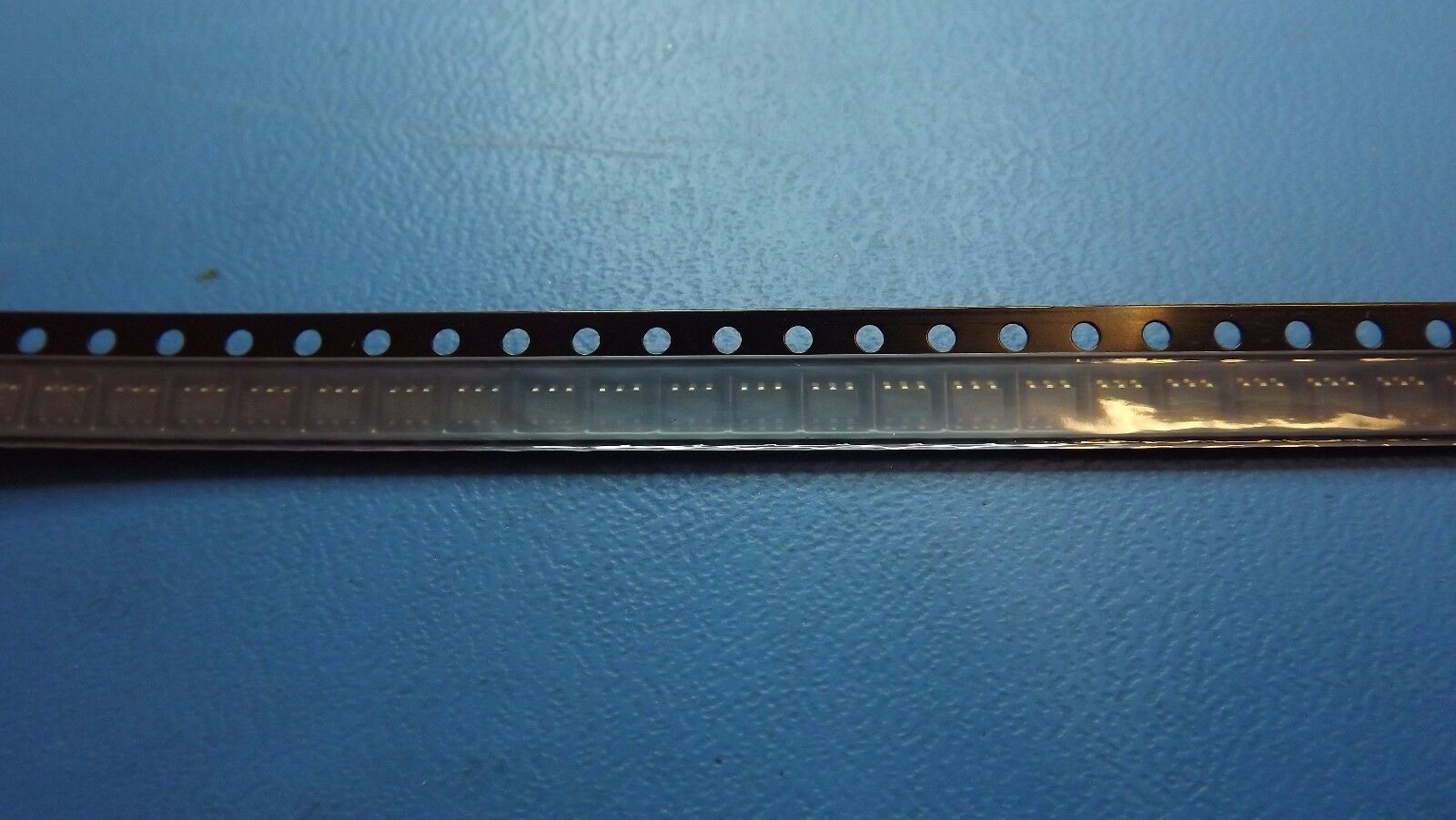

(5PCS) ADP3330ART-3 ANALOD DEVICES LDO Regulator Pos 3V 0.3A 6-Pin SOT-23
Tax included.

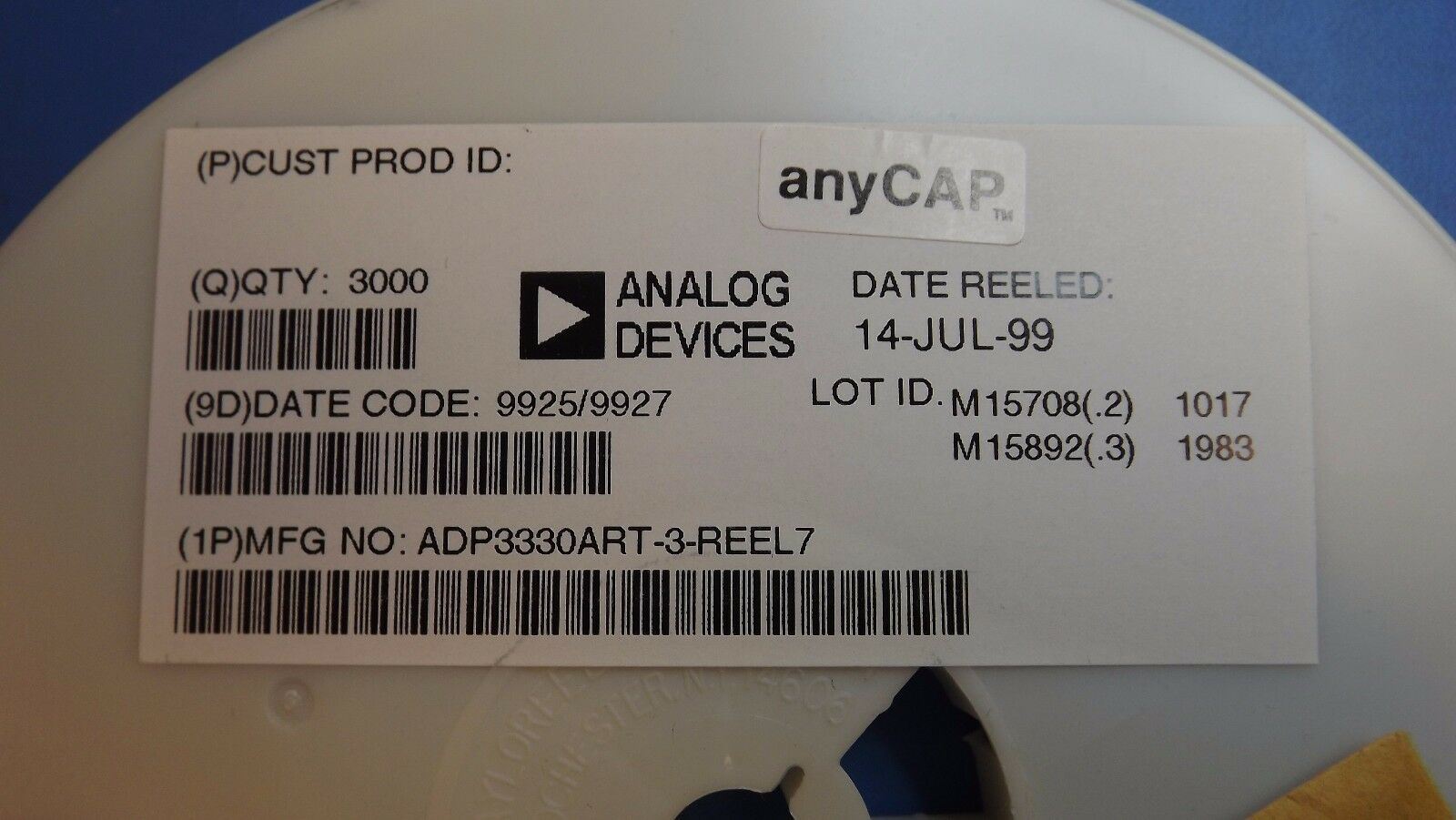

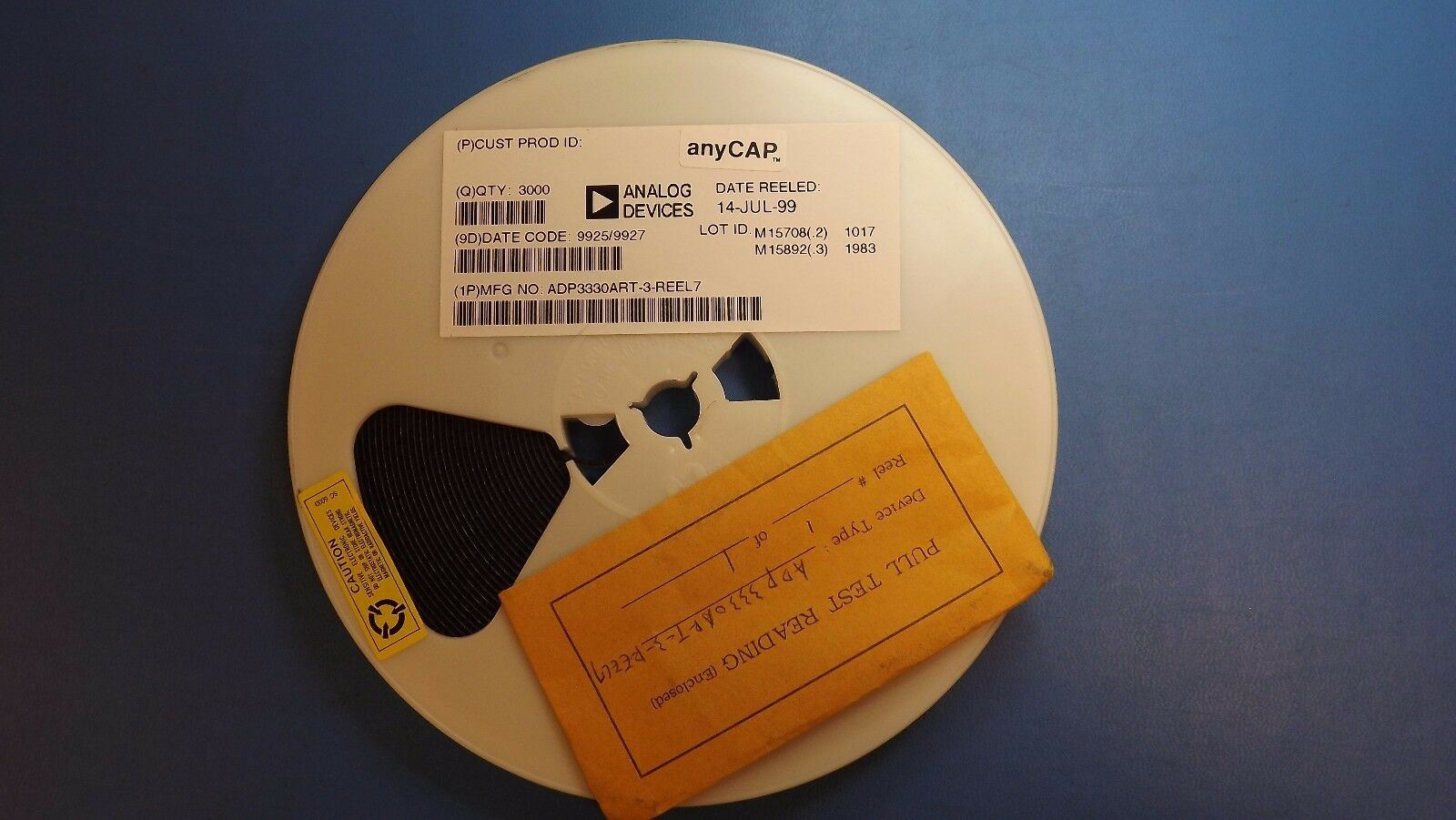

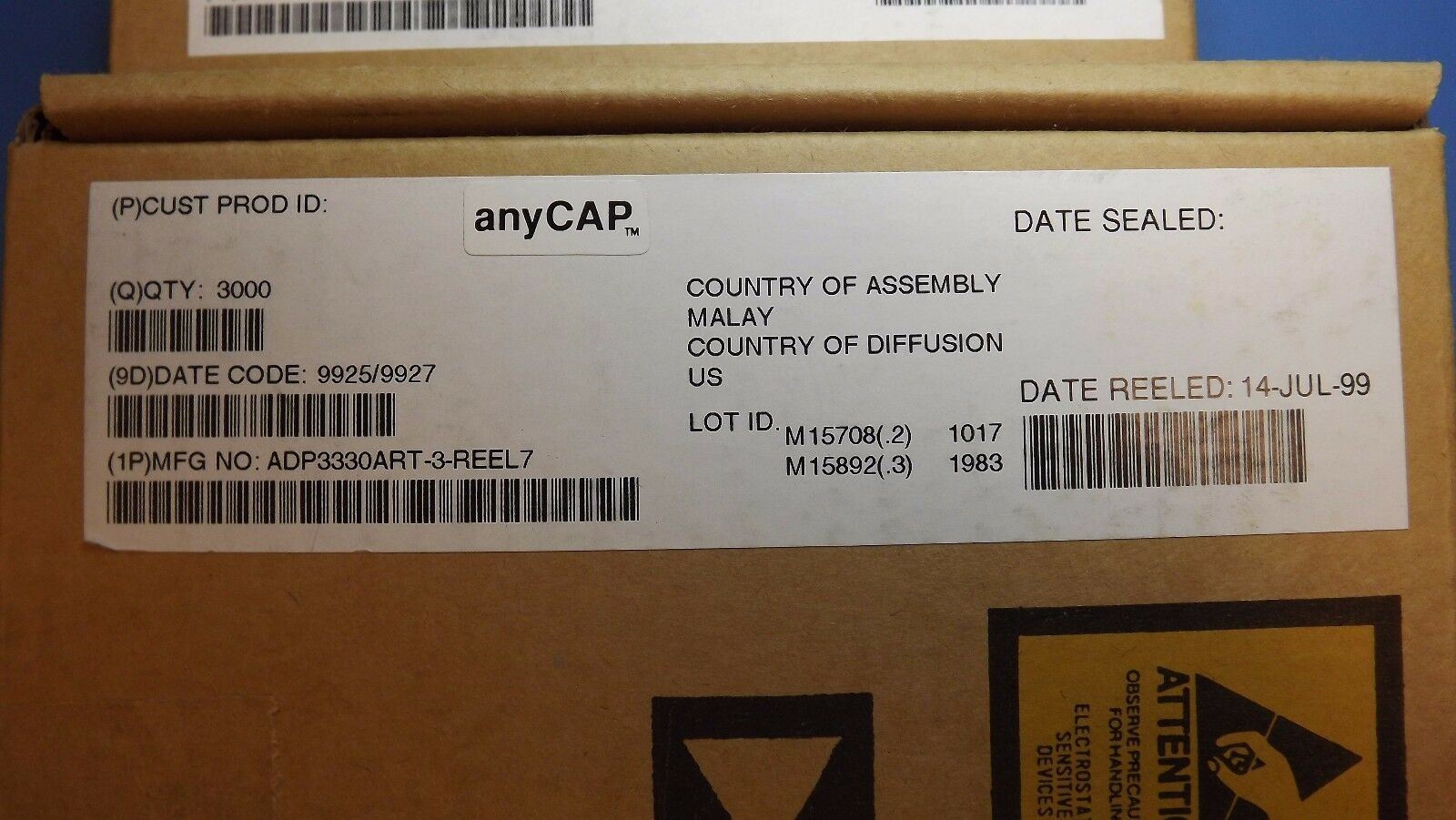

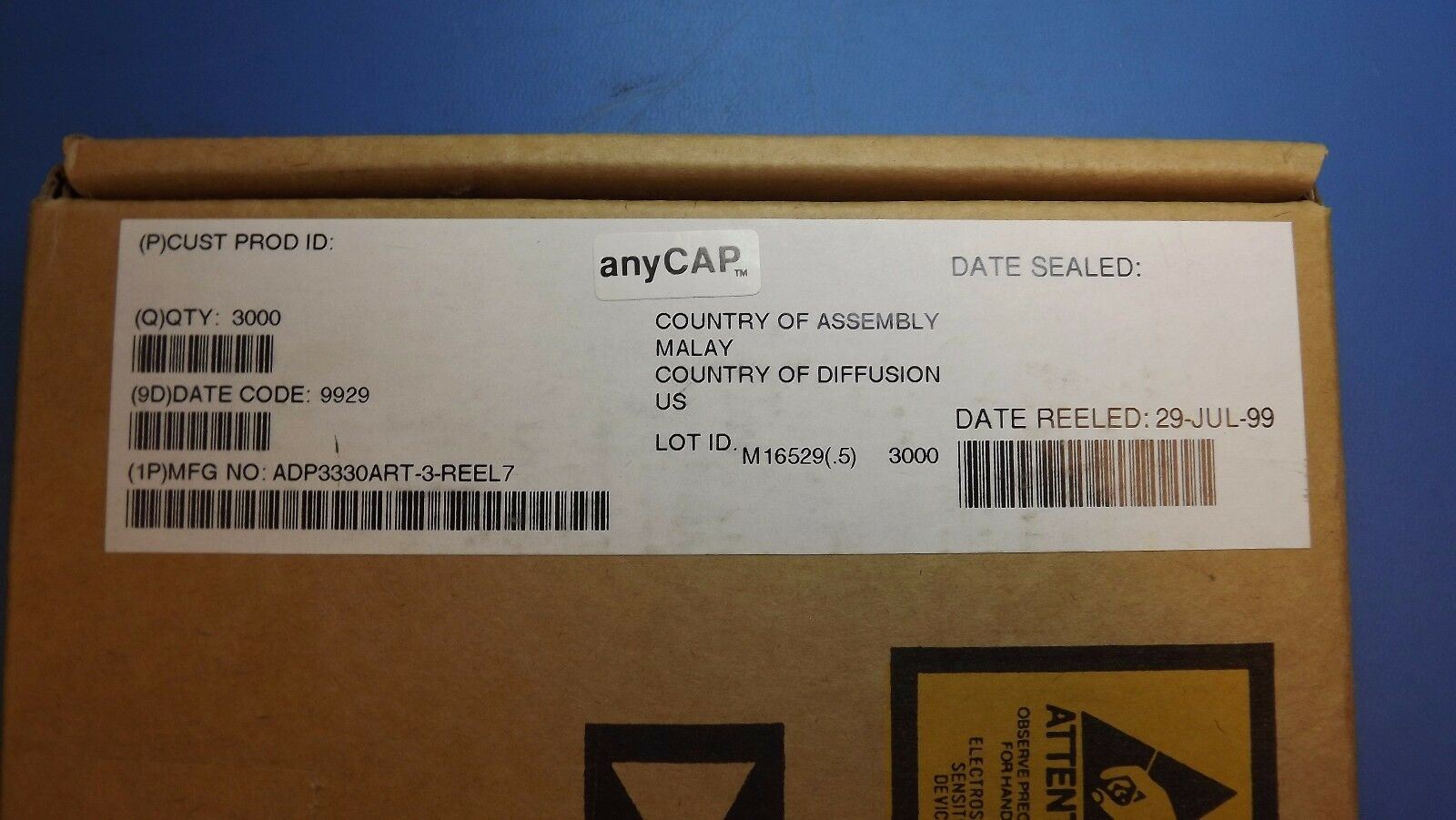

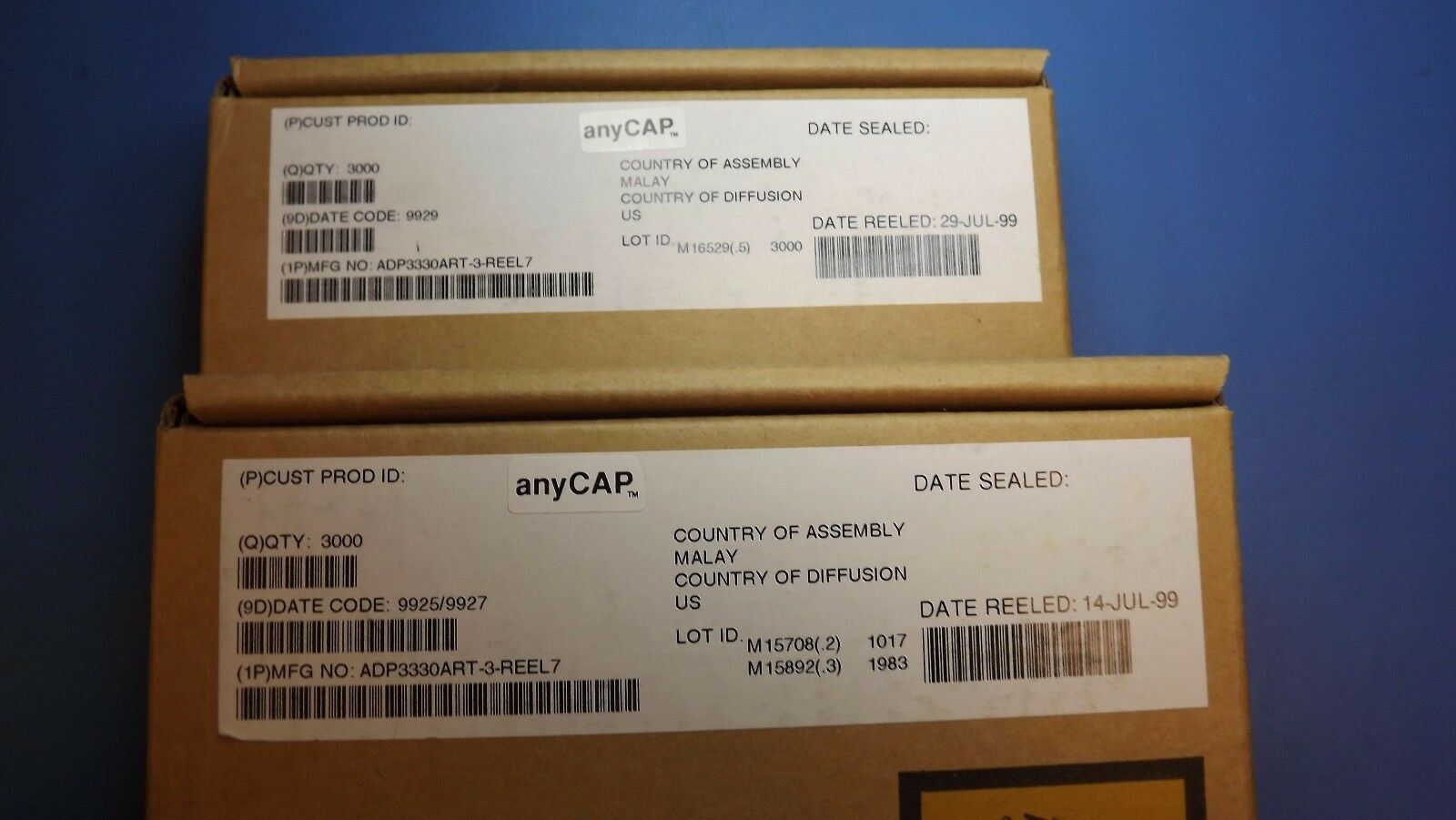

THIS LISTING IS FOR (5PCS) OF ADP3330ART-3 BY ANALOG DEVICES
**WE CURRENTLY HAVE 15000PCS IN STOCK AND WILL GLADLY MAKE DEALS ON LARGER QUANTITIES. PLEASE SEND OFFERS OR INQUIRIES.**
SPECIFICATIONS
| Mfr Package Description | SOT-23, 6 PIN |
| REACH Compliant | Yes |
| Status | Discontinued |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Adjustability | FIXED |
| Dropout Voltage1-Nom | 0.14 V |
| Dropout Voltage1-Max | 0.23 V |
| Input Voltage Absolute-Max | 16.0 V |
| Input Voltage-Min | 3.25 V |
| Input Voltage-Max | 12.0 V |
| JESD-30 Code | R-PDSO-G6 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 6 |
| Operating Temperature, TJ-Min | -40.0 Cel |
| Operating Temperature, TJ-Max | 125.0 Cel |
| Output Current1-Max | 0.2 A |
| Output Voltage1-Nom | 3.0 V |
| Output Voltage1-Min | 2.958 V |
| Output Voltage1-Max | 3.042 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LSSOP |
| Package Equivalence Code | TSOP6,.11,37 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 220 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.45 mm |
| Sub Category | Other Regulators |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.95 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Voltage Tolerance-Max | 1.0 % |
| Length | 2.9 mm |
| Width | 1.65 mm |
