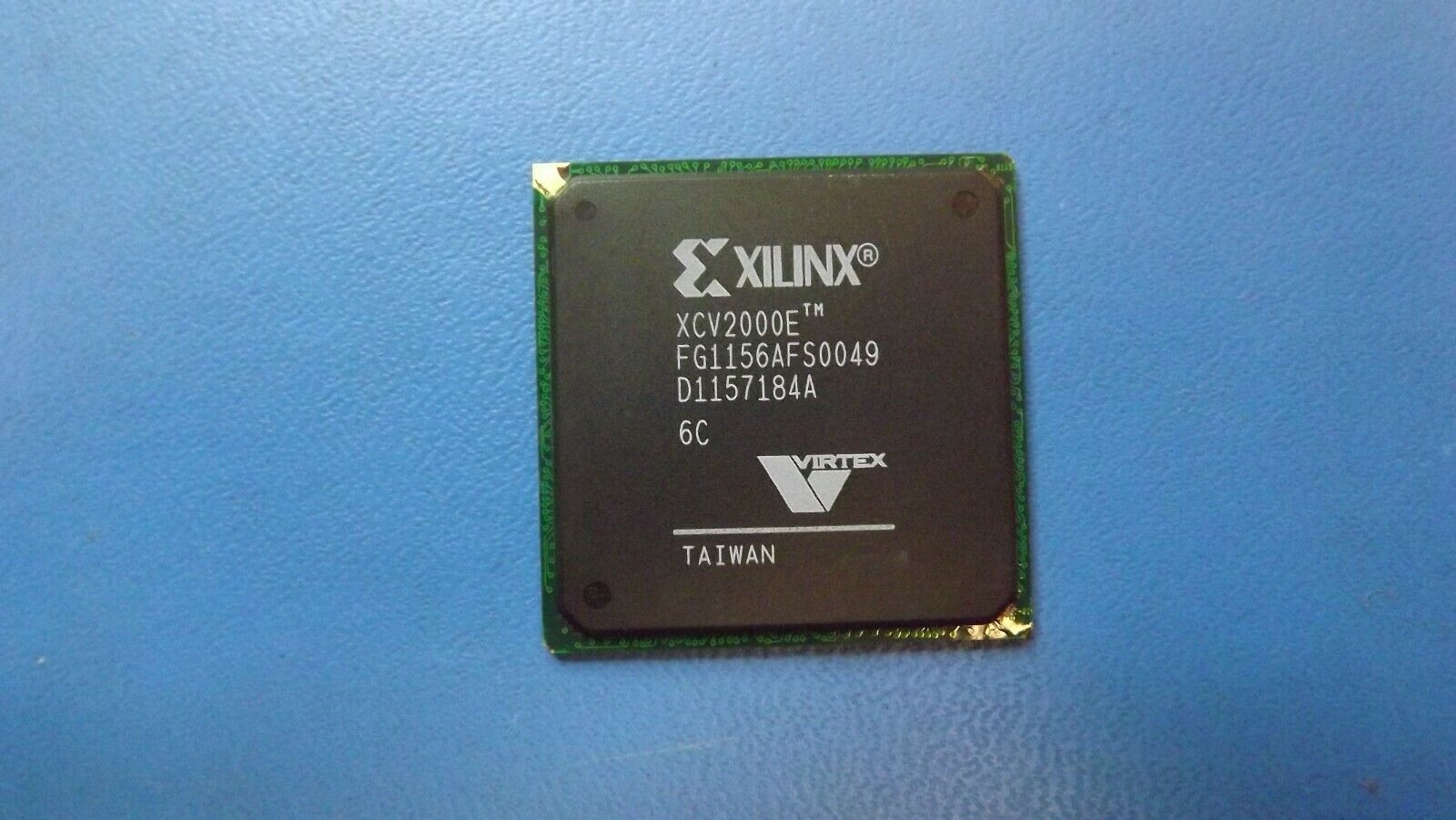

(1PC) XCV2000E-6FG1156C XILINX IC FPGA 804 I/O 1156FBGA
Tax included.
THIS LISTING IS FOR (1PC) OF XCV2000E-6FG1156C BY XILINX
SPECIFICATIONS
| Mfr Package Description | FBGA-1156 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY |
| Clock Frequency-Max | 357.0 MHz |
| Combinatorial Delay of a CLB-Max | 0.47 ns |
| JESD-30 Code | S-PBGA-B1156 |
| JESD-609 Code | e0 |
| Number of CLBs | 9600.0 |
| Number of Equivalent Gates | 518400.0 |
| Number of Inputs | 804.0 |
| Number of Logic Cells | 43200.0 |
| Number of Outputs | 804.0 |
| Number of Terminals | 1156 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Organization | 9600 CLBS, 518400 GATES |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | BGA |
| Package Equivalence Code | BGA1156,34X34,40 |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 1.2/3.6,1.8 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.6 mm |
| Sub Category | Field Programmable Gate Arrays |
| Supply Voltage-Nom | 1.8 V |
| Supply Voltage-Min | 1.71 V |
| Supply Voltage-Max | 1.89 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | OTHER |
| Terminal Finish | TIN LEAD |
| Terminal Form | BALL |
| Terminal Pitch | 1.0 mm |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 35.0 mm |
| Width | 35.0 mm |
